Description

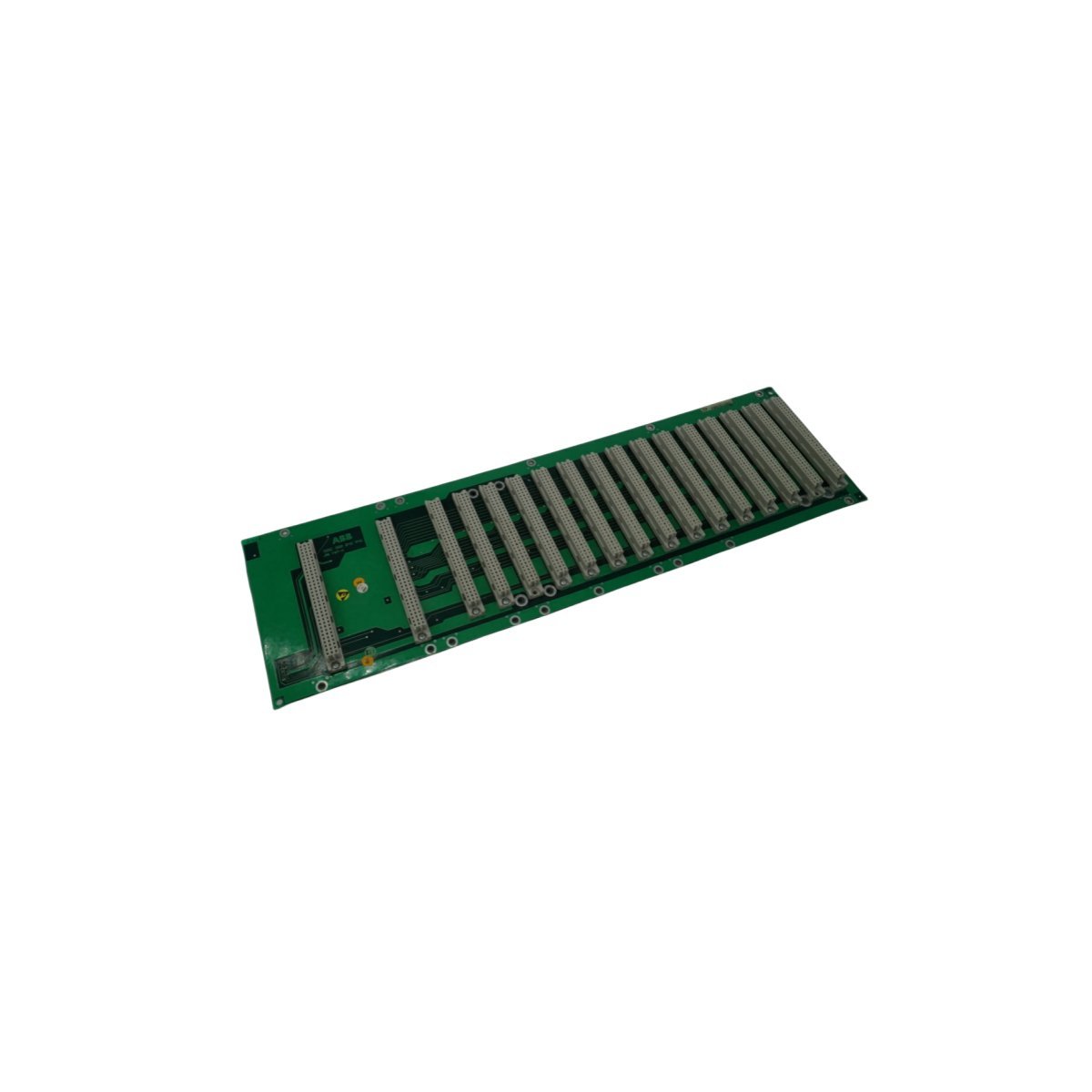

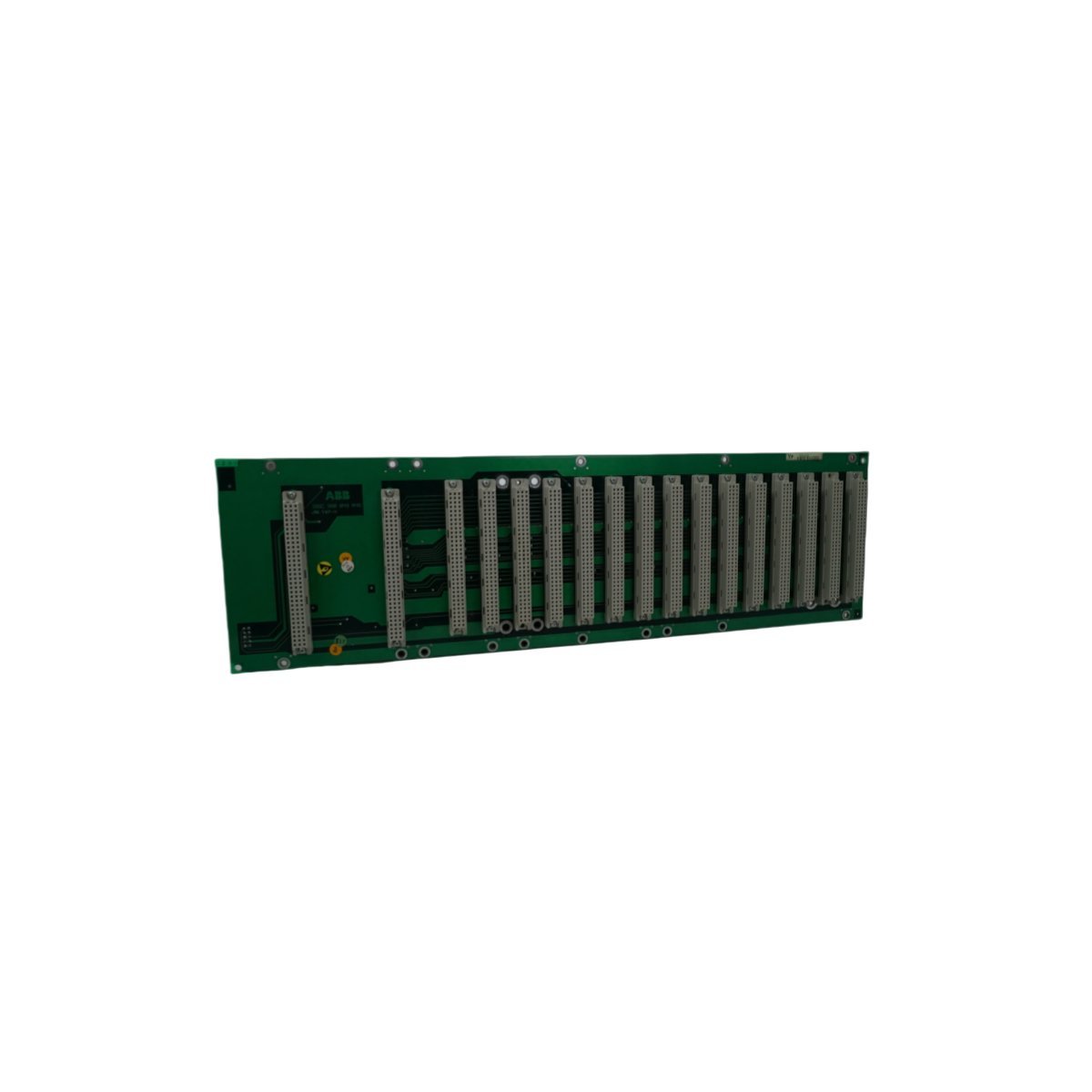

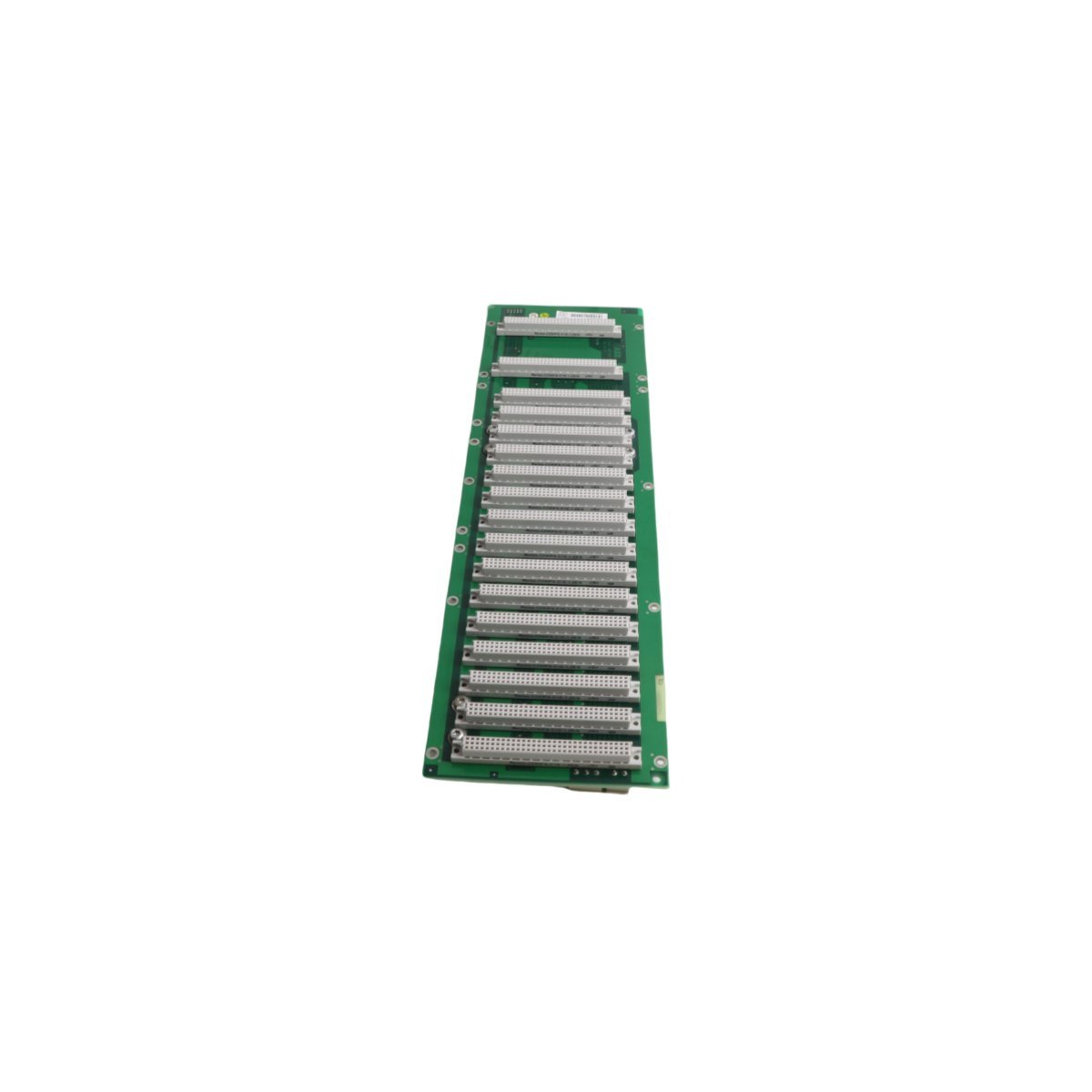

The ABB 3B174, identified by part number 3BSE003879R1, functions as a high-performance bus extender for S100 I/O systems. This communication interface bridges the gap between the central controller and remote I/O racks. It maintains signal integrity over extended distances within a distributed control system (DCS). Consequently, engineers can expand their automation footprint without sacrificing data transmission speeds. This module ensures that peripheral inputs and outputs remain synchronized with the core processing unit.

Key Technical Specifications

Efficient Data Exchange and System Scalability

The 3BSE003879R1 interface board facilitates rapid industrial exchange across the S100 bus architecture. It handles complex data packets to ensure real-time monitoring of field devices. Because the module supports high-speed processing, it eliminates communication bottlenecks in large-scale networks. This efficiency is vital for industries requiring millisecond-level response times. Furthermore, the hardware allows for seamless scaling as plant requirements grow. Operators can add new I/O clusters to the existing infrastructure with minimal configuration changes.

Industrial Reliability and Diagnostic Support

ABB designed the 3B174 to withstand the rigorous conditions of energy and manufacturing sectors. The robust circuit board layout resists electromagnetic interference in high-voltage environments. Additionally, the module features advanced diagnostic capabilities to improve system uptime. These tools help maintenance teams pinpoint communication faults quickly. This proactive approach prevents minor signal errors from escalating into total system failures. The slim form factor also optimizes space within narrow control cabinets.

Primary industrial applications include:

• Expanding remote I/O capabilities in power generation plants.
• Linking decentralized sensors in chemical processing facilities.
• Managing high-density data traffic in automated assembly lines.
• Bridging legacy S100 hardware with modern DCS controllers.

Seamless Integration and Maintenance

This communication module plugs directly into standard ABB backplanes for immediate deployment. It integrates perfectly with Advant OCS and other compatible ABB control platforms. The hardware supports hot-plugging in specific configurations to facilitate easier maintenance. Technicians can perform upgrades or replacements without shutting down the entire automation loop. This flexibility makes the 3B174 a preferred choice for 24/7 industrial operations.
