Description

Product Overview

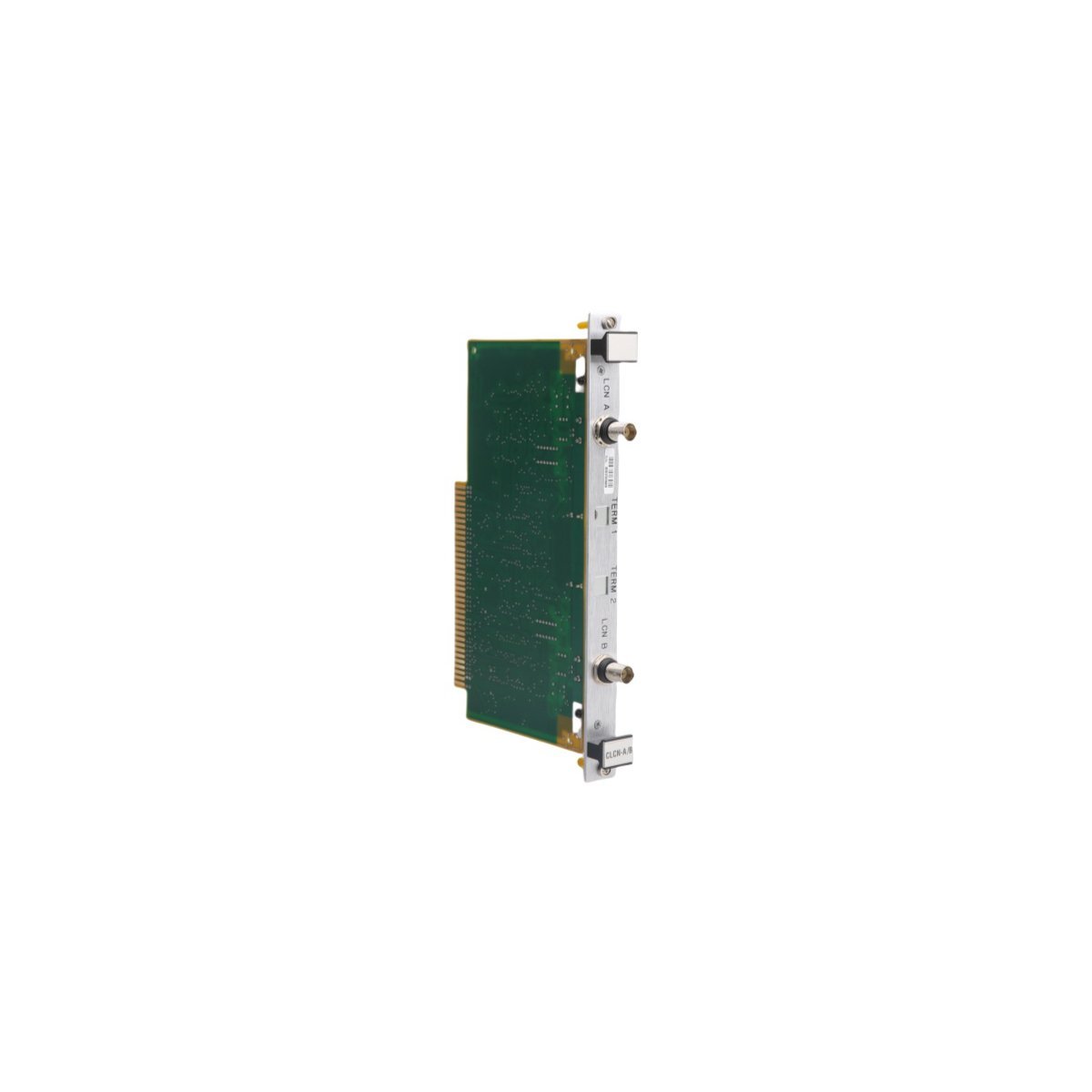

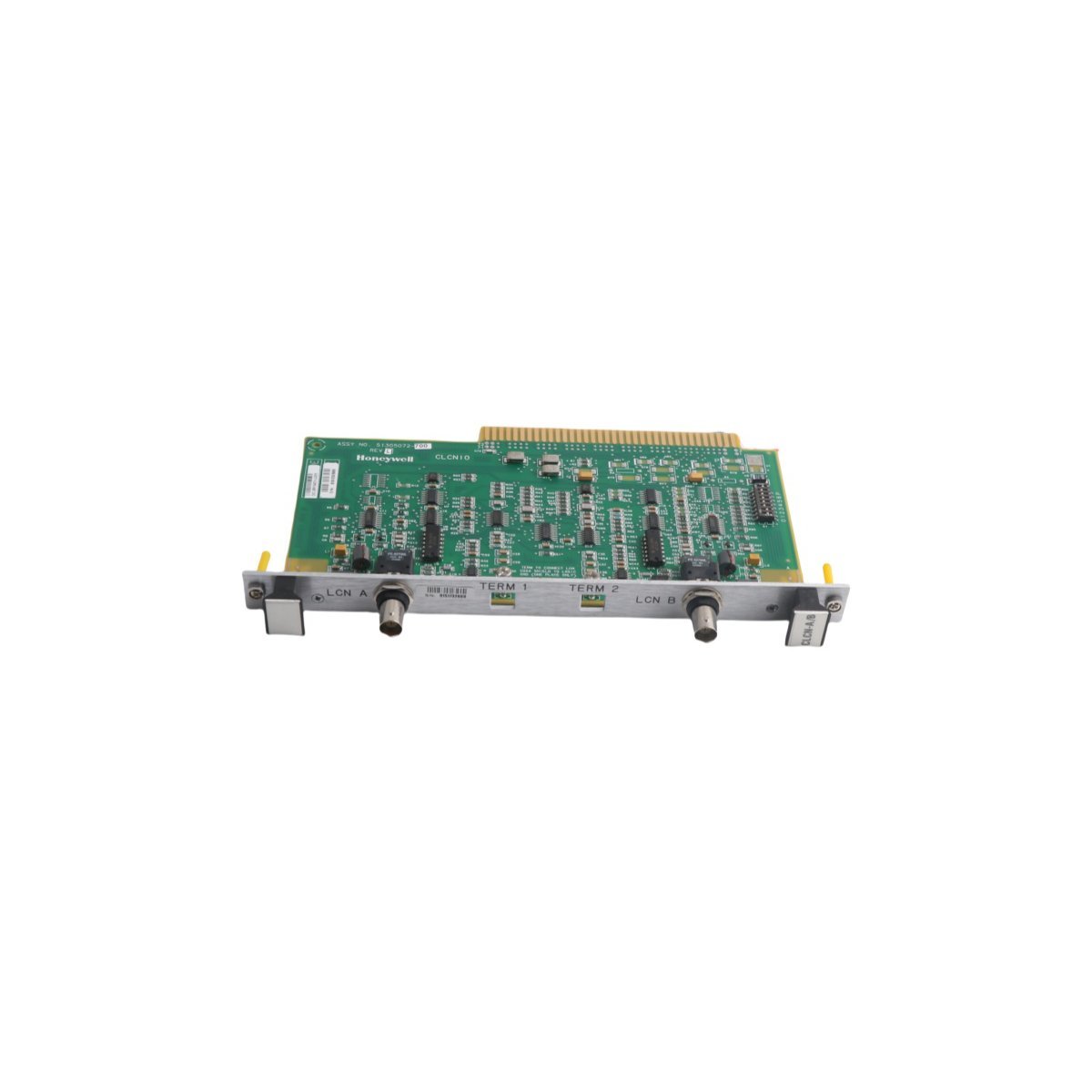

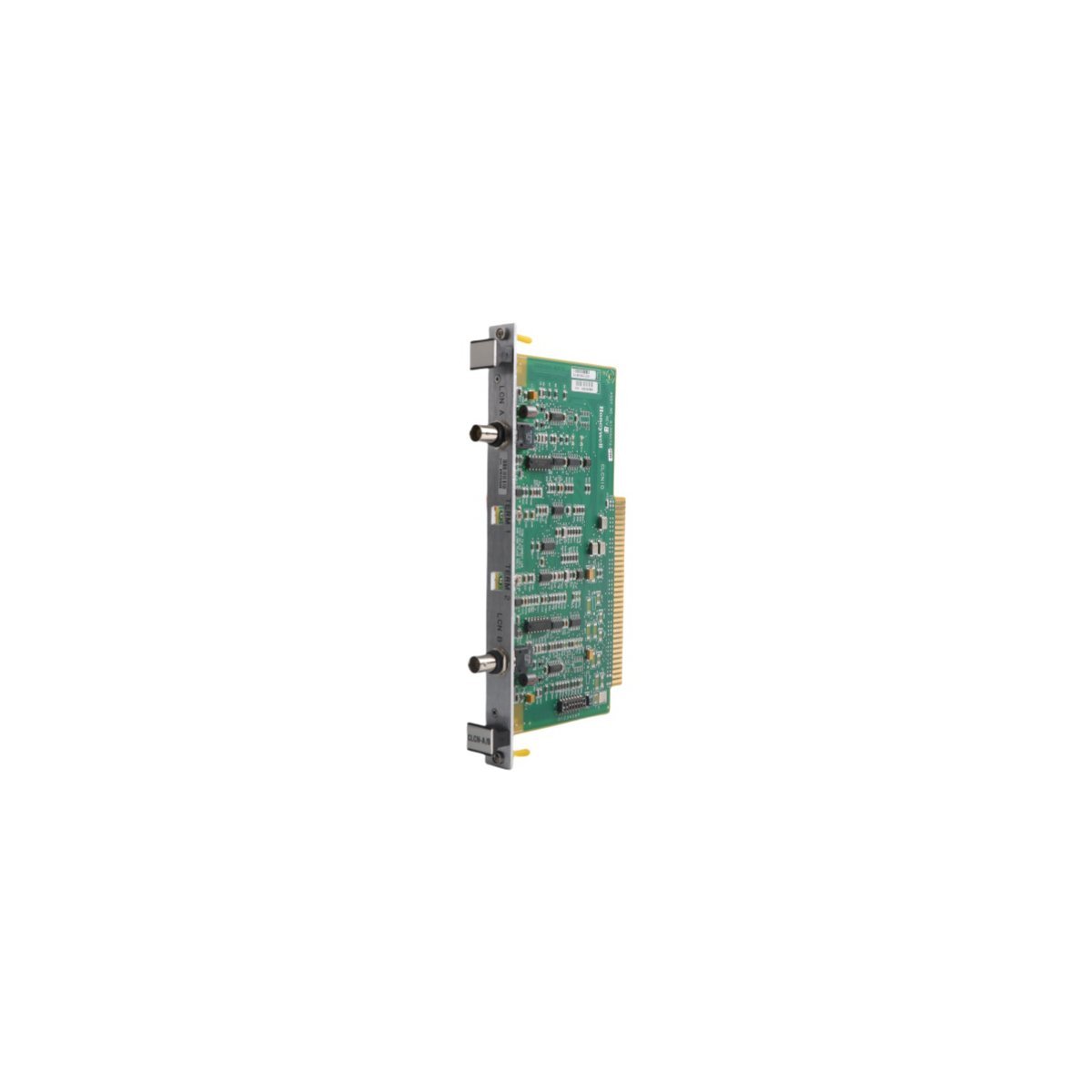

The Honeywell 51305072-700 functions as a specialized Input/Output (I/O) board developed for the TDC 3000 and Experion PKS control systems. This module manages critical signal interfacing between field instruments and the primary control processor. By facilitating precise data conversion and signal conditioning, the board ensures that automation controllers receive accurate, real-time process information, which consequently maintains operational stability in large-scale industrial control environments.

Technical Specifications

• Model Number: 51305072-700
• Manufacturer: Honeywell
• System Compatibility: TDC 3000 and Experion PKS (DCS)
• Module Type: Input/Output (I/O) Board
• Weight: 0.18 kg
• Dimensions: 2 cm x 13.5 cm x 23.8 cm
• Communication Service: Ethernet Router
• Country of Origin: USA
• Status: Active
• HS Code: 8537101190

Operational Capabilities and Application

The 51305072-700 I/O board processes complex analog and digital signals, allowing the DCS to execute precise control logic for industrial processes. Because the module incorporates industrial-grade circuitry, it performs reliably despite the high electrical noise typically encountered in manufacturing plants or power generation facilities. Furthermore, the board features integrated diagnostic functions that proactively monitor signal health, which enables technicians to identify and rectify input errors before they trigger system alarms.

Engineers favor this module for its seamless integration into existing TDC 3000 racks, as the design allows for rapid replacement and configuration during scheduled maintenance. Moreover, the hardware architecture supports consistent data throughput, which preserves the integrity of process control loops across the entire network. By utilizing this I/O board, facilities effectively minimize data latency and ensure that control strategies remain synchronized with actual process conditions. This commitment to signal accuracy supports long-term operational efficiency and system safety.
