Description

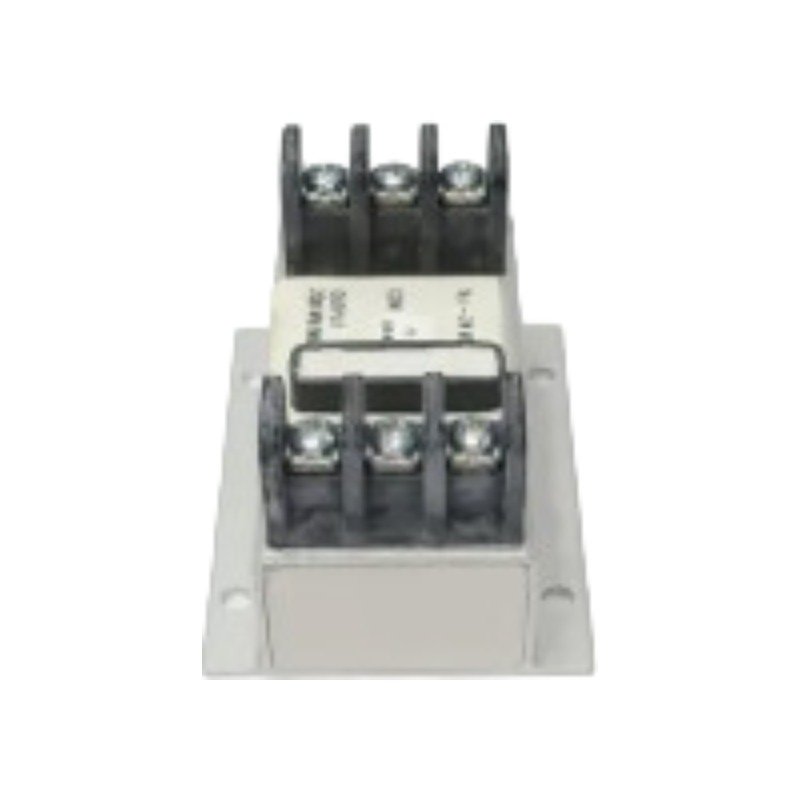

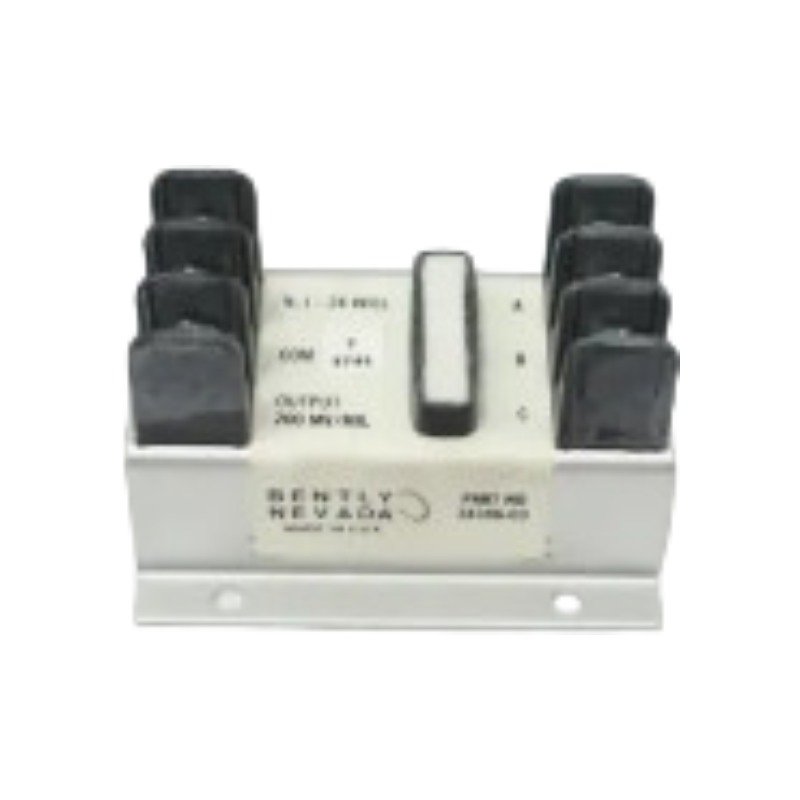

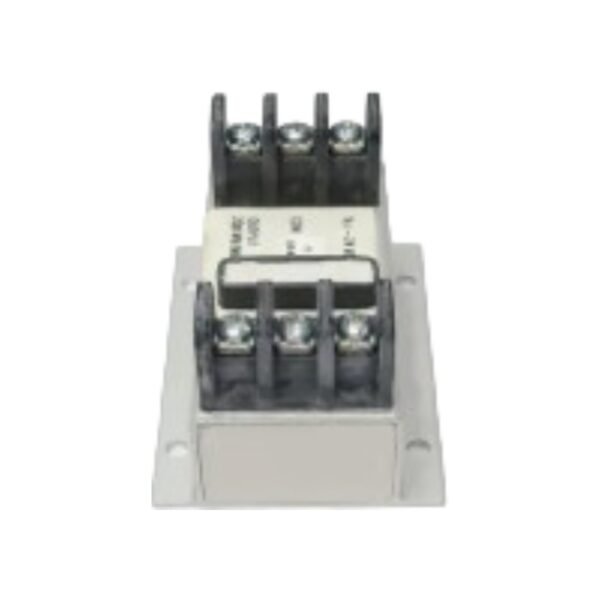

The Bently Nevada 14386-03 operates as a specialized Proximitor Input/Output module and current converter designed for industrial machine protection systems. This highly reliable device conditions raw analog high-frequency signals from proximity sensor probes and translates them into stable voltage outputs. Consequently, the module allows plant operators to continuously track vibration, position, and rotor movement inside high-speed rotating machinery. By providing real-time signal conversion, this hardware actively protects critical industrial assets from catastrophic mechanical failure.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The internal electronics of the 14386-03 manage critical eddy-current probe scaling to guarantee that physical displacement correlates perfectly with the standard 200 mV/mil analog output. Because precise calibration directly affects measurement accuracy, field engineers must perform a meticulous gap voltage validation during physical setup. Adjusting the proximity probe until the signal reads the industry-standard -10 VDC targets ensures that the sensor operates within its optimal linear range. As a result of this precise biasing, the module successfully tracks high-amplitude rotor dynamics without experiencing clipping or signal saturation during machine startup sequences. Furthermore, the specialized internal shielding of the 14386-03 delivers exceptional cross-talk suppression, which prevents multi-channel installations from injecting electromagnetic noise into adjacent measurement loops.

Frequently Asked Questions

Q: Can a technician safely hot-swap the 14386-03 module while the main monitoring rack remains energized?

A: No, technicians must not hot-swap this specific I/O module while the system carries an active power load. Disconnecting the unit under load can cause voltage transients that damage the internal analog circuitry. Therefore, you must isolate the 24 VDC power source before removing or installing the hardware.

Q: Does this module accept direct connections from both 5mm and 8mm proximity probes?

A: Yes, the module processes inputs from multiple probe types, provided that the system configuration maintains a matching 200 mV/mil scale factor. However, you must verify that the total electrical length of the probe and extension cable aligns perfectly with the module’s calibration profile to prevent signal measurement errors.

Field Installation Guidelines

• Execute Gap Voltage Checks: Before locking down the sensor position, measure the DC output voltage using a calibrated digital multimeter. Rotate the probe until the reading hits the precise -10 VDC target, which establishes the center of the linear calibration zone.
• Establish Single-Point Grounding: Route the coaxial extension cables carefully and isolate the outer shield from the machine chassis. Ground the shield exclusively at the 14386-03 module terminal side to eliminate ground loop interference.
• Observe Separation Rules: Run all low-voltage sensor lines through dedicated, grounded conduits. Concurrently, separate these lines from heavy AC motor leads and variable frequency drives to maximize cross-talk suppression.
• Verify Terminal Torque: Secure all terminal block connections firmly, but do not exceed the maximum manufacturer torque ratings. Proper tightness prevents high-vibration environments from loosening the signal wires over time.
