Description

Product Overview

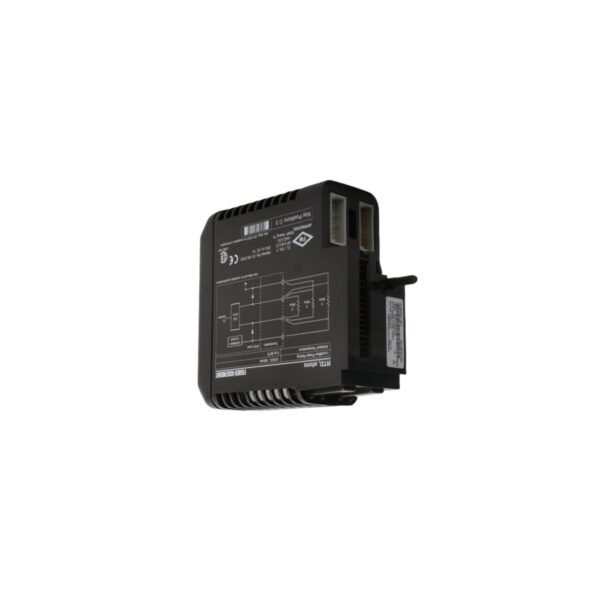

The Emerson DeltaV KJ3002X1-BF1 is a dedicated resistance temperature detector (RTD) input module designed for the DeltaV M-series Distributed Control System (DCS) architecture. This industrial-grade component provides precision temperature measurement capabilities by interfacing directly with field-mounted RTD sensors. By converting low-resistance analog signals into digital process variables, the module ensures accurate thermal monitoring across critical industrial environments. Its robust construction and native system integration facilitate reliable data acquisition under demanding operational conditions.

Technical Specifications

• Brand: Emerson
• Model Number: KJ3002X1-BF1
• Part/Order Number: 12P1732X082 / VE4003S6B1
• Subsystem Type: DeltaV M-series I/O Subsystem
• Module Function: 8-Channel RTD Input
• Mass: 0.2 kg
• Physical Dimensions: 4.4 cm x 10.2 cm x 10.8 cm
• Country of Origin: United States
• Harmonized System (HS) Code: 8537101190

Key Operational Characteristics

• Seamless DCS Integration: The module installs directly onto the DeltaV M-series I/O carrier, utilizing the native controller bus for automatic electronic marshalling and configuration.
• Precision Thermal Measurement: It supports standard 2-wire, 3-wire, and 4-wire RTD configurations to compensate for lead-wire resistance, ensuring high accuracy in temperature reporting.
• Industrial Durability: Built with ruggedized internal components, the module operates continuously within harsh processing plants without sacrificing signal integrity.
• Diagnostic Capabilities: Advanced onboard diagnostics monitor sensor health, open-circuit detection, and short-circuit faults, which significantly minimizes troubleshooting downtime.

Industrial Applications

• Chemical Processing: Monitoring exothermic reactions and jacketed vessel temperatures to maintain safety thresholds.
• Power Generation: Tracking bearing, stator, and steam line temperatures within turbines and generator sets.
• Oil and Gas Refining: Providing accurate thermal data for distillation columns, pipelines, and storage facilities.
• Pharmaceutical Manufacturing: Maintaining strict ambient and process temperature logs for regulatory compliance and batch consistency.
