Product Overview

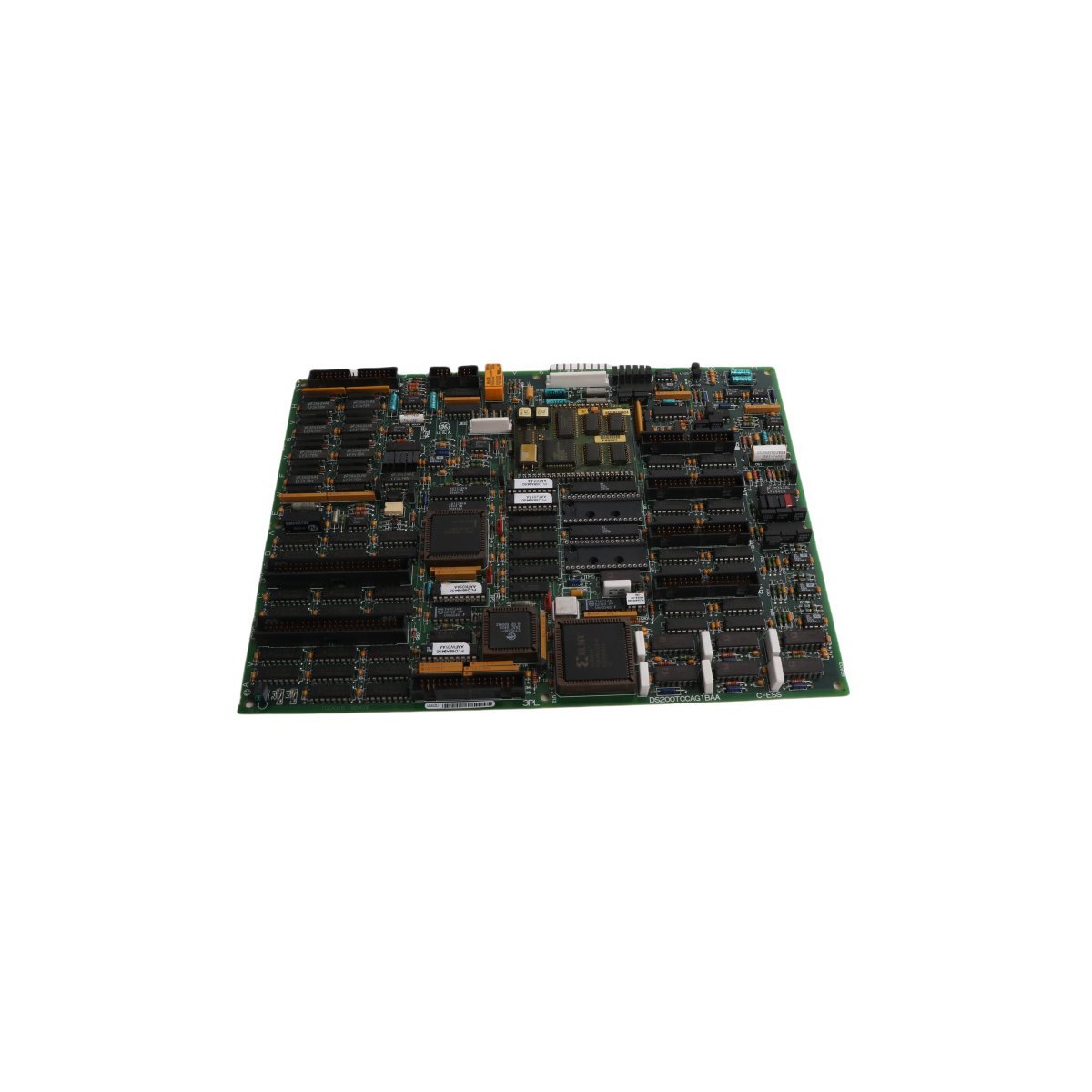

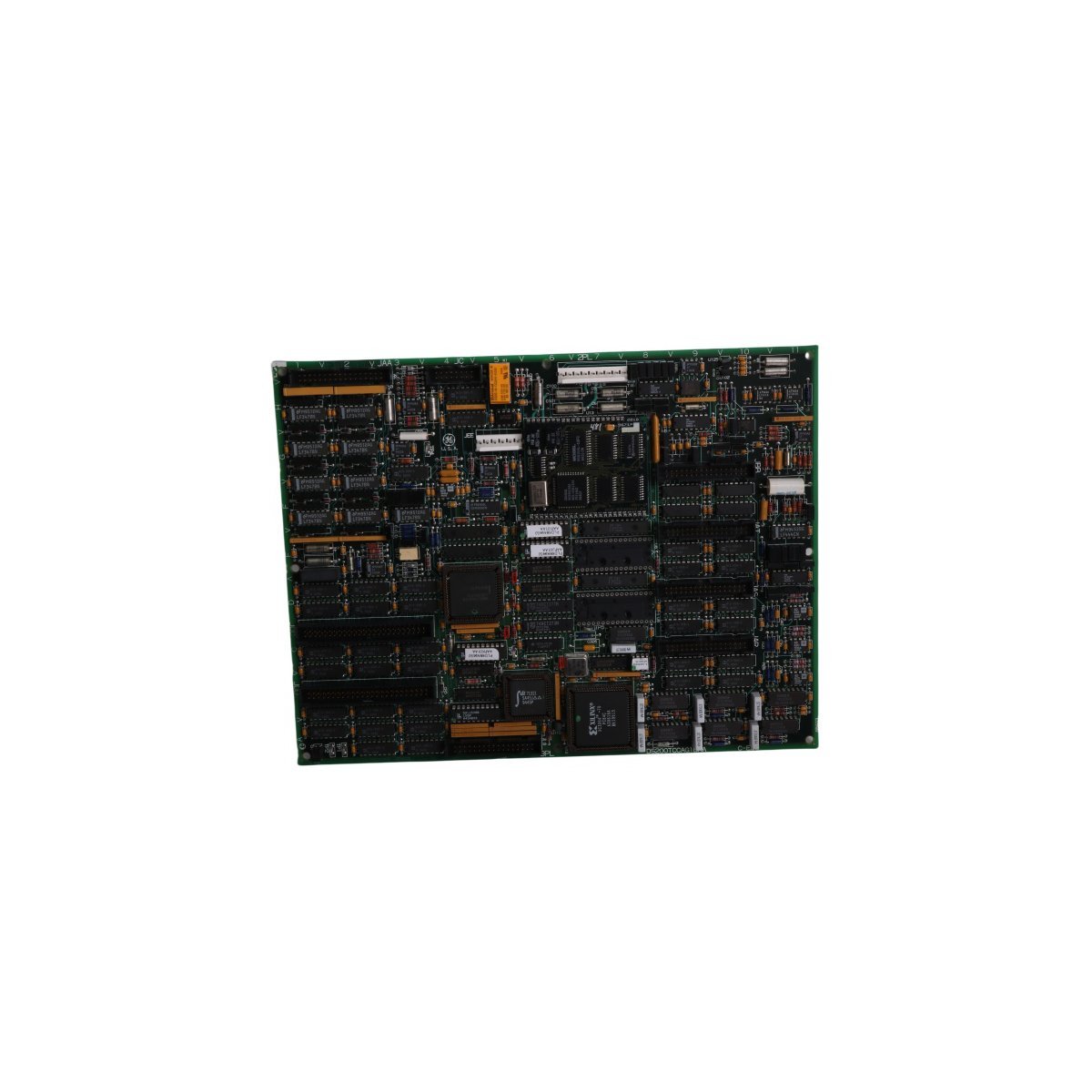

The General Electric DS200TCCAG1BAA is a high-performance Common Analog I/O Board developed for the Speedtronic Mark V control framework. This module facilitates critical signal processing for steam, gas, and wind turbine management systems, ensuring precise regulation of analog variables.

Advanced Processing Architecture

The DS200TCCAG1BAA functions as the primary analog interface within the TC2000 subseries of the Mark V turbine control system. At its core, the board utilizes a powerful Intel 80196 microprocessor to execute complex control algorithms and manage data flow. This computational capability allows the board to handle high-density analog signals with minimal latency. To support its operational logic, the assembly contains multiple Programmable Read-Only Memory (PROM) modules. These PROMs house the essential firmware required for the microprocessor and associated logic devices, providing a stable foundation for turbine synchronization and protection routines.

Signal Connectivity and Diagnostics

For seamless integration into the Speedtronic rack, the board features two heavy-duty 50-pin ribbon cable connectors, designated as JCC and JDD. These ports establish the primary data links between the I/O board and the wider control network. Additionally, the hardware design includes a side-mounted LED indicator that provides immediate visual feedback regarding the board’s health and operational status. While the Mark V series is categorized as a legacy product line, this “BAA” version incorporates three significant engineering revisions that enhance the thermal stability and signal integrity of the original TC2000 design.

Legacy Reliability and Application

Industrial facilities worldwide continue to rely on the DS200TCCAG1BAA for maintaining aging turbine assets. This board represents the culmination of GE’s Speedtronic technology, offering a bridge between classic analog control and modern digital processing. Because turbine environments demand high availability, this board uses industrial-grade components capable of withstanding the electrical noise and temperature fluctuations typical of power generation plants. Technicians can easily identify components via the factory-printed nomenclature on the PCB surface, which simplifies troubleshooting and field maintenance during scheduled outages.
