Description

Product Overview

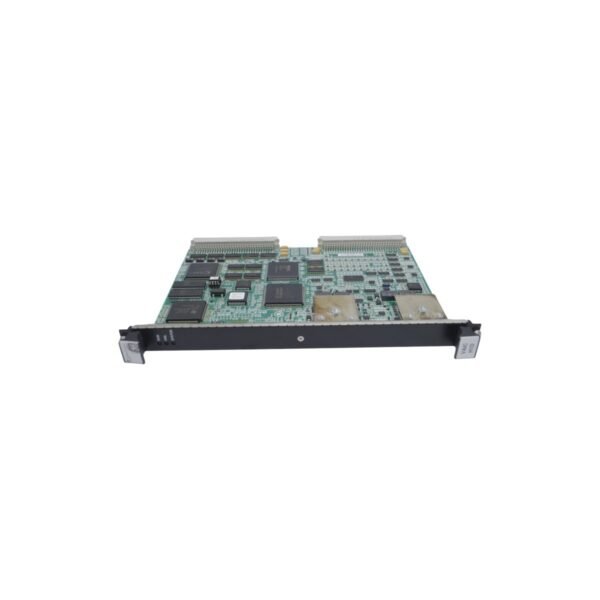

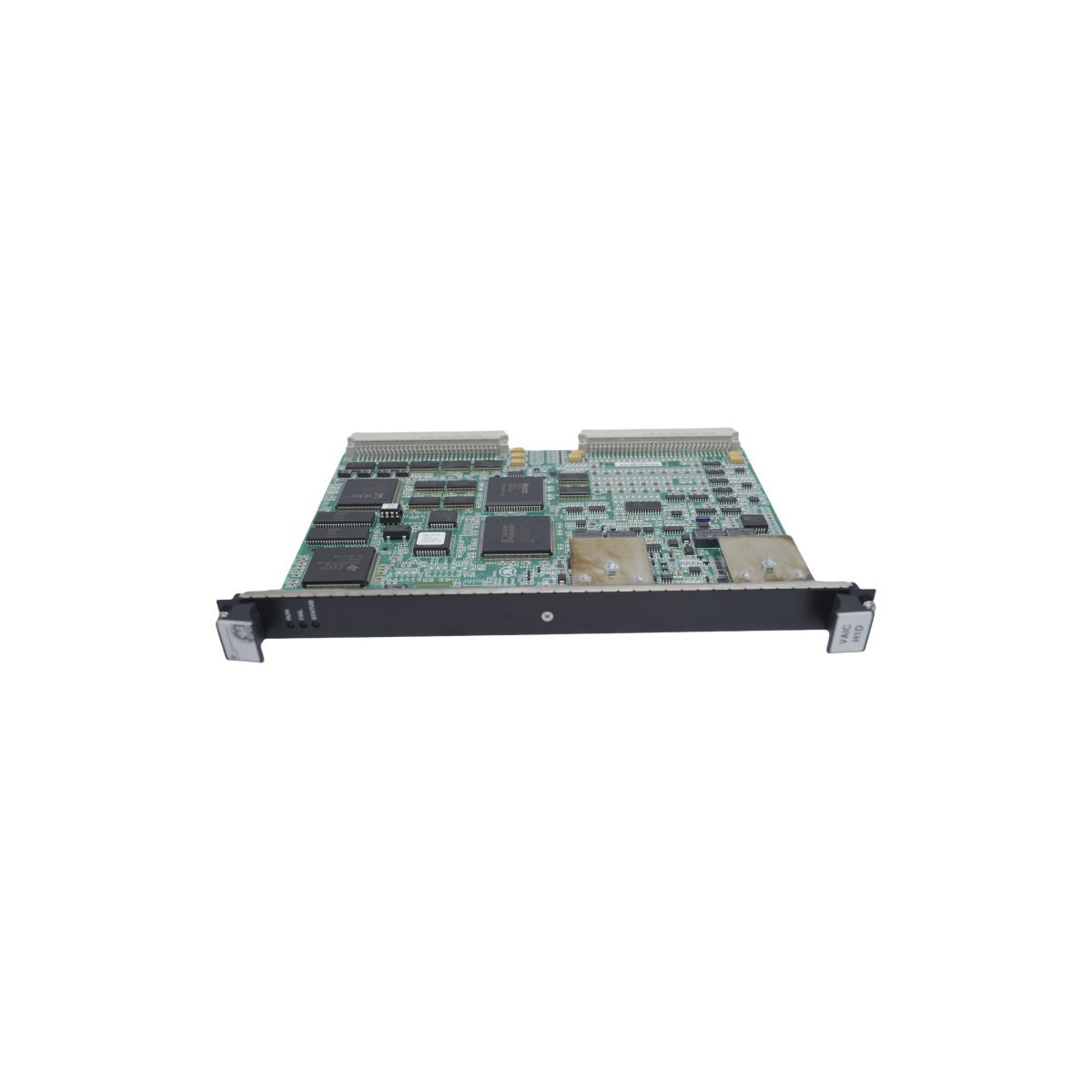

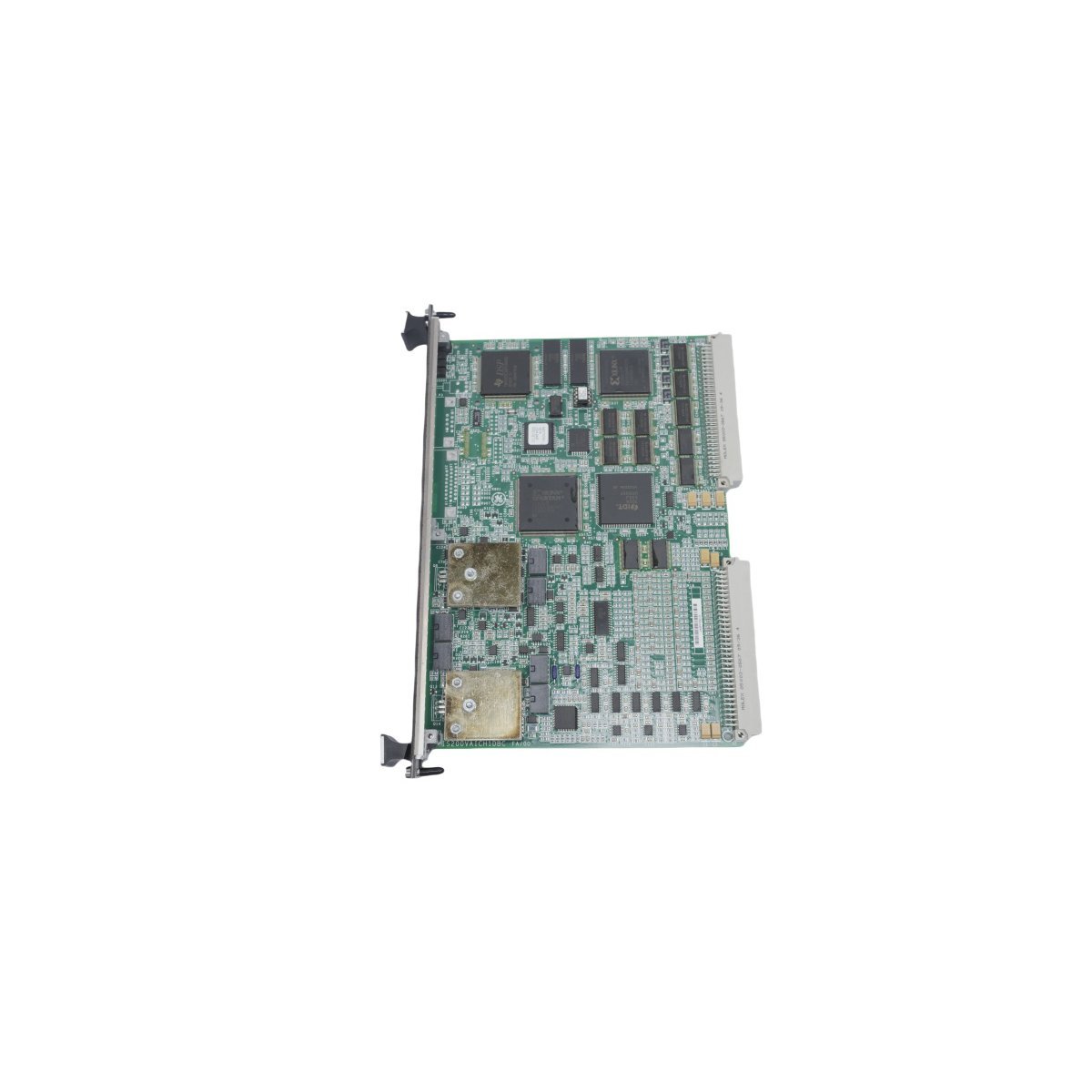

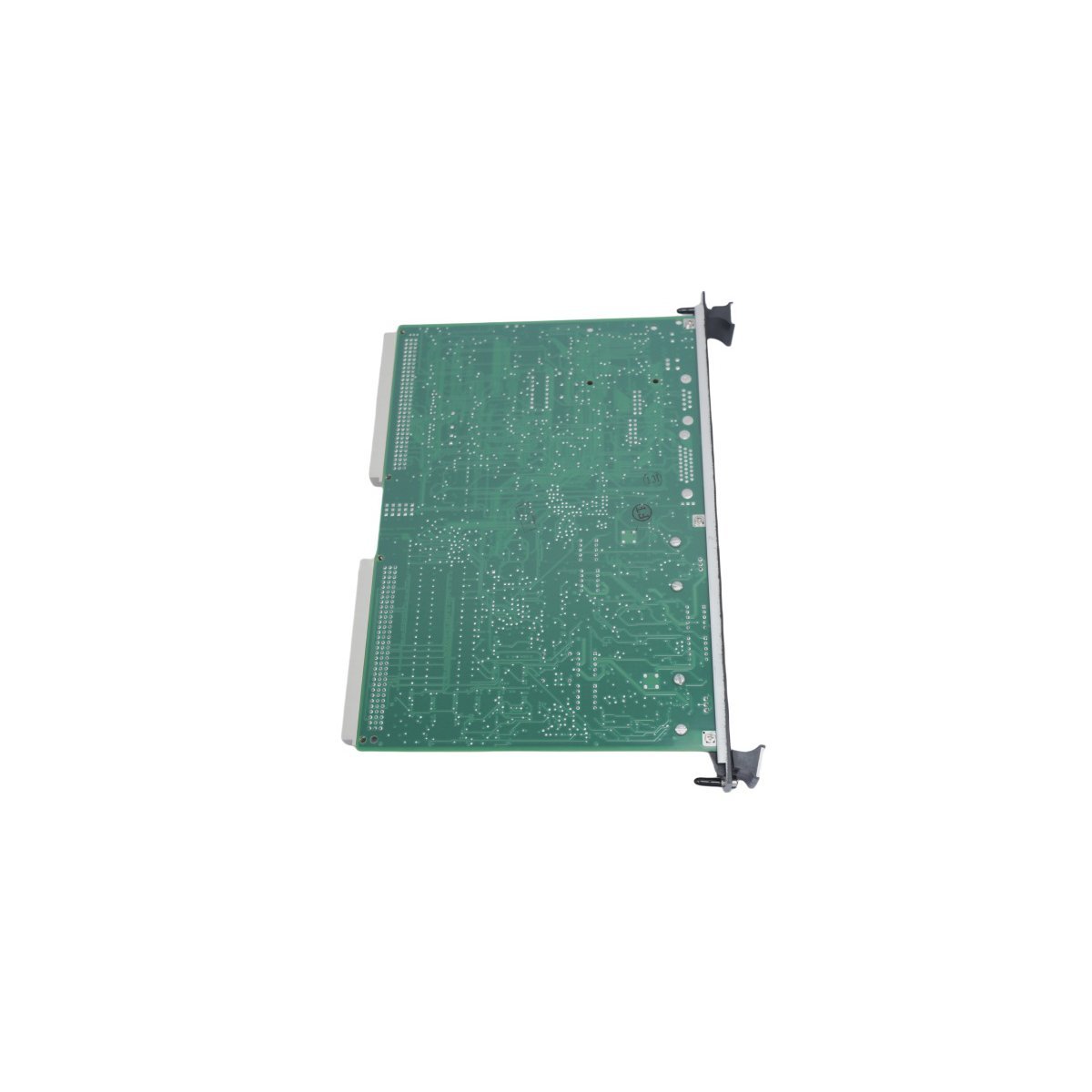

The General Electric IS200VAICH1DBC is a high-performance Analog I/O processor board designed for the Mark VI Speedtronic control system. This module provides critical interface capabilities for monitoring industrial turbine parameters, including temperature and pressure, through advanced signal linearization.

Advanced Signal Processing and VME Architecture

This module functions as a primary I/O processor within a VME rack, occupying a single-width slot. The IS200VAICH1DBC utilizes a high-speed CPU capable of 32-bit floating-point mathematics, which allows for extremely precise data computation. It excels at digital filtering and the linearization of RTD and thermocouple inputs. By referencing an onboard sensor characteristic library, the board converts raw electrical signals into accurate engineering units. Operators can also update software configurations while the unit remains powered, which eliminates the need for system shutdowns during minor adjustments.

Hardware Interface and Connectivity

The physical design of the IS200VAICH1DBC emphasizes durability and clear diagnostic feedback. The narrow front faceplate features three distinct LED indicators that provide real-time status updates regarding the board’s operational “Run” or “Fail” state. For backend connectivity, the board employs two 37-pin backplane connectors. These ports facilitate high-speed communication between the I/O processor and the central control rack, as well as adjacent TBAI terminal boards. This dual-connector arrangement ensures redundant and stable data paths for critical turbine control loops.

Revision Integrity and System Integration

As a D-rated revision (DBC), this board represents a mature and optimized version of the VAIC series. GE engineers populated the PCB with a robust array of integrated circuits, relays, and diodes to ensure long-term reliability in power generation environments. Each component carries specific part markings to simplify maintenance and technical cross-referencing. Although it is a specialized component within the Mark VI Series, it remains a cornerstone for DCS (Distributed Control System) research and legacy equipment maintenance in high-availability industrial plants.

Technical Characteristics
