Product Overview

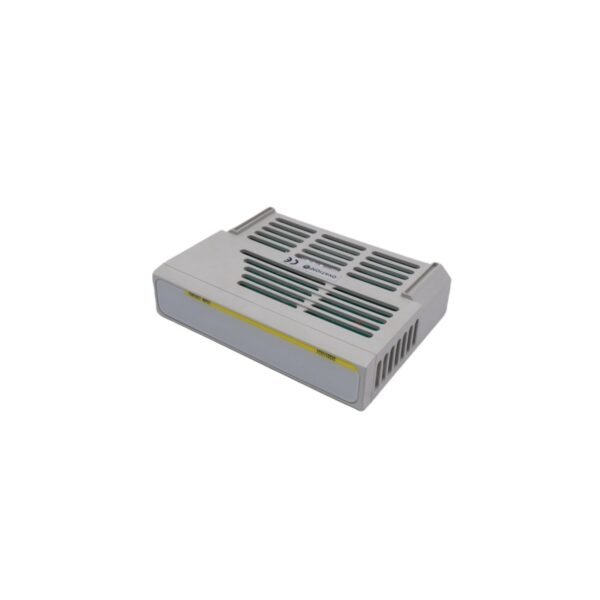

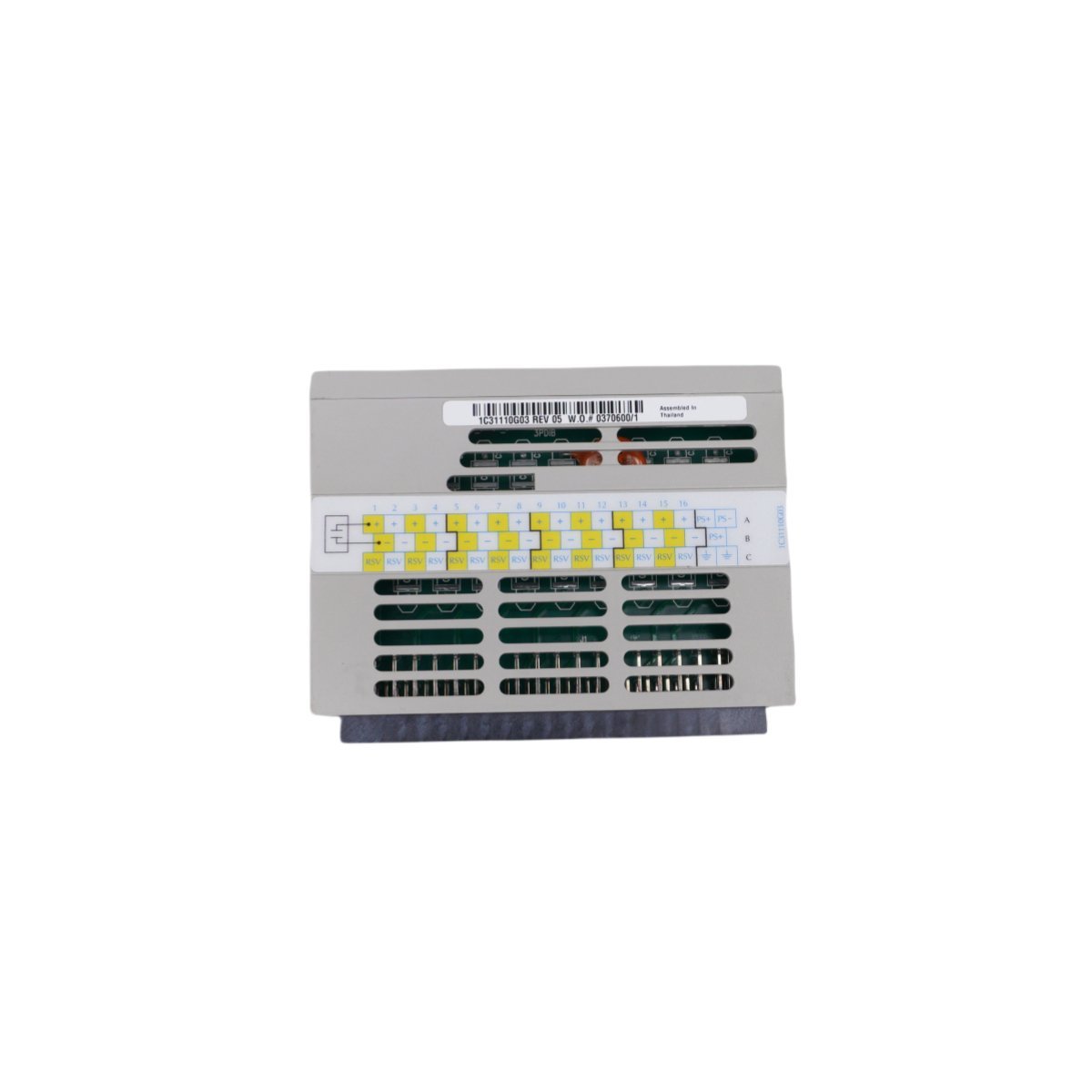

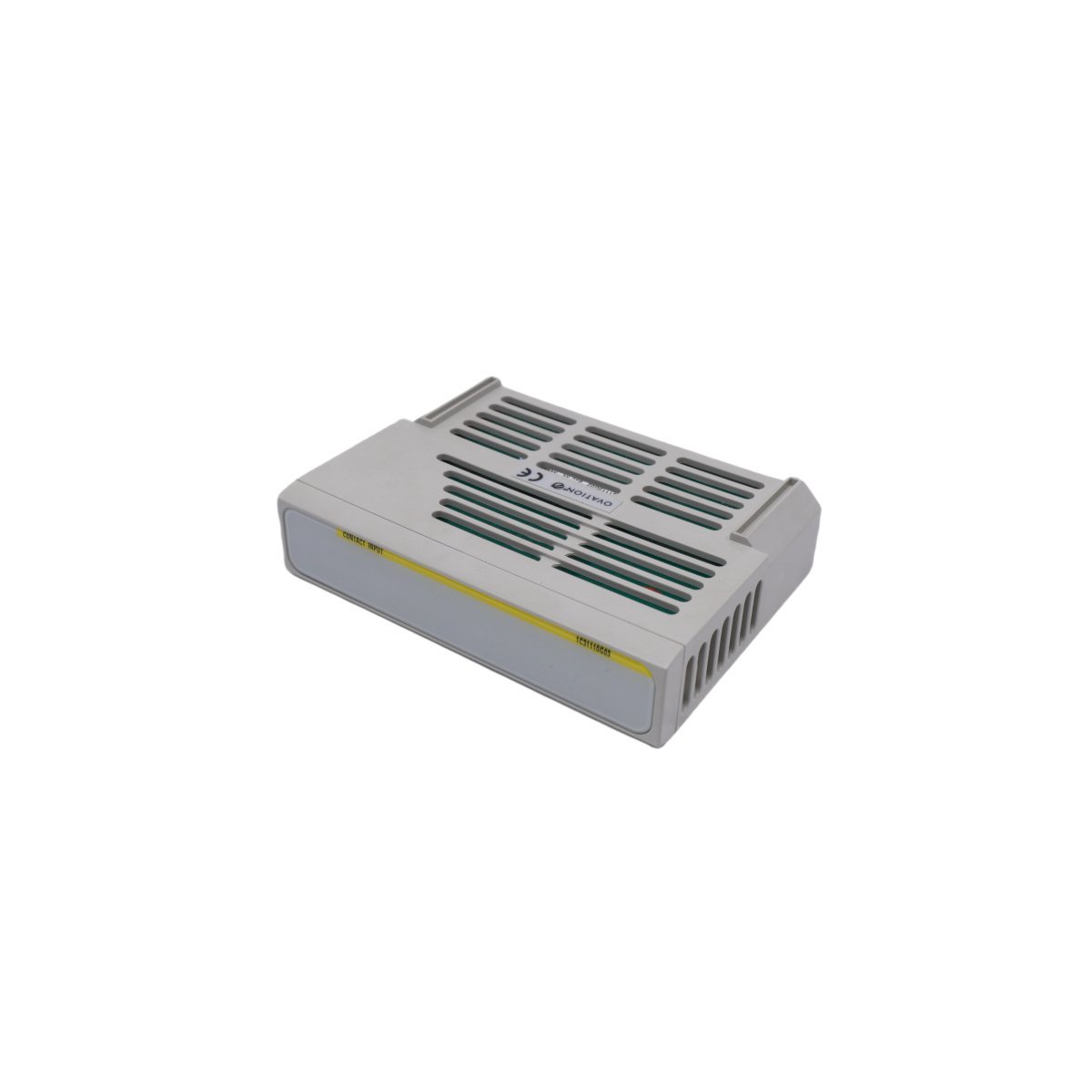

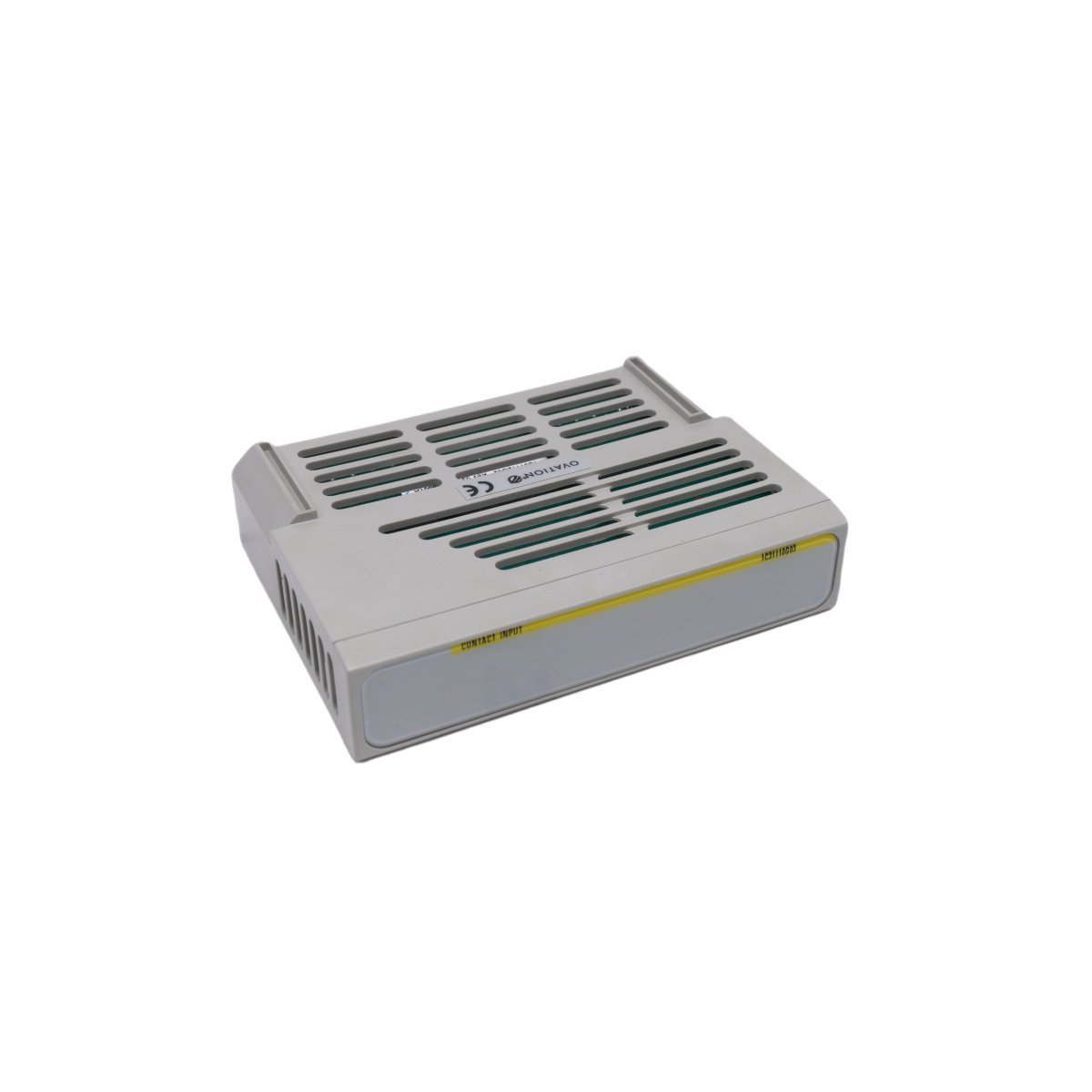

The Emerson 1C31110G03 is a high-reliability, 16-channel Contact Input Module designed for the Emerson Ovation™ Distributed Control System (DCS). Purpose-built to capture and process discrete field signals, this high-performance input card acts as a secure buffer between field-level binary contacts (such as limit switches, pushbuttons, and relay outputs) and the central automation network. Equipped with dedicated onboard surge suppression, the module guarantees exceptional noise immunity and precise sequence-of-events tracking across critical utility environments.

Advanced Capabilities and Functional Benefits

• 16 Isolated High-Integrity Channels: Natively processes 16 discrete, dry-contact binary input signals simultaneously, providing independent signal conditioning across every terminal loop.
• Hardware-Level Surge Protection: Features integrated surge-suppression components on all 16 input lines, isolating sensitive internal control-system logic from destructive high-voltage spikes, lightning transients, and induction loops.
• Onboard Contact Wetting Supply: Hosts an internal auxiliary power distribution rail that outputs a minimum of 42V DC to a maximum of 55V DC. This ensures that field contacts receive adequate wetting current (4 mA to 8 mA) to cleanly pierce oxidation layers without requiring external power injection.
• High-Speed State Detection: Delivers rapid propagation delay performance bounded tightly between 3.75 ms and 4.4 ms. This low-latency response allows operators to maintain absolute real-time visibility over trip circuits and emergency safety loops.
• Industrial Thermal Resilience: Safely operates within a broad temperature envelope ranging from 0°C to 60°C (32°F to 140°F), preventing signal drift or thermal-choke failures in non-climate-controlled marshaling cabinets.

Technical Specifications

Industrial Applications

• Gas & Steam Turbine Control Systems: Interfacing directly with physical trip headers, safety interlocks, and auxiliary pump limit switches for high-speed status visualization.
• Thermal Power Generation Plants: Monitoring breaker status, valve position limits, and emergency shutdown (ESD) button clusters across the main generator deck.
• Petrochemical and Refinery Automation: Transmitting remote binary statuses from chemical storage tank floats, pipeline manifolds, and pressure switches safely back to the DCS framework.
• Large-Scale Infrastructure Energy Management: Tracking high-voltage switchgear operations and localized circuit breaker relays across heavy facility substations.
