Description

Functional Description

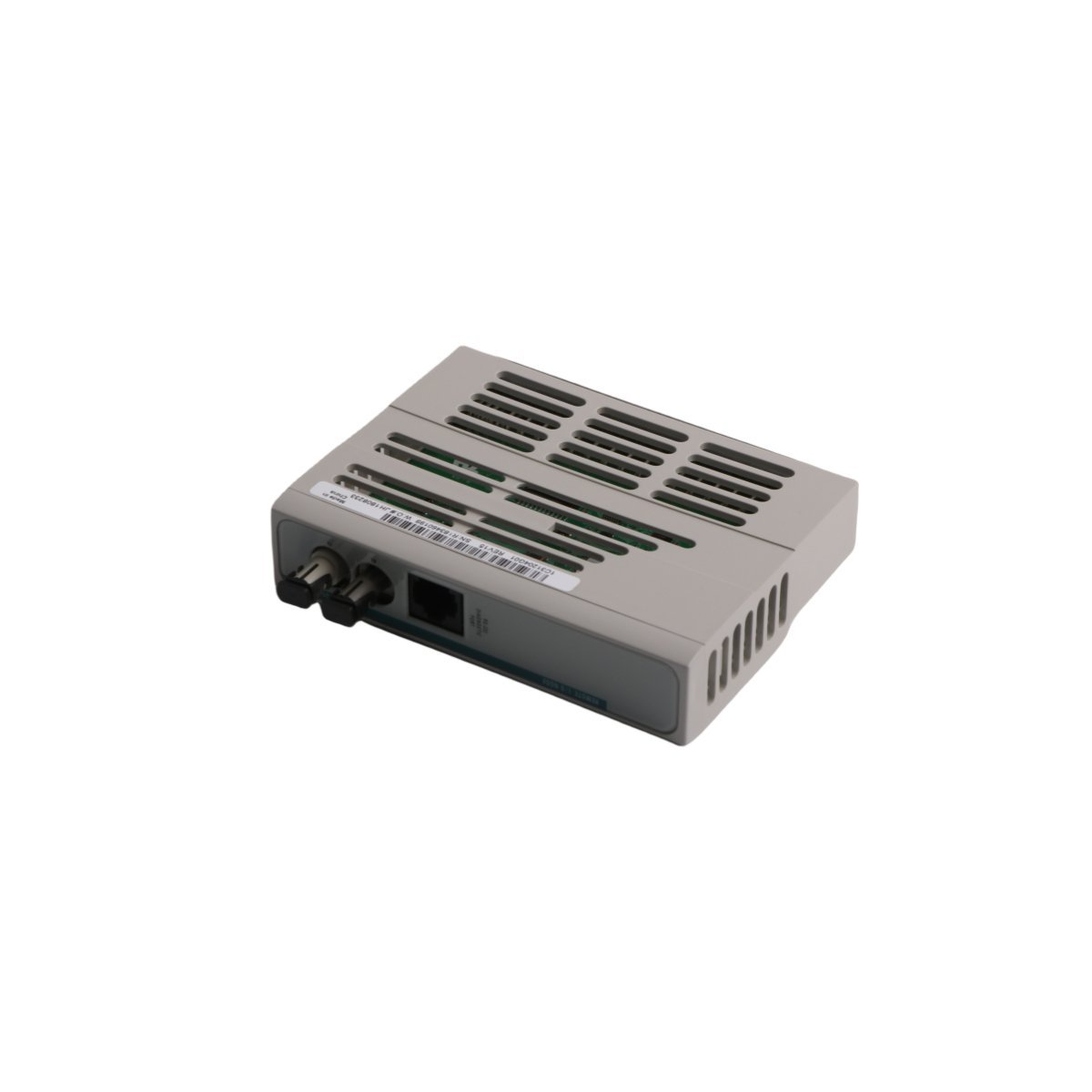

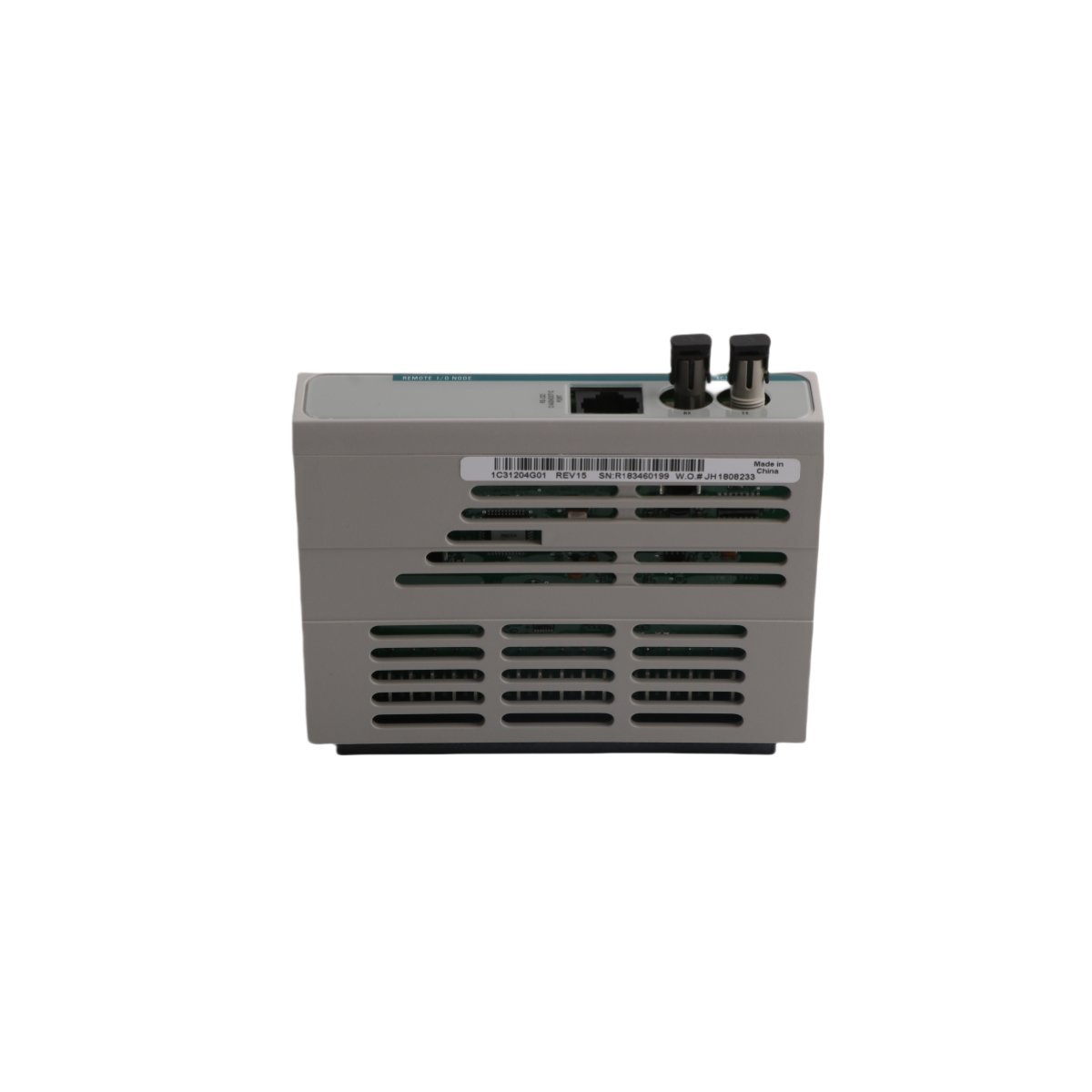

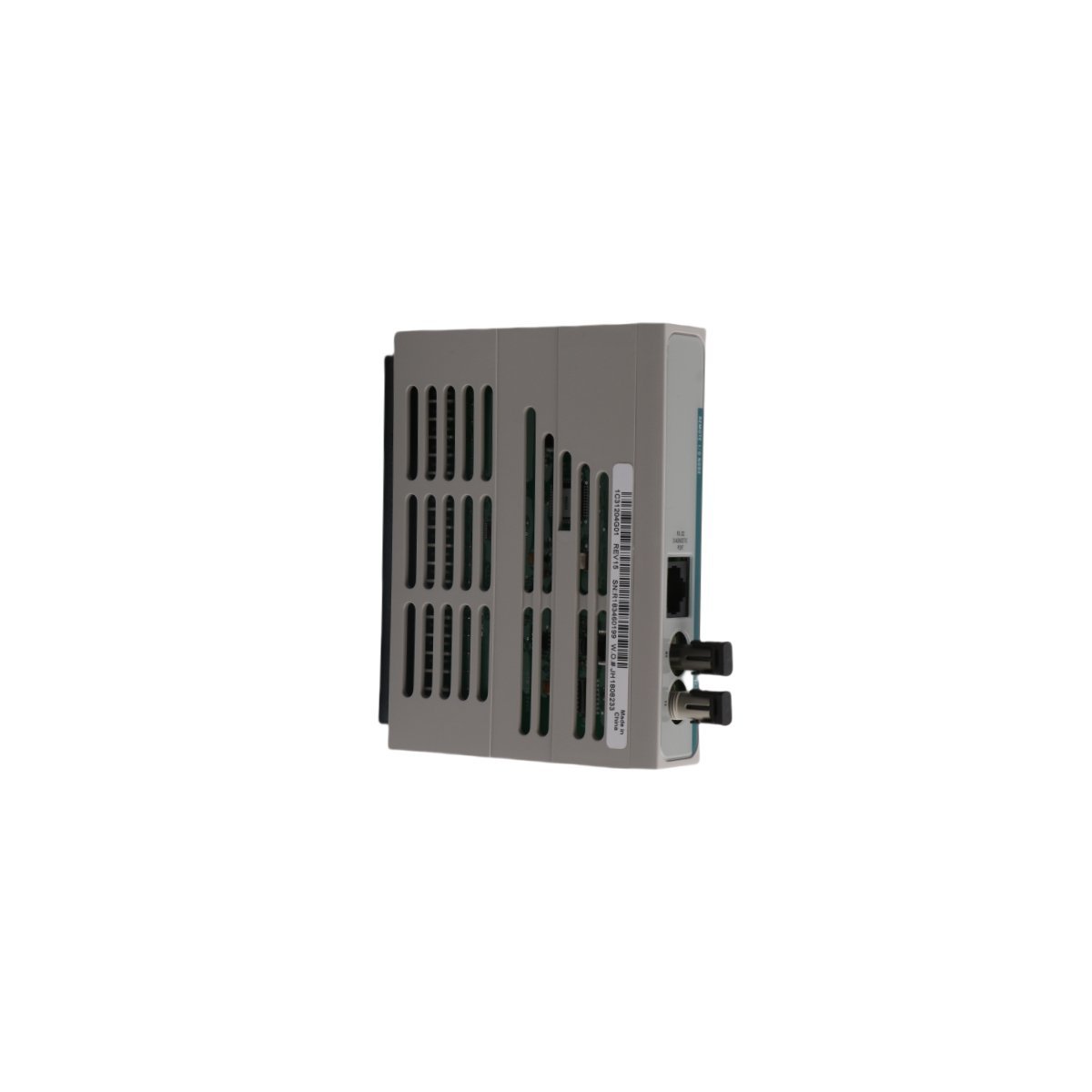

The Emerson 1C31204G01 serves as a high-integrity output node module specifically engineered for the DeltaV SIS™ (Safety Instrumented System) process safety platform. Industrial facilities deploy this safety-critical hardware to execute dependable emergency shutdown commands, manage interlocks, and control critical isolation valves. By integrating direct, deterministic communication pathways, the module ensures that emergency trip signals reach final control elements instantly and without interruption, thereby protecting plant personnel, equipment, and the surrounding environment from catastrophic process failures.

Technical Performance and Architectural Design

• Safety Instrumented System Compliance: The module complies with stringent international safety standards (up to SIL 3 applications), providing dedicated hardware-enforced fault tolerance for high-risk industrial processes.
• Fiber-Optic Communication Interface: Utilizing specialized fiber-optic connectivity via its internal network interface, the unit isolates critical safety data pathways from conventional plant-wide electromagnetic noise and ground loops.
• Continuous Real-Time Diagnostics: Integrated diagnostic routines run automatically in the background, monitoring circuit health, line integrity, and output status to minimize the probability of unannounced failures on demand.
• Ruggedized Form Factor: Built with highly resilient components, the module operates reliably under sustained thermal and mechanical stress, lowering long-term maintenance overhead and preventing spurious trips.

Industrial Applications

Because process safety systems require maximum reliability, engineering teams utilize this output node throughout dangerous manufacturing sectors. In the oil and gas industry, it manages emergency shutdown (ESD) valves and fire-and-gas protection loops on offshore platforms and refining units. Chemical processing plants implement the card to regulate runaway reaction safety interlocks, while power generation facilities rely on it for critical boiler and turbine trip sequences.

Product Technical Specifications

• Brand Manufacturer: Emerson Automation Solutions
• Product Line: DeltaV SIS™ Process Safety System
• Model Number: 1C31204G01
• Hardware Type: Safety-Certified Output Node / Personality Module (PMOD)
• Network Medium: Fiber Optic
• Physical Proportions: 6.0 cm x 12.5 cm x 6.3 cm
• Net Weight: 0.90 kg
• Country of Origin: United States
• Control System Integration: DCS / SIS Distributed Safety Networks
