Description

Brief Product Description

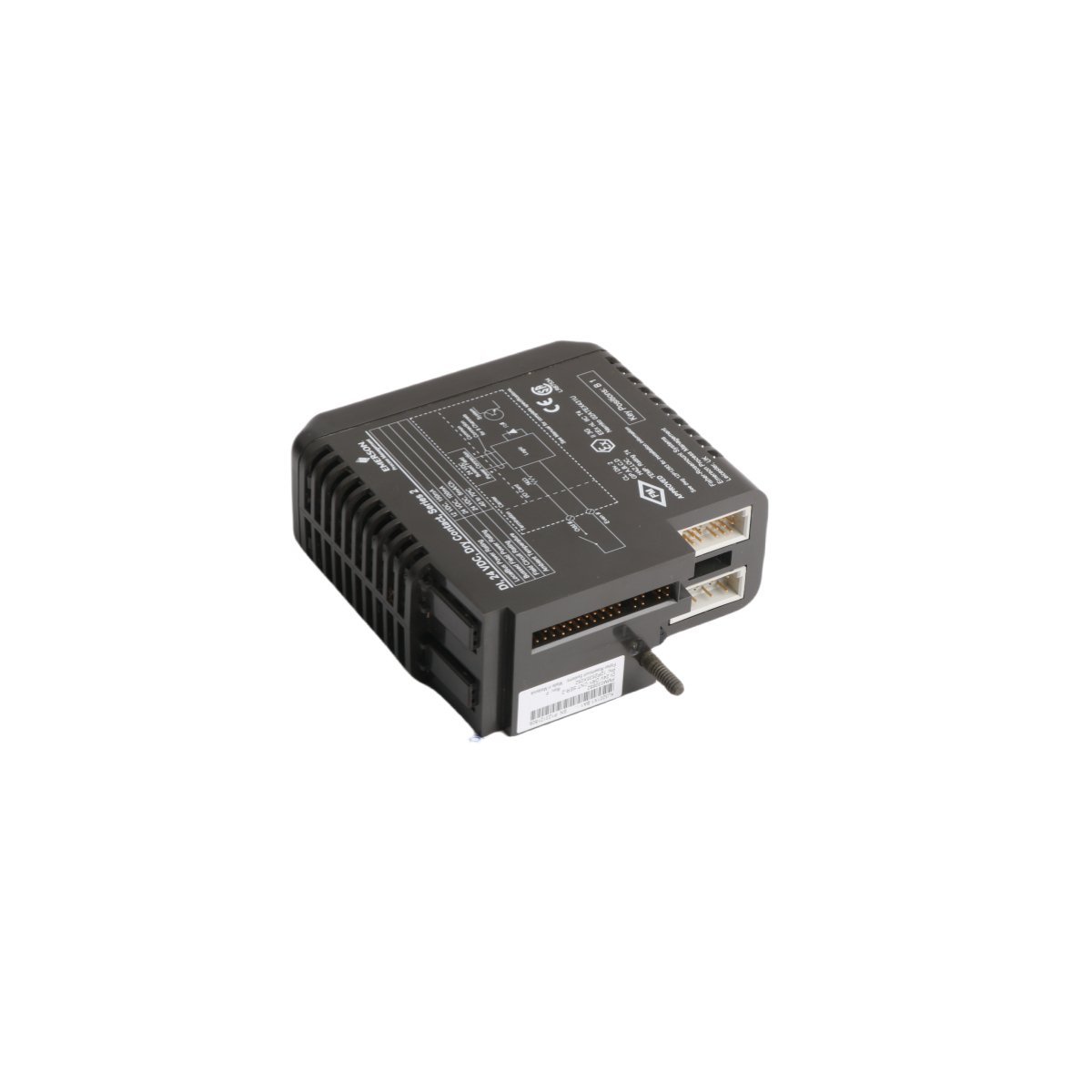

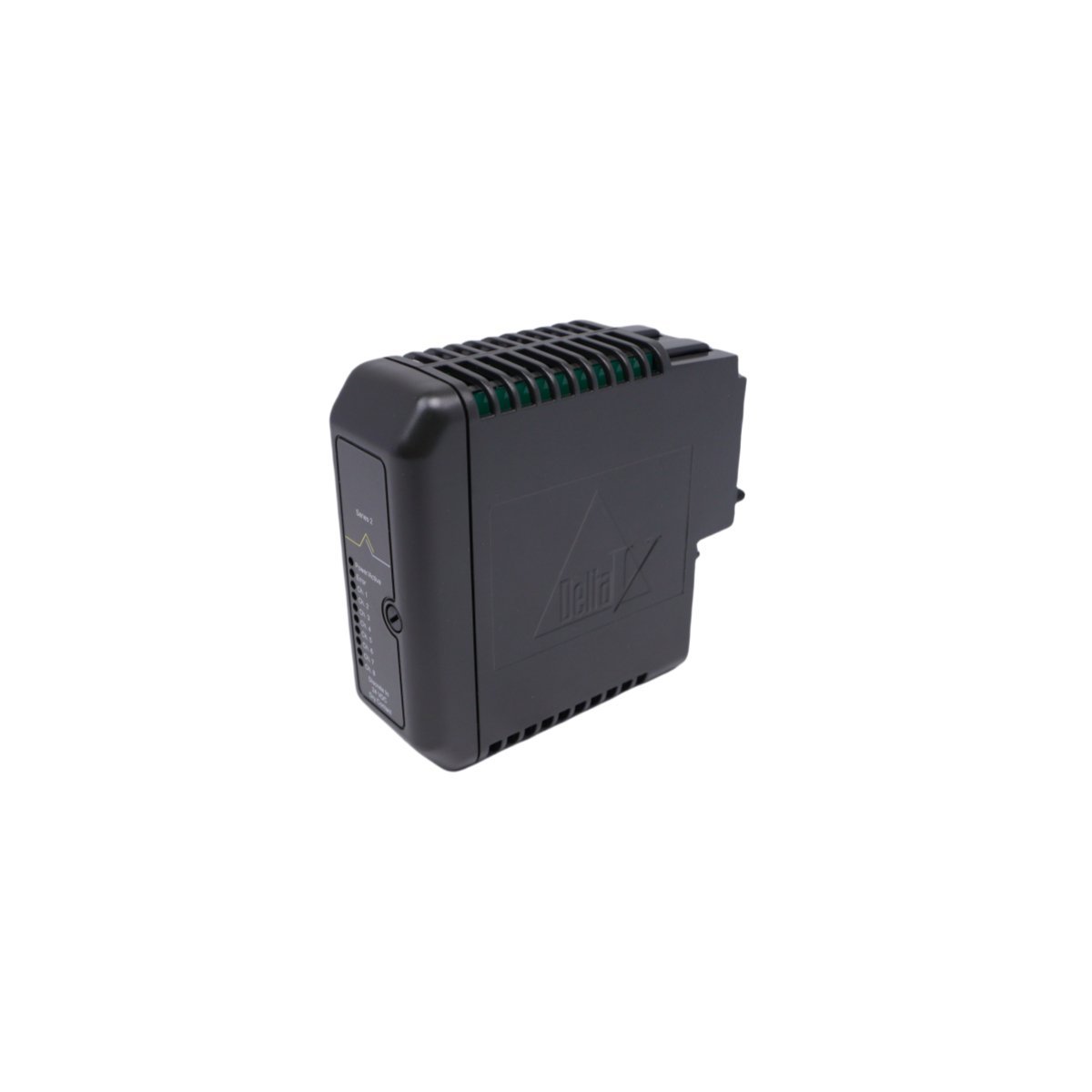

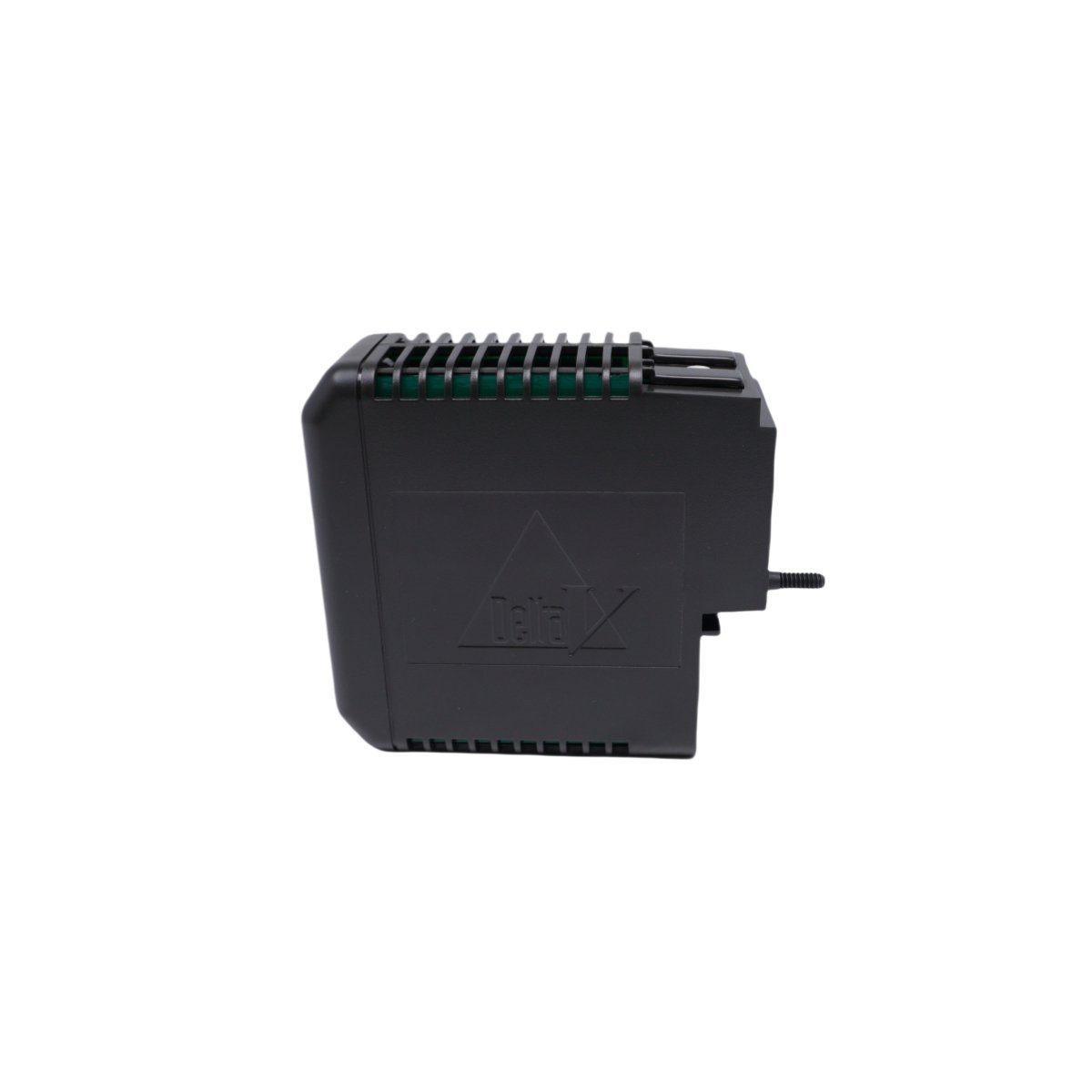

The Emerson KJ3201X1-BA1 12P2535X052 is a high-performance isolated discrete input card designed for the DeltaV™ M-series I/O subsystem. This module provides critical electrical isolation between field signals and the control logic, ensuring precise data acquisition for complex industrial automation processes.

Product Description

Advanced Signal Isolation and System Protection

The Emerson KJ3201X1-BA1 serves as a specialized interface within the DeltaV process control environment, specifically engineered to handle discrete inputs with high integrity. By utilizing galvanic isolation, the card protects the central control logic from field-side electrical surges and ground loops. This architecture significantly enhances system stability, as it prevents external electrical noise from compromising the accuracy of the digital signal transmission. Consequently, the module allows the DCS to monitor field devices such as limit switches and pushbuttons with maximum reliability.

Seamless Integration with DeltaV M-Series

Designed for effortless deployment, the 12P2535X052 module fits directly into the DeltaV M-series I/O subsystem. It supports “plug-and-play” functionality, which simplifies the commissioning phase and reduces the time required for system expansion or maintenance. The card actively communicates with the DeltaV controller, providing real-time status updates for every connected channel. Because the hardware is optimized for the M-series backplane, it maintains low-latency signal processing, which is essential for time-critical safety and control sequences in industrial settings.

Durable Performance in Demanding Sectors

The KJ3201X1-BA1 isolated card thrives in rigorous industrial sectors, including chemical processing, power generation, and oil and gas refining. Its robust mechanical design ensures consistent performance even when exposed to the fluctuating thermal conditions typical of control rooms and remote instrument enclosures. By providing accurate discrete input data, the module helps operators optimize process workflows and maintain stringent safety standards. This card represents a vital link in the automation chain, offering the durability needed for 24/7 continuous operation.

Technical Specifications
