Description

Brief Product Description

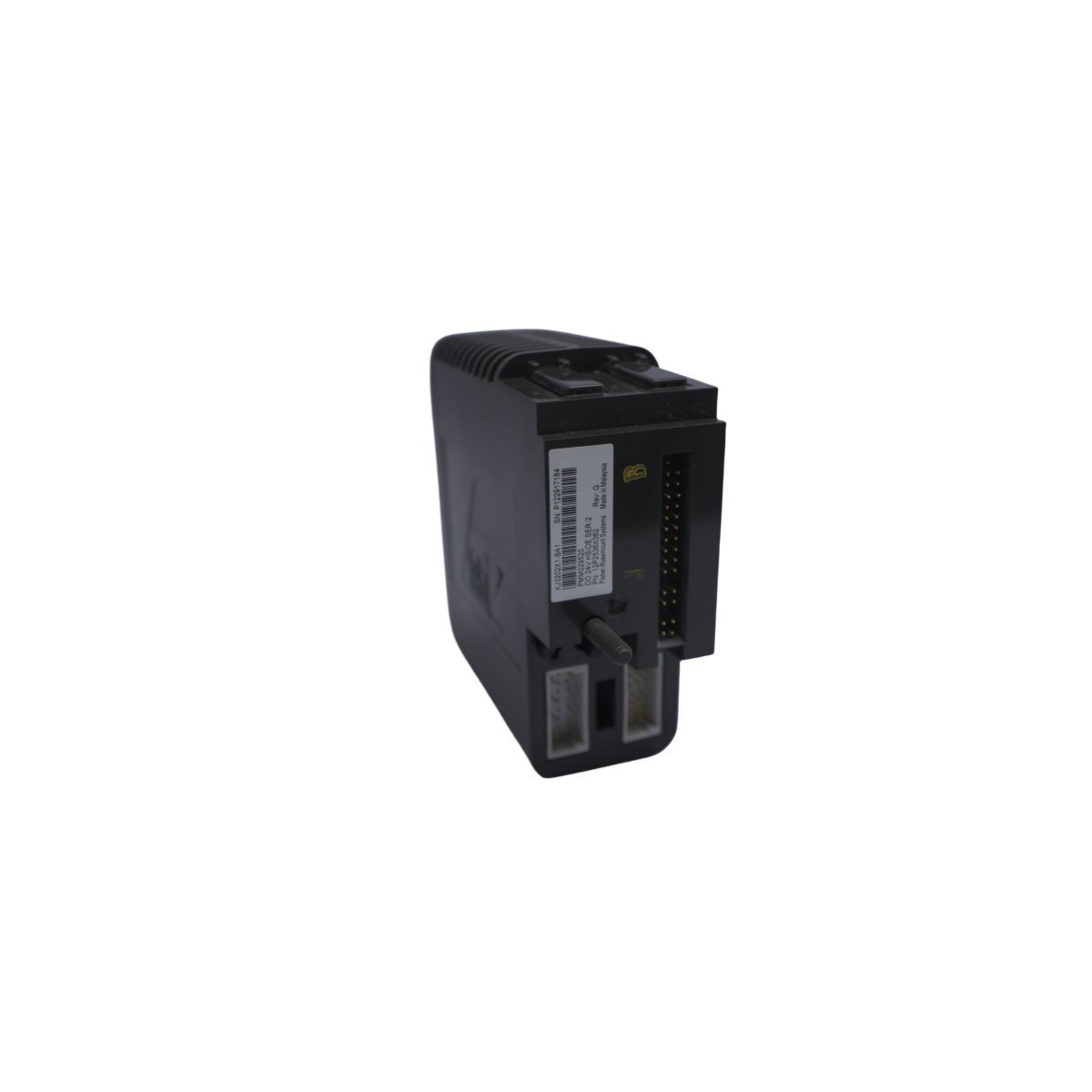

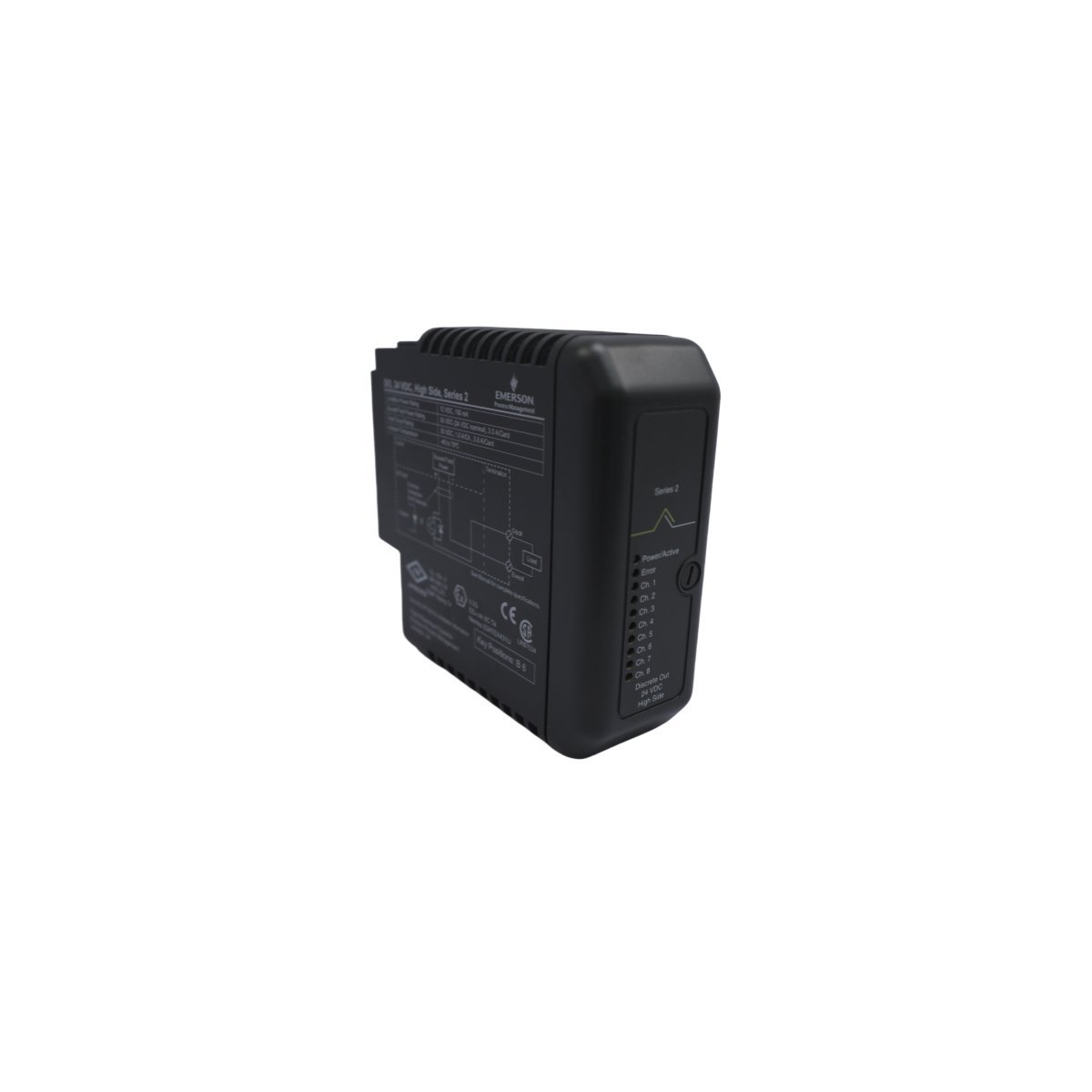

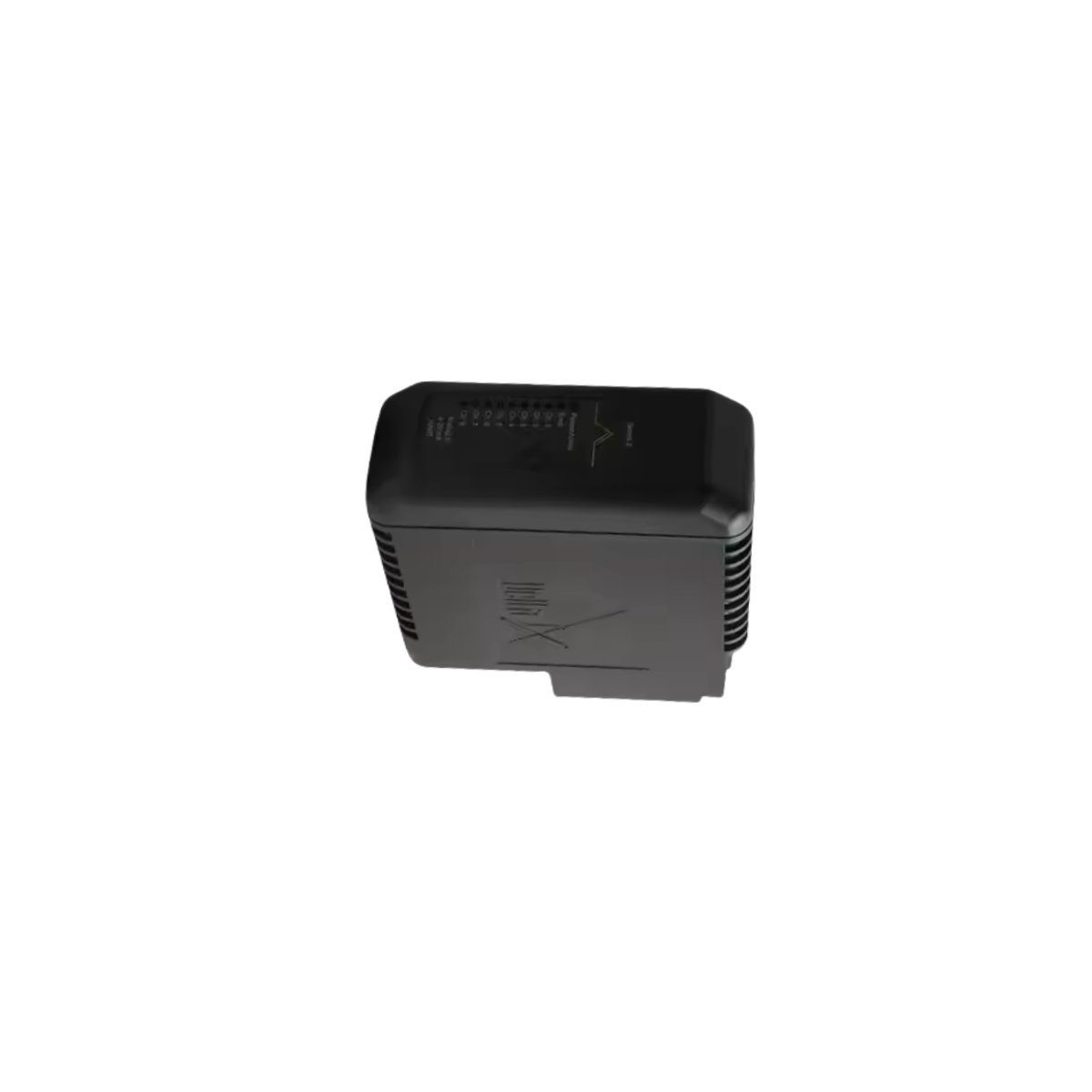

The Emerson KJ3202X1-BA1 12P2536X062 is a high-side discrete output module designed for the DeltaV™ S-series I/O subsystem. This S-Series card provides reliable control over digital field devices by delivering high-speed switching and integrated fault diagnostics for complex process automation.

Product Description

High-Performance Discrete Control

The Emerson KJ3202X1-BA1 (also identified by part numbers 12P2536X062 and VE4032S1T2B1) functions as a pivotal component in the DeltaV™ Distributed Control System (DCS). This Series 2 High Side Discrete Output card manages the state of field-side hardware, such as solenoid valves, relays, and motor starters. By executing high-speed signal processing, the module ensures that the control system’s logic translates into immediate physical action. Furthermore, the high-side switching architecture provides a robust electrical interface that meets the stringent requirements of modern industrial environments.

Proactive Diagnostics and System Reliability

Reliability serves as the core of the 12P2536X062 design. The module actively monitors its output channels to identify potential hardware faults or wiring issues before they lead to system failure. These onboard diagnostic capabilities allow maintenance teams to pinpoint errors rapidly, effectively minimizing unexpected downtime. Additionally, the card’s architecture supports redundant configurations, providing an extra layer of security for mission-critical processes where continuous operation is mandatory. This focus on “smart” monitoring makes it an essential asset for facility-wide risk management.

Versatile Industrial Applications

Industrial facilities within the oil and gas, chemical processing, and power generation sectors utilize the VE4032S1T2B1 for its durability and scalability. Because the module features a compact, modular footprint, it integrates easily into existing DeltaV S-series carriers, allowing for efficient cabinet space utilization. The rugged construction protects the internal circuitry from the electromagnetic interference and thermal fluctuations often found in heavy industrial settings. Consequently, this discrete output module facilitates long-term stability and simplified maintenance for evolving automation infrastructures.

Technical Specifications
