Description

Functional Overview

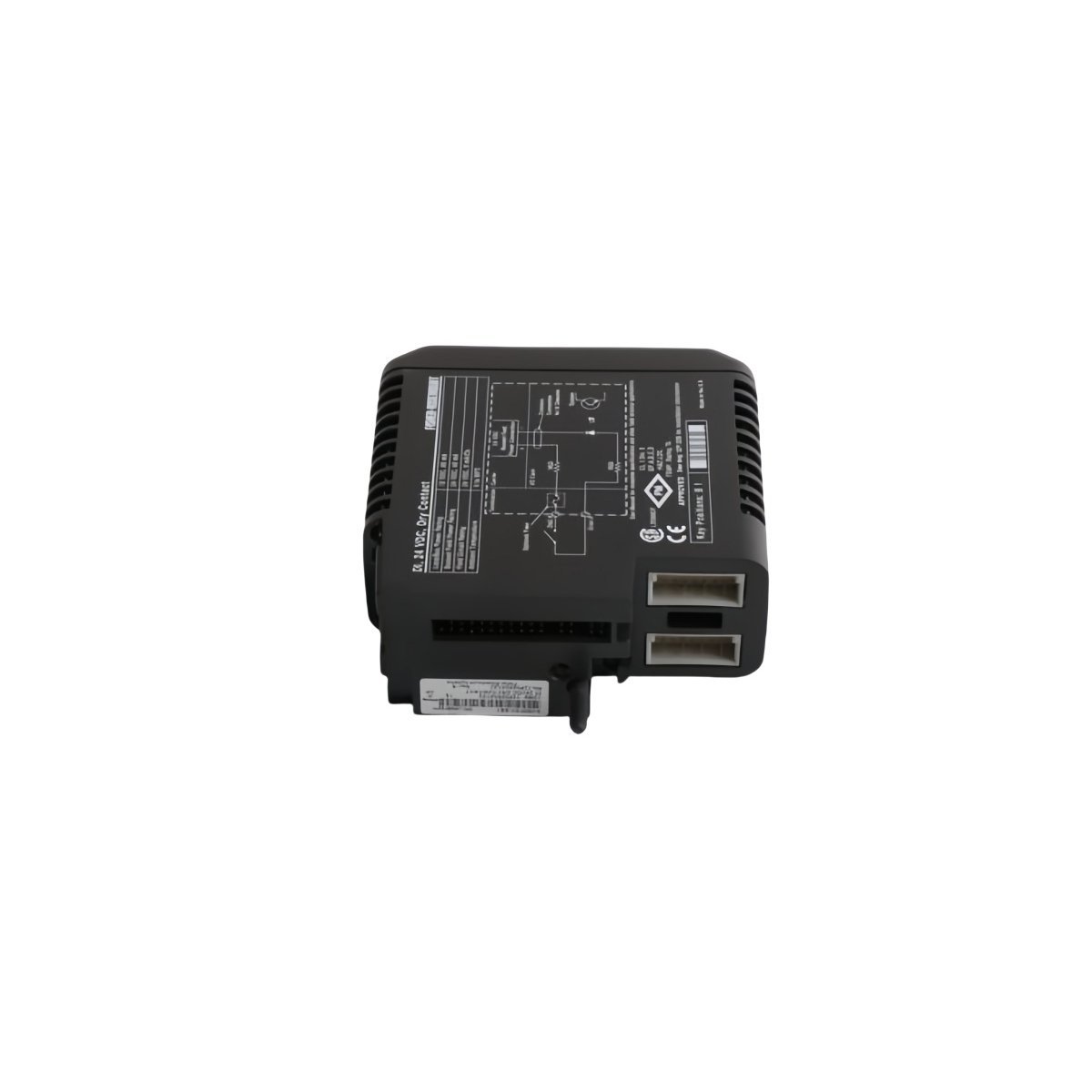

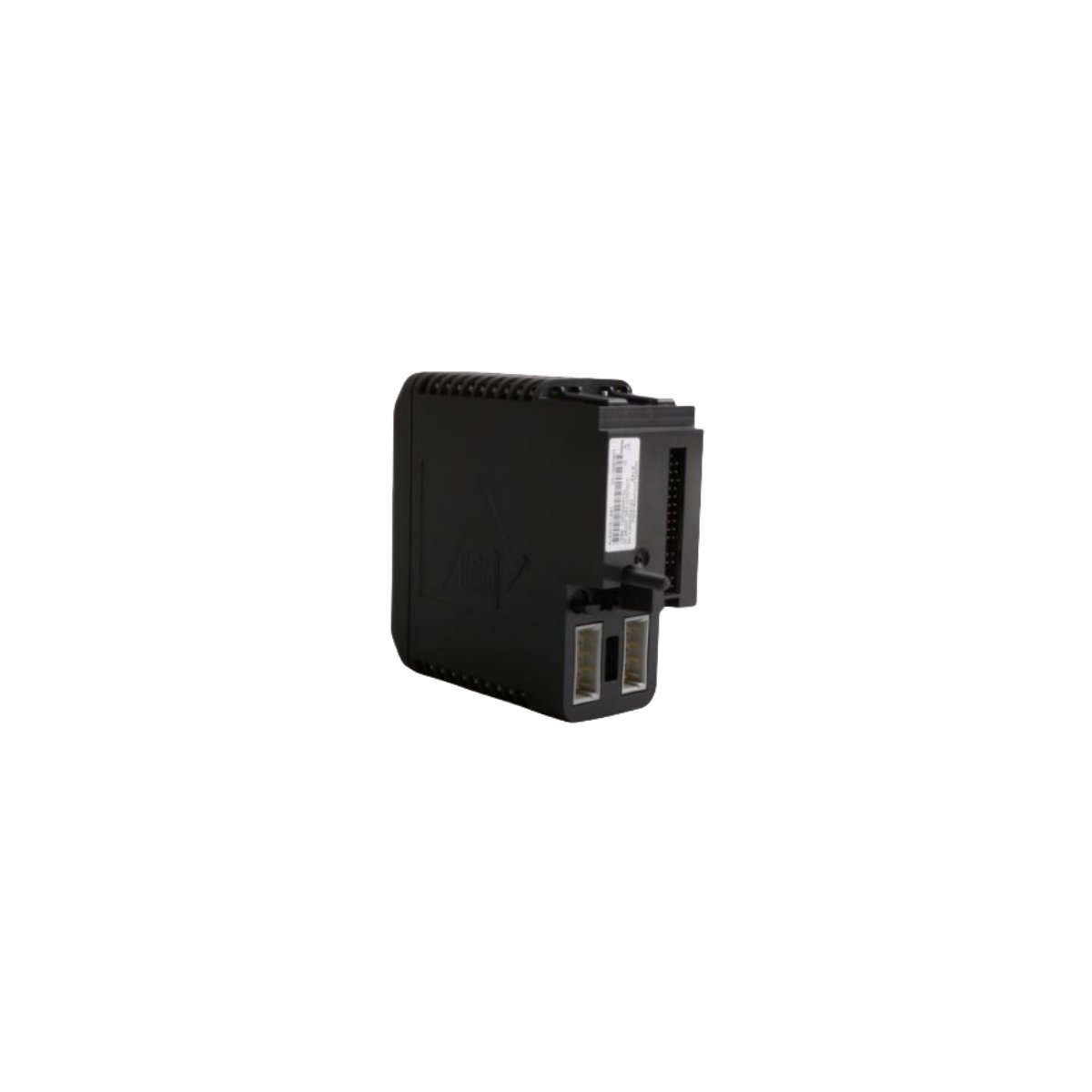

The Emerson KJ3001X1-BC1 (additionally identified by part numbers 12P0551X132 and VE4001S3T1B1) is a high-reliability discrete input card designed for the DeltaV™ Distributed Control System (DCS) and DeltaV SIS™ process safety architecture. Engineered by Emerson Automation Solutions, this module serves as the primary processing interface for binary (ON/OFF) field signals.

It monitors state changes from dry contacts, proximity sensors, pushbuttons, and limit switches, converting raw field currents into digital telemetry across the DeltaV control bus. By capturing rapid state changes at the millisecond level, it ensures the central controller acts on real-time operational events across the factory floor.

Architectural Safety and System Integration

Operating within the critical infrastructure of the DeltaV architecture, the KJ3001X1-BC1 utilizes advanced galvanic isolation to decouple high-voltage field wiring from sensitive backplane logic. This architecture stops ground loops, voltage transients, and electromagnetic surges from cascading into the main controller rack.

The module supports full Removal and Insertion Under Power (RIUP), which allows maintenance personnel to swap malfunctioning hardware hot without interrupting process control loops or shutting down surrounding IO cards. It natively participates in DeltaV’s plug-and-play auto-sensing environment, auto-configuring its software parameters as soon as it clicks into its assigned terminal block slot.

Diagnostic Monitoring and Field Resilience

To prevent silent failures within emergency shutdown or critical interlock loops, the KJ3001X1-BC1 features integrated line fault detection. It actively tests the copper field loops for open-circuit wiring breaks or short-circuit conditions, immediately flagging anomalies to the operator console via FactoryTalk-compatible DeltaV alerts.

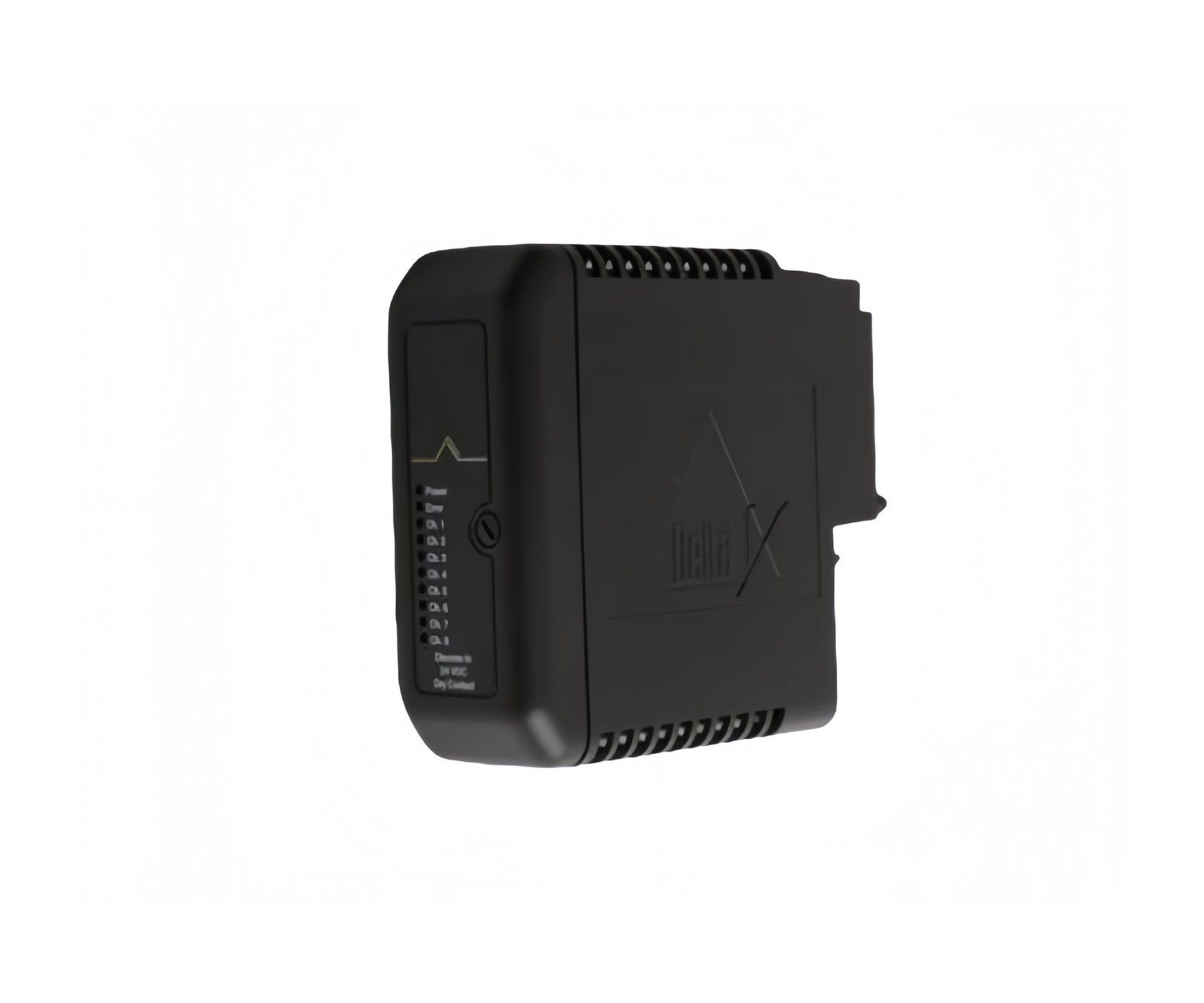

The physical faceplate contains an array of per-channel LED status indicators that provide rapid field diagnostic feedback, lighting up dynamically when a channel transitions to an active state. The rugged electronic casing is designed to be installed on standard DeltaV horizontal carriers, protecting internal components from dust, humidity, and high vibrational strain common to heavy automation corridors.

Technical Data

Key Applications

The isolation barriers and diagnostics built into the KJ3001X1-BC1 make it an ideal choice for safely routing critical feedback indicators into central processing systems:

• Safety Instrumented Systems (SIS): Routing emergency stop pushbuttons and safety gate switches into critical trip configurations.
• Valve Position Feedback: Monitoring double-acting valve limit switches to verify if process valves are completely open or tightly closed.
• Motor Control Integration: Capturing auxiliary fault contacts from motor control centers (MCCs) or variable frequency drives (VFDs).
• Tank Level Management: Reading high- and low-level float switch contacts to initiate automated safety interlocks and stop material overflows.
