Description

Functional Overview

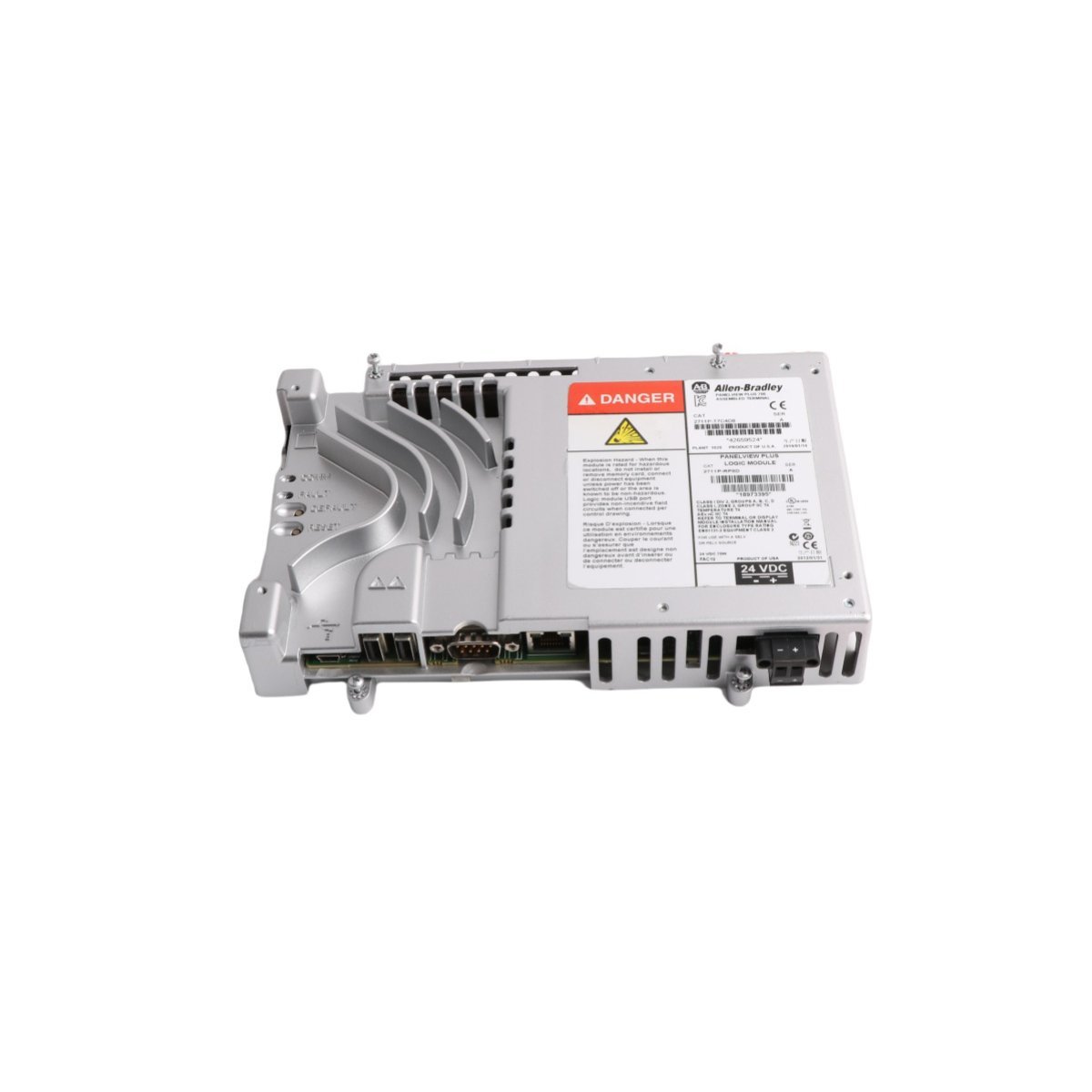

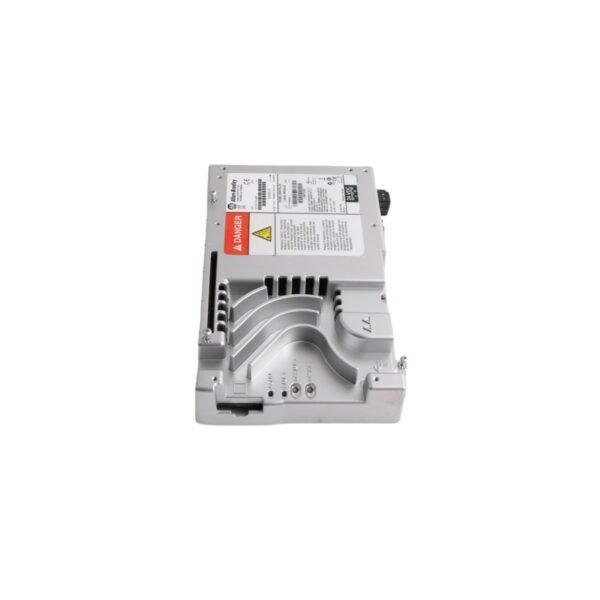

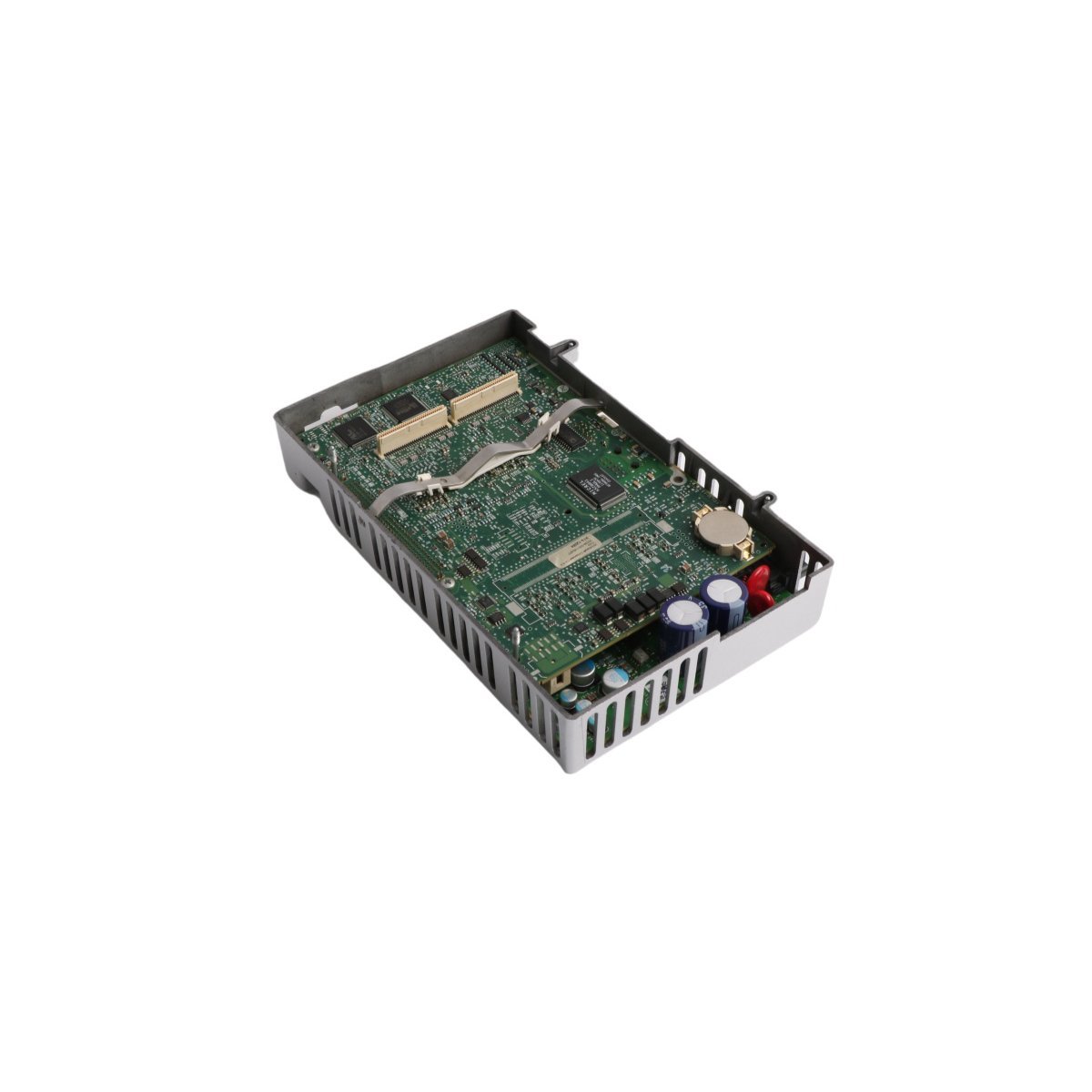

The Allen-Bradley 2711P-RP8D is a high-performance, industrial-grade logic module designed specifically for the PanelView™ Plus 6 operator interface family. As the core computing engine of an HMI assembly, this logic module mounts directly to the back of a compatible PanelView Plus 6 display module (ranging from 7-inch to 15-inch screen sizes).

By separating the control logic from the physical flat-panel display, Allen-Bradley provides a modular design that allows maintenance teams to upgrade processing power or transition power configurations independently of the display. The 2711P-RP8D executes critical real-time application runtime files, coordinates multi-protocol network communication, processes operator inputs, and drives the graphic rendering engine.

System OS and Advanced Computing Architecture

The 2711P-RP8D runs on a stable Windows CE 6.0 operating system environment, customized for industrial applications. It features an upgraded memory architecture containing 512 MB of non-volatile Flash storage and 512 MB of internal RAM. This high-capacity memory footprint enables the terminal to host large, data-intensive runtime applications created in FactoryTalk® View Studio Machine Edition (ME).

The module supports advanced software integration directly at the machine level, including:

• ActiveX® Control Execution: For custom interactive display elements.
• Integrated Software Viewers: Native support for Microsoft® Office Viewers (Word, Excel, PowerPoint) and Adobe PDF files, allowing operators to troubleshoot directly from technical manuals on the plant floor.
• Web-Ready Navigation: An embedded Internet Explorer® browser to access network cameras, localized web servers, or intranet plant dashboards.

Data Management and Seamless Network Connectivity

The logic module handles advanced industrial telemetry and remote data synchronization effortlessly. Through its advanced DataStore Plus functionality, the 2711P-RP8D eliminates standard data-logging point restrictions, allowing for continuous, high-density logging of process trends, historical alarms, and plant metrics directly to local memory or a connected network path.

The panel supports remote connectivity via Virtual Network Computing (VNC) and File Transfer Protocol (FTP) servers, giving engineers the ability to shadow the HMI screen or modify setup variables securely from an office PC. It supports seamless recipe modifications on the fly through standard .csv flat-file transfers.

The module comes equipped with standard physical interfaces, including high-speed RJ45 10/100 Ethernet, dual USB host ports, a USB device port, and a built-in Secure Digital (SD) card slot for flexible external memory expansion.

Power Infrastructure and Industrial Resilience

The “D” suffix in the 2711P-RP8D model number denotes a 24V DC input power configuration, making it safe and efficient for standard industrial control cabinets. It operates efficiently within an 18V to 32V DC supply window, boasting low power dissipation and an integrated real-time clock with field-replaceable battery backup for reliable event timestamping.

Housed in a rugged, low-profile enclosure, the module is engineered to handle harsh factory conditions, resisting high mechanical shock (up to 30G non-operating) and continuous equipment vibrations.

Technical Data

Key System Features

• Symbol Factory Integration: Fully supports high-fidelity vector-based graphics from the integrated Symbol Factory library, ensuring crisp, scalable machine animations.
• Modular Field Servicing: Allows the logic module to be unbolted and swapped out in minutes without replacing the display glass, saving significant hardware costs during maintenance.
• Secure Remote Administration: Password-protected VNC accessibility allows for remote diagnostic oversight from any authorized node on the plant network.
