Description

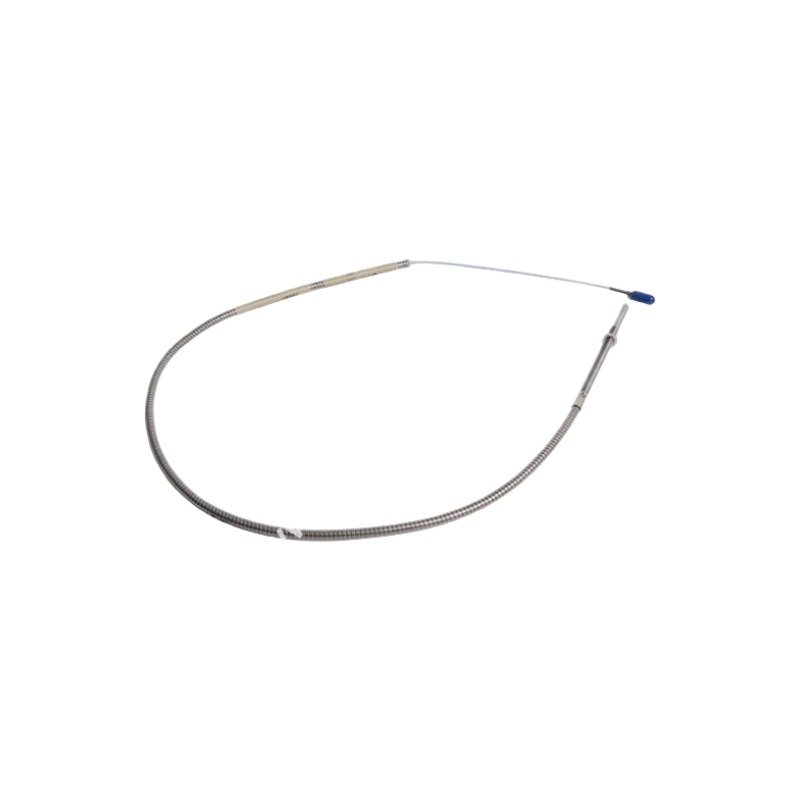

The Bently Nevada 330904-04-14-05-02-00, also cataloged as the 330904 Proximity Probe, serves as a specialized hardware component for high-frequency eddy-current displacement sensing within 3300 XL NSv (Narrow Side-View) Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks, specifically targeting tight physical spaces where standard 5 mm or 8 mm probes introduce severe sideview constraints. Specifically, the compact narrow-view (NSv) sensor core maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route adjacent signals through cramped machine counterbores or small-diameter shafts. Furthermore, the internal 75 ohm matching provides continuous gap voltage validation. Consequently, the assembly maintains stable targeting around calibrated -10 VDC operational centers and prevents signal attenuation that typically degrades the standard 7.87 V/mm (200 mV/mil) scale factor required to evaluate rotor dynamics on centrifugal air compressors.

Frequently Asked Questions

Q: What specific mechanical dimensions do the -04 and -14 option codes establish for this probe?

A: The -04 designator specifies a 0.4 in unthreaded length, and the -14 code defines a 1.4 in threaded case length with a 3/8-24 UNF thread profile wrapped in flexible stainless steel armor.

Q: How do the -05 and -02 option selections alter the physical cable interface?

A: The -05 option configures the probe with an integrated 0.5 meter cable length, while the -02 code equips the terminal end with a miniature coaxial ClickLoc connector on standard armored cable. To complete the electrical loop required by the NSv Proximitor, this probe must be matched with a 4.5 meters or 6.5 meters NSv extension cable.

Field Installation Guidelines

• Thread Engagement: Technicians must manually thread the 3/8-24 UNF armored probe body into the machine housing tap. Tighten strictly to standard engineering torque limits using a calibrated open-ended wrench to preserve the structural integrity of the internal TipLoc molded tip.
• Routing Radii: Always route the armored physical cable path with a minimum bend radius of 31.8 mm (1.25 in). Otherwise, over-bending distorts the external steel interlocks and risks crimping the internal miniature coaxial line.
• Terminal Isolation: Verify that standard connector protectors fully isolate the miniature ClickLoc junction point. This isolation prevents metal-to-metal physical contacts with the machine frame and effectively eliminates electrical ground loops.
