Description

Functional Overview

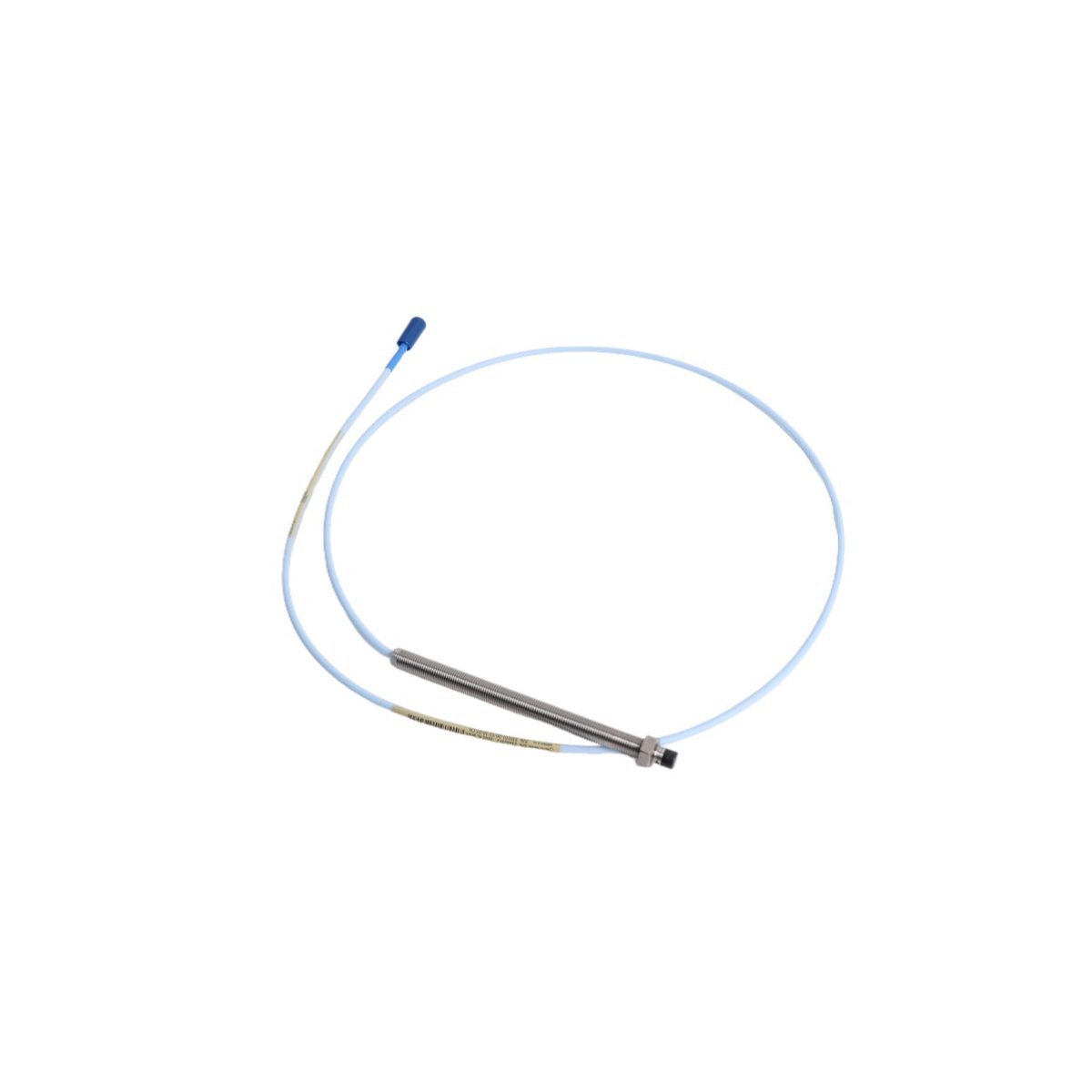

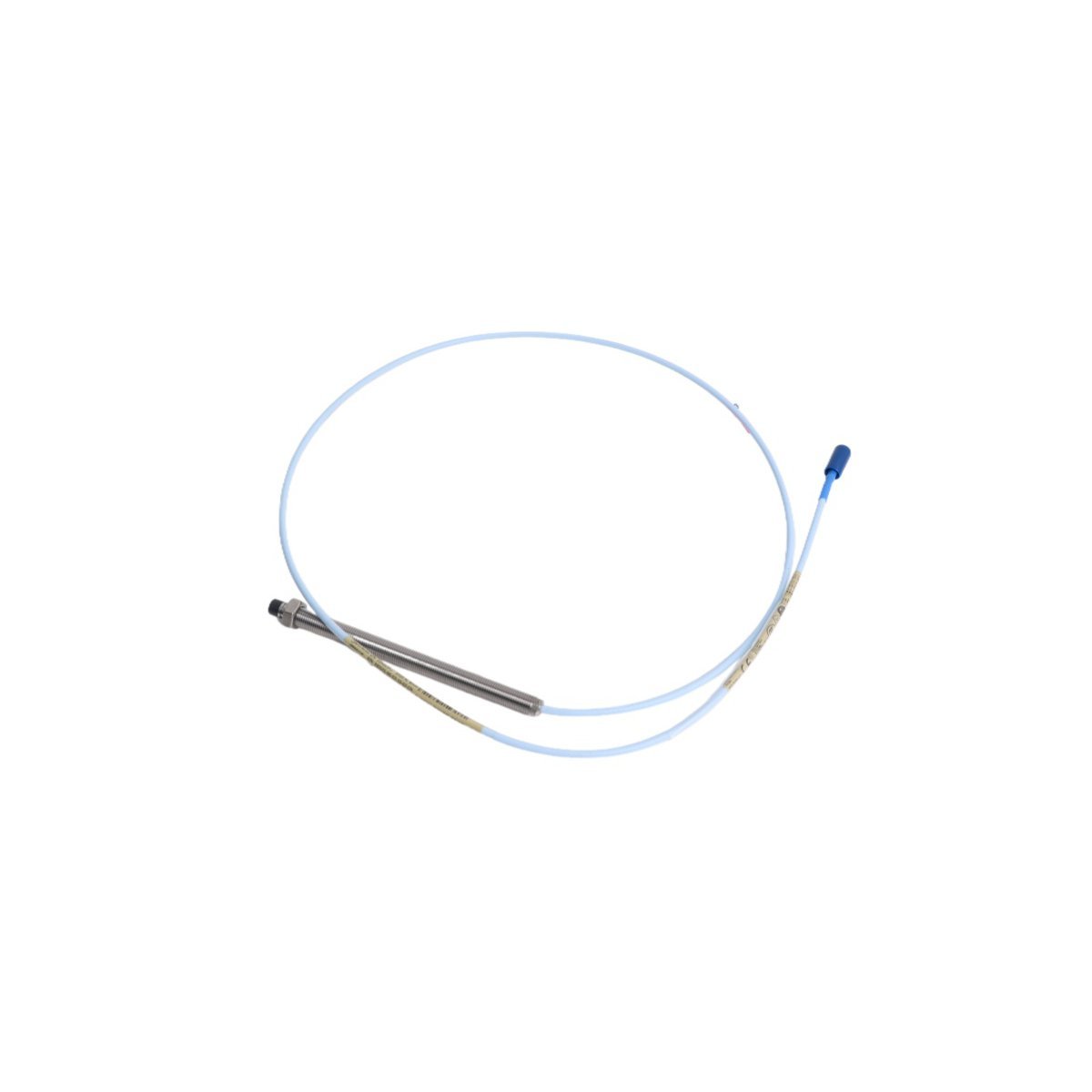

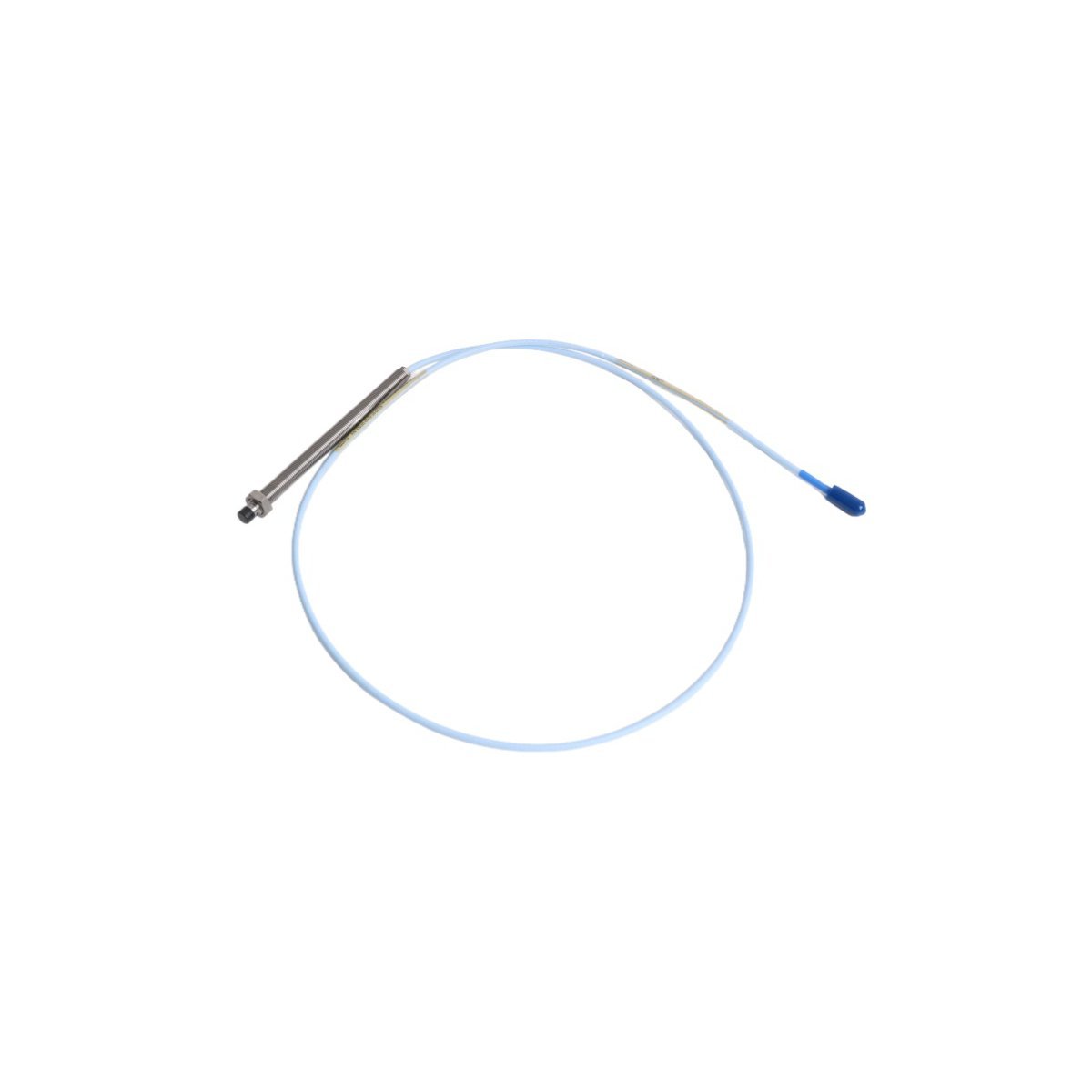

The Bently Nevada 330101-00-58-10-02-CN is a high-precision 8 mm Proximity Probe engineered for the 3300 XL series, specifically designed to deliver accurate shaft vibration and position measurements in industrial rotating machinery. As a critical component of Turbine Supervisory Instrumentation (TSI) systems, this transducer actively monitors dynamic movement and converts it into a reliable electrical signal for condition assessment. Consequently, its robust construction and advanced signal processing capabilities make it an indispensable tool for predictive maintenance and machinery protection in demanding environments.

Furthermore, the probe features an enhanced RFI/EMI immunity design, which actively ensures signal integrity and prevents interference from high-frequency noise sources, thereby meeting stringent European CE mark approvals without requiring special shielding. Since accurate target material response is vital for calibration, the sensor operates with exceptional precision when paired with standard AISI 4140 steel targets of 31 mm diameter or larger, maintaining linearity at a standard gap of 1.0 mm. Additionally, the unit utilizes a miniature coaxial ClickLoc connector system, which facilitates rapid field termination and ensures a secure connection for the 1.0-meter integrated cable. By incorporating user-friendly SpringLoc terminal strips, the 330101-00-58-10-02-CN significantly simplifies installation and reduces wiring time, empowering technicians to complete commissioning tasks efficiently. Ultimately, this probe supports continuous operation within a temperature range of 0°C to +45°C and altitudes up to 2000 meters, delivering the reliability and durability required for critical power generation and processing applications.

Technical Specifications
