Description

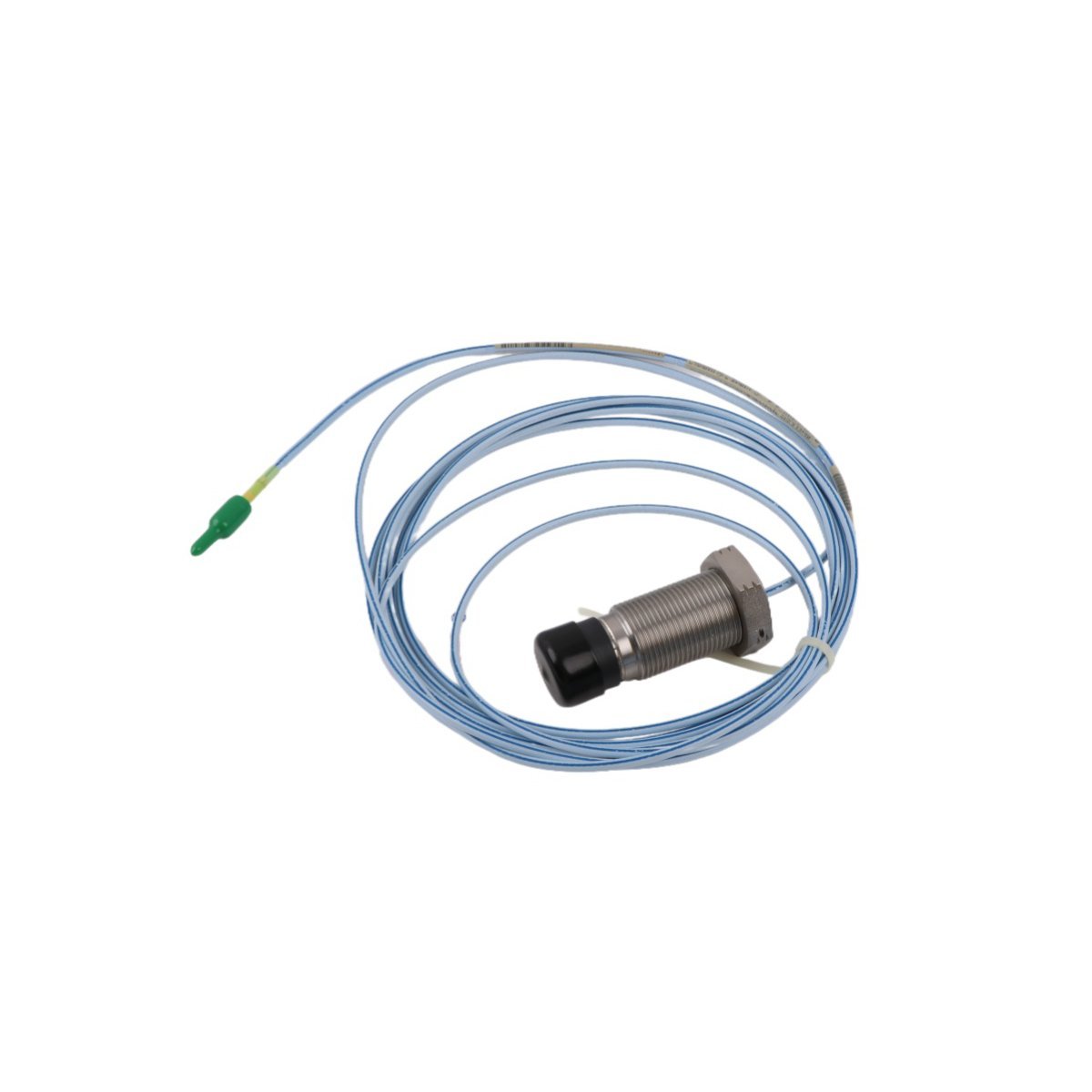

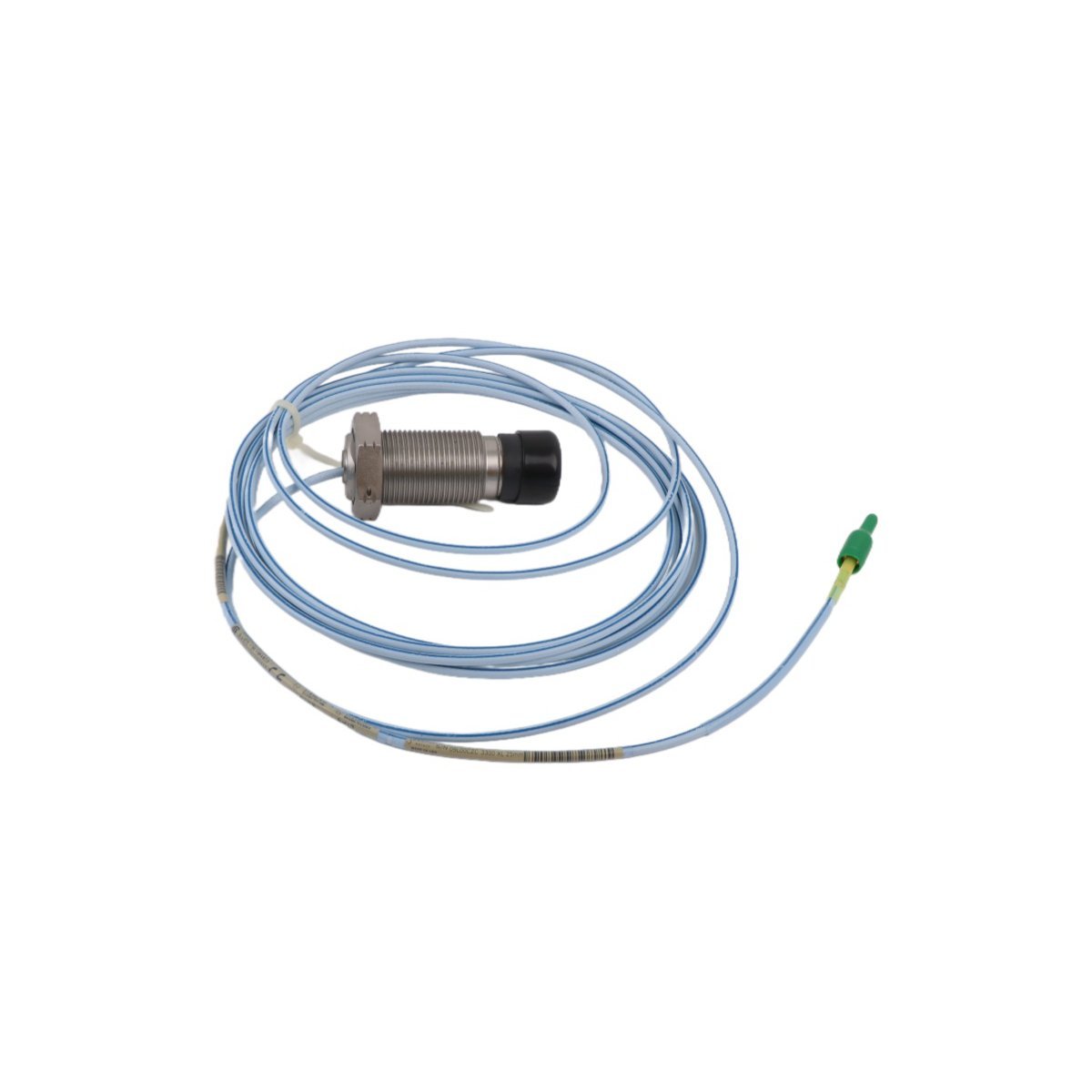

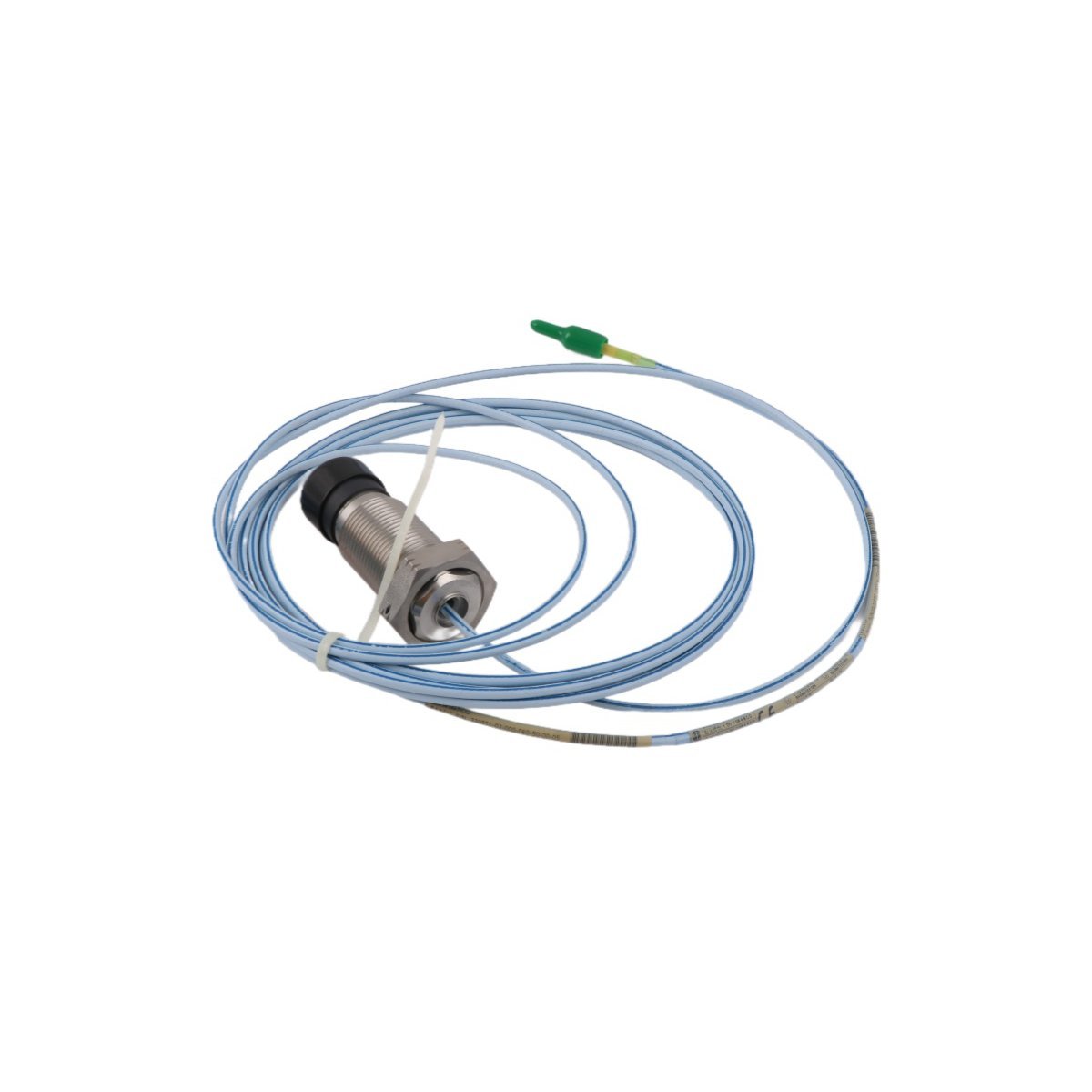

Configured for differential expansion monitoring in Turbomachinery Information (TSI) systems, the Bently Nevada 330851-02-000-60-10-00-05 (330851 Proximity Probe) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• 330851: Base model number for 3300 XL 25 mm proximity probe.
• 02: Probe tip length.
• 000: Unthreaded length.
• 60: Total length.
• 10: Connector type.
• 00: Agency approval options.
• 05: Total length (meters).

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 330851 probe system utilizes eddy-current induction to measure the relative position between the sensor tip and a target material, typically a rotor surface. For accurate performance, the transducer system requires specific eddy-current probe scaling based on the target material composition. Field calibration must ensure that gap voltage validation maintains targets within the -10 VDC range when operating at the mid-range of the linear region. In differential expansion applications, cross-talk suppression is achieved through frequency-modulated excitation provided by the 3300 XL Proximitor sensor, ensuring that multiple probes installed in proximity to one another do not interfere with the signal output or the rotor dynamics assessment of the turbine shaft.

Frequently Asked Questions (FAQ)

Q: Can this probe be used as a direct replacement for 3300 25 mm systems?

A: The 3300 XL system is designed to be fully compatible with previous 3300 series 25 mm installations, provided the Proximitor sensor and extension cables are matched according to the system calibration.

Q: What are the primary installation considerations for the 1.0 meter integral cable?

A: Ensure the integral cable is routed through protective conduit and is not subjected to excessive tension or bending radii below the manufacturer’s specified minimum to prevent internal conductor fatigue.

Field Installation Guidelines

• Probe Mounting: Install the probe into the mounting bracket or casing adapter. Ensure the M30x2 threads are engaged without force to prevent damage to the probe housing or the mounting interface.
• Gap Adjustment: Use the appropriate gap-setting tool to set the initial distance between the probe tip and the target. Verify the output voltage corresponds to the specific curve for the target material.
• Shielding: Maintain shield continuity throughout the cabling path from the probe to the termination block. Ensure the shield is grounded at the monitor end of the loop to minimize electromagnetic interference (EMI).
• Connector Maintenance: Keep the coaxial connectors clean and dry. Use a light application of dielectric grease on the connector threads to prevent oxidation and moisture ingress in high-humidity environments.
