Product Description

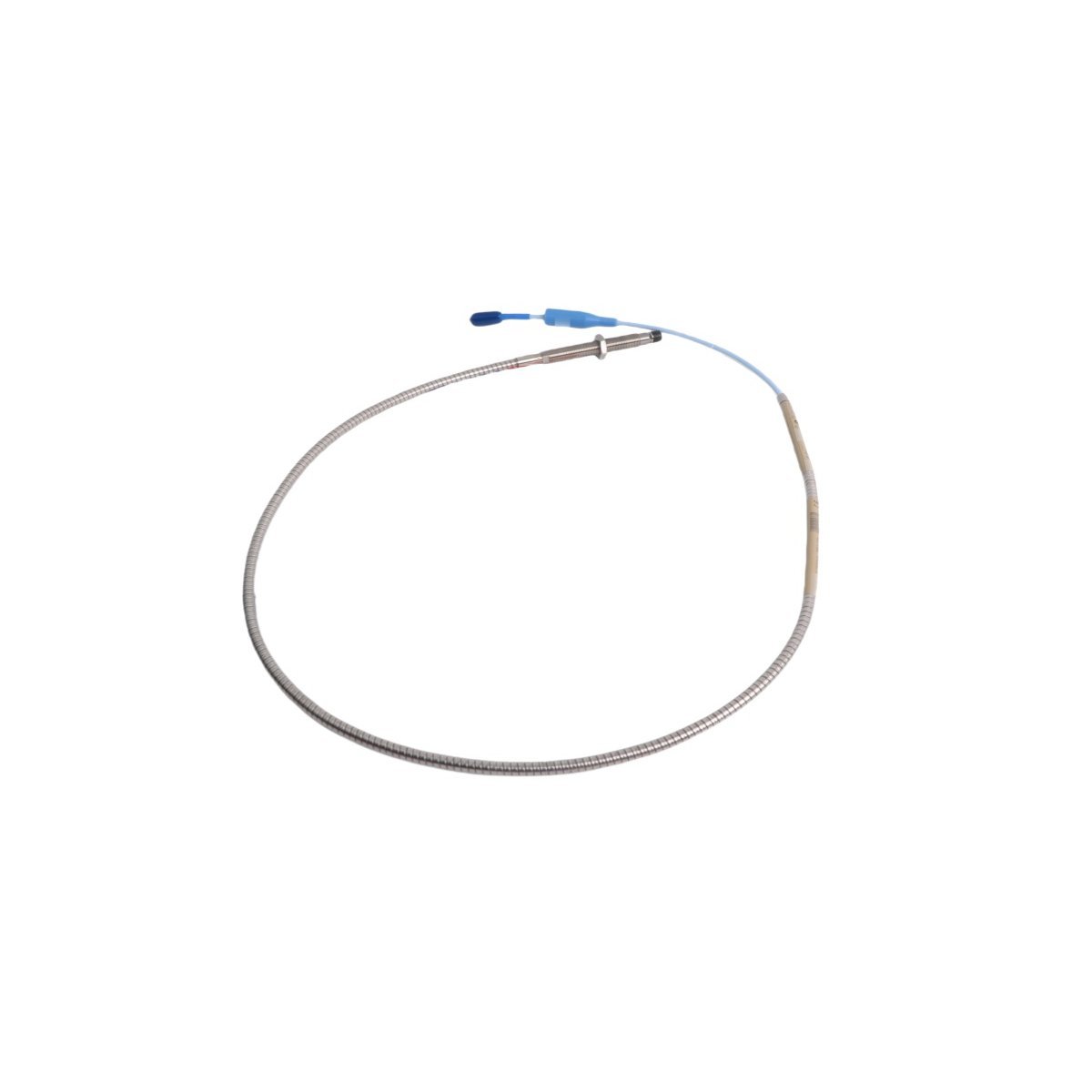

The Bently Nevada 330104-01-08-15-02-05 operates as a high-precision non-contact displacement sensor within the 3300 XL 8mm Proximity Transducer System. This industrial-grade sensor measures static position and dynamic vibration to evaluate the mechanical health of critical rotating machinery. Engineers utilize these measurements for Turbomachinery Protection Systems (TPS) and continuous asset condition monitoring in power generation, oil and gas, and chemical processing facilities.

By utilizing advanced eddy current technology, the probe delivers a linear voltage output proportional to the distance between the probe tip and the observed target material, such as a machine shaft. The design incorporates a molded polyphenylene sulfide (PPS) plastic tip that encapsulates the internal coil, providing exceptional resistance to chemical degradation and mechanical wear. This specific model features metric M10 x 1 threads and an armored cable jacket to withstand harsh industrial environments while preventing physical damage during installation and operation.

Key Technical Characteristics

• Transducer System Type: 3300 XL 8 mm Proximity Transducer System
• Thread Type and Size: Metric M10 x 1 threaded body
• Unthreaded Length Option: 01 (corresponds to 10 mm unthreaded length)
• Overall Case Length Option: 08 (corresponds to 80 mm overall case length)
• Total Length Option: 15 (corresponds to 1.5 meters or 4.9 feet total length)
• Connector Option: 02 (miniature coaxial ClickLoc connector with connector protector)
• Agency Approval Option: 05 (Multiple hazardous area approvals, including ATEX, IECEx, and CSA certifications)
• Protective Armor: Stainless steel fluid-resistant armor for maximum physical protection
• Interchangeability: Fully compatible with standard 3300 XL Proximitor sensors and extension cables without manual bench calibration
