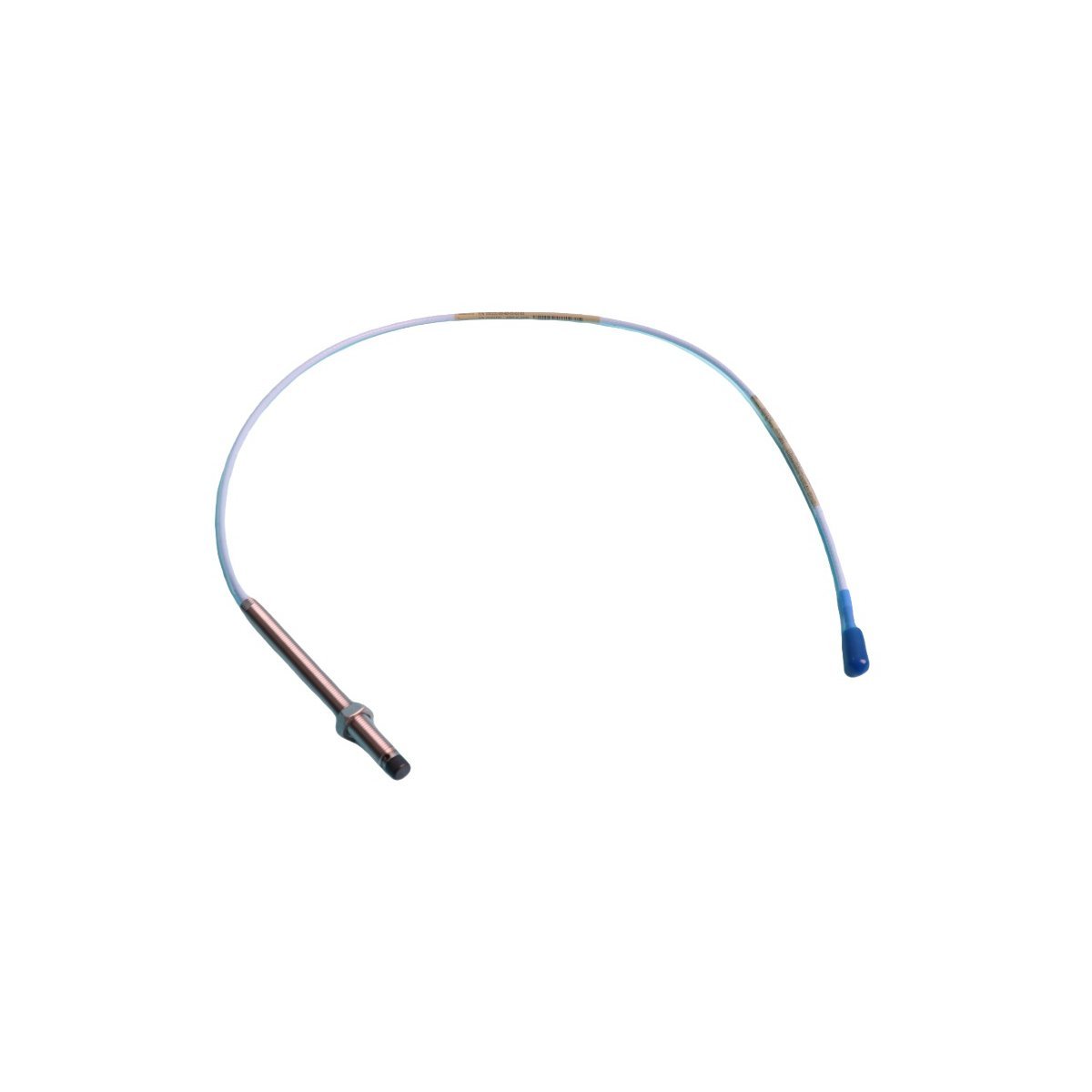

Bently Nevada 330101-00-43-15-12-05 3300 XL 8mm Proximity Probe
The Bently Nevada 330101-00-43-15-12-05 is a rugged 3300 XL 8mm proximity probe featuring a 3/8-24 UNF threaded body and a 4.3-inch case length. Equipped with a 1.5-meter FluidLoc cable and international hazardous area approvals, this eddy current sensor delivers highly accurate shaft vibration and position data for critical rotating machinery protection.
Description
Product Description
The Bently Nevada 330101-00-43-15-12-05 functions as a non-contacting displacement sensor within a standard 3300 XL 8mm Proximity Transducer System. This precision hardware continuously tracks shaft vibration, dynamic position, and axial displacement on high-speed rotating industrial machinery. Consequently, operations teams rely on this data to supply critical inputs for Machinery Protection Systems (MPS) across oil refineries, petrochemical plants, and power generation stations.
By utilizing eddy current measurement technology, the probe generates a linear voltage output that directly represents the distance between the target shaft and the sensor tip. To survive demanding industrial environments, the assembly incorporates an advanced TipLoc molding process that creates a permanent, robust bond between the probe tip and the stainless steel body. Furthermore, the specialized CableLoc design provides up to 330 N (75 lbf) of pull strength to prevent accidental separation under severe mechanical stress. This model utilizes standard fractional 3/8-24 UNF threads and features gold-plated ClickLoc connectors to resist moisture intrusion and atmospheric corrosion.
Key Technical Characteristics
- Transducer System Type: 3300 XL 8 mm Proximity Transducer System
- Thread Type and Size: Standard fractional 3/8-24 UNF threaded body
- Unthreaded Length Option: 00 (corresponds to 0.0 inches of unthreaded length)
- Overall Case Length Option: 43 (corresponds to 4.3 inches of total case length)
- Total Length Option: 15 (corresponds to a 1.5-meter or 4.9-foot integrated cable)
- Connector and Cable Option: 12 (features a miniature coaxial ClickLoc connector along with a FluidLoc cable that seals internal pathways against oil migration)
- Agency Approval Option: 05 (Multiple global hazardous area certifications, including ATEX, IECEx, and CSA standards for explosive environments)
- Interchangeability: Fully swaps with standard 3300 XL components and original 3300 series 5mm or 8mm hardware without bench recalibration
Additional information
| Weight | 0.06 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 1.8 x 1.6 x 123cm |
