Product Overview

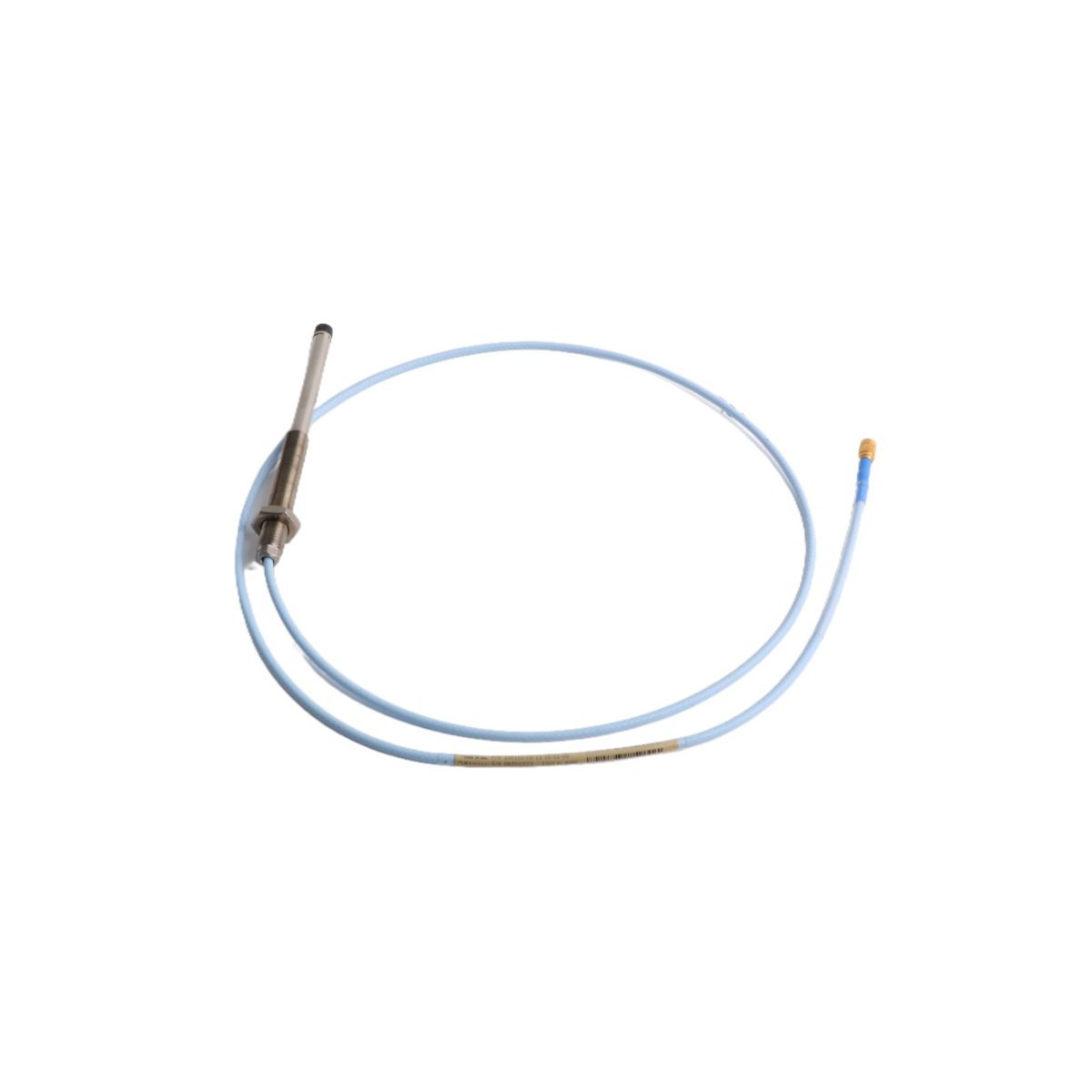

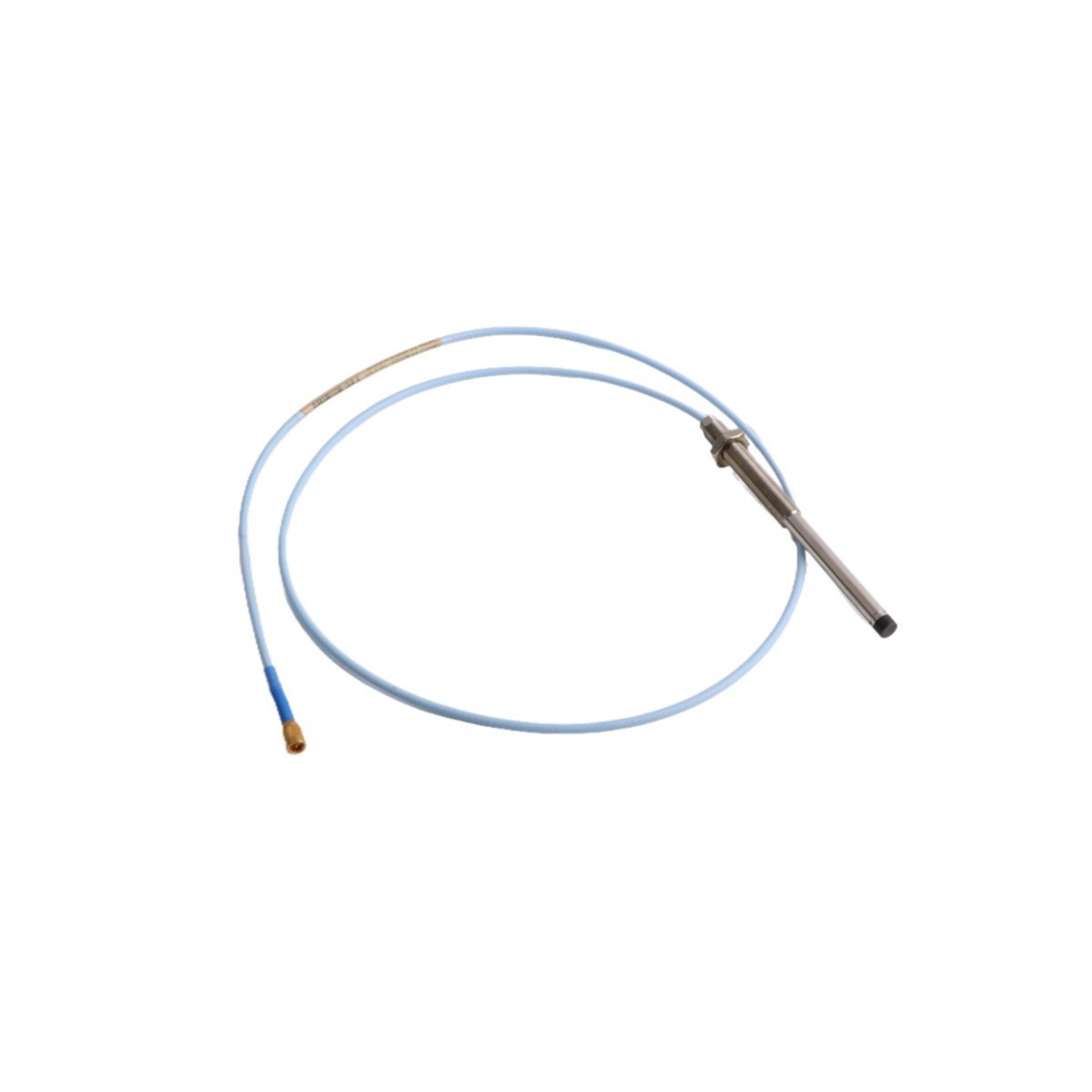

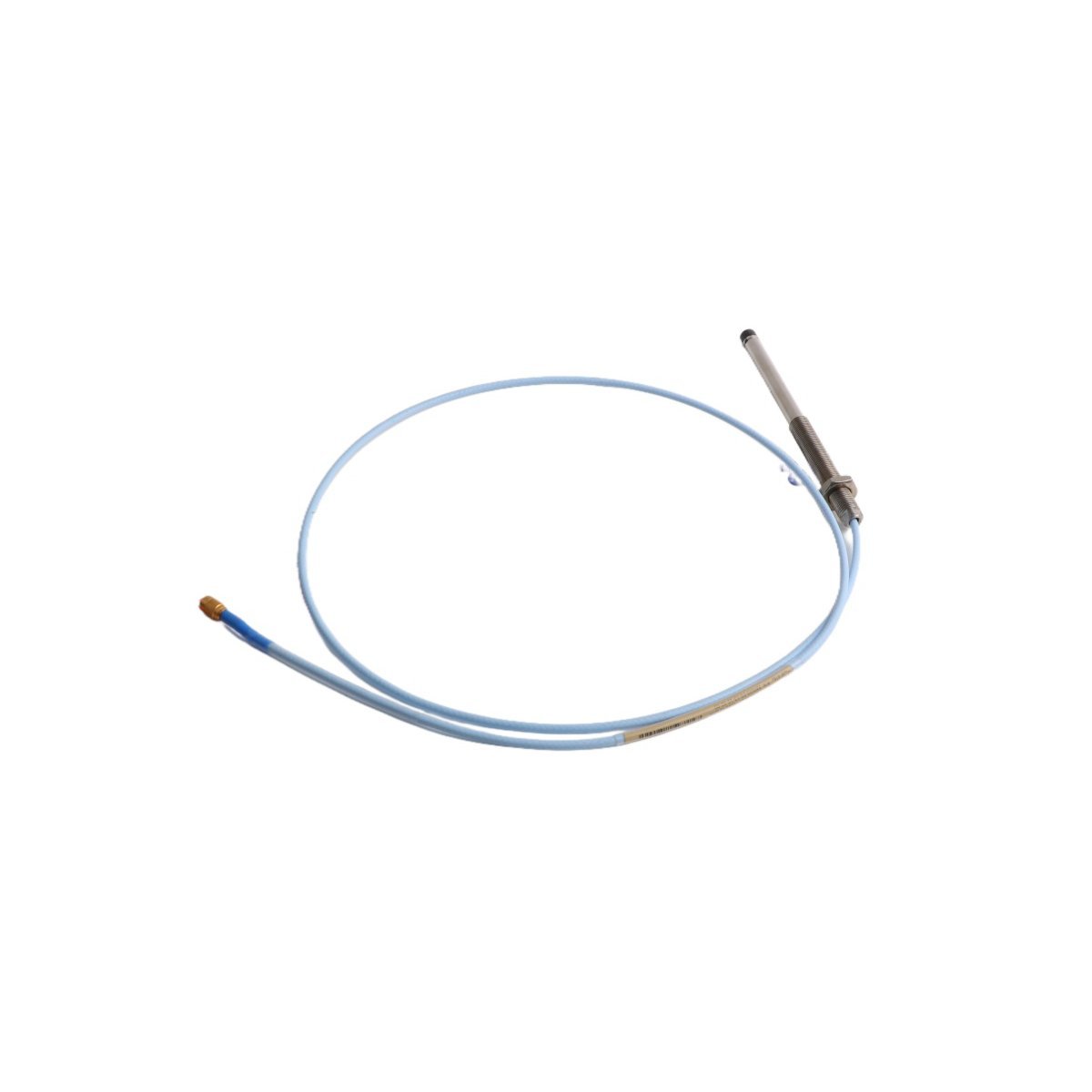

The Bently Nevada 330103-06-10-10-02-05 functions as a high-performance 8 mm proximity probe within the 3300 XL Transducer System. This sensor precisely measures shaft vibration, position, and speed in critical rotating machinery. By utilizing advanced eddy current technology, the probe delivers highly linear and stable output signals, which engineers rely upon for comprehensive machine protection and diagnostic analysis.

Technical Specifications

• Model Number: 330103-06-10-10-02-05
• System Series: 3300 XL Proximity Transducer System
• Probe Diameter: 8 mm
• Thread Size: M10 x 1
• Unthreaded Case Length: 60 mm
• Total Case Length: 100 mm
• Cable Length: 1.0 meter (integral)
• Connector Type: Miniature coaxial ClickLoc
• Mounting Option: 10 (Standard mount)
• Agency Approval: 02 (Multiple approvals including CSA, ATEX, and IECEx)
• Material: Corrosion-resistant housing with molded polyphenylene sulfide (PPS) tip

Functional Characteristics

Bently Nevada engineers designed this transducer to withstand harsh industrial environments through a reinforced probe tip construction. Because the coil resides within a molded PPS plastic housing, the unit exhibits superior mechanical strength and thermal stability. Furthermore, the 3300 XL system incorporates standardized impedance characteristics, which ensures compatibility with various monitor configurations. Consequently, operators achieve reliable signal integrity even across extended cable runs, minimizing the risk of data loss in critical protection loops.

Industry Applications

Maintenance professionals deploy the 330103-06-10-10-02-05 probe in demanding sectors such as power generation, oil and gas, and petrochemical manufacturing. Due to its rigorous hazardous area certifications, the sensor maintains compliance in explosive atmospheres where safety remains a primary concern. Additionally, the ClickLoc connector simplifies the installation process, which reduces the time required for sensor replacement or system upgrades. Furthermore, by providing high-fidelity raw signal output, the probe assists in detecting early-stage faults, thereby facilitating proactive maintenance and optimizing overall equipment efficiency.
