Description

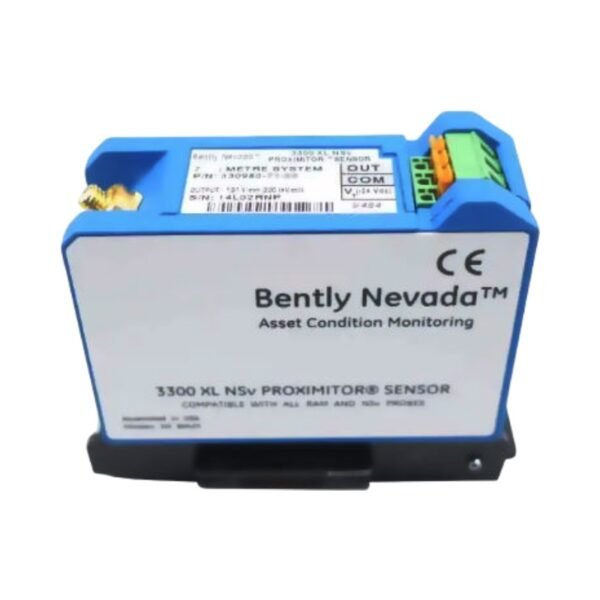

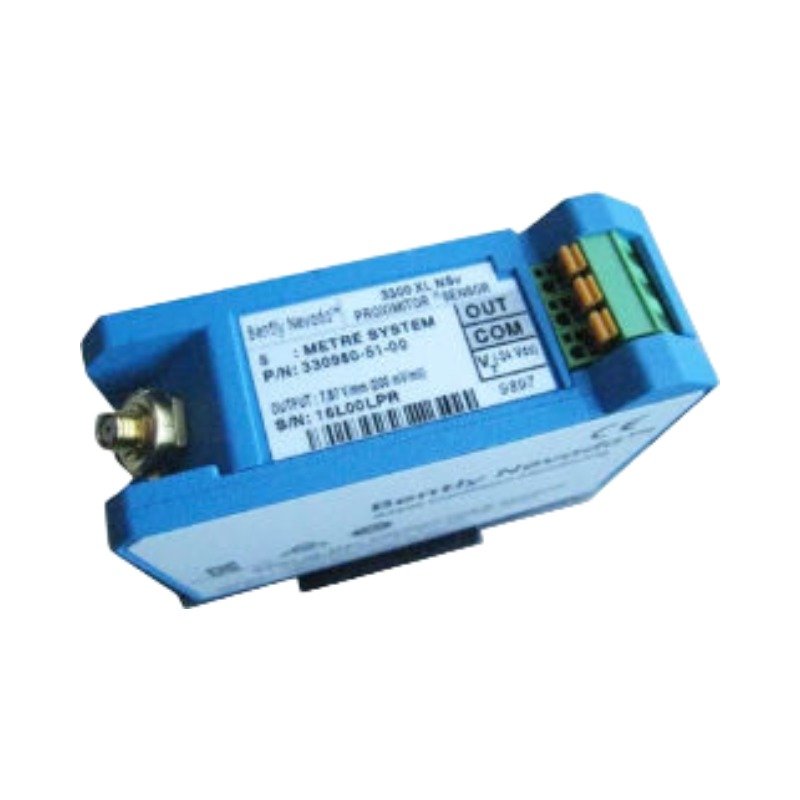

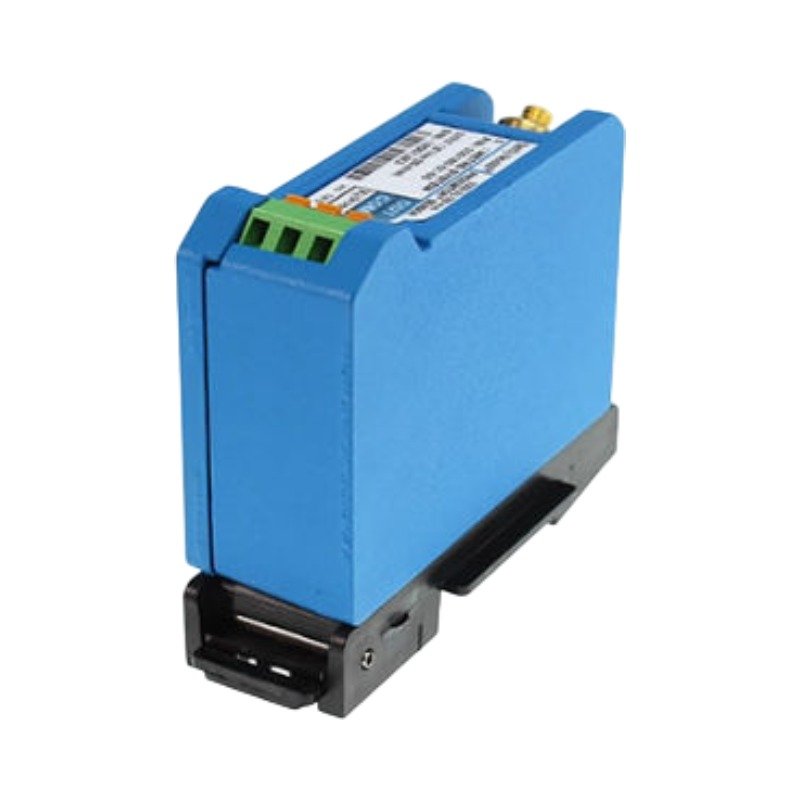

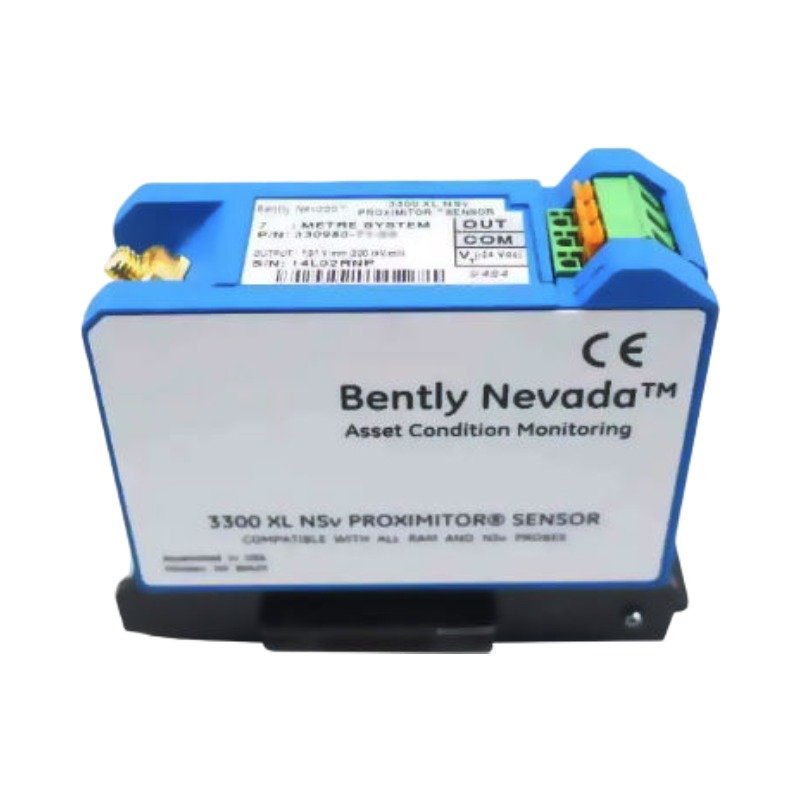

The Bently Nevada 330980-51-00, also cataloged as the 330980 Proximitor Sensor, operates as a dedicated hardware component for non-contacting displacement and vibration measurements within 3300 XL NSv Proximity Transducer System platforms. This hardware targets installations with narrow side-views or small shaft diameters, executing high-accuracy gap-to-voltage conversion.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal circuitry manages strict eddy-current probe scaling to convert dynamic distance changes into standard analog voltage outputs. During physical field adjustments, technicians run an immediate gap voltage validation (-10 VDC targets) using the integrated SpringLoc terminal strips. This process locks in the baseline center calibration point, allowing the transmitter to capture micro-vibrations across small target profiles. Consequently, the sensor logs high-frequency rotor dynamics waveforms without clipping or signal distortion. Furthermore, integrated filtering stages execute immediate cross-talk suppression, which eliminates signal bleeding between closely spaced transducer lines.

Frequently Asked Questions

Q: How does the 51 option code modify the physical and electrical profile of this module?

A: The 51 suffix signifies a calibrated 5.0-meter system length combined with an integrated DIN-rail mounting base. Consequently, this package eliminates the need for separate panel isolator plates during high-density chassis layouts.

Q: What happens if the supply voltage steps more positive than the -23.5 VDC specification?

A: Voltages more positive than -23.5 VDC contract the total linear range of the sensor. As a result, the device drops below target accuracy limits near the outer boundary of its 60 mil window.

Field Installation Guidelines

• Mounting Isolation: Anchor the integrated DIN-mounting foot directly onto standard 35 mm tracking rails. The base material provides full electrical isolation from the backplate.
• Cable Tracking: Route the 5.0-meter sensor cable through dedicated conduit channels. Maintain a minimum bend radius of 25.4 mm to prevent shifting the nominal electrical impedance.
• Shield Grounding Rules: Terminate the outer coaxial shield line strictly at the monitor rack common ground block. Do not terminate the shield at the machine case to avoid forming secondary ground loops.
