Description

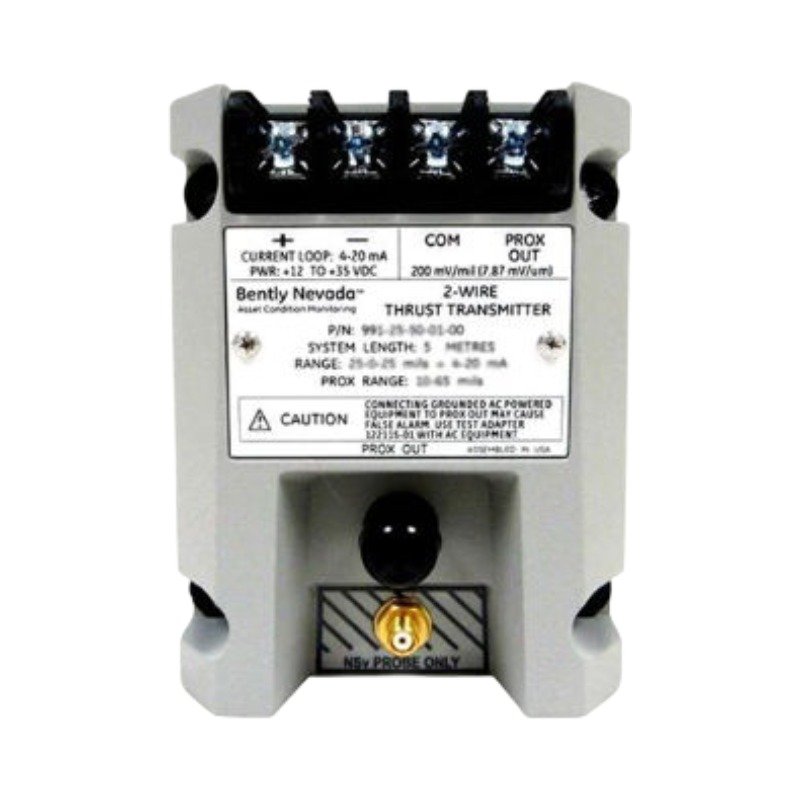

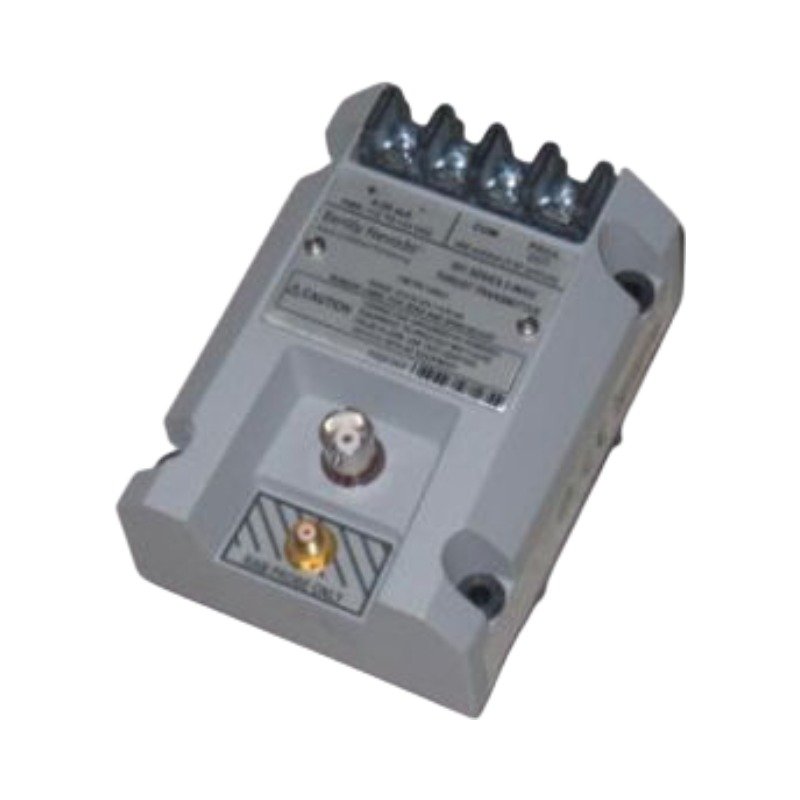

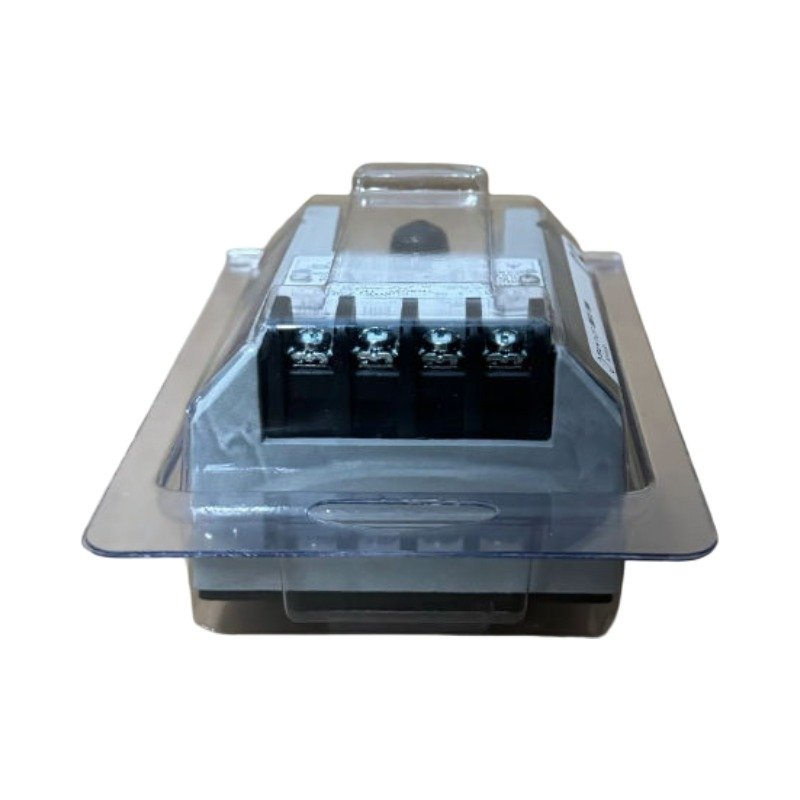

Configured for precise axial displacement monitoring in industrial machinery, the Bently Nevada 991-01-XX-01-00 (991 Thrust Transmitter) provides direct physical/electrical execution. It interfaces with non-contacting proximity probes to measure shaft position and outputs a proportional current signal directly to a control platform.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The transmitter applies strict internal eddy-current probe scaling to condition high-frequency analog signals from a 3300 NSv proximity probe loop. During setup field operations, technicians utilize the built-in non-isolated PROX OUT and COM terminals to execute gap voltage validation (-10 VDC targets) via dynamic measurement tools. This calibration baseline tracks micro-displacement trends within fluid-film bearings, recording critical rotor dynamics waveforms directly. Integrated circuits suppress signal cross-talk and apply a Not OK fault defeat logic, driving the loop current below 3.6 mA within 100 microseconds of a field loop failure.

Frequently Asked Questions

Q: How does the integrated design alter the physical architecture compared to standard proximity sensor loops?

A: The 991 transmitter combines the functions of a traditional Proximitor sensor and a separate signal conditioner into a single enclosure, outputting a direct 4-20 mA linear loop without intermediate hardware.

Q: Can the PROX OUT diagnostic terminal interface safely with AC-powered test instruments?

A: No, the PROX OUT coaxial connection shares an unisolated common ground with the internal transmitter circuits. Connecting grounded AC test equipment directly alters loop current readings; technicians must use an isolation test adapter to preserve signal integrity.

Field Installation Guidelines

• Mounting Selection: Fasten the transmitter assembly firmly onto a 35 mm DIN-rail tracking mount or flat bulkhead surface using the integrated structural clips.
• Cable Limits: Restrict the coaxial field cable distance between the transmitter module and the proximity probe sensor to the calibrated loop lengths of exactly 5.0 meters or 7.0 meters.
• Shield Grounding Rules: Connect the copper cable shields strictly at the receiver loop common grounding terminal. Insulate the machine-side connection with non-conductive shielding materials to prevent localized loop ground shifts.
