Description

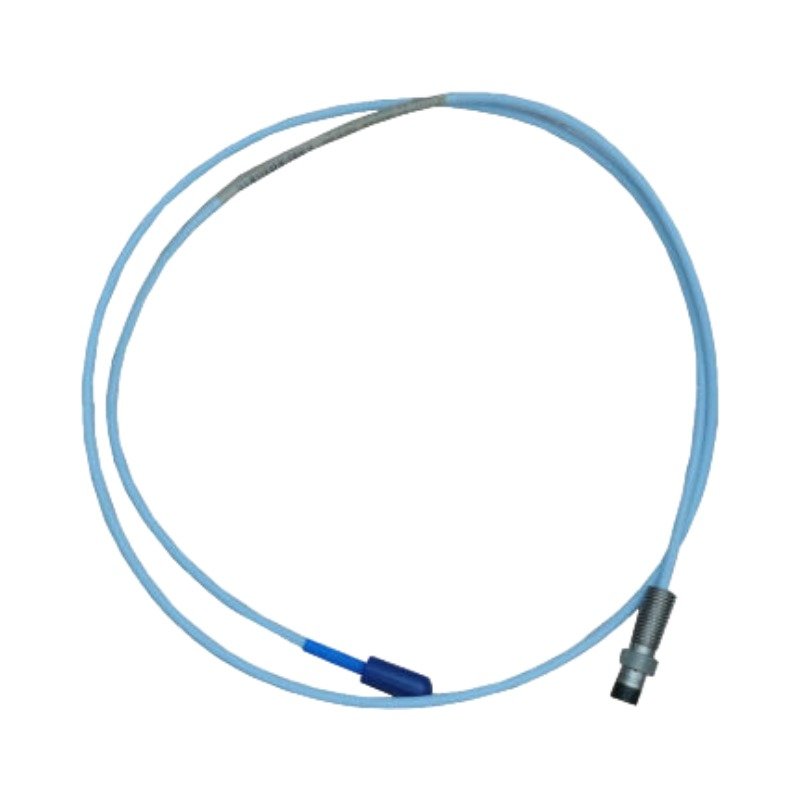

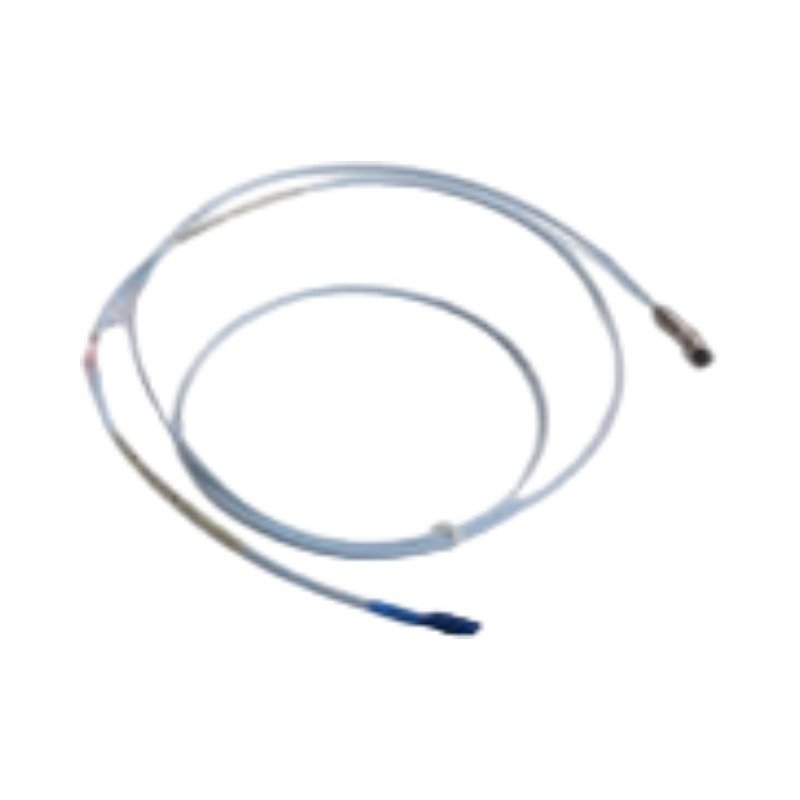

The Bently Nevada 330105-02-12-90-02-00, also cataloged as the 330105 Reverse Mount Probe, operates as a dedicated hardware component for non-contacting displacement and vibration measurements within 3300 XL 8 mm Proximity Transducer System platforms. This hardware tracks physical movement by generating high-frequency eddy currents, facilitating precise rotor observation across industrial turbomachinery.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The reverse-mount probe relies on exact eddy-current probe scaling to convert target proximity into stable electrical outputs. Field installation routines require technicians to adjust the physical gap until achieving proper gap voltage validation (-10 VDC targets), establishing the baseline calibration point for monitoring operations. This initial calibration prevents signal clipping during peak displacements, allowing the system to map clean rotor dynamics waveforms. Additionally, internal physical separation and matched cable configurations deliver stable cross-talk suppression when installing multiple proximity probes in close radial or axial proximity.

Frequently Asked Questions

Q: What specific mechanical conditions dictate the selection of a reverse-mount probe over a standard forward-mount variant?

A: Reverse-mount housings permit probe replacement from outside the machine casing or bearing housing. This mechanical layout avoids total machinery disassembly during routine sensor maintenance or replacement cycles.

Q: How does the ClickLoc connector design isolate the coaxial core from external industrial fluids?

A: The miniature ClickLoc configuration uses gold-plated brass components with definitive mechanical latching. This structural interface maintains constant contact pressure and blocks moisture ingress when properly insulated with connector protection sleeves.

Field Installation Guidelines

• Thread Engagement: Ensure at least 5 full threads of engagement when screwing the 3/8-24 UNF probe body into the mounting bracket or housing sleeve to prevent mechanical instability.
• Cable Routing Constraints: Maintain a minimum bend radius of 25.4 mm (1.0 inch) throughout the 9-meter cable run. Tight bends introduce structural stress and shift the nominal electrical impedance of the coaxial line.
• Terminal Grounding Rules: Connect the outer shield line exclusively to the designated circuit common ground inside the Proximitor sensor housing. Do not ground the field-side probe shell to eliminate secondary ground loops.
