Description

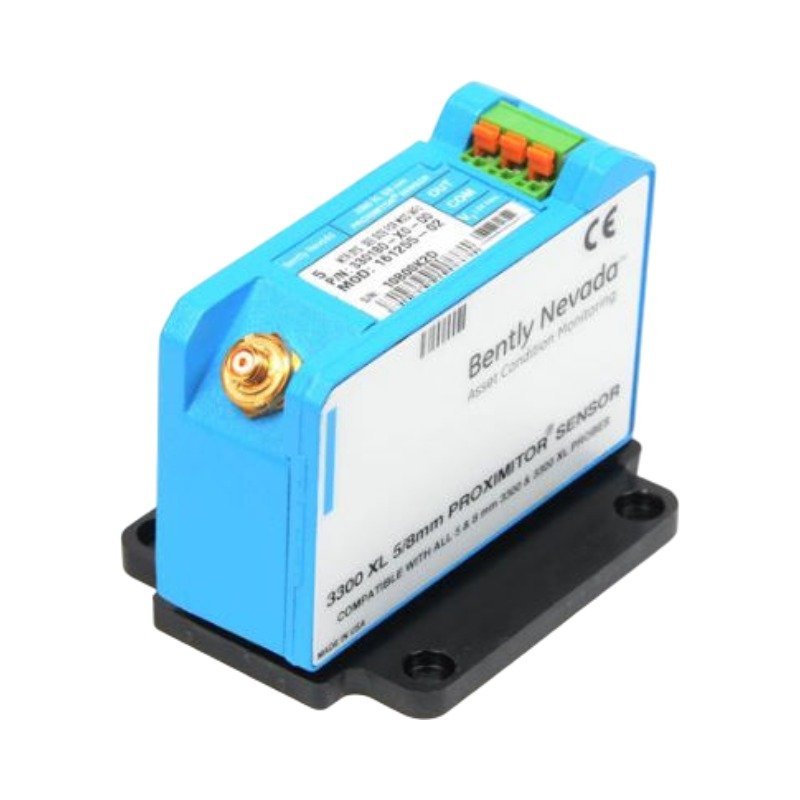

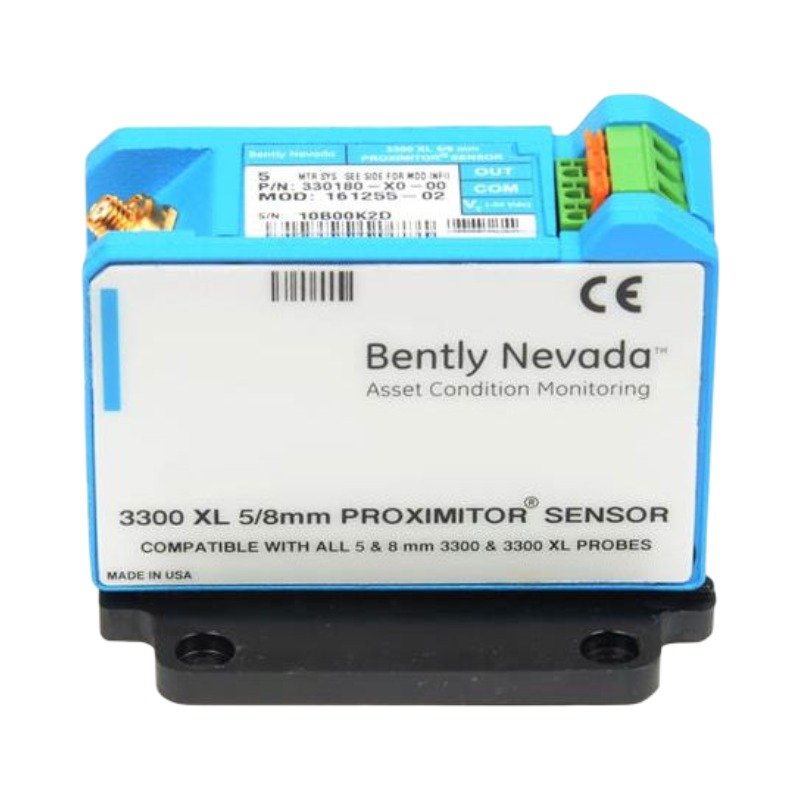

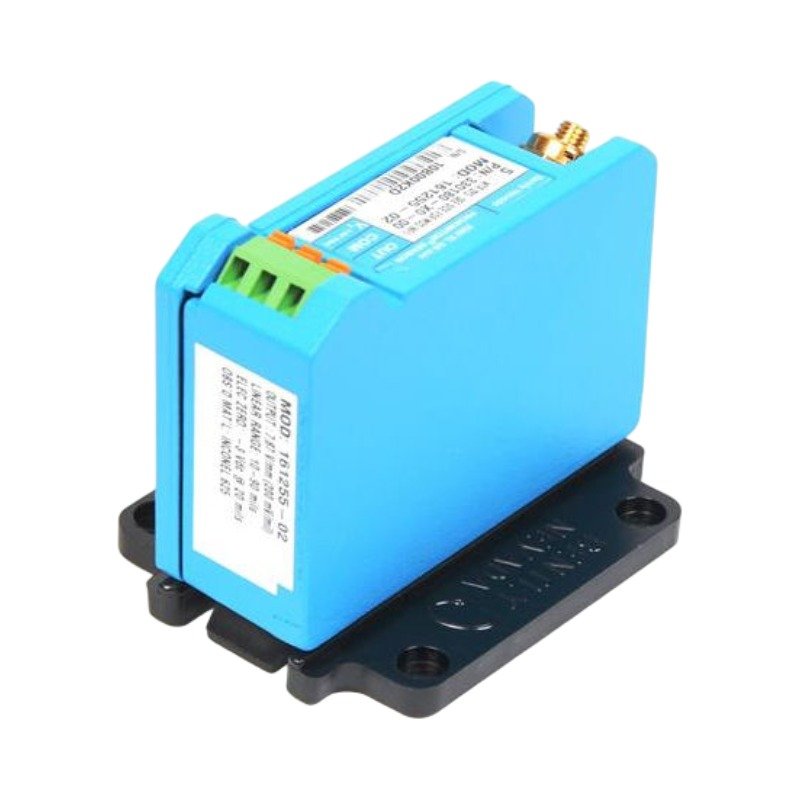

The Bently Nevada 330180-X0-00, also cataloged as the 330180 Proximitor Sensor, operates as a dedicated hardware component for non-contacting displacement and vibration measurements within 3300 XL Proximity Transducer System platforms. This device generates an analog output voltage directly proportional to the physical distance between the probe tip and the observed conductive target material.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The hardware conditions raw signals from proximity probes, managing strict eddy-current probe scaling to ensure linear voltage output over the entire 80 mil measuring range. During physical installation adjustments, field technicians perform precise gap voltage validation (-10 VDC targets) to verify optimal positioning relative to the rotating shaft. This precise calibration baseline directly facilitates the accurate analysis of rotor dynamics waveforms. Furthermore, the internal electronic design incorporates built-in cross-talk suppression to isolate adjacent transducer circuits and maintain signal fidelity.

Frequently Asked Questions

Q: How does a modification code like X0 alter the physical hardware mounting structure?

A: The X0 designation dictates a panel-mount configuration option featuring a specific 4-hole mounting footprint. This baseline configuration delivers complete electrical isolation from the mounting surface, which successfully eliminates the need for external isolator plates.

Q: What are the consequences if the input supply voltage parameters drop below -23.5 VDC?

A: Input supply voltages more positive than -23.5 VDC limit the maximum linear range of the transducer system. Consequently, the sensor fails to meet full API 670 accuracy constraints at maximum displacement distances.

Field Installation Guidelines

• Connector Integrity: Torque the triaxial ClickLoc coaxial interfaces finger-tight until an audible click confirms proper mechanical engagement. Do not apply mechanical tools to the gold-plated connectors.
• Cable Length Matching: Verify that the combined electrical length of the proximity probe and extension cable precisely matches the calibrated system length parameter of the Proximitor sensor. Misaligned lengths introduce scale factor errors.
• Shield Grounding: Enforce clear isolation guidelines by grounding the triaxial shield solely at the monitor rack terminal block. Insulate the field-side probe connections thoroughly with self-fusing silicone tape to prevent secondary ground loops.
