Description

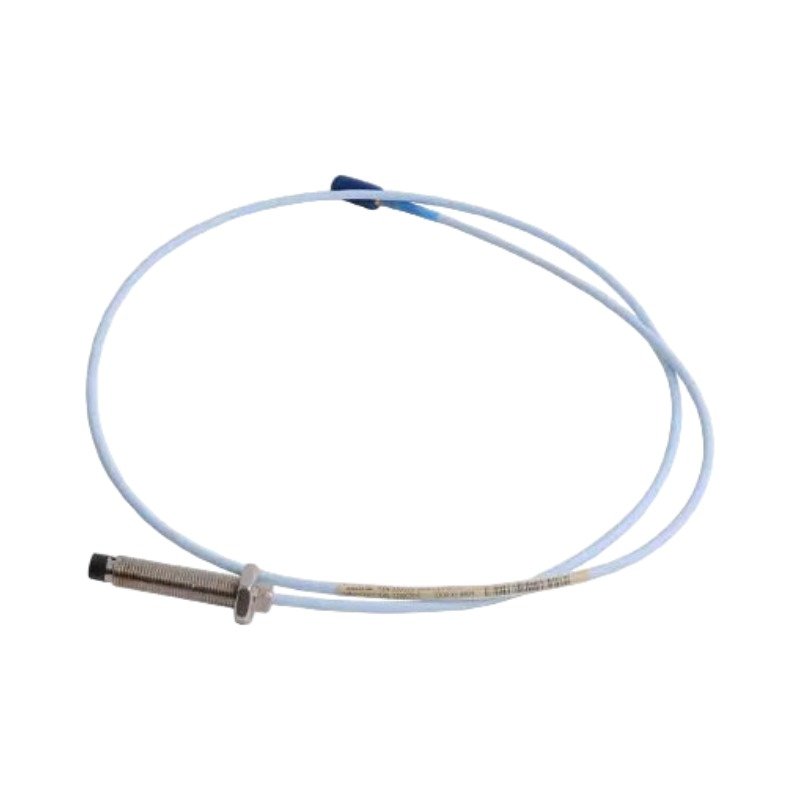

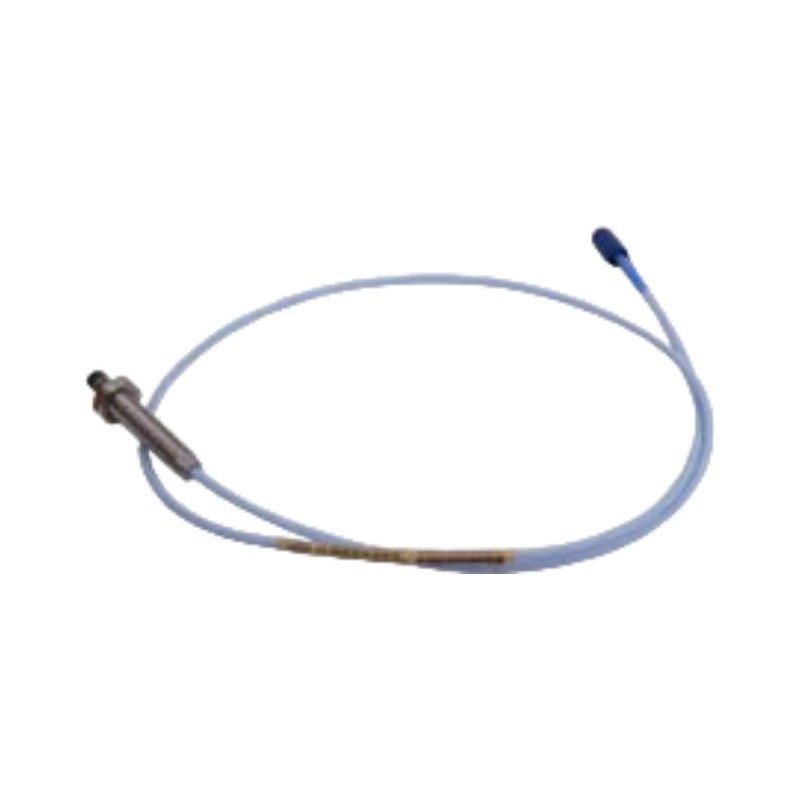

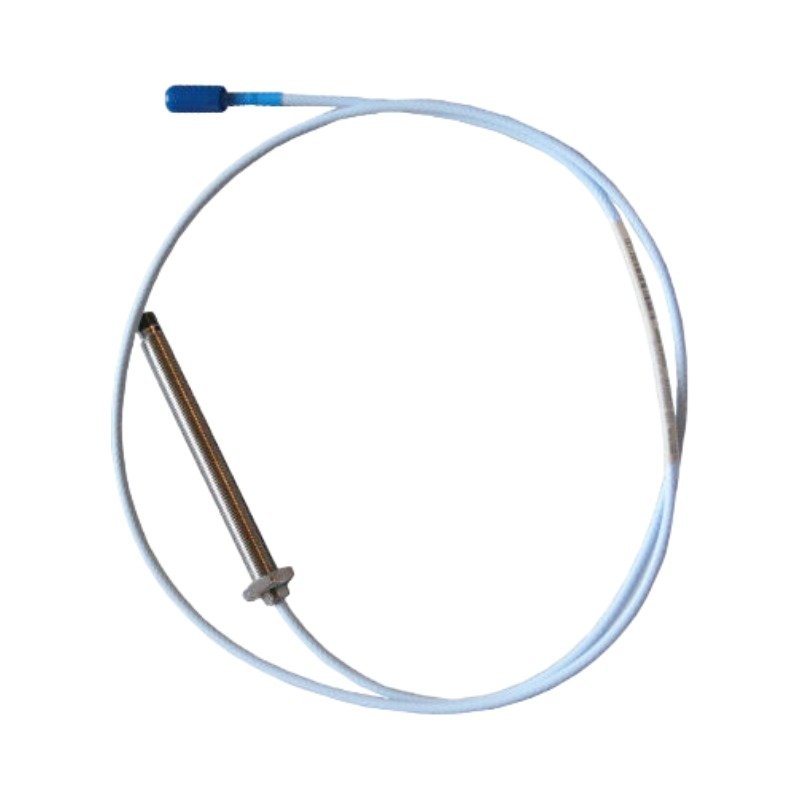

Configured for non-contacting vibration and displacement measurements in rotating machinery, the Bently Nevada 330103-00-04-10-02-05 (330103 Proximity Probe) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The structured alphanumeric options detail the mechanical dimensions, cable build, and regulatory choices designated for this transducer assembly:

• 00 (Unthreaded Length Option): Establishes a 0 mm unthreaded section on the cylindrical probe body.
• 04 (Overall Case Length Option): Specifies an overall case length of 40 mm.
• 10 (Total Length Option): Defines a 1.0 meter (3.3 feet) integrated cable assembly length.
• 02 (Connector and Cable Type Option): Pinpoints a miniature coaxial ClickLoc connector on a standard, unarmored cable.
• 05 (Agency Approval Option): Mandates Multiple Approvals certification, encompassing CSA, ATEX, and IECEx intrinsic safety and non-incendive ratings.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The transducer relies on precise eddy-current probe scaling to convert physical gap variations into proportional electrical signals for Turbine Supervisory Instrumentation (TSI) channels. Therefore, proper installation requires meticulous gap voltage validation, targeting -9 VDC references at the geometric center of the 2.0 mm linear sweep. The precision-molded TipLoc design structurally reinforces the probe tip against process fluid degradation, while the integrated CableLoc framework anchors the internal core lines to maintain stable electrical connections. Furthermore, the miniature coaxial ClickLoc interface provides automatic locking and rigorous cross-talk suppression between adjacent sensor runs, effectively neutralizing high-frequency data corruptions across dense rotor dynamics tracking arrays.

Frequently Asked Questions

Q: What physical damage occurs if the recommended probe casing torque thresholds are exceeded during installation?

A: Overtorquing structural threads twists the outer shell housing, which permanently shears the internal coaxial core wire or cracks the internal coil assembly. Therefore, operators must limit installation force to 15 N-m for these M10 threads.

Q: Is this 1.0-meter probe model interchangeable with older, non-XL 3300-series transducer components?

A: Yes, the unit remains fully backward compatible with non-XL 3300-series 5 mm and 8 mm system parts. However, the cumulative system length must match the designated Proximitor calibration (e.g., a 5-meter or 9-meter overall loop).

Field Installation Guidelines

Mount the probe assembly into rigid bracket fixtures to eliminate external mechanical resonance. To fulfill safety conditions for explosive environments, field technicians must install the transducer cables through dedicated conduit lines or utilize approved intrinsic safety barriers when routing lines back to the central enclosure. Ensure that the unarmored cable maintains a minimum bend radius of 25.4 mm during layout to prevent mechanical stress on the coaxial shielding. Finally, verify that the tip maintains a clearance area of at least 31 mm in diameter from adjacent conductive metals to prevent side-view interference from shifting the calibrated voltage curve.
