Description

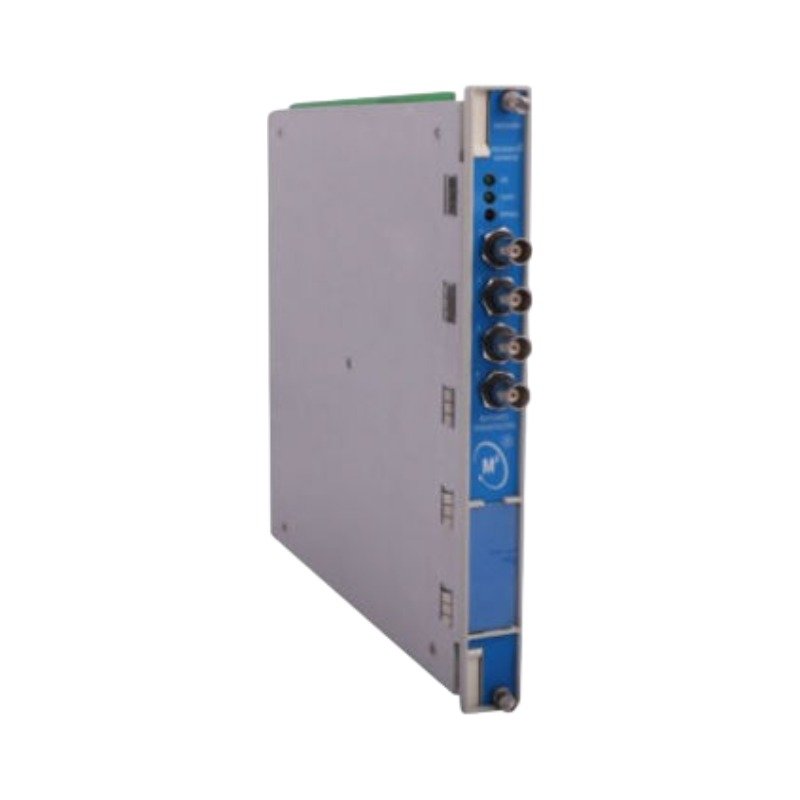

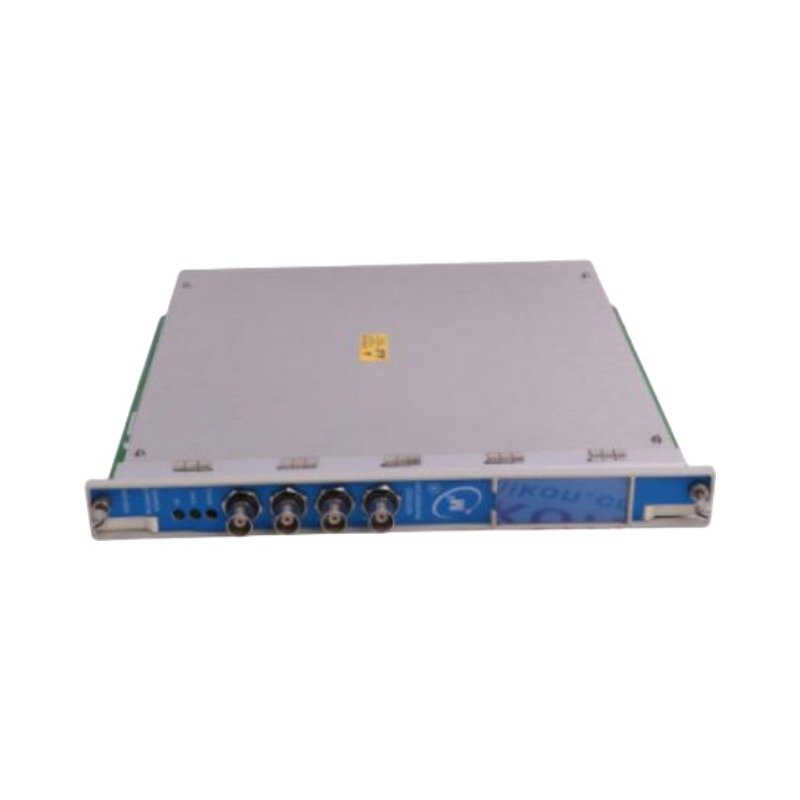

The Bently Nevada 176449-01 serves as the primary 3500/40M Proximitor Monitor utilized to execute four-channel proximity signal processing across 3500 Machinery Protection System platforms. This active hardware card resides in the front slot of the system chassis, where it continuously transforms raw high-frequency waveforms from eddy-current transducers into calculated static values and discrete alarm states.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The 176449-01 monitor samples incoming dynamic voltages that depend directly on precise eddy-current probe scaling to compute mechanical shaft metrics. Consequently, plant technicians execute gap voltage validation during sensor configuration, setting each loop to a stable -10 VDC baseline to maintain the transducer inside its linear displacement envelope. This electrical alignment allows the processing core to extract 1x and 2x vector component amplitudes and phase lag angles, mapping complex rotor dynamics during critical machine start-up cycles. Because packing four high-frequency processing channels onto one card risks inductive coupling, the internal board design utilizes dedicated differential filters for cross-talk suppression. As a result, this architecture isolates adjacent channel pathways and protects the accuracy of structural vibration metrics.

Frequently Asked Questions

Q: What data types does this monitor return to the 3500 backplane for system-wide analysis?

A: The module calculates and returns multiple variables per channel, including direct vibration amplitude, gap voltage, 1x and 2x vector data (amplitude and phase lag), and overall $S_{max}$ values for radial vibration arrangements.

Q: How does the module handle a short-circuit fault along the field transducer line?

A: The 176449-01 continuously monitors sensor bias currents against strict threshold limits. Consequently, an open or short circuit drops the internal “Not OK” status bit, prompts the front-panel LED to illuminate, and immediately bypasses the affected channel’s alert and danger logic to prevent a false machine trip.

Field Installation Guidelines

• Chassis Guide Rail Alignment: Insert the 176449-01 module directly into the front slot of the 3500 chassis, ensuring the circuit card tracks evenly along the plastic guide rails before forcing the rear edge connectors together.
• Captive Panel Securement: Tighten both front-panel captive retention screws completely to establish a continuous low-impedance ground bond to the main rack frame and prevent intermittent backplane power disruptions.
• Buffered Transducer Testing: Connect local data loggers or diagnostic instruments directly to the front-panel coaxial BNC ports to verify raw sensor signals without disturbing active machinery protection paths.
• Configuration Verification: Download the specific channel parameters, transducer scale factors, and alarm setpoints via the 3500 Rack Configuration Software before returning the machine train to active operational status.
