Description

Core Functionality and Measurement Principle

The Bently Nevada 330103-00-04-10-12-00 operates as a precision non-contact sensor within the 3300 XL Proximity Transducer System. This probe utilizes eddy current technology to detect the physical distance between the sensor tip and a conductive target, such as a rotating shaft. By converting these distance variations into a proportional voltage signal, the system enables the continuous monitoring of both radial vibration and axial position. Consequently, this data allows plant operators to detect mechanical issues like shaft misalignment or bearing wear before they escalate into significant equipment damage.

Key Technical Specifications

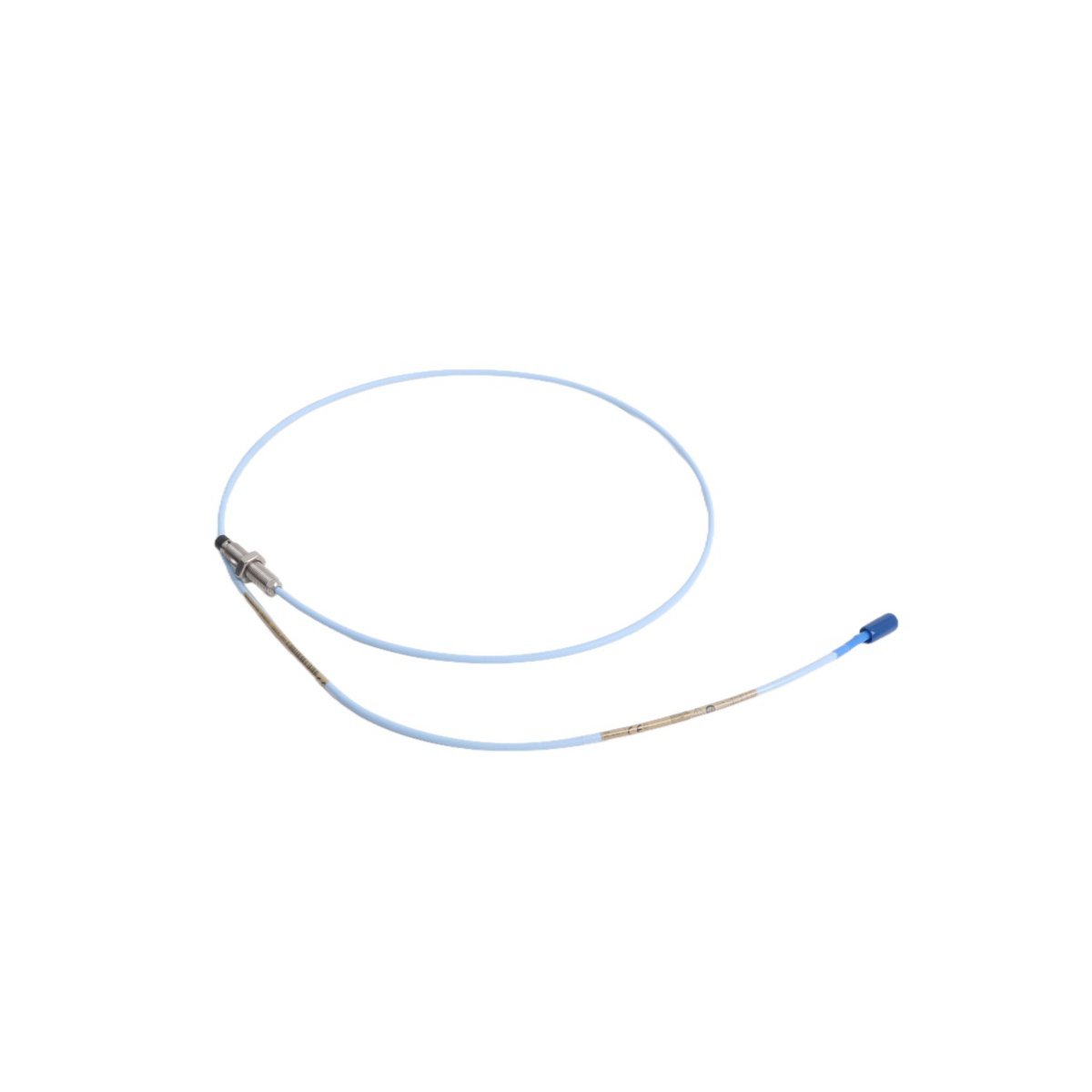

This configuration of the 3300 XL 8 mm probe includes specific mechanical and electrical parameters designed for versatile industrial deployment:

• Model Number: 330103-00-04-10-12-00
• Probe Diameter: 8 mm
• Thread Size: 3/8-24 UNF-2A standard thread
• Unarmored Case Length: 40 mm (approx. 1.6 inches)
• Total Length: 1.0 meter (approx. 3.3 feet)
• Connector Type: Miniature coaxial ClickLoc connector with connector protector
• Agency Approvals: CSA, ATEX, and IECEx hazardous area certifications
• Environmental Resistance: Integrated FluidLoc cable technology to prevent oil migration
• Operating Temperature: Range of -52 °C to +177 °C (-62 °F to +350 °F)

Advanced Engineering and Signal Integrity

The 330103-00-04-10-12-00 incorporates several design enhancements that improve its performance in demanding power generation and petrochemical environments. For instance, the probe features significantly improved RFI/EMI immunity, which ensures that nearby radio frequency signals do not distort the vibration data. Furthermore, the patented ClickLoc connector mechanism provides a secure, vibration-resistant coupling that eliminates the need for specialized installation tools. Since the probe uses a polyphenylene sulfide (PPS) tip, it maintains high structural integrity even when exposed to harsh chemical process fluids or extreme thermal cycling.

Industrial Applications and Maintenance

• Measuring radial vibration in high-performance centrifugal pumps
• Monitoring thrust position in steam and gas turbines
• Providing Keyphasor signals for rotational speed and phase angle measurements
• Supporting predictive maintenance programs for large induction motors
• Tracking thermal expansion and eccentricity during turbine startup sequences
