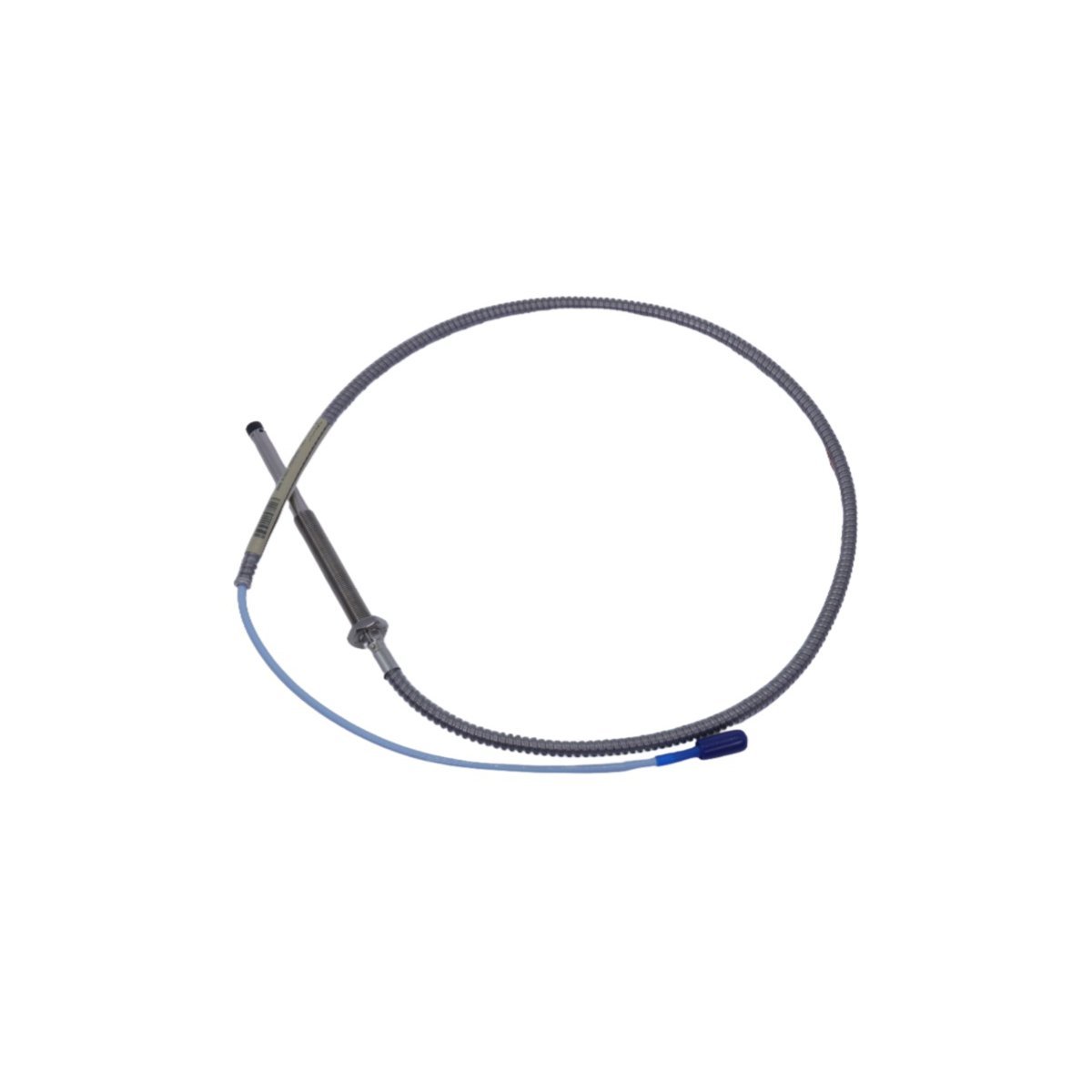

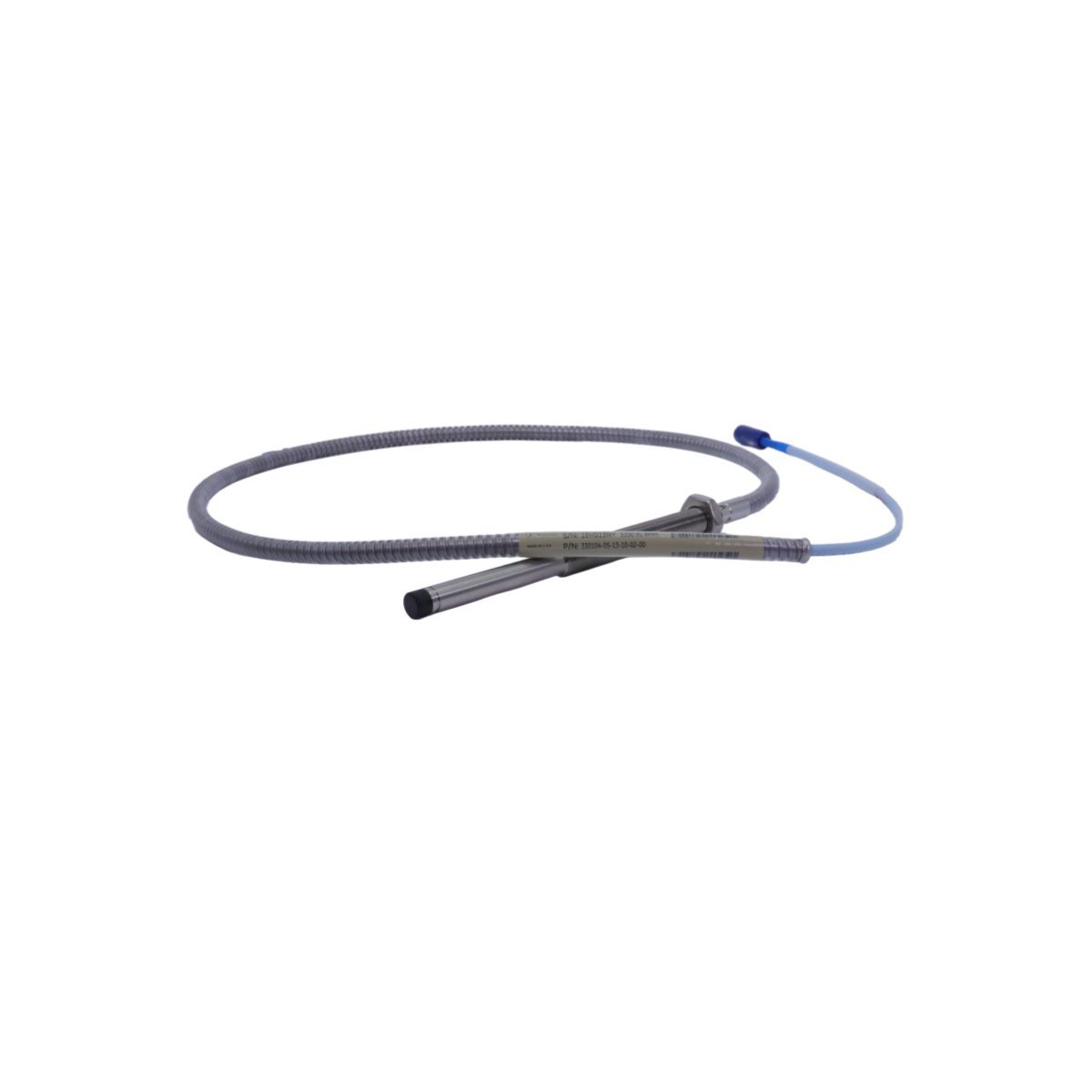

Bently Nevada 330104-05-13-10-02-00 3300 XL 8 mm Proximity Probe
The Bently Nevada 330104-05-13-10-02-00 is a specialized 8 mm metric proximity probe engineered for the 3300 XL monitoring series. It features an M10 x 1 threaded body, a 130 mm case length, and a 1.0-meter armored cable for maximum environmental protection. This probe delivers reliable, non-contacting vibration measurements and complies with API 670 standards for machinery protection.
Description
Technical Functionality and Operation
The 330104-05-13-10-02-00 proximity probe serves as a high-precision sensing element within the Bently Nevada 3300 XL Transducer System. This eddy current sensor generates a linear voltage signal directly proportional to the gap between the probe tip and a conductive target, such as a rotating shaft. Operators utilize this technology primarily for continuous vibration monitoring and axial position sensing in critical machinery.
By adhering to the strict requirements of the American Petroleum Institute (API) 670 standard, the 3300 XL series guarantees exceptional thermal stability and linear accuracy. Furthermore, this hardware streamlines maintenance through its modular design. Because the system features complete component interchangeability, technicians can swap probes, extension cables, and Proximitor sensors without the logistical burden of bench-top calibration or component matching.
Design Features and Durability
This specific configuration utilizes an M10 x 1 metric thread, which provides a secure mechanical interface for various industrial housings. To withstand the harsh conditions typical of power plants and refineries, the probe includes stainless steel construction and high-performance Fluoroethylene Propylene (FEP) insulated cabling. The integrated ClickLoc connector ensures a vibration-resistant electrical path, preventing signal attenuation or intermittent data loss during operation.
Moreover, this probe remains compatible with legacy non-XL 3300 components. This backward compatibility allows facilities to upgrade their monitoring capabilities incrementally without requiring a total system overhaul. The inclusion of armored cabling on this model specifically protects the signal path from physical abrasion and environmental hazards.
Detailed Specifications
- Manufacturer: Bently Nevada
- Product Series: 3300 XL 8 mm Transducer System
- Part Number: 330104-05-13-10-02-00
- Thread Size: M10 x 1 (Metric)
- Unthreaded Length: 50 mm
- Overall Case Length: 130 mm
- Total Length: 1.0 Meter (3.3 Feet)
- Connector Option: Miniature coaxial ClickLoc with armor
- Agency Certifications: CSA, ATEX, IECEx
- Linear Range: 2.0 mm (80 mils) starting at approximately 0.25 mm (10 mils) from the tip
- Frequency Response: 0 to 10 kHz
Additional information
| Weight | 0.55 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 20.5 x 22.4 x 3.3cm |
