Technical Overview

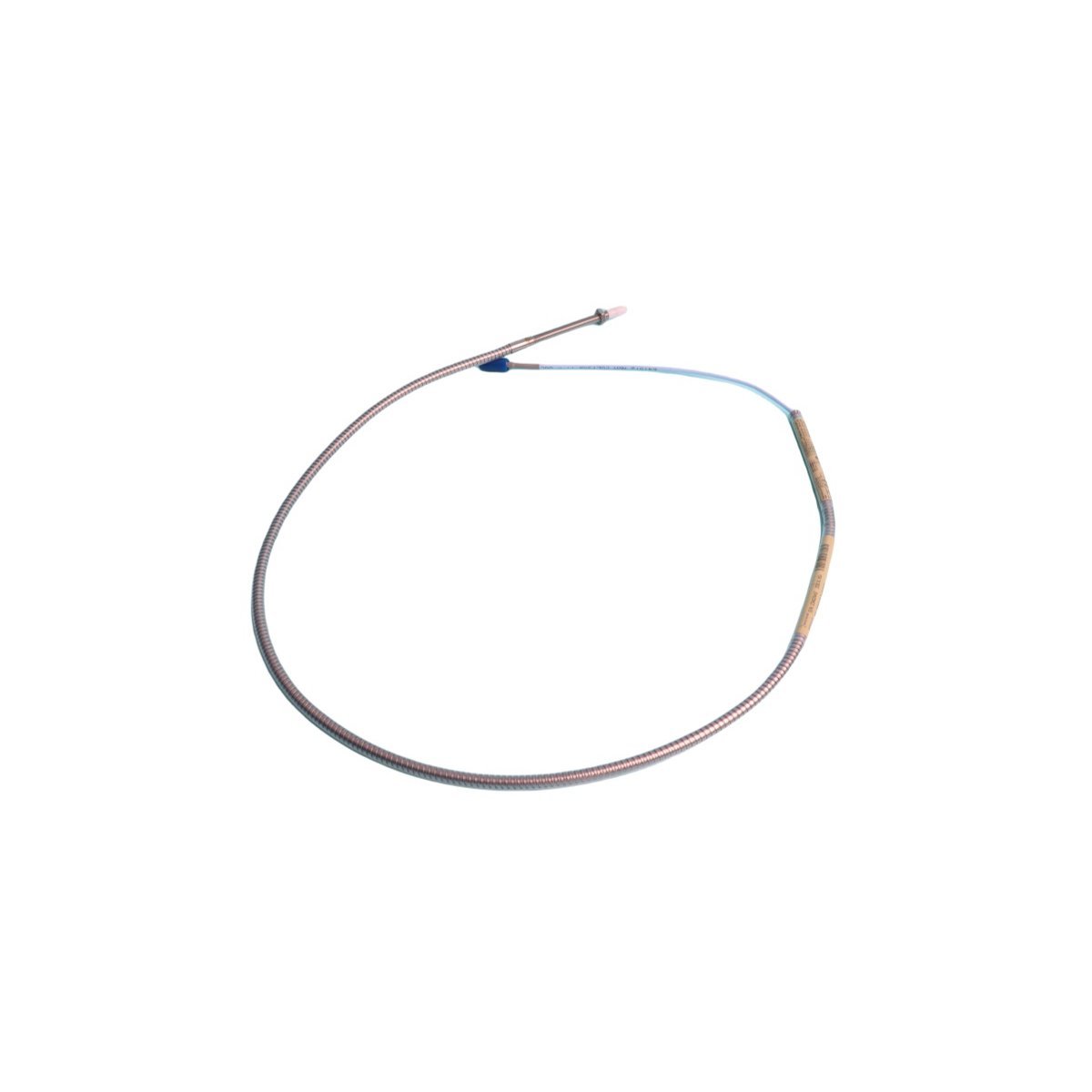

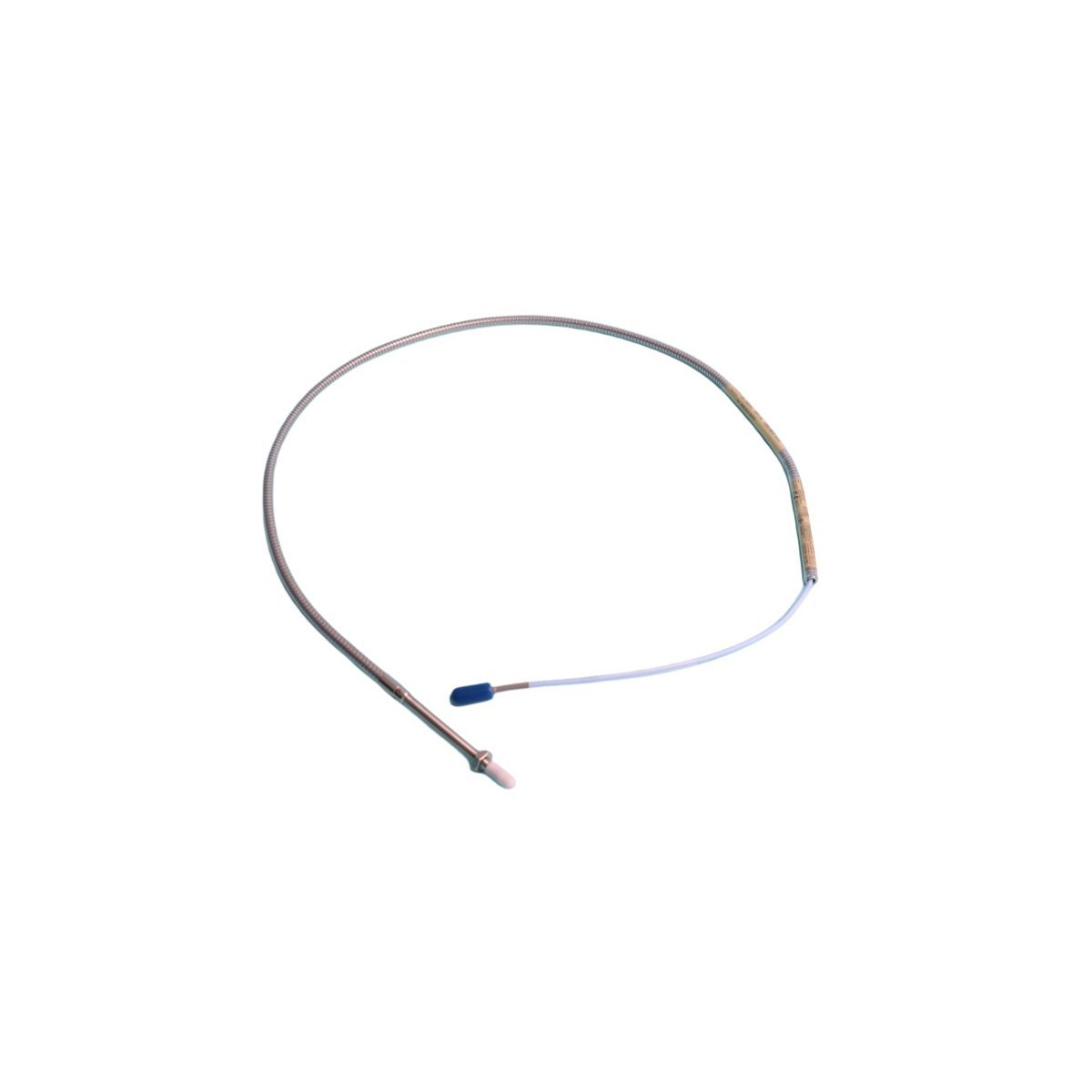

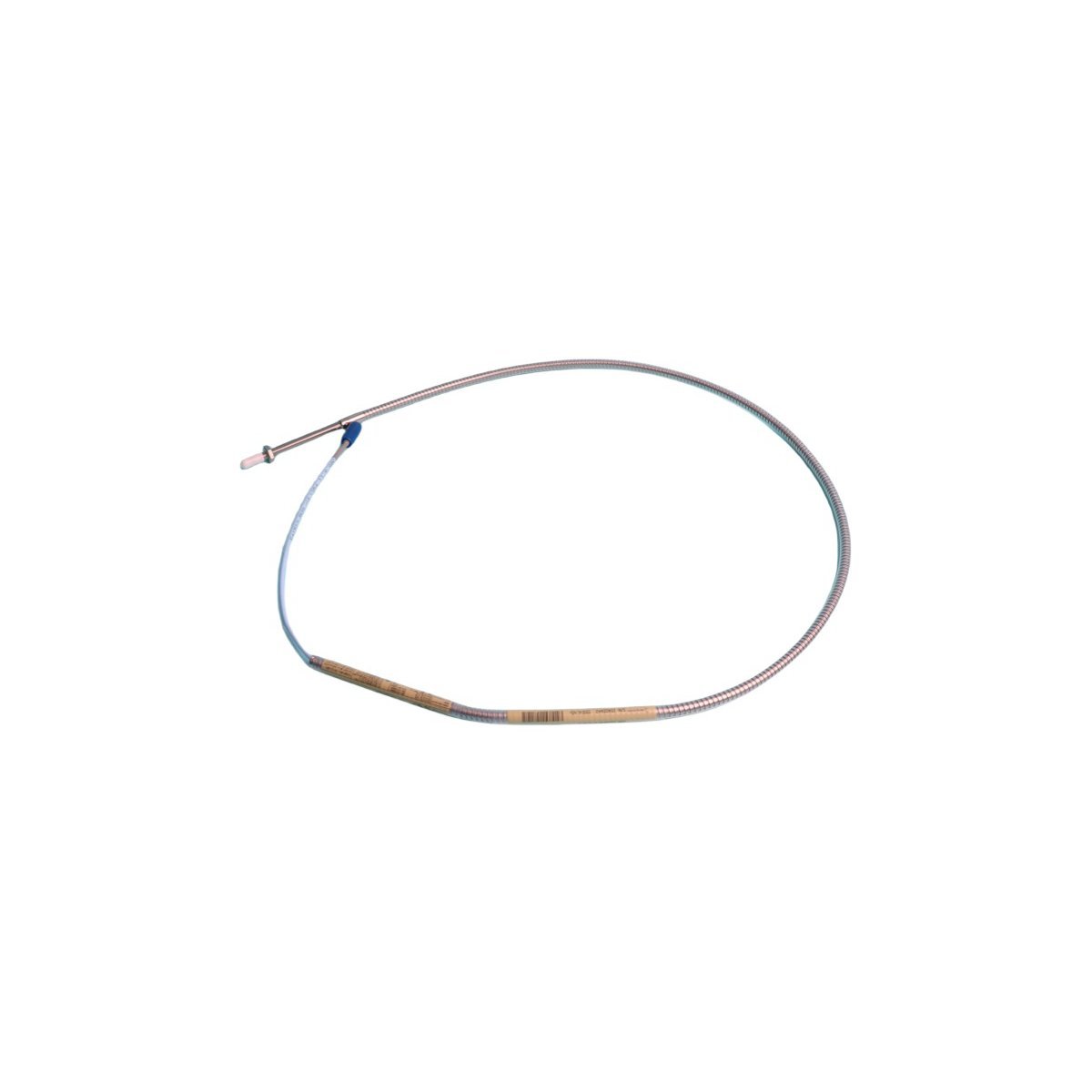

The Bently Nevada 330902-00-30-05-02-00 belongs to the specialized 3300 NSv Proximity Transducer series, which engineers developed specifically for tight mechanical envelopes. Because many industrial compressors feature restricted mounting spaces or small shaft diameters, this probe utilizes a reduced-footprint design that maintains high-resolution signal output where standard 8 mm probes cannot fit. The assembly incorporates a 1/4-28 UNF threaded body and a 0.5-meter cable, protected by rugged armor to withstand the harsh conditions of fluid-film bearing environments.

Core Functions and Operation

This proximity sensor operates by measuring the gap between the probe tip and the target material through eddy current technology. By utilizing a miniature coaxial ClickLoc connector, the system ensures a low-impedance connection that prevents signal loss during vibration data acquisition. The probe serves as a critical front-end component for the NSv Proximitor Sensor, converting mechanical displacement into a precise electrical signal for real-time machinery protection.

Primary Applications

• Radial Vibration Monitoring: Specifically optimized for small-diameter shafts measuring less than 51 mm (2 inches).
• Axial Thrust Position: Monitoring flat target surfaces smaller than 15 mm (0.6 inches) in diameter.
• Specialized Machinery: Ideal for centrifugal air compressors, refrigeration units, and high-speed gas compressors.
• Keyphasor Signal Generation: Providing timing and phase reference for rotating assemblies.

Key Technical Characteristics

• Thread Size: 1/4-28 UNF
• Case Length: 3.0 inches (Minimum)
• Cable Length: 0.5 meters (20 inches)
• Connector Type: Miniature coaxial ClickLoc
• Protective Armor: Included for enhanced mechanical durability
• Mounting System: Designed for Turbine Supervisory Instrumentation (TSI)
• Origin: Manufactured in the USA

Advantageous Features

Furthermore, the 330902-00-30-05-02-00 offers exceptional resistance to side-view effects and counterbore interference. This capability allows maintenance teams to install the sensors in complex gearbox housings or internal bearing caps where traditional sensors might produce distorted readings. Consequently, this model remains the industry standard for high-accuracy condition monitoring in small-scale rotating equipment.
