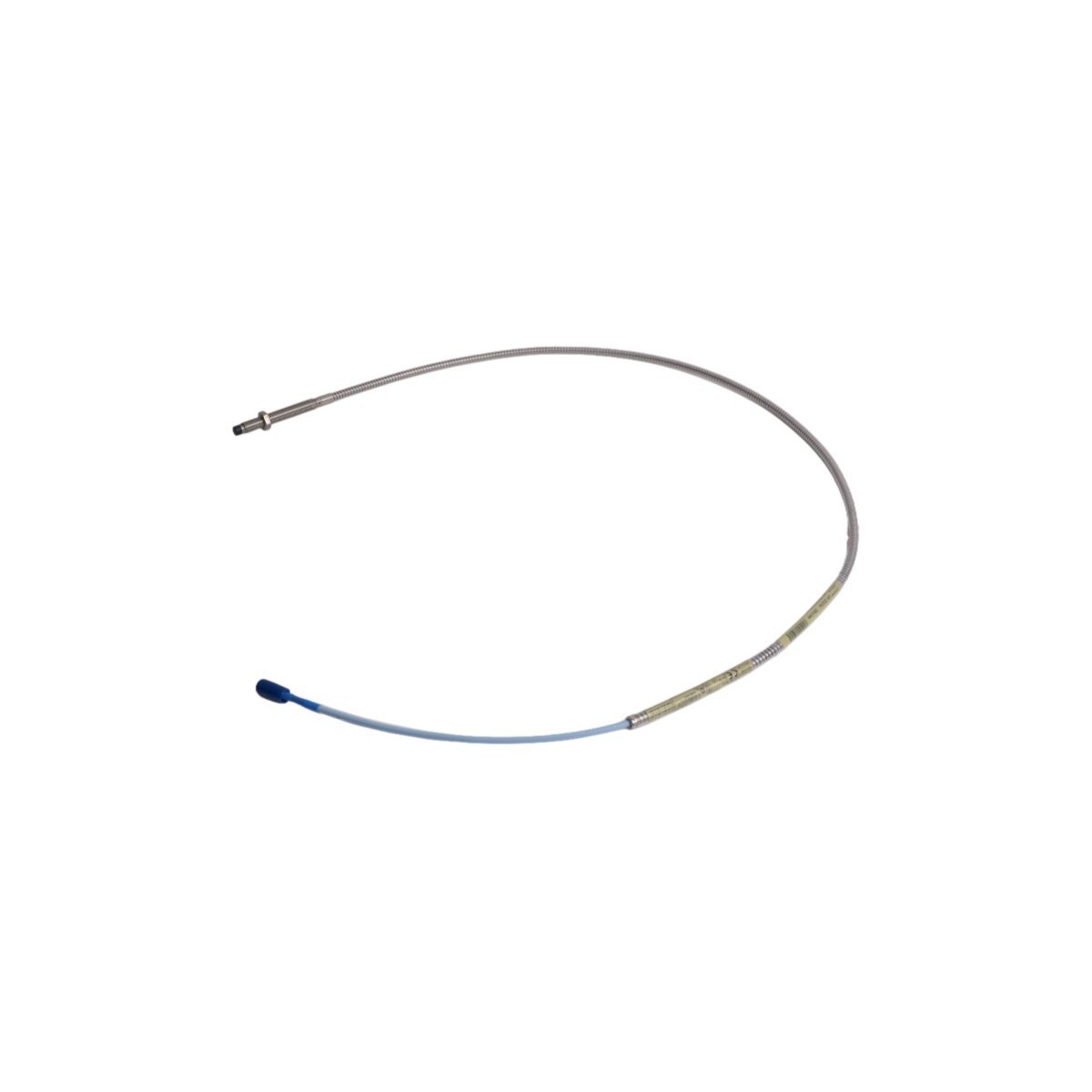

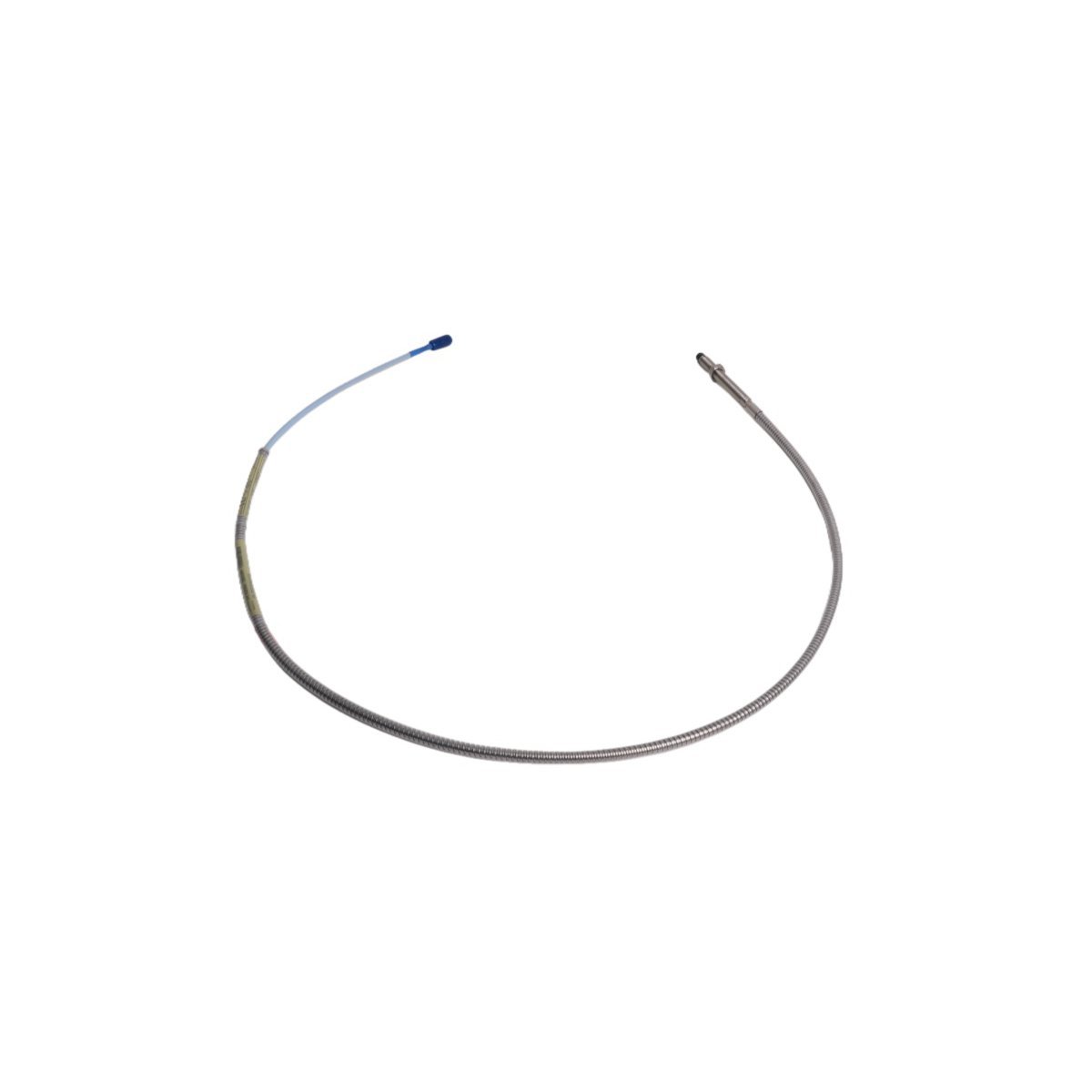

Bently Nevada 330102-00-20-05-01-05 3300 XL 8mm Proximity Probe
The Bently Nevada 330102-00-20-05-01-05 is a high-precision 8mm eddy current probe designed for the 3300 XL Transducer System. It provides accurate vibration and position data for critical rotating assets, featuring a 2.0-inch case and a 0.5-meter integrated cable. This probe ensures API 670 compliance and offers seamless interchangeability for simplified maintenance in industrial monitoring environments.
Description
Technical Overview
The 330102-00-20-05-01-05 proximity probe functions as a core component of the 3300 XL 8mm Transducer System, specifically engineered for non-contacting displacement and vibration measurements. By utilizing eddy current technology, this sensor monitors shaft position and dynamic motion in high-speed rotating machinery. The probe effectively translates the distance between the sensor tip and the target surface into a proportional electrical signal when paired with a Proximitor Sensor.
Engineered to meet the rigorous API 670 standards, this hardware ensures maximum reliability for machinery protection systems. Its construction provides excellent linear range and temperature stability, which are critical for maintaining accuracy in volatile industrial environments. Furthermore, the 3300 XL series features complete interchangeability, allowing technicians to replace probes or extension cables without the requirement for individual component calibration or bench-top adjustments.
Design and Application
This specific probe model utilizes a 3/8-24 UNF thread configuration, making it suitable for standard industrial mounting brackets and housings. While the 8mm tip provides a robust sensing field, the physical dimensions are optimized for installations where internal clearance is limited. Common applications include monitoring fluid-film bearing machines, such as steam turbines, centrifugal compressors, and large pumps.
The 330102-00-20-05-01-05 supports predictive maintenance programs by providing high-resolution data on axial thrust and radial vibration. Because the system is designed for hazardous area certifications, it operates safely in petrochemical, power generation, and oil and gas facilities.
Configuration Specifications
- Brand: Bently Nevada
- Series: 3300 XL 8mm Proximity Transducer System
- Model Number: 330102-00-20-05-01-05
- Unthreaded Length: 0.0 inches
- Overall Case Length: 2.0 inches
- Total Length: 0.5 meters (1.6 feet)
- Connector Type: Miniature coaxial ClickLoc connector
- Agency Approvals: CSA, ATEX, IECEx (when used with appropriate barriers)
- Linear Range: 2.0 mm (80 mils)
- Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
Additional information
| Weight | 0.06 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 1.8 x 1.6 x 123cm |
