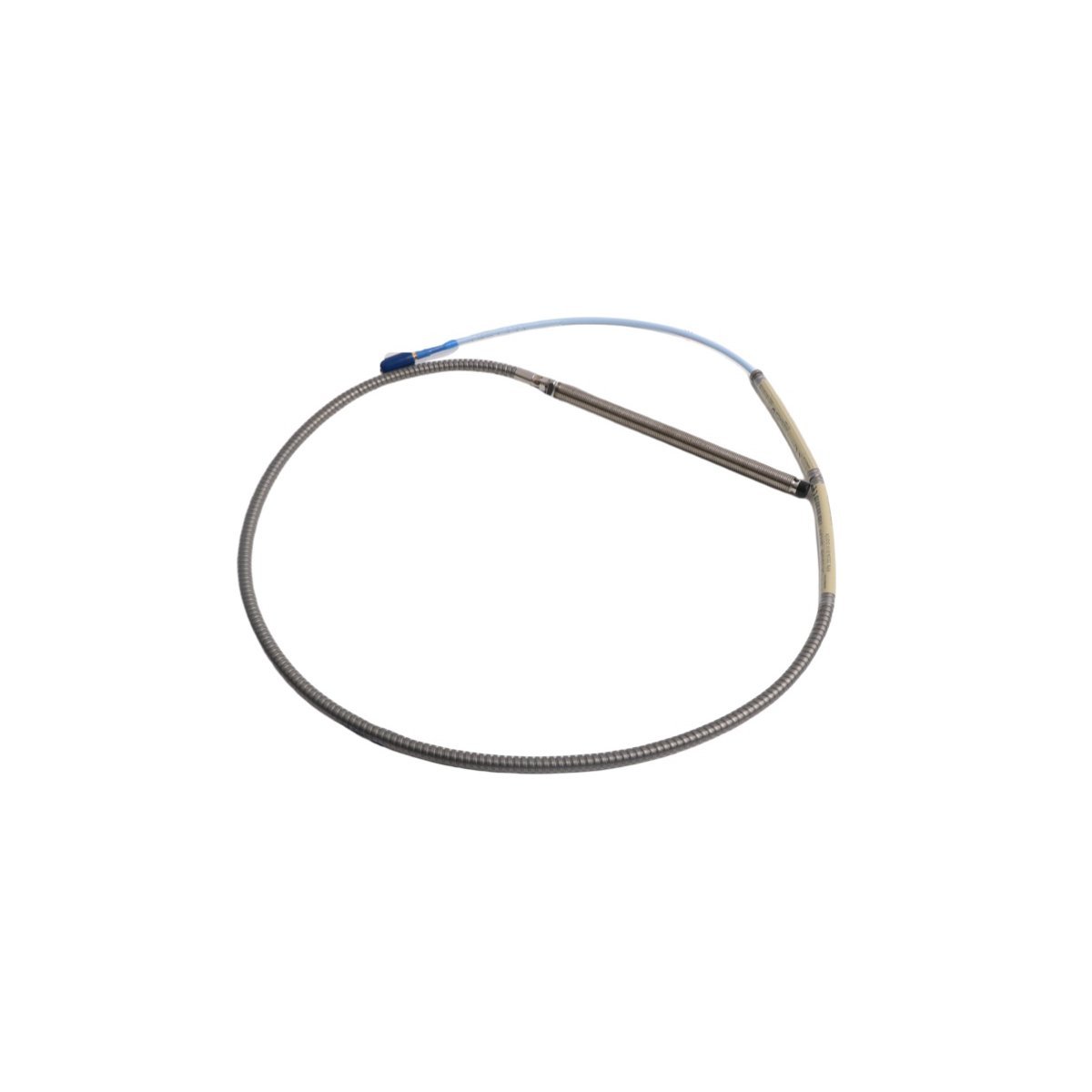

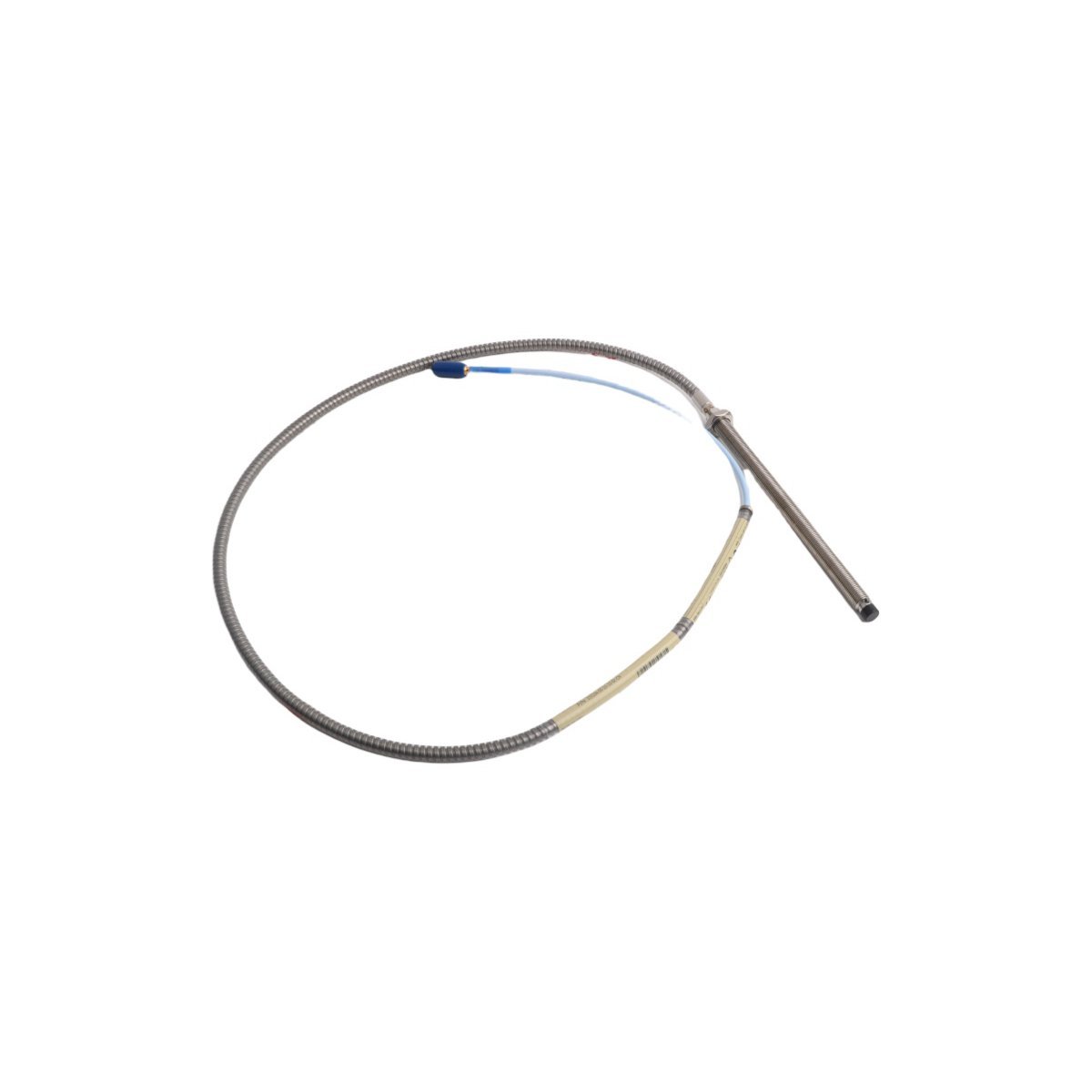

Bently Nevada 330104-00-16-10-02-05 3300 XL 8mm Proximity Sensor Probe
The Bently Nevada 330104-00-16-10-02-05 is a 3300 XL 8mm proximity probe featuring an M10 x 1 thread and stainless steel armor. This 1.0-meter probe provides high-accuracy non-contact vibration and position data for industrial rotating machinery, offering full interchangeability and hazardous area approvals.
Description
Product Overview
The 330104-00-16-10-02-05 is a high-performance proximity sensor belonging to the Bently Nevada 3300 XL 8mm series. This transducer is engineered to provide precise vibration and position measurements for critical rotating machinery. By utilizing an eddy current principle, the probe detects the distance between the tip and the observed conductive surface without physical contact. The robust construction includes a polyphenylene sulfide (PPS) tip that effectively seals the internal coil against industrial contaminants like moisture and oil. Consequently, this probe maintains high signal integrity even when deployed in demanding mechanical environments.
Technical Configuration and Ordering Information
The model number 330104-00-16-10-02-05 specifies a particular hardware configuration:
- Unthreaded Length: 0.0 inches
- Overall Case Length: 1.6 inches
- Total Length: 1.0 meter (approx. 3.3 feet)
- Connector and Cable Option: Miniature coaxial ClickLoc connector with 304 stainless steel fluid-tight armor
- Agency Approvals: Multiple certifications including ATEX, IECEx, and CSA for hazardous area installations
Operational Features
The 3300 XL 8mm system is distinguished by its complete interchangeability. Because the 330104-00-16-10-02-05 probe is manufactured to strict calibration standards, it does not require individual bench calibration when paired with compatible 3300 XL extension cables and Proximitor sensors. This standardization significantly reduces maintenance downtime and simplifies spare parts management. Furthermore, the probe’s design incorporates advanced shielding techniques to mitigate the effects of Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI), which ensures a stable output signal for monitoring systems.
Primary Applications
Industrial facilities utilize this probe for a variety of protection and condition monitoring tasks, such as:
- Radial vibration analysis in fluid-film bearing machines
- Axial thrust position measurement
- Phase reference (Keyphasor) signals
- Shaft eccentricity and thermal expansion monitoring
Additional information
| Weight | 0.06 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 115 x 2 x 1.5cm |
