Description

Functional Overview

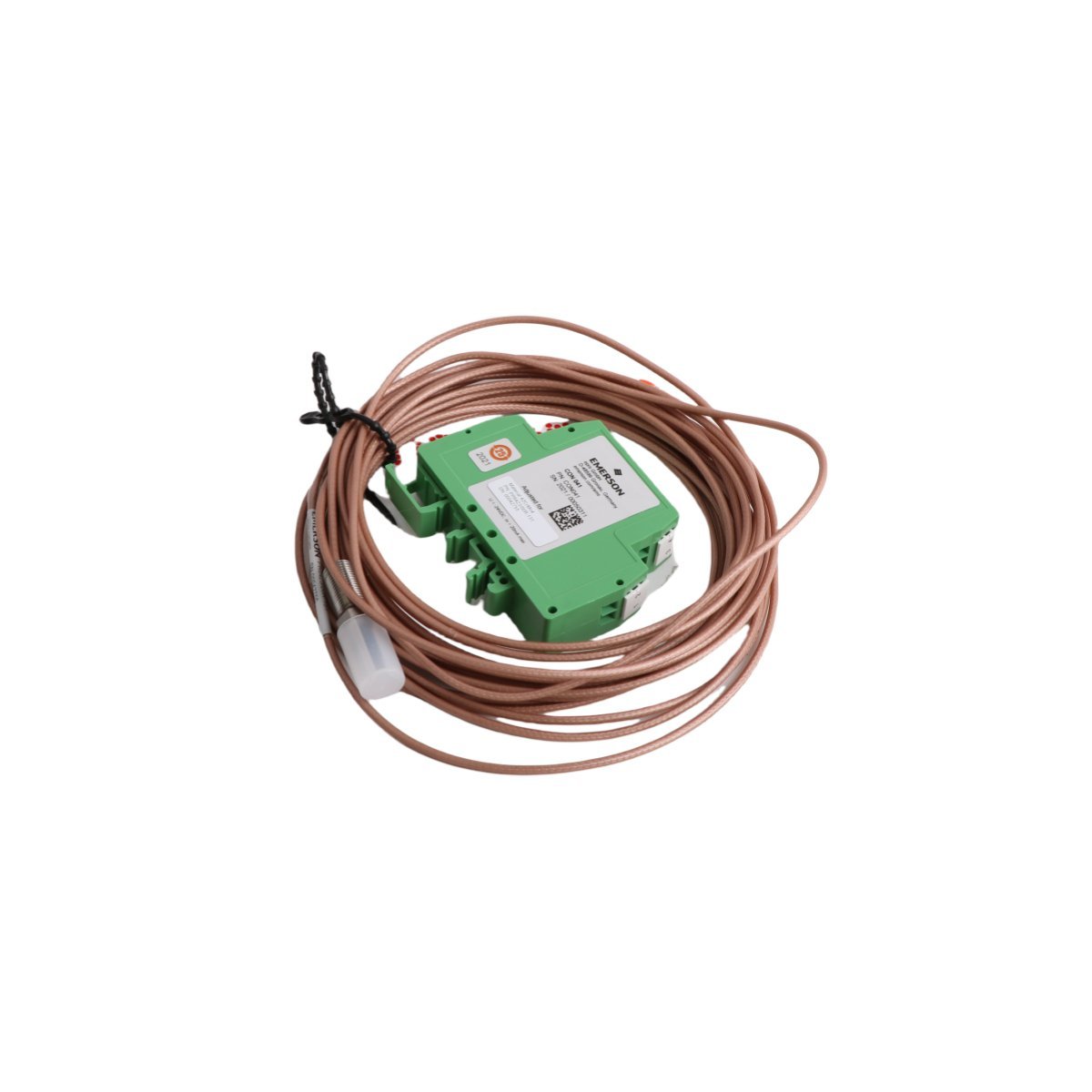

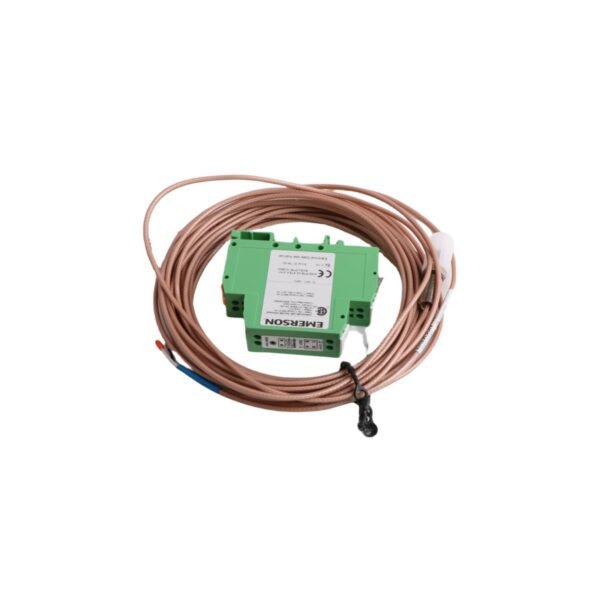

The Emerson PR6423/00R-111 CON041 is a high-precision, non-contact eddy current proximity sensor engineered for critical machinery protection and condition monitoring systems. Originally developed under the specialized EPRO brand (now integrated into Emerson’s reliability portfolio), this sensor operates on the eddy current principle to measure static and dynamic distances between the sensor tip and a rotating machine shaft or target.

Unlike mechanical contact probes, the PR6423/00R-111 does not touch the target surface. Instead, it generates a high-frequency electromagnetic field that penetrates the target material, creating localized eddy currents. The sensor converts changes in this field into highly precise analog signals, making it an indispensable component for monitoring critical parameters like shaft vibration, axial displacement, eccentricity, and rotational speed in heavy rotating machinery.

Sensing Technology and Eddy Current Physics

The sensor features an integrated 8 mm tip diameter optimized for standard industrial displacement spans. When the sensor coil is excited by a high-frequency alternating current from a matching driver or transmitter, it projects an alternating magnetic field into the ambient space.

As a conductive, ferromagnetic target (such as a turbine shaft) moves into this field, eddy currents are induced on the target’s surface. This interaction abstracts power from the sensor’s resonant circuit, causing a measurable drop in voltage amplitude.

The internal electronics condition this variance to deliver high-resolution displacement metrics down to the micrometer scale ($\mu\text{m}$), effectively isolating fine shaft micro-movements from environmental noise or electrical interference.

System Integration and Machine Diagnostics

The PR6423/00R-111 is designed to connect directly with industrial signal converters, distributed control systems (DCS), or specialized machinery protection networks like the Emerson AMS 6500 Machinery Health Monitor. The “CON041” designation indicates a dedicated connector configuration engineered to maintain signal shield continuity across extended cable lengths.

By providing real-time proximity tracking, the sensor acts as a frontline diagnostic tool for predictive maintenance strategies. It allows plant engineers to capture high-frequency waveforms that reveal early signs of mechanical degradation, including:

• Shaft Orbit Anomalies: Detecting unbalance, misalignment, or structural looseness.
• Axial Dynamic Float: Monitoring thrust bearing wear to prevent catastrophic rotor-to-stator contact.
• Thermal Expansion Tracking: Assessing changes in clearances during equipment startup and shutdown phases.

Industrial Durability and Environmental Limits

Constructed to operate continuously inside heavy industrial enclosures, the PR6423/00R-111 features a hermetically sealed, robust housing designed to withstand the volatile environments found inside large fluid-film bearings.

• Media Resilience: Completely impervious to aggressive industrial contaminants, including hot lubricating oils, moisture, chemical vapors, and synthetic hydraulic fluids.
• Thermal Stability: Engineered with specialized temperature-compensation components to eliminate thermal drift, ensuring consistent accuracy across varying machinery temperatures.
• Mechanical Strength: Built with a ruggedized thread design that simplifies air-gap calibration during installation and prevents shifting caused by extreme case vibrations.

Technical Data

Key Applications

The non-contact measurement capabilities and robust industrial design of the PR6423/00R-111 make it ideal for protecting high-capital rotating assets:

• Power Generation Turbines: Continuous shaft vibration and axial thrust monitoring on large-scale steam and gas turbines.
• Petrochemical Compressors: Real-time diagnostics of high-speed centrifugal compressors handling hazardous gases.
• Industrial Pumping Stations: Tracking oil-film bearing clearances on high-volume water injection and crude oil pipeline pumps.
• Heavy Manufacturing Equipment: Managing shaft eccentricity and rotational balance in large cooling tower fans, air separators, and gearboxes.
