Description

Functional Overview

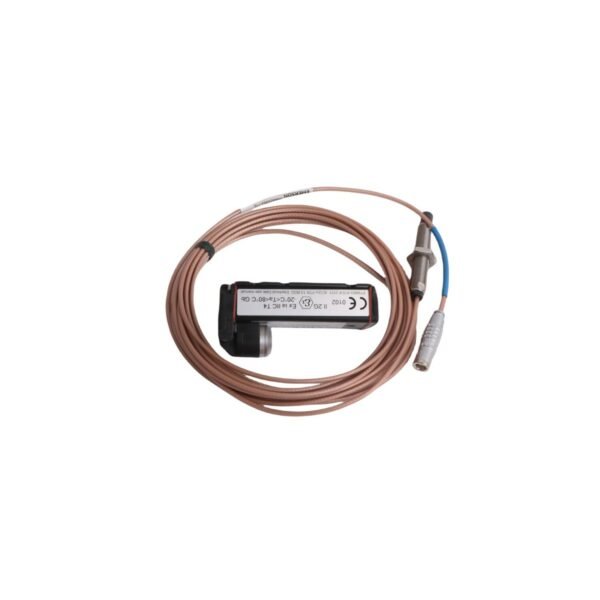

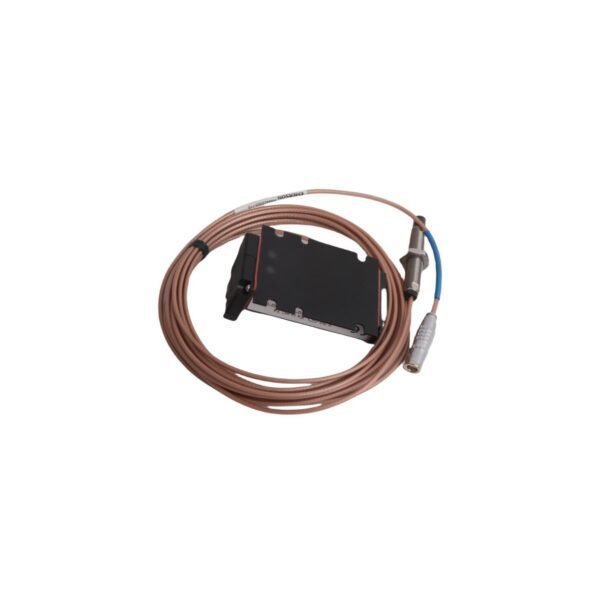

The Emerson EPRO PR6423/003-110 CON021 is an industrial-grade, non-contact eddy current displacement sensor designed for critical machinery protection and condition monitoring systems (such as the AMS 6500 / MMS 6000 series). Operating on the eddy current principle, this sensor measures the dynamic distance between the sensor tip and a rotating ferrous shaft.

It is specifically engineered to capture critical mechanical telemetry, including relative shaft vibration, axial shaft displacement (thrust position), eccentricity, and rotational speed (RPM). Because the measurement method is entirely non-contact, the sensor introduces zero mechanical load to the machine, preventing physical wear and ensuring structural integrity during continuous high-speed rotation.

Engineering Architecture & Signal Principles

The sensor probe houses a precision-wound coil at its tip, which is driven by a high-frequency radio frequency (RF) signal supplied by an external driver or transmitter (converteur). This RF current generates an oscillating magnetic field around the sensor tip.

When a conductive, ferrous target (such as a turbine shaft) enters this magnetic field, localized eddy currents are induced on the surface of the target. These eddy currents create a secondary magnetic field that opposes the primary field, altering the electrical impedance of the probe coil. The associated transmitter detects this impedance shift and converts it into a highly linear electrical voltage or current signal directly proportional to the physical gap distance:

This precise tracking allows predictive maintenance teams to observe microscopic shaft orbits, detect rotor imbalances, and identify oil whirl or hydrodynamic bearing degradation before catastrophic machine failure occurs.

Heavy Industrial Resilience & Environmental Design

Built to withstand severe conditions inside heavy-scale turbo-machinery, the PR6423/003-110 CON021 features a robust hermetically sealed construction. The probe tip is molded from high-performance, chemically inert plastics (such as PEEK), allowing it to resist hot lubricating oil, steam, moisture, and chemical contaminants.

The sensor body is manufactured from corrosion-resistant stainless steel and functions reliably under extreme ambient case temperatures and high cabinet pressures. The “CON021” designation specifies a specialized connector configuration, providing a secure, vibration-proof link to the extension cable while shielding the weak raw signal from electromagnetic interference (EMI) and radio frequency interference (RFI).

Technical Data

Industrial Applications

The high accuracy and rapid response times of the PR6423/003-110 CON021 make it a vital component for asset protection loops on critical, high-speed rotating assets across the power generation, petrochemical, and refining sectors:

• Steam and Gas Turbines: Continuous monitoring of relative radial shaft vibration and thrust position to guard against catastrophic rotor-to-stator contact.
• Large Centrifugal Compressors: Detecting aerodynamic surge phenomena and tracking shaft displacement to ensure safe operational limits during gas compression.
• High-Power Boiler Feed Pumps: Guarding against shaft misalignment, unbalance, and bearing wear under high hydraulic loads.
• Hydroelectric Generators: Measuring runout and thermal growth of large-diameter shafts to optimize alignment and structural safety.
