Description

Functional Overview

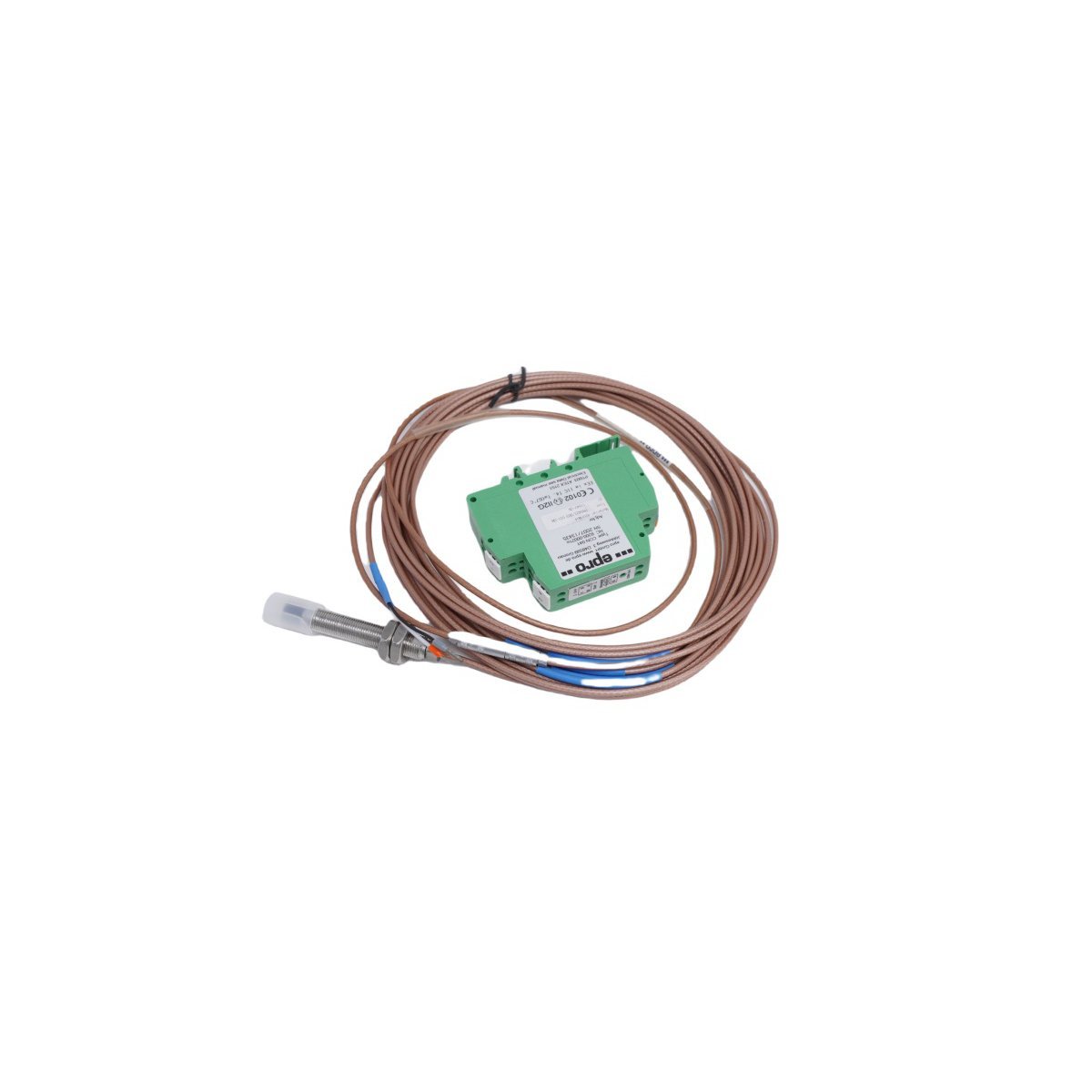

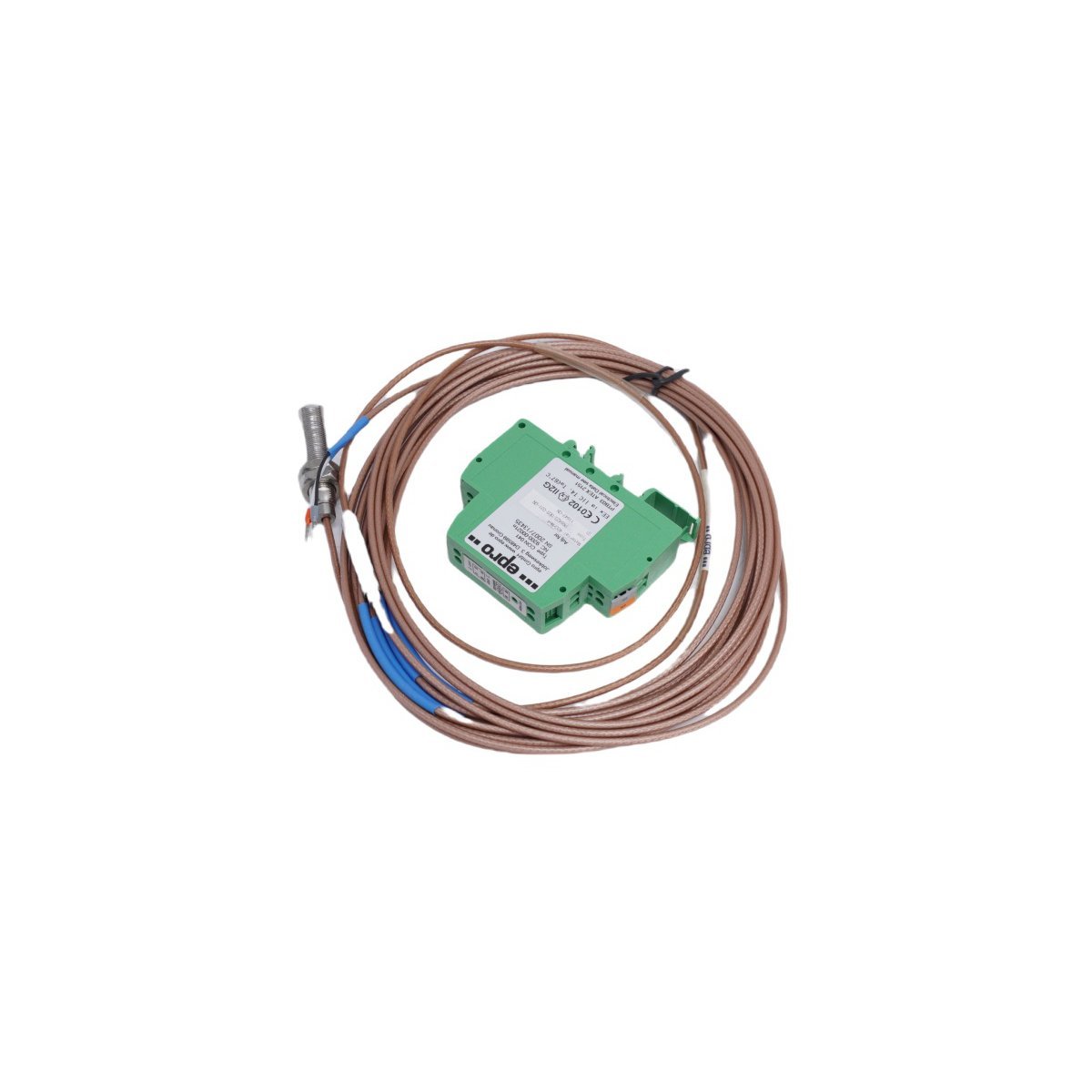

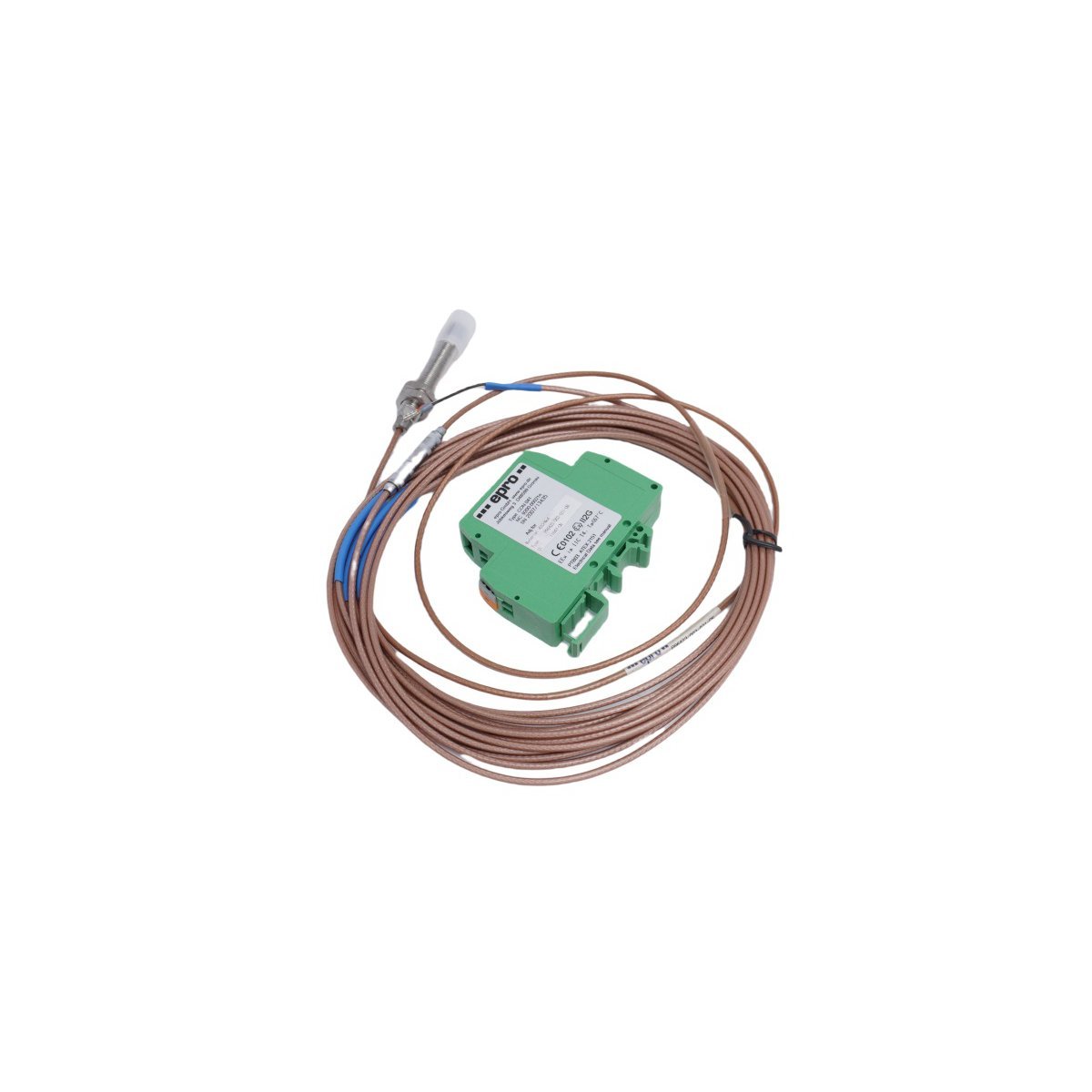

The Emerson PR6423/003-031-CN, paired with the CON041 connector configuration, operates as a non-contact eddy current displacement sensor within the EPRO product family. This industrial-grade instrumentation specialist captures high-frequency physical displacement data, focusing primarily on critical machinery parameters like shaft vibration, axial position, and dynamic eccentricity. Because the sensor tip establishes a localized electromagnetic field, it continuously tracks the relative distance to a rotating metallic target without making physical contact, eliminating mechanical wear and maintaining calibration integrity over long operational lifecycles.

Technical Characteristics and Performance

Operationally, the driver electronics supply an alternating current to the sensor tip coil, which induces eddy currents into the target shaft surface. The variation in distance between the sensor tip and the moving shaft alternates the total impedance of the circuit, and the monitoring system translates this fluctuation into a highly precise, linear voltage signal.

To guarantee clean diagnostic feedback, the internal circuitry incorporates specialized anti-interference properties that shield the telemetry from ambient industrial noise and harsh electromagnetic fields. This immunity enables the device to supply clean vibration metrics to distributed control systems (DCS) and asset health networks, supporting accurate trend logging and fast alert execution.

Resilience and Deployment Architecture

The physical housing utilizes a ruggedized, hermetically sealed assembly designed to endure severe environmental stress. Consequently, the sensor performs reliably under elevated ambient temperatures, high pressure, and exposure to corrosive lubricating oils.

The modular mounting design simplifies installation inside complex bearing housings or turbine casings, allowing field personnel to calibrate the mechanical gap clearance efficiently. Furthermore, this backward-compatible design lets plant engineers update older legacy monitoring racks with zero infrastructure rewiring, streamlining facility turnaround schedules.

Technical Data

• Manufacturer: Emerson (EPRO Series)
• Instrumentation Type: Non-Contact Eddy Current Sensor
• Model Identifier: PR6423/003-031-CN
• Connection / Cable Code: CON041
• Measurement Principle: Eddy Current Displacement
• Physical Dimensions: 18.0 cm x 18.0 cm x 2.0 cm
• Net Hardware Weight: 0.26 kg
• System Environment Integration: Distributed Control System (DCS) / Machinery Protection Network
• Custom Export Harmonization Code (HS CODE): 8537101190
• Product Lifecycle Phase: Legacy Hardware (Discontinued December 31, 2018)

Industrial Asset Applications

This eddy current sensor plays a critical role in proactive predictive maintenance frameworks aimed at protecting high-capital rotating assets. Typical deployment environments include power generation facilities, chemical processing plants, and oil and gas refining complexes. Within these facilities, engineers rely on the sensor to supervise large-scale turbomachinery, including:

• Steam and gas turbines
• High-pressure centrifugal compressors
• Multistage industrial pumps
• Large electric motors and cooling fans
