Description

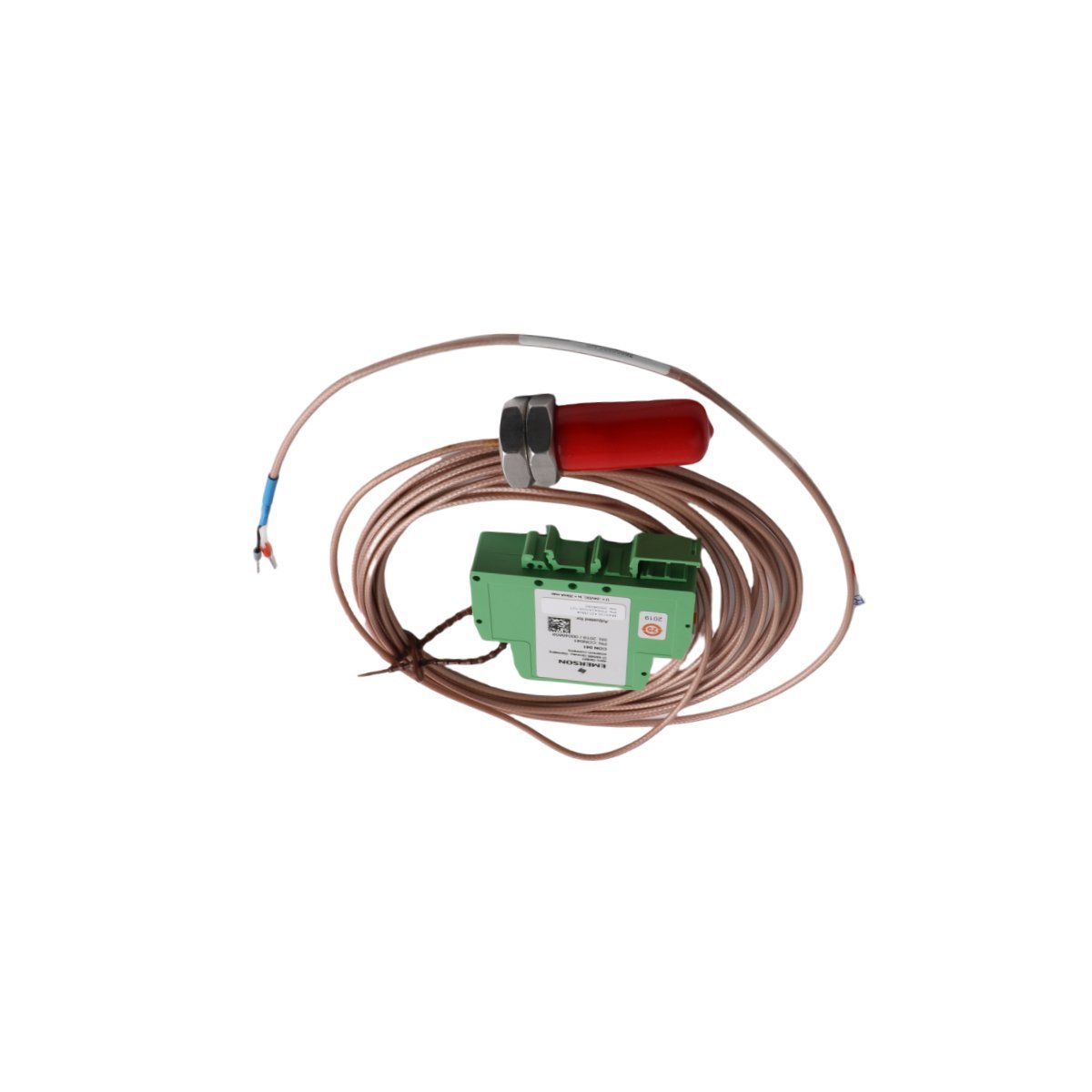

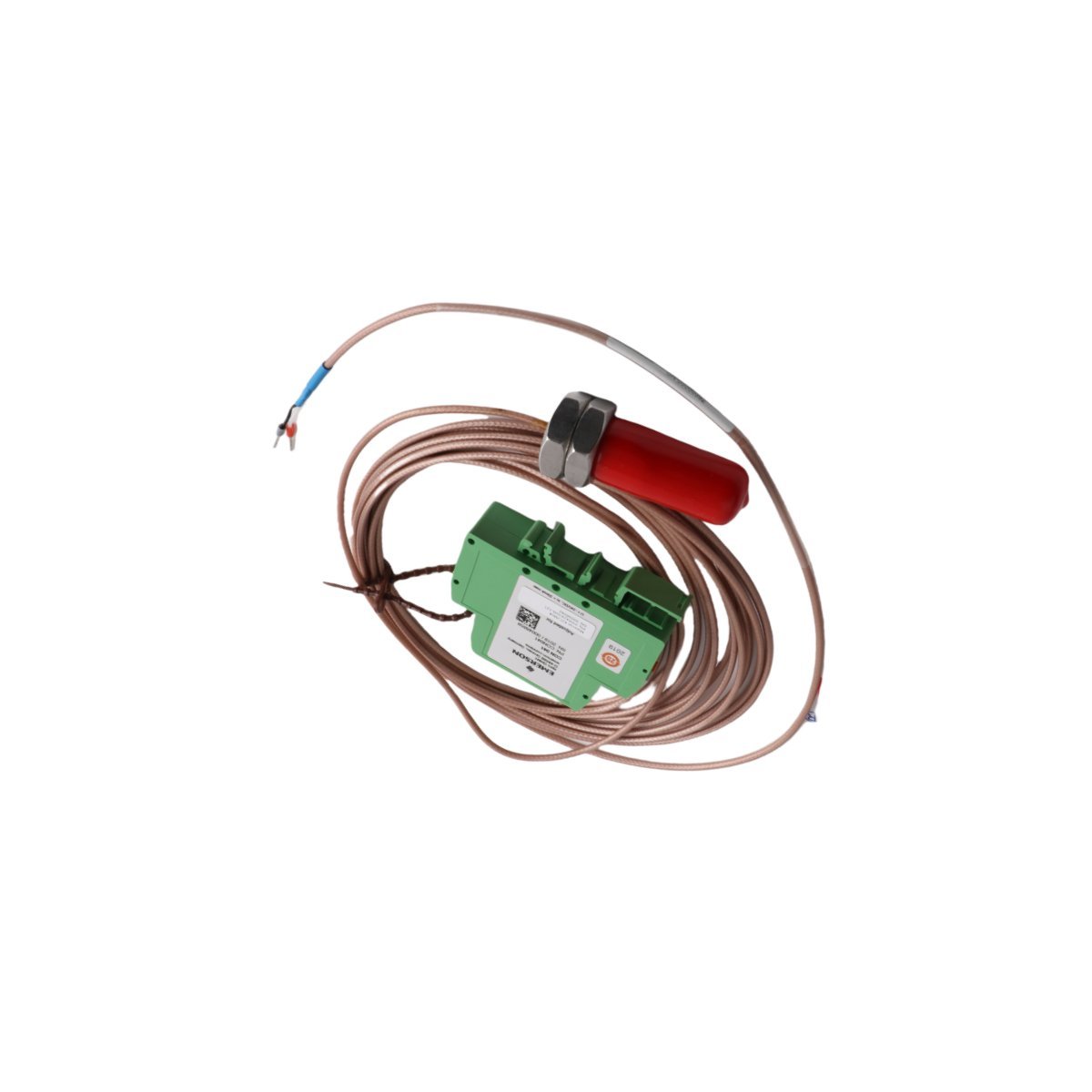

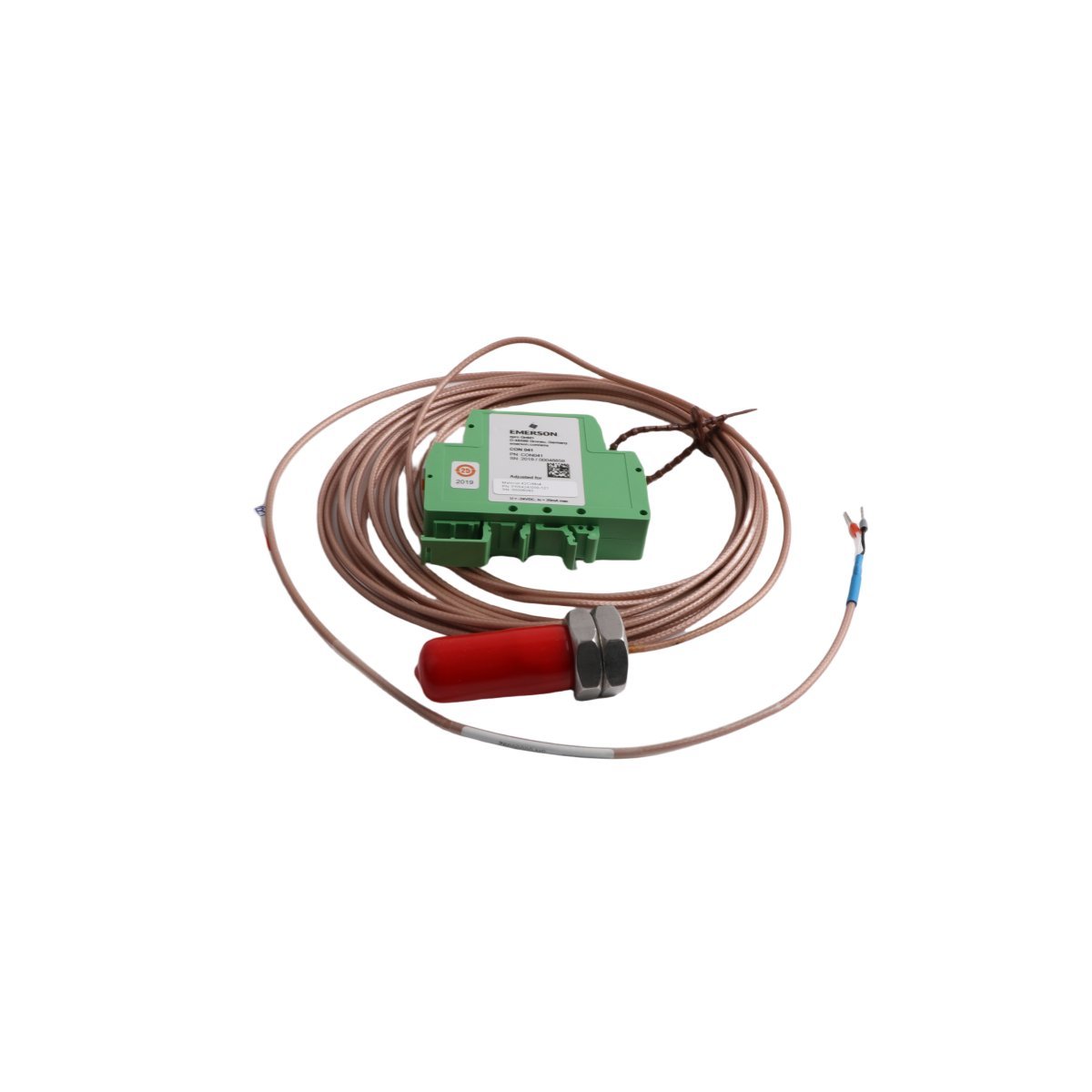

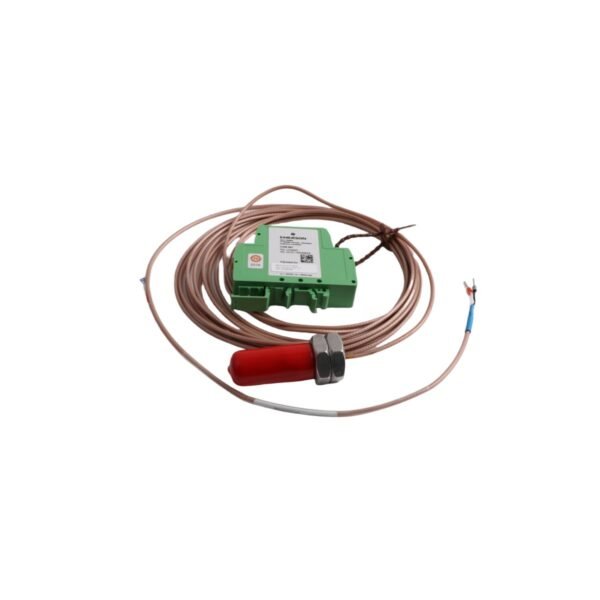

Configured for non-contact shaft displacement and vibration measurement in Emerson epro machinery monitoring architectures, the Emerson PR6424/000-121 CON041 (PR6424/000-121) Precision Eddy Current Sensor provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• PR6424/000-121: Base non-contact eddy current transducer assembly specifying probe tip diameter, thread configuration, and integrated cable length parameters.
• CON041: Signal converter module mated with the transducer to condition high-frequency oscillator signals into proportional voltage outputs.

Hardware Specifications

Process Control & Channel Isolation Characteristics

• Utilizes a 4-20 mA HART loop protocol interface option via associated signal converters to pass static shaft position and dynamic vibration parameters directly to DCS analog input cards.
• Provides galvanic channel-to-channel isolation within the signal transmitter chain to eliminate ground loop noise across multi-bearing rotating machinery trains.
• Integrates cold junction compensation (CJC) reference pathways when operating in combination with multi-channel temperature and vibration monitoring racks.

Frequently Asked Questions

Q: How is the physical gap voltage validated during mechanical installation of the PR6424/000-121 transducer?

A: Adjust probe mechanical insertion depth until the DC bias output voltage measures approximately -10 VDC at the signal converter output terminals, corresponding to the center of the linear displacement range.

Q: Can the CON041 signal converter be interchanged with other eddy current probe series without recalibration?

A: No, the CON041 converter circuit is factory-calibrated to match specific coil inductance, cable capacitance, and target material characteristics of the PR6424 transducer series.

Field Installation Guidelines

• Secure the PR6424 probe body into the bearing housing tapped hole maintaining a minimum 5-thread engagement.
• Route the flexible extension cable through protective metallic conduit, avoiding sharp bends with a radius less than 30 mm.
• Terminate shield wires to the dedicated instrument earth bar at the monitoring cabinet, maintaining isolation from the rotating machine casing.
• Keep signal cabling separated by at least 100 mm from high-voltage AC lines to prevent electromagnetic field interference.
