Description

Technical Overview

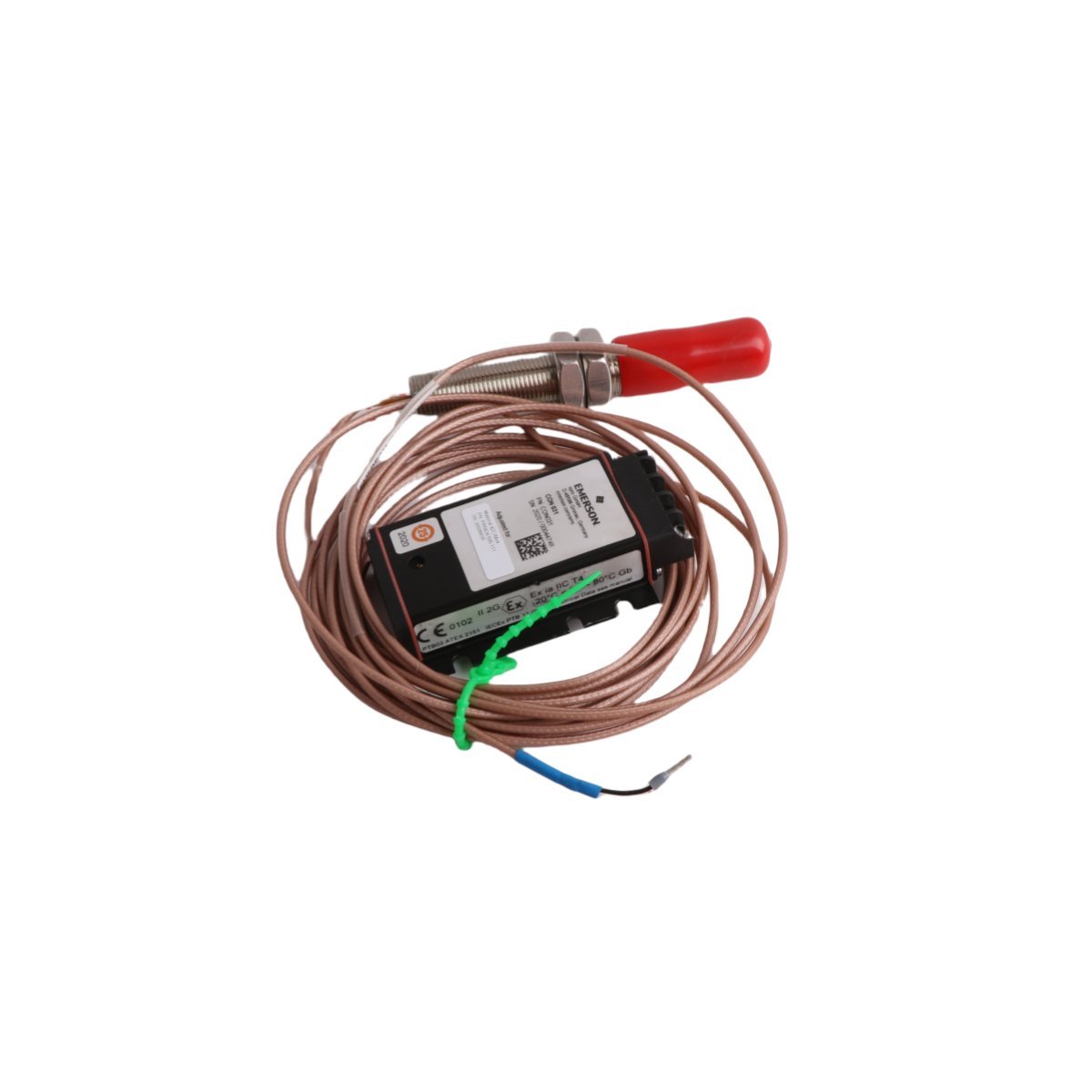

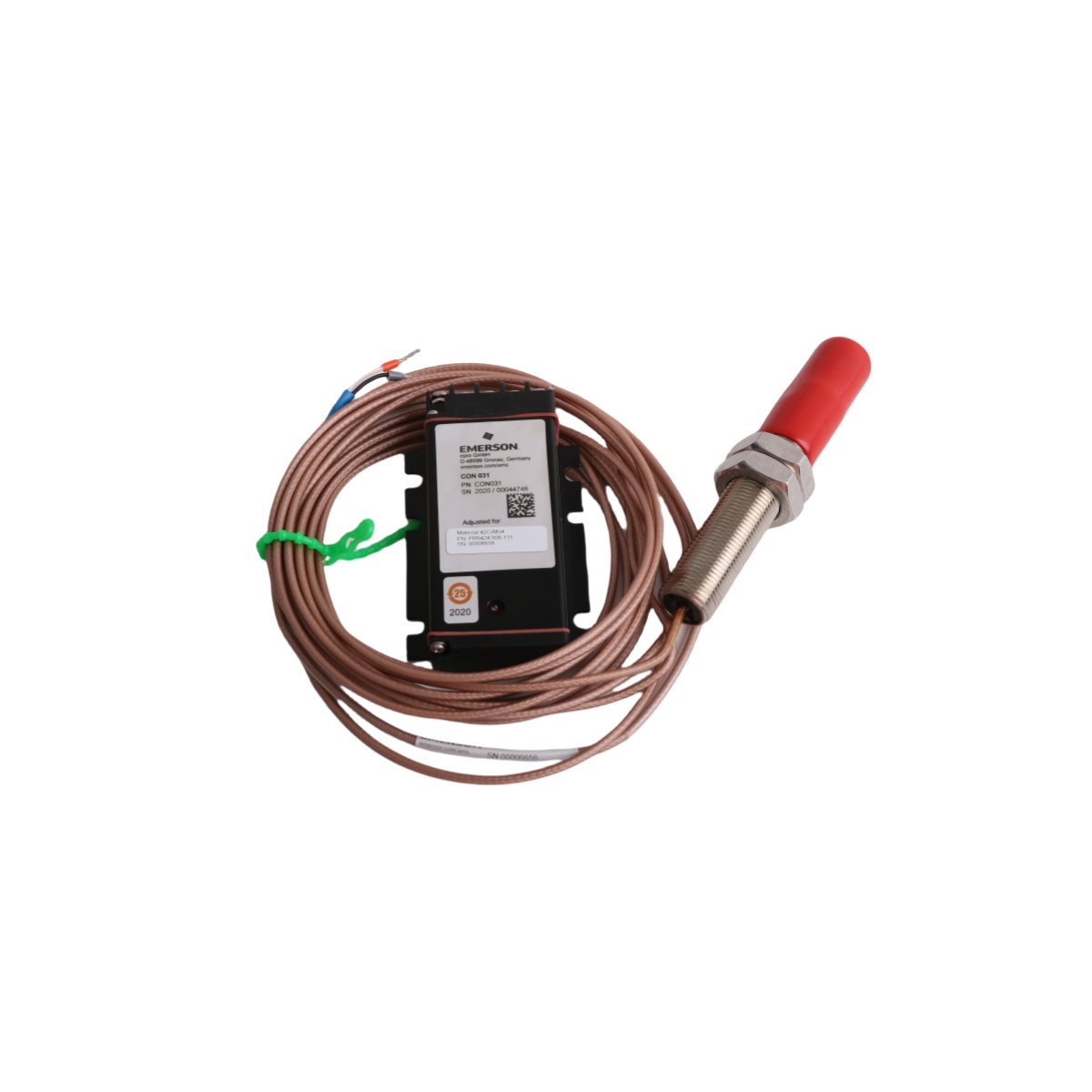

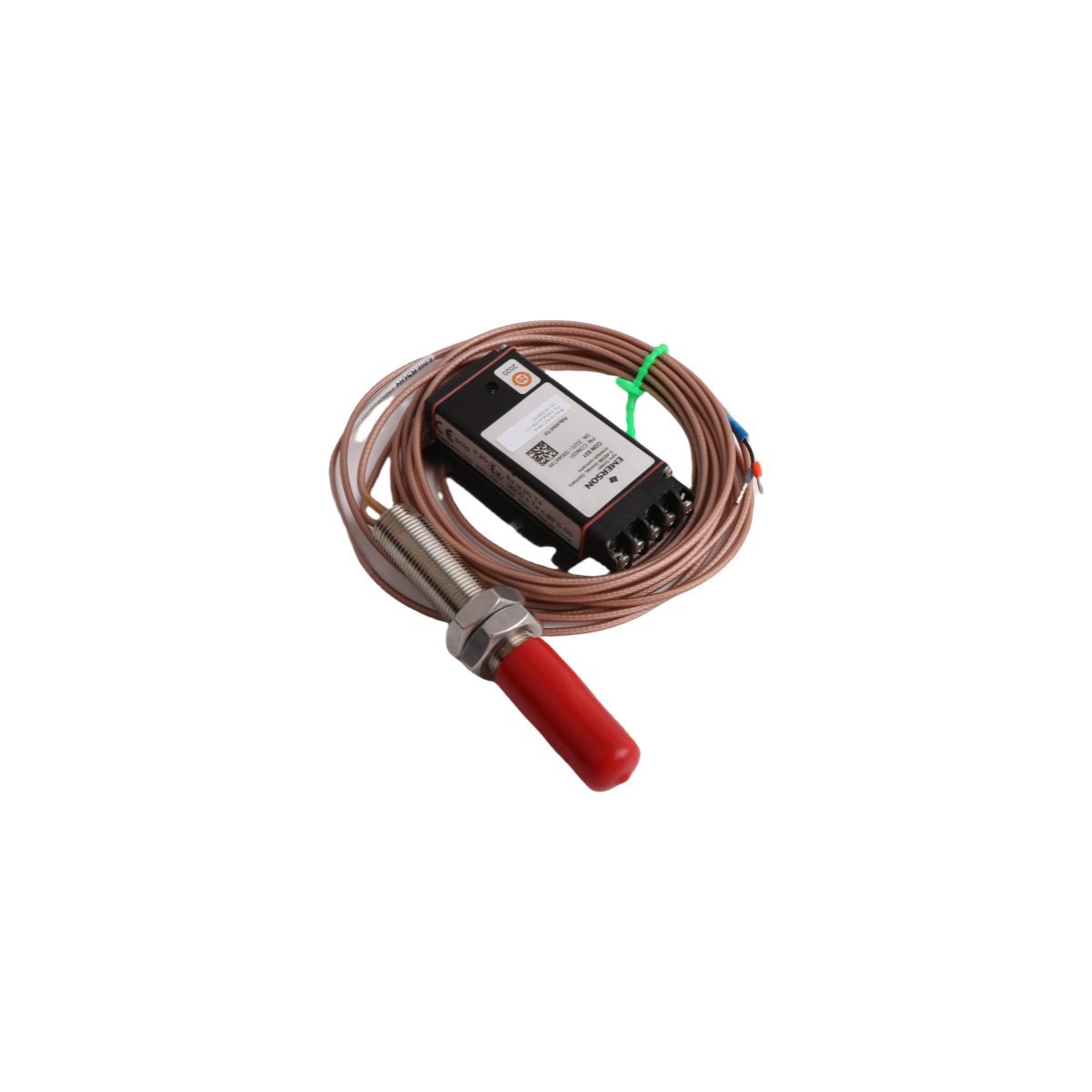

Emerson designed the EPRO PR6424/006-111 CON031 as a high-precision eddy current displacement sensor for non-contact measurement of vibration and shaft position. This displacement model operates on the eddy current principle, allowing it to detect minute changes in the gap between the sensor tip and a conductive target material. Because the system provides real-time data on radial and axial shaft displacement, it serves as a foundational component for machine protection and condition monitoring systems. Although the EPRO series saw official discontinuation on December 31, 2018, this sensor remains an essential spare part for maintaining legacy Emerson and Phillips vibration monitoring racks.

Performance Specifications

• Manufacturer: Emerson (EPRO / Philips)
• Model Series: PR6424 Series Non-Contact Sensors
• Full Model Number: PR6424/006-111
• Configuration Code: CON031
• Measurement Principle: Eddy Current (Non-contact)
• Output Type: Displacement / Vibration signal
• Communication Interface: Ethernet router service compatible via monitoring rack
• Net Weight: 0.32 kg
• Standard Dimensions: 16 cm x 13 cm x 3 cm
• Customs Classification: HS Code 8537101190

Key Functional Advantages

The PR6424/006-111 CON031 incorporates advanced electromagnetic shielding to ensure high sensitivity even in environments with significant electrical noise. Furthermore, the sensor tip features robust materials that withstand extreme temperatures and mechanical shocks, which are common in heavy industrial rotating equipment. By delivering consistent, linear output signals, the sensor enables early detection of bearing wear, shaft misalignment, and rotor unbalance.

Additionally, the CON031 configuration facilitates seamless integration into existing Emerson Distributed Control Systems (DCS) and PLC modules. This interoperability allows plants to implement predictive maintenance strategies without replacing entire monitoring infrastructures. Consequently, operators can extend the lifespan of critical machinery such as turbines, compressors, and high-speed pumps while minimizing the risk of catastrophic mechanical failure.

Industrial Applications

Engineers primarily install this displacement model in heavy-duty rotating machinery across several key sectors:

• Power Generation: Monitoring shaft vibration and axial position in steam and gas turbines.
• Oil and Gas: Detecting radial displacement in high-pressure centrifugal compressors.
• Chemical Processing: Protecting large-scale motor-driven pumps and agitators.
• Manufacturing: Ensuring the stability of high-speed spindles and generators.
