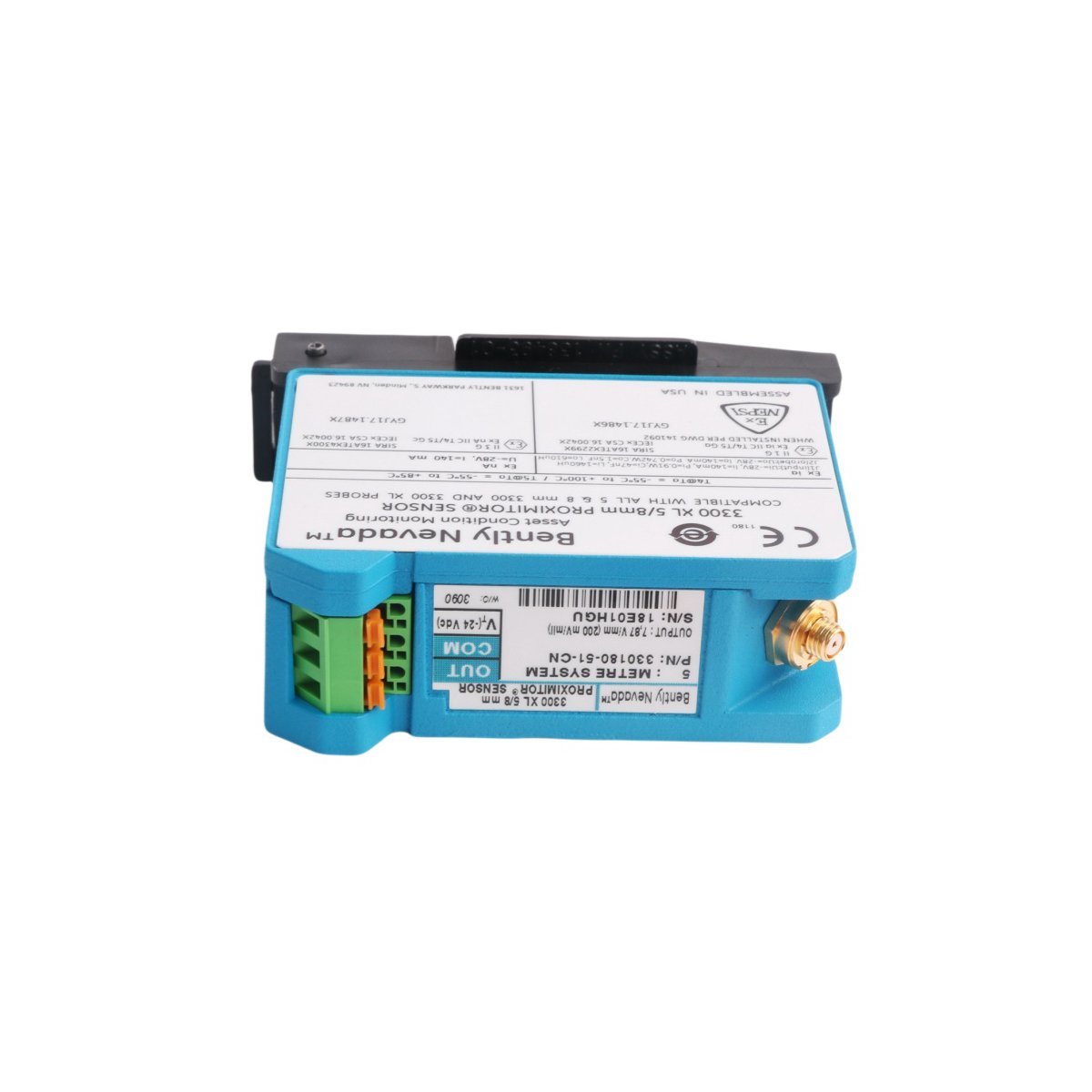

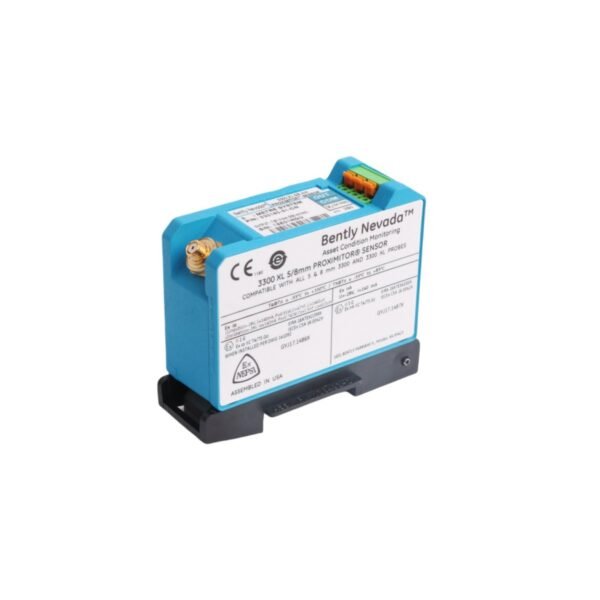

Bently Nevada 330180-51-CN 3300 XL Proximitor Sensor
The Bently Nevada 330180-51-CN is a high-accuracy 3300 XL Proximitor Sensor designed for DIN rail mounting configurations with a 5.0-meter system length setup. This industrial signal conditioner provides linear voltage output for shaft vibration and position data, delivering full API 670 compliance for critical machinery protection systems.
Description
Product Overview
The Bently Nevada 330180-51-CN acts as a core processing component for the 3300 XL Proximity Transducer System. This advanced industrial device operates by generating an RF signal through eddy-current technology, which subsequently interprets the distance between the probe tip and the observed target area. Engineers utilize this device primarily to transform physical shaft motion into a reliable, linear analog voltage output, enabling precise measurements for both static displacement and dynamic vibration.
Because the system features complete backward compatibility with older 3300 series components, plant operators can upgrade individual parts without executing time-consuming recalibrations. Additionally, the rugged housing withstands extreme conditions, allowing the sensor to deliver continuous asset health data in critical processing environments.
Industrial Applications
- Turbomachinery and centrifugal compressor shaft vibration analysis
- Steam and gas turbine thrust position monitoring
- Boiler feed pump and industrial fan condition tracking
- Hydroelectric generator shaft centerline path observation
- Rotating machinery protection within Turbomachinery Control Systems (TCI)
- Predictive maintenance deployment across petrochemical and power generation facilities
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Product Line: 3300 XL Proximity Transducer System
- Part Number: 330180-51-CN
- System Length Compatibility: 5.0 meters (total combined probe and extension cable length)
- Mounting Configuration: Standard 35mm DIN rail mount
- Electrical Connection: Integrated screw-clamp terminal blocks
- Signal Output Range: 200 mV/mil (7.87 V/mm) nominal scale factor
- Frequency Response Range: 0.5 Hz to 12 kHz
- Verification Compliance: Fully compliant with API 670 standards for machinery protection
- Diagnostics Indicator: Integrated green LED status light to confirm proper system operation
- Operating Temperature Thresholds: -40°C to +85°C (-40°F to +185°F)
- Structural Dimensions: 8.8 cm x 3.5 cm x 7.0 cm
- Physical Mass: 0.22 kg (0.49 lbs)
- Origin of Manufacture: United States of America
Additional information
| Weight | 0.22 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 8.8 x 3.5 x 7cm |
