Description

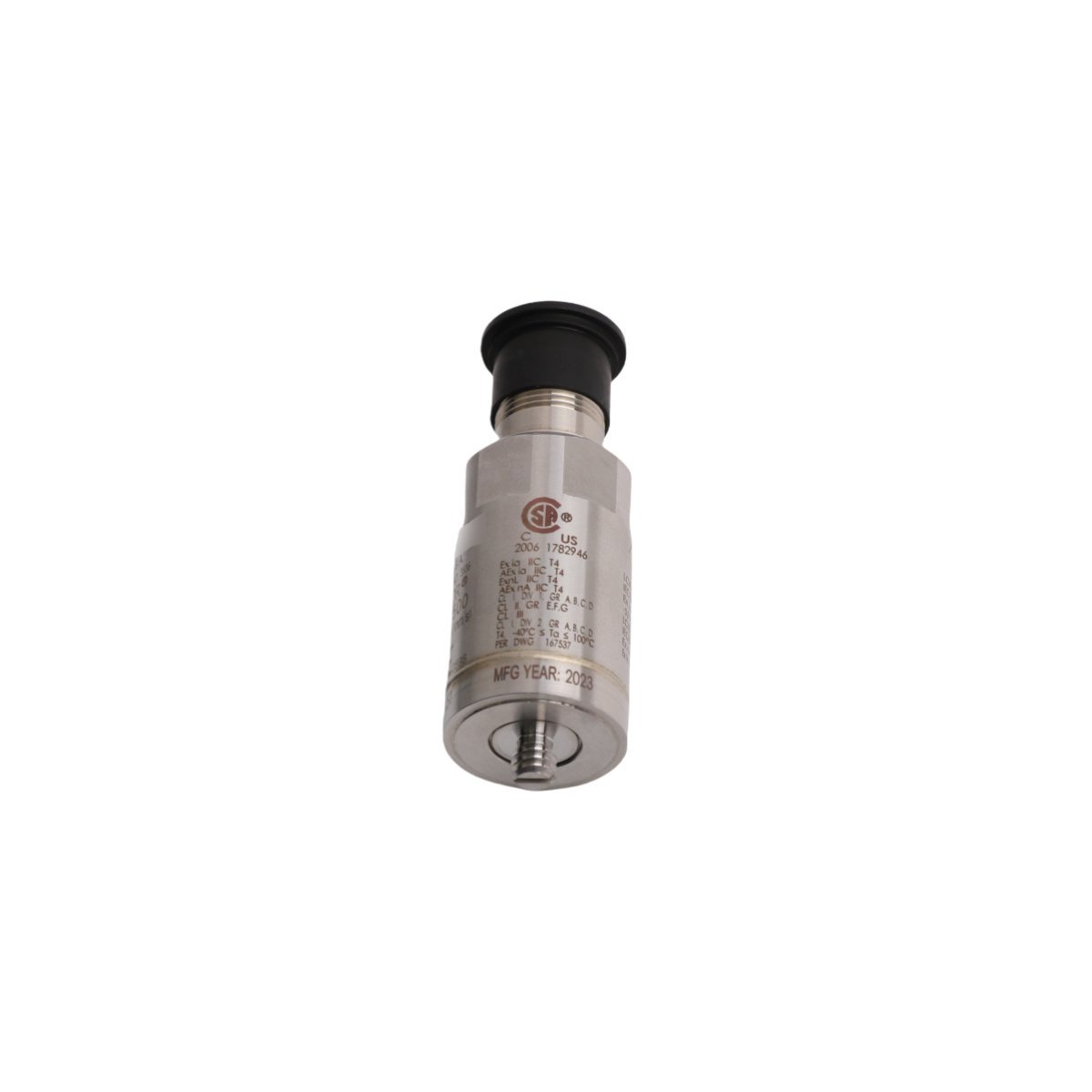

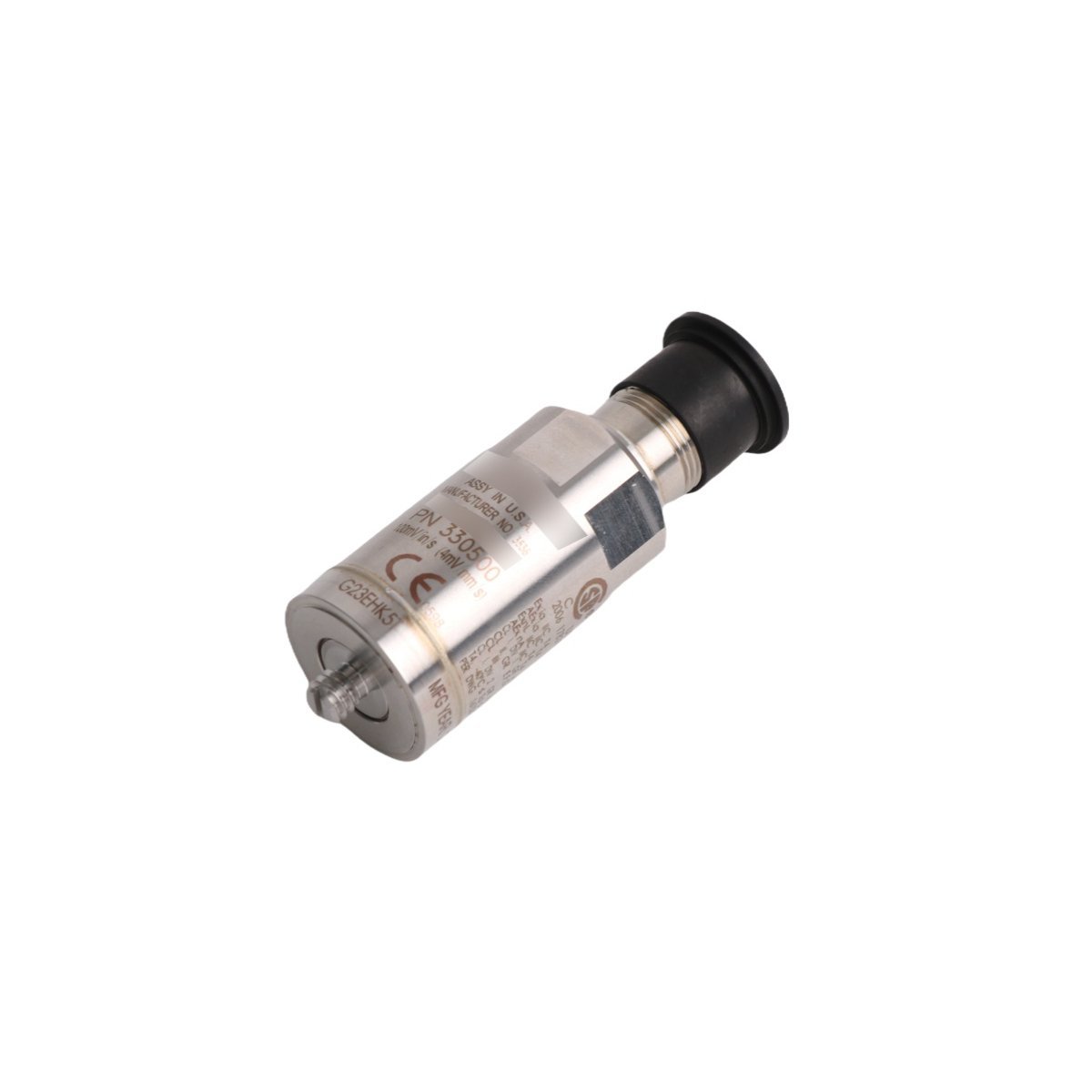

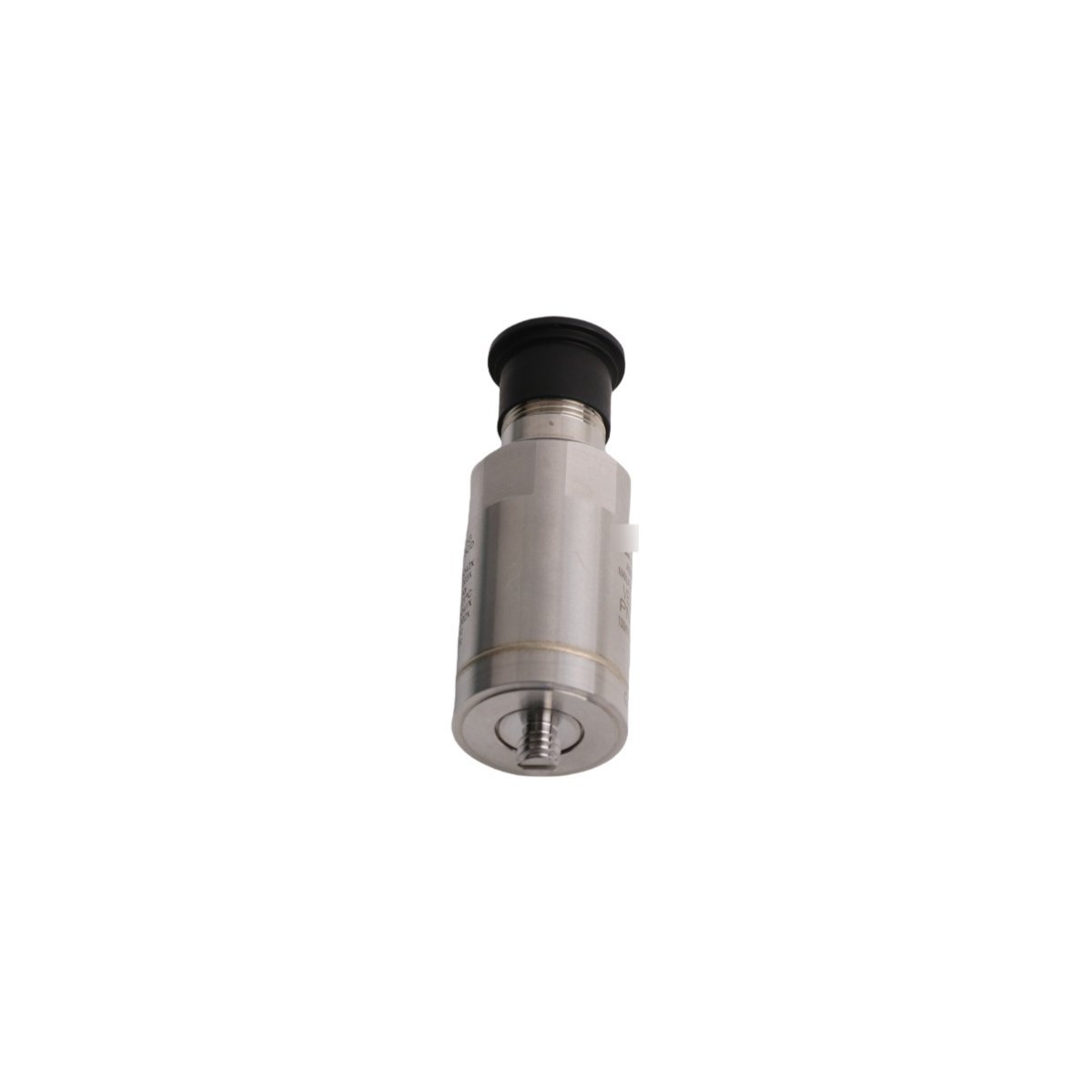

The Bently Nevada 330500-04-00, also cataloged as the 330500 Vibration Sensor, operates as a dedicated hardware component for absolute seismic vibration measurement within Turbomachinery Information (TSI) systems.

Hardware Specifications

Mechanical Monitoring & Rotor Dynamics

The 330500 series sensor utilizes a piezoelectric crystal and internal integrated electronics to convert mechanical velocity into a proportional voltage output. Unlike proximity transducers that require gap voltage validation (typical -10 VDC targets), this seismic sensor measures case-mounted vibration. Proper installation requires rigid mounting to the machine casing to ensure accurate transmission of high-frequency vibration data. Signal integrity depends on minimizing electrical noise and cable-induced crosstalk suppression in multi-point monitoring configurations. This sensor serves as a primary input for protecting rotating machinery by detecting shifts in structural casing vibration, which directly correlates to machine health and internal rotor dynamics states.

Frequently Asked Questions (FAQ)

Q: Is this sensor compatible with existing Bently Nevada 3500 monitoring cards?

A: Yes, the 330500 is designed for direct integration with standard seismic input modules within the 3500 protection system.

Q: Are there specific orientation requirements for mounting?

A: No, the solid-state design allows mounting in any orientation (horizontal, vertical, or at an angle) without performance degradation.

Q: Does the sensor require external power?

A: The sensor is loop-powered; the internal electronics derive power from the interface module providing the constant current excitation.

Field Installation Guidelines

• Mounting Surface Preparation: Ensure the mounting surface is flat, clean, and free of paint or debris. The sensor must be bolted tightly to the machine casing to ensure a resonant frequency far above the monitoring range.
• Stud Installation: Use the specified mounting stud. Ensure a minimum of 5 full threads of engagement if using NPT or machine-threaded adapters to maintain structural coupling.
• Cabling: Use high-quality shielded twisted-pair instrumentation cable. Keep signal cabling isolated from high-voltage AC power lines and variable frequency drive (VFD) output cables to prevent electromagnetic interference.
• Grounding: Terminate the cable shield at the monitoring system end only, unless specific site grounding protocols require a different configuration to prevent ground loops.
