Description

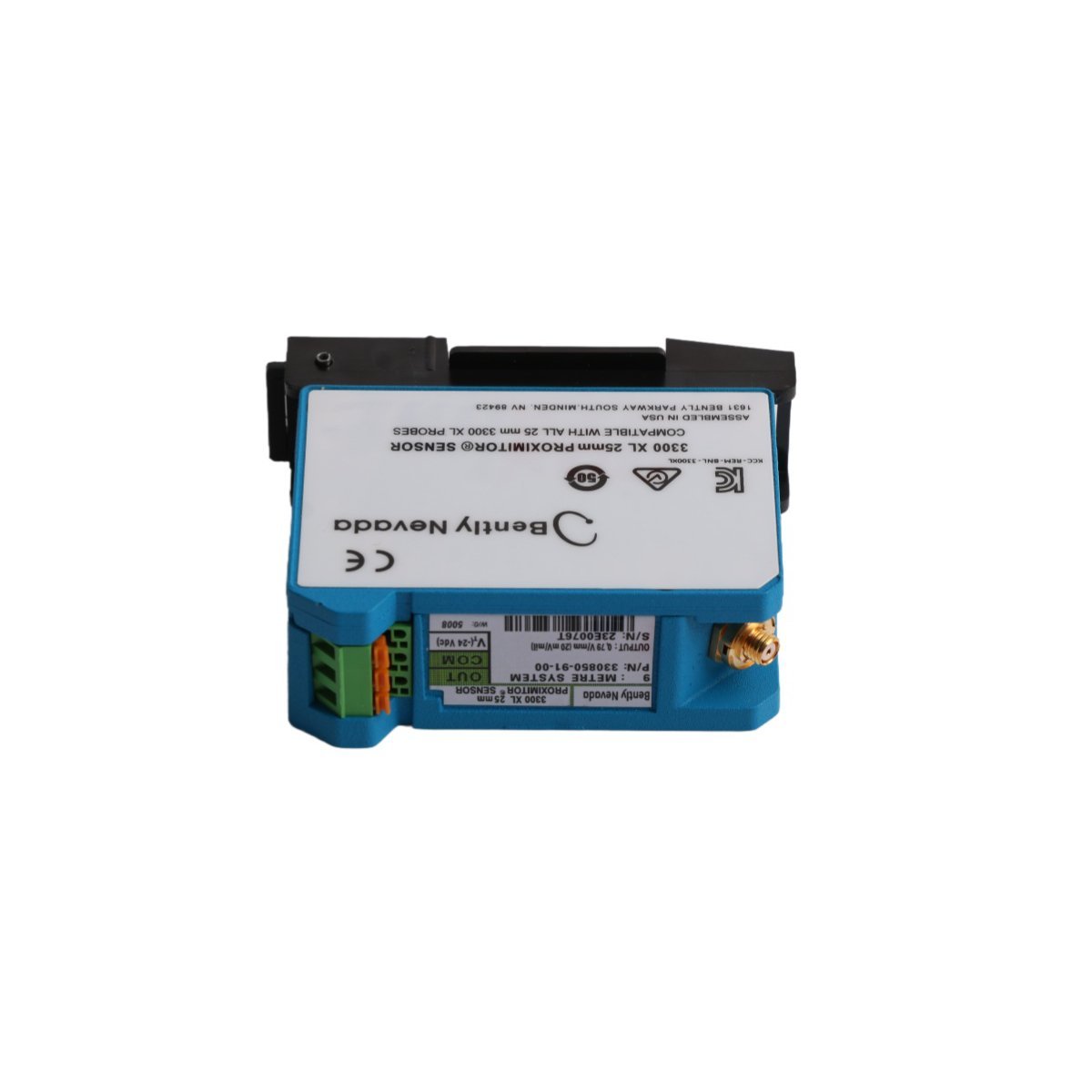

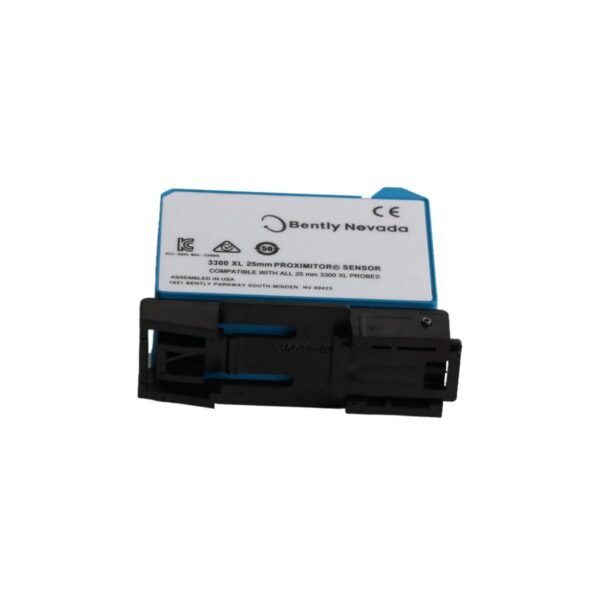

The Bently Nevada 330850-91-00, also cataloged as the 330850 Proximitor Sensor, operates as a dedicated hardware component for signal conditioning of eddy-current proximity probes within Turbomachinery Information (TSI) systems.

Suffix Breakdown & Model Matrix

• 330850: Base model number for 3300 XL 25 mm Proximitor Sensor.
• 91: System length option (9.0 meters).
• 00: Agency approval option (Not required).

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 330850 Proximitor sensor employs an internal oscillator to drive the proximity probe, effectively converting the gap between the probe tip and the target into a linear voltage signal. Furthermore, unlike standard process transmitters, this device requires precise gap voltage validation (typically -10 VDC targets) to ensure the probe remains centered within its linear operating range. Consequently, installation personnel must verify the static gap voltage during commissioning; this is particularly important to prevent signal saturation or non-linear output during high-amplitude shaft vibrations. Ultimately, the implementation of rigorous shielding and cross-talk suppression techniques is required to maintain signal integrity, thereby ensuring that the monitored data provides an accurate representation of the rotor dynamics within the machine casing.

Frequently Asked Questions (FAQ)

Q: What is the impact of changing the system length (e.g., 5 meters to 9 meters) on the Proximitor output?

A: The Proximitor sensor is calibrated to a specific system length; modifying the cable length without recalibrating the transducer system will result in measurement errors due to impedance mismatches.

Q: Can multiple Proximitor sensors be mounted on the same DIN rail?

A: Yes, the 3300 XL Proximitor sensor is designed for high-density DIN-rail mounting; however, ensure sufficient spacing to allow for heat dissipation and cable routing to minimize electromagnetic cross-talk.

Field Installation Guidelines

• DIN-Rail Mounting: Secure the sensor to the DIN rail using the integrated mounting clips. Ensure the sensor orientation allows for access to the terminal blocks and the coaxial connector.
• Shielding and Grounding: Maintain shield continuity from the probe tip to the Proximitor sensor and from the sensor to the monitor input. Ground the shield at the monitor end only to prevent ground loop currents.
• Connection Integrity: Inspect all coaxial connectors for debris or moisture before mating. Tighten connectors to the recommended torque specifications; avoid over-tightening which can damage the center conductor.
• Cable Routing: Keep signal cables physically separated from high-voltage AC power lines and motor drive outputs to reduce the risk of induced noise and interference in the velocity or displacement signal.
