Description

Product Overview

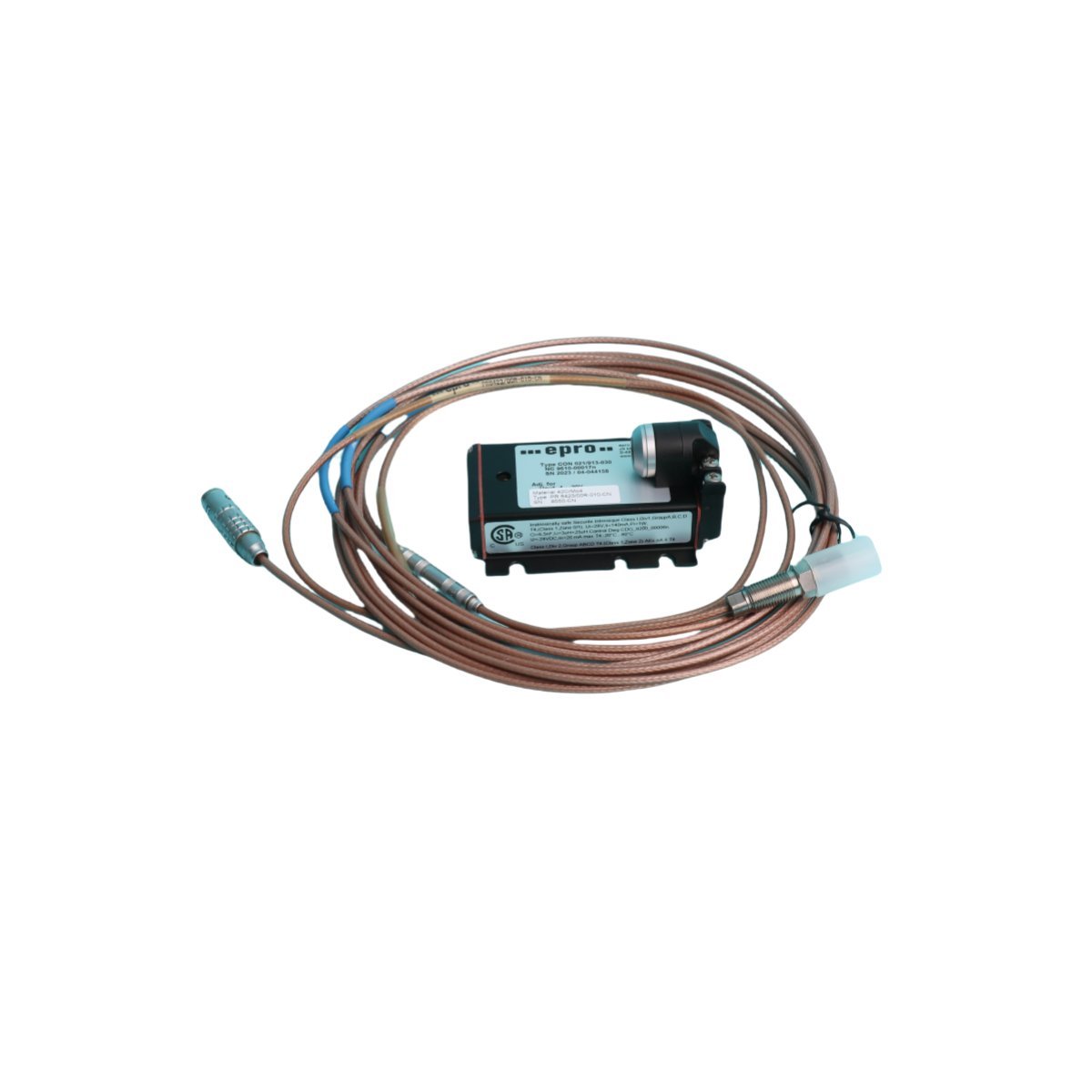

The EPRO PR6423/018-010 CON021 (managed under the Emerson industrial automation portfolio) is a non-contact, high-precision eddy current displacement sensor and signal converter. This industrial-grade proximity system is purpose-built for critical machine protection, specifically monitoring the static and dynamic shaft displacement of high-speed rotating machinery. By establishing a localized electromagnetic field, the sensor translates micro-level structural changes into standard industrial metrics to track axial thrust, radial vibration, shaft eccentricity, and oil film thickness in real time.

Advanced Capabilities and Functional Benefits

• Non-Contact Proximity Telemetry: Utilizes eddy current principles to measure shaft distances down to the micrometer without making physical contact, eliminating mechanical wear and ensuring continuous, decades-long field life.
• Micro-Level Accuracy: Features a specialized 8mm tip construction that delivers an ultra-fine 0.001 mm (1 µm) resolution paired with a ±0.05% measurement accuracy, providing trusted data for automated emergency trip systems.
• Comprehensive Machine Diagnostics: Capable of diagnosing complex mechanical stress states, including structural micro-cracks, thrust bearing abrasion layers, and precise oil film boundary deviations.
• Explosive Zone Certification: Natively ATEX and IECEx certified under the Ex ib II C T6/T4 intrinsic safety standard, allowing direct deployment inside hazardous oil, gas, and petrochemical zones.
• Severe Environment Hardening: Features a rugged chassis rated to survive severe physical impacts up to 50g pk-pk, permanent high-frequency vibration up to 20g pk-pk, and a wide thermal operating range of -40°C to +85°C.
• MMS System Compatibility: Engineered for seamless architectural integration into Emerson MMS 3000 and MMS 6000 machinery monitoring racks, routing high-speed signal data back to enterprise DCS architectures.

Technical Specifications

Industrial Applications

• Turbine Shaft Vibration Tracking: Real-time monitoring of radial and axial shaft positioning on massive steam and gas turbine assemblies to prevent catastrophic casing contact.
• High-Speed Industrial Compressors: Continually validating oil film thickness and thrust bearing degradation inside heavy-duty gas distribution line compressors.
• Large Pumping Machinery: Detecting early-stage shaft eccentricity and rotor imbalances within massive water treatment and chemical refinery pumping loops.
• Preventative Maintenance Controls: Providing high-fidelity wave signal conversions to track microscopic structural defects and cracking anomalies on heavy plant machinery components.
