Description

Functional Overview

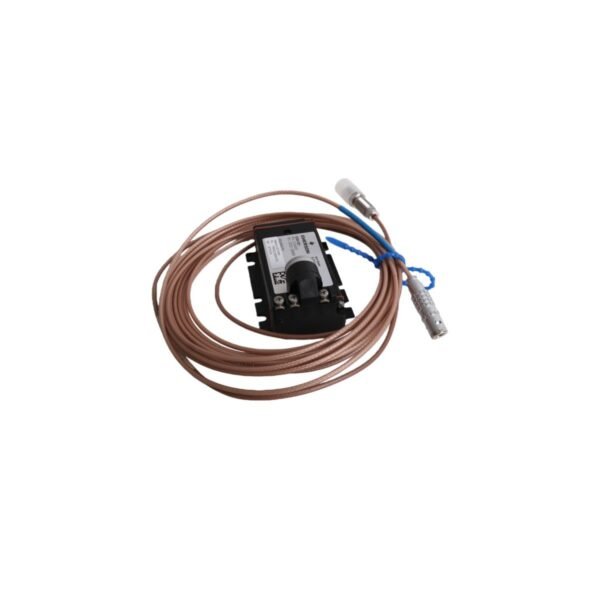

The Emerson PR6423/00R-030, equipped with the CON021 connector specification, is an industrial, non-contact eddy current displacement sensor belonging to the EPRO product family. Engineered with an 8mm sensor tip diameter, this specialized transducer is purpose-built to execute high-precision proximity and vibration measurements on critical rotating machinery. By establishing a high-frequency electromagnetic field at its tip, the sensor monitors dynamic physical displacement relative to a conductive metallic target—such as a machine shaft—without making physical contact. This non-contact technique prevents mechanical wear and tear, ensuring steady calibration over long operational periods.

Measurement Dynamics and Telemetry

The operational architecture relies on eddy current technology. When an alternating current drives the internal coil of the sensor tip, it projects an electromagnetic field that induces localized eddy currents on the surface of the rotating shaft. As the distance between the shaft and the 8mm tip changes due to vibration or thermal expansion, the circuit’s overall impedance varies proportionally.

The associated driver electronics translate these subtle impedance variations into a clean, linear voltage signal. This continuous displacement telemetry is fed directly into a Distributed Control System (DCS) or dedicated machinery protection monitors (such as the Emerson AMS 6500 system), facilitating immediate fault detection and advanced predictive maintenance logging.

Resilience and System Integration

The PR6423/00R-030 is heavily ruggedized to withstand the harsh internal conditions of heavy turbomachinery. Its hermetically sealed housing resists high pressures, scorching operational temperatures, and continuous exposure to corrosive lubricating oils.

Equipped with the CON021 connection configuration, the sensor features robust grounding and shielding properties that actively suppress harsh industrial electromagnetic noise and environmental interference. This ensures high signal integrity, allowing the transducer to maintain precise accuracy whether deployed on high-speed gas turbines or low-speed hydraulic equipment.

Technical Data

Industrial Asset Applications

The high precision and environmental resilience of the PR6423/00R-030 8mm sensor make it a vital component in machinery protection architectures across the power generation, petrochemical, and manufacturing sectors. It is primarily deployed to monitor critical parameters—such as radial shaft vibration, axial thrust position, dynamic eccentricity, and rotational speed—on high-capital assets, including:

• Steam and Gas Turbines: Protecting main generator shafts from catastrophic oil-film instability and unbalance.
• Centrifugal Compressors: Monitoring axial thrust displacement to prevent destructive rotor-to-stator contact.
• Hydro Turbines: Tracking low-frequency shaft runout and structural alignment variations.
• Heavy-Duty Industrial Pumps & Fans: Providing early warning alerts for bearing degradation and mechanical looseness.
