Description

Product Overview

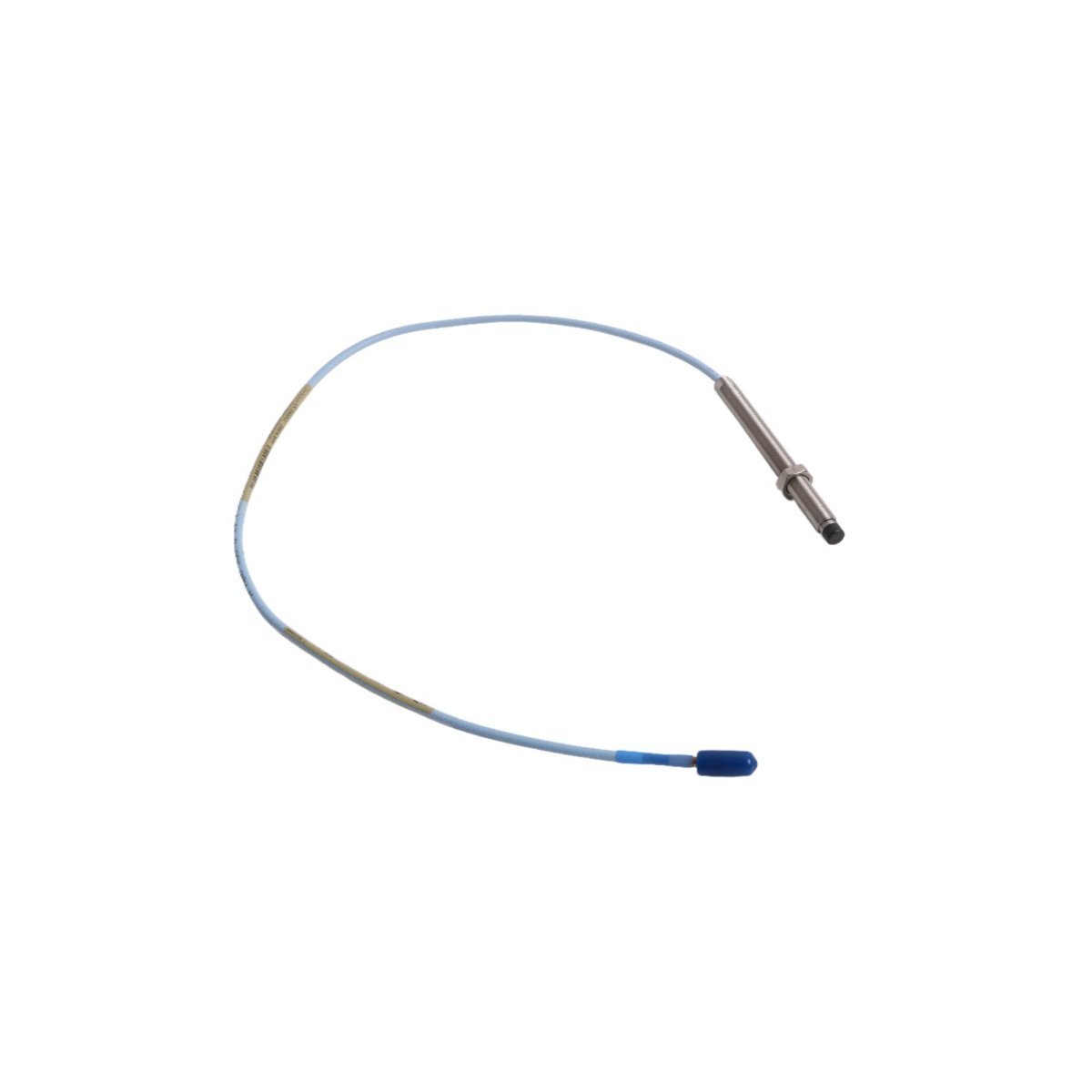

The Bently Nevada 330101-00-45-20-12-05 serves as a primary component within the 3300 XL 8mm Proximity Transducer System. Industrial operators utilize this sensor to monitor radial vibration and shaft position in high-speed rotating machinery. By providing precise, non-contact measurements, the probe enables maintenance teams to detect potential mechanical faults before they result in equipment failure.

Technical Specifications

• System Series: 3300 XL 8mm Proximity Transducer System
• Probe Tip Diameter: 8 mm
• Thread Size: 3/8-24 UNF
• Case Length: 123 mm
• Cable Length: 2.0 meters
• Connector Type: Miniature coaxial ClickLoc
• Wrench Flats: 5/16 inch
• Compliance: API 670, CSA, ATEX, and IECEx rated
• Weight: 0.06 kg

Key Functional Features

Engineers integrate this probe into critical asset protection systems to ensure consistent signal integrity. The TipLoc manufacturing process creates a robust bond between the tip and the probe body, which enhances durability under high-pressure conditions. Furthermore, the CableLoc design provides a pull strength of 330 N to prevent cable detachment during operation. The inclusion of corrosion-resistant, gold-plated ClickLoc connectors minimizes signal interference, while the optional FluidLoc feature effectively blocks oil and contaminants from leaking through the cable interior.

Operational Applications

The 330101-00-45-20-12-05 probe operates reliably in hazardous environments due to its rigorous safety certifications. Because the system maintains compliance with API 670 standards, it remains an industry standard for predictive maintenance. Facility managers rely on these sensors to capture high-resolution data on shaft movement, allowing for accurate diagnostic analysis and improved uptime in power generation, petrochemical, and manufacturing facilities.
