Description

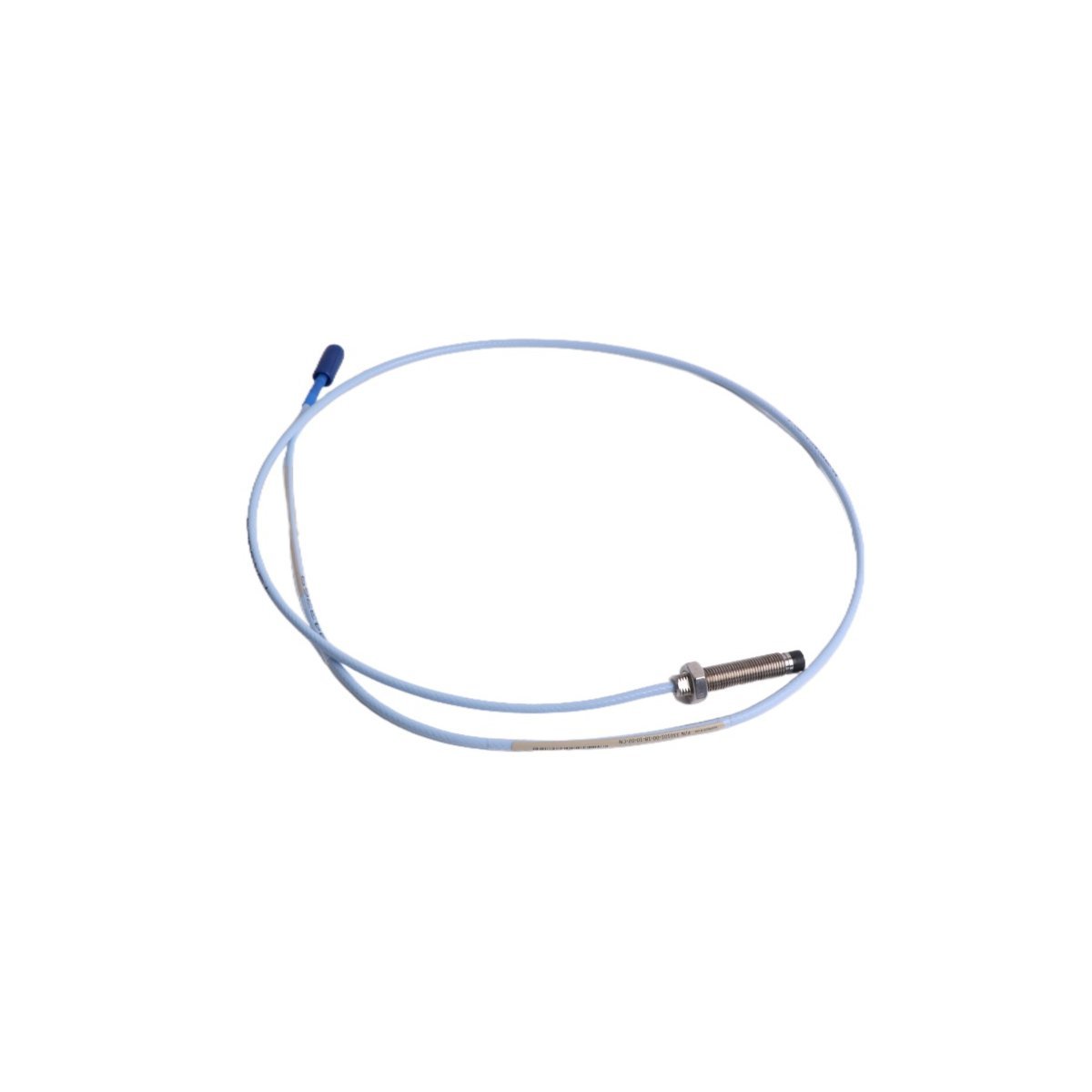

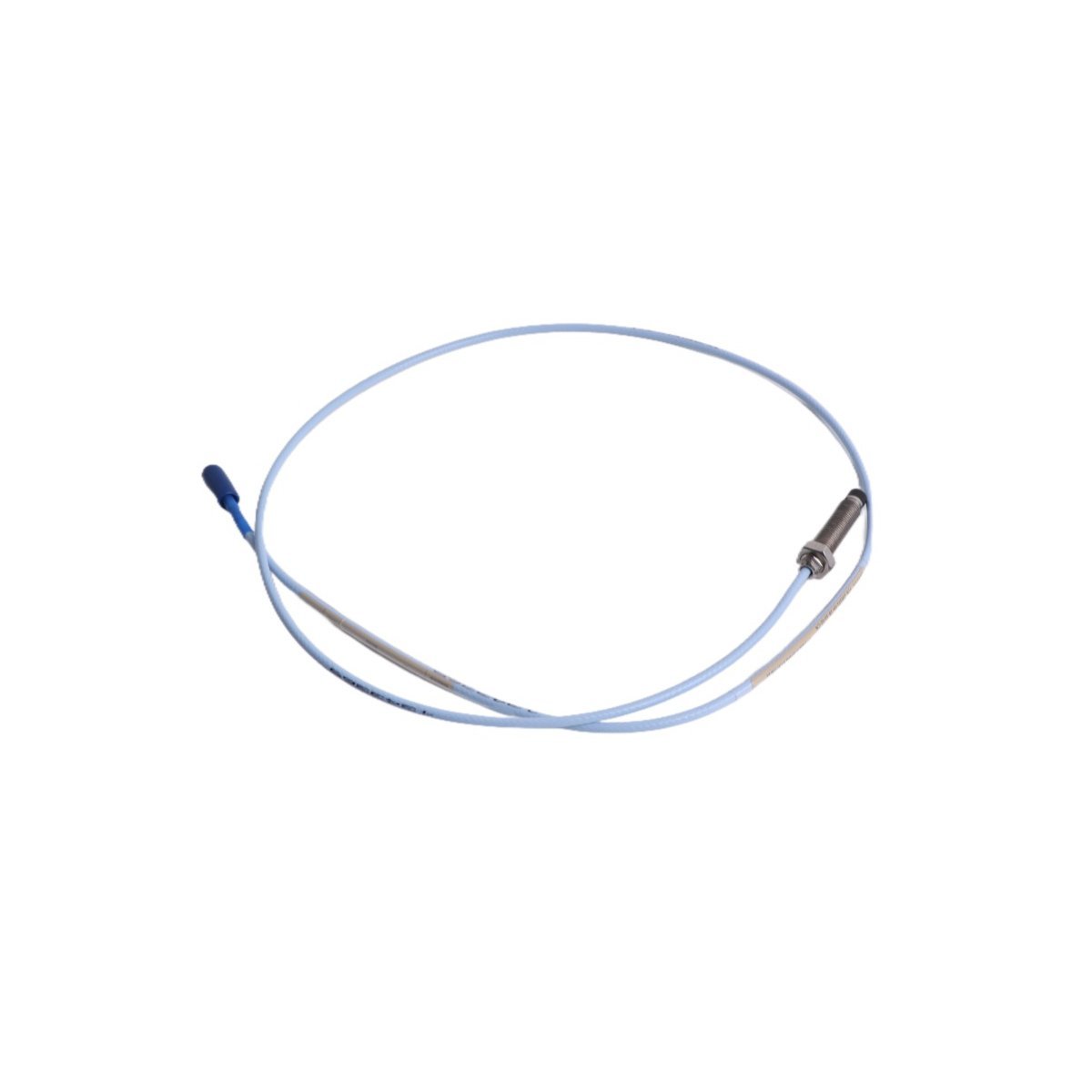

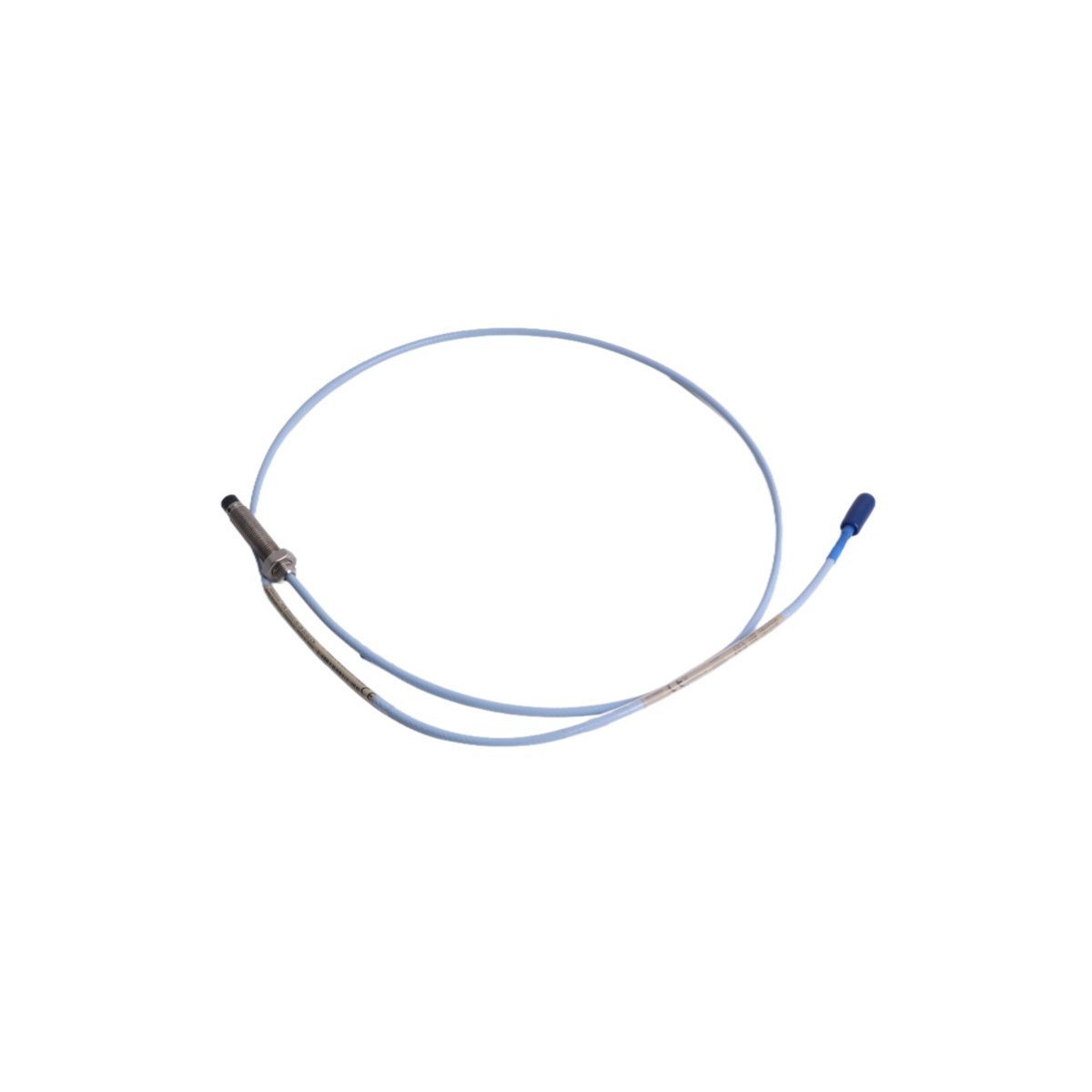

Configured for precision displacement and vibration sensing in Turbomachinery Supervision Instrumentation (TSI) platforms, the Bently Nevada 330101-00-18-05-02-05 (330101 8 mm Proximity Probe) provides direct electrical execution of non-contacting signal acquisition.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Integration

The 3300 XL series is utilized to facilitate accurate rotor dynamics observation through the application of eddy-current probe technology. Within this framework, optimal performance is achieved when rigorous gap voltage validation is performed, most notably by targeting -10 VDC at the mid-range mechanical position. As a direct consequence of this mandatory requirement, the eddy-current probe scaling must be calibrated by the operator to ensure that a linear output response is maintained across the intended measurement span. Moreover, signal interference is minimized by the integral cross-talk suppression circuitry when multiple probes are installed in close proximity; this physical implementation is, in turn, designed to guarantee data integrity within the monitoring instrumentation. Ultimately, these parameters are synchronized so that the stability of the vibration measurement loop is collectively ensured, thereby the operational availability of the monitored machine is maintained.

Frequently Asked Questions

Q: Is field matching of the probe, extension cable, and Proximitor sensor required for this model?

A: No, the 3300 XL system is designed for total component interchangeability, where individual parts are calibrated to a standard output, eliminating the requirement for manual matching.

Q: How is the gap voltage validated during the initial installation of the 330101 probe?

A: The probe is positioned relative to the target until a -10 VDC signal is measured at the output of the Proximitor sensor, which corresponds to the defined mid-range mechanical gap.

Field Installation Guidelines

• The housing assembly must be mounted to a rigid structure so that extraneous mechanical vibration is prevented from influencing the gap measurement.
• Thread locking compounds or lock nuts are recommended to be used to ensure that loosening due to machine thermal cycling is prevented.
• The required clearance for the probe tip must be maintained so that mechanical contact with the rotating target is avoided under all operational conditions.
• All cable connections should be routed through protective conduits so that environmental contamination and mechanical fatigue are effectively mitigated.
