Description

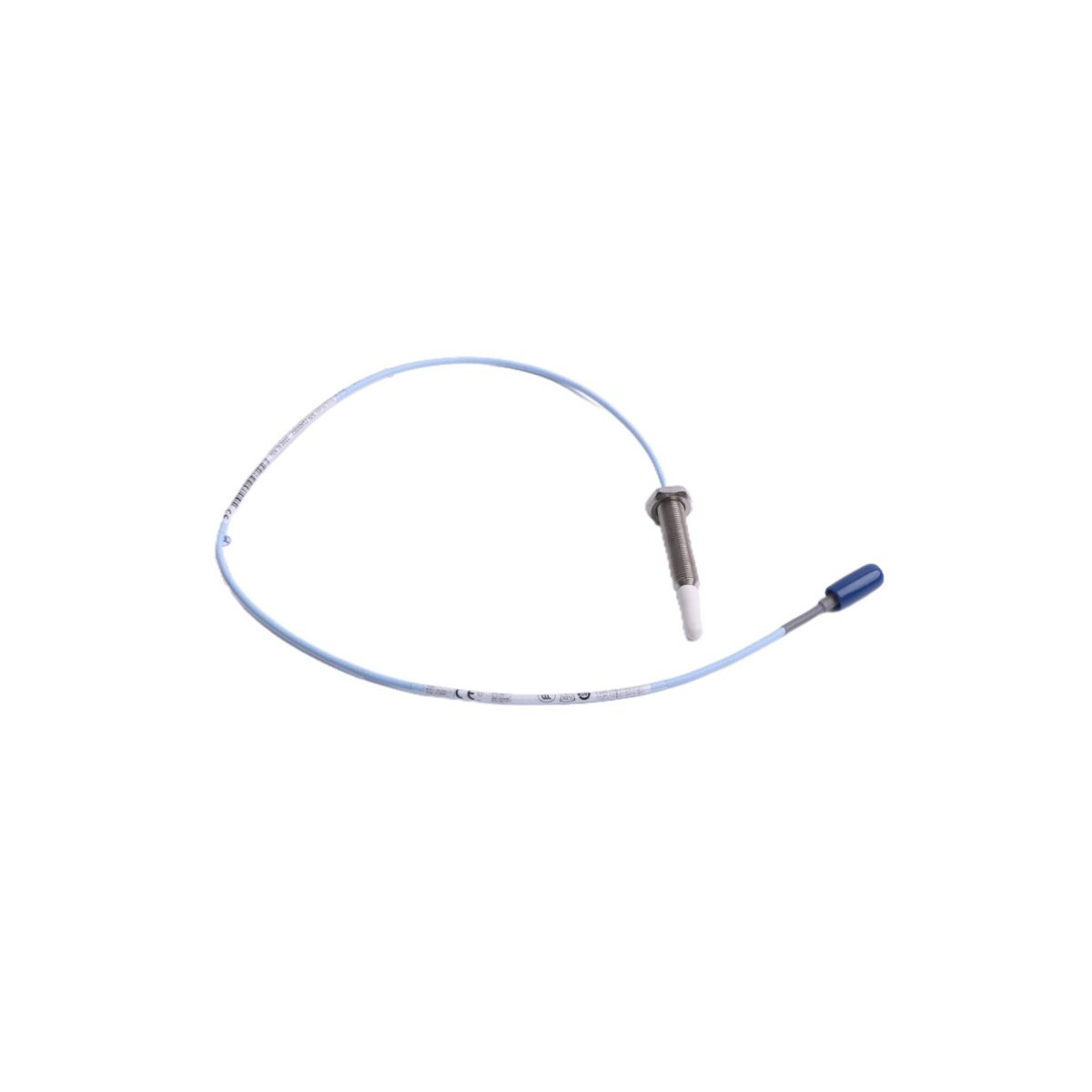

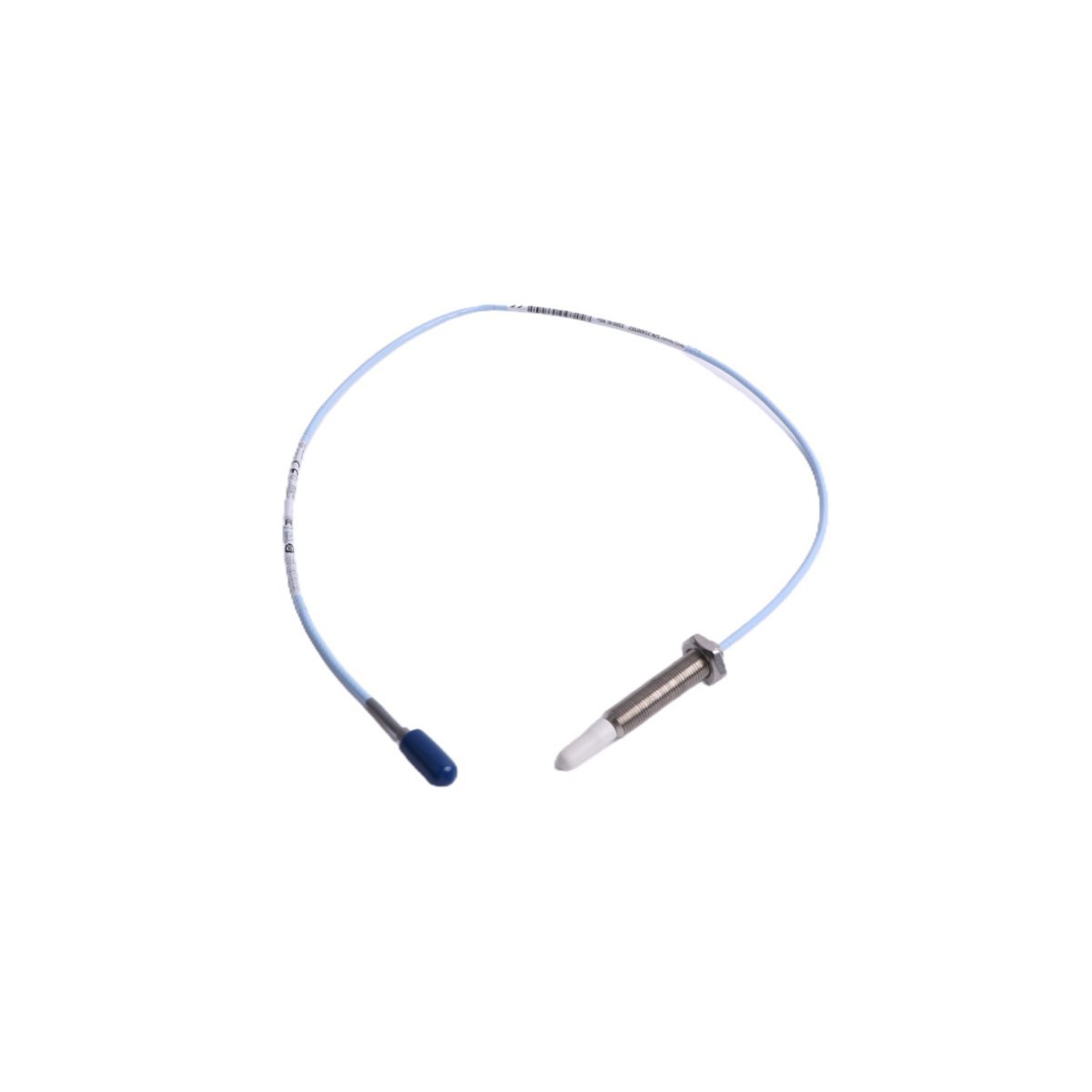

The Bently Nevada 330905-00-05-05-02-05, also cataloged as the 330905 Proximity Probe, operates as a dedicated hardware component for non-contact displacement and vibration monitoring within Turbomachinery Information (TSI) systems.

Suffix Breakdown & Model Matrix

• 330905: Base model for 3300 NSv Proximity Probe.
• 00: Unthreaded length (0.0 mm).
• 05: Overall case length (50 mm).
• 05: Total probe length (0.5 m).
• 02: Connector type (Miniature coaxial ClickLoc).
• 05: Agency approval (Multiple approvals).

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 330905 NSv probe utilizes eddy-current technology to generate a magnetic field that interacts with the conductive target surface, such as a rotating shaft. Furthermore, the probe output is highly dependent on precise eddy-current probe scaling; therefore, the probe must be used with a calibrated Proximitor sensor to ensure a linear voltage output proportional to the gap distance. Consequently, technicians must verify gap voltage validation (-10 VDC targets) during installation to ensure the probe operates within its linear measurement range. Ultimately, the application of rigorous cross-talk suppression and shielding practices—particularly in multi-probe installations—is required to mitigate electrical interference and ensure accurate rotor dynamics analysis.

Frequently Asked Questions (FAQ)

Q: Can the 330905 NSv probe be used with 3300 XL 8 mm system components?

A: No. The 3300 NSv system components are specifically engineered for small-diameter shafts and are not interchangeable with standard 3300 XL 8 mm system probes or extension cables.

Q: What is the purpose of the ClickLoc connector on this probe?

A: The ClickLoc connector provides a secure, vibration-resistant mechanical lock that maintains electrical contact integrity, preventing signal fluctuations caused by connector loosening in high-vibration environments.

Field Installation Guidelines

• Probe Mounting: Install the probe using the specified mounting bracket. Ensure the probe tip is perpendicular to the target surface to maintain accurate gap measurement and signal linearity.
• Cable Handling: Avoid sharp bends or kinks in the coaxial cable. The minimum bend radius must be strictly maintained to prevent damage to the internal conductor and shielding.
• Shield Termination: Ensure the coaxial cable shield remains continuous from the probe tip through the extension cable to the Proximitor sensor terminal to prevent ground-induced noise.
• Clearance: Maintain appropriate clearances from other metallic objects in the field of view of the probe tip to prevent parasitic eddy-current effects that can induce measurement errors.
