Description

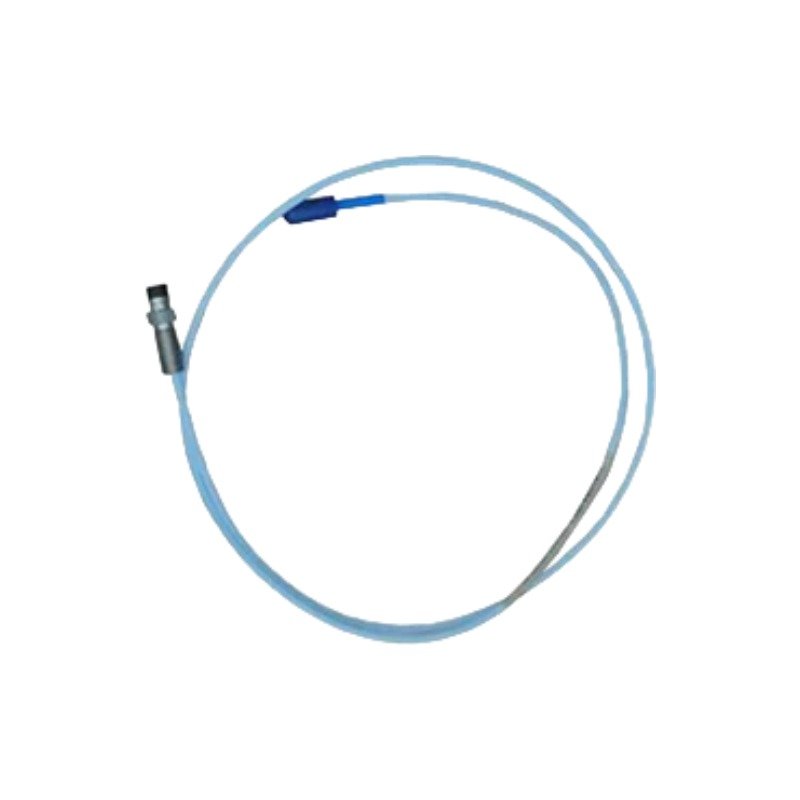

The Bently Nevada 330904-08-15-10-02-05 is a highly specialized hardware component designed for non-contact shaft vibration, tachometer, and displacement measurements. It forms part of the 3300 XL NSv (Narrow Side-View) Proximity Transducer System platforms, engineered specifically for compact installations with strict target geometry or space limitations.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks, specifically targeting tight physical spaces where standard 5 mm or 8 mm probes introduce severe side-view constraints. The narrow side-view (NSv) sensor core maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route adjacent signals through cramped machine counterbores or small-diameter shafts (smaller than 51 mm or 2 in).

Furthermore, the internal 75 ohm matching provides continuous gap voltage validation. Consequently, the assembly maintains stable targeting around calibrated -10 VDC operational centers and prevents signal attenuation that typically degrades the standard 7.87 V/mm (200 mV/mil) scale factor required to evaluate rotor dynamics on centrifugal air compressors and small-shaft fluid-filmed bearing machines.

Breakdown of Part Number Options

• -08 (Unthreaded Length): Specifies an unthreaded case length of 80 mm.
• -15 (Overall Case Length): Configures a total threaded and unthreaded case body length of 150 mm.
• -10 (Total Length): Sets an exact 1.0 meter total physical and electrical integrated probe length. To complete the standard 5.0 or 7.0 meters electrical loop required by the NSv Proximitor, this probe must be matched with a 4.0 or 6.0 meters NSv extension cable.
• -02 (Connector/Cable Type): Equips the assembly terminal with a miniature armored coaxial ClickLoc connector.
• -05 (Agency Approval): Certifies the assembly under multiple international safety frameworks (ATEX, IECEx, CSA) for safe deployment in potentially explosive atmospheres or hazardous locations.

Field Installation Guidelines

• Thread Engagement: Technicians must manually thread the M8x1 metric armored probe body into the machine housing bracket. Tighten strictly to standard engineering torque limits using a calibrated open-ended wrench to preserve the structural integrity of the internal TipLoc molded tip.
• Routing Radii: Always route the armored physical cable path with a minimum bend radius of 31.8 mm (1.25 in). Otherwise, over-bending distorts the external steel interlocks and risks crimping the internal miniature coaxial line.
• Ground Isolation: Because this specific hardware option omits pre-installed connector protectors (-02), installation teams must manually isolate the miniature ClickLoc junction using specialized silicone sleeves or tape. This prevents metal-to-metal contact with the machine frame and effectively eliminates electrical ground loops.
