Description

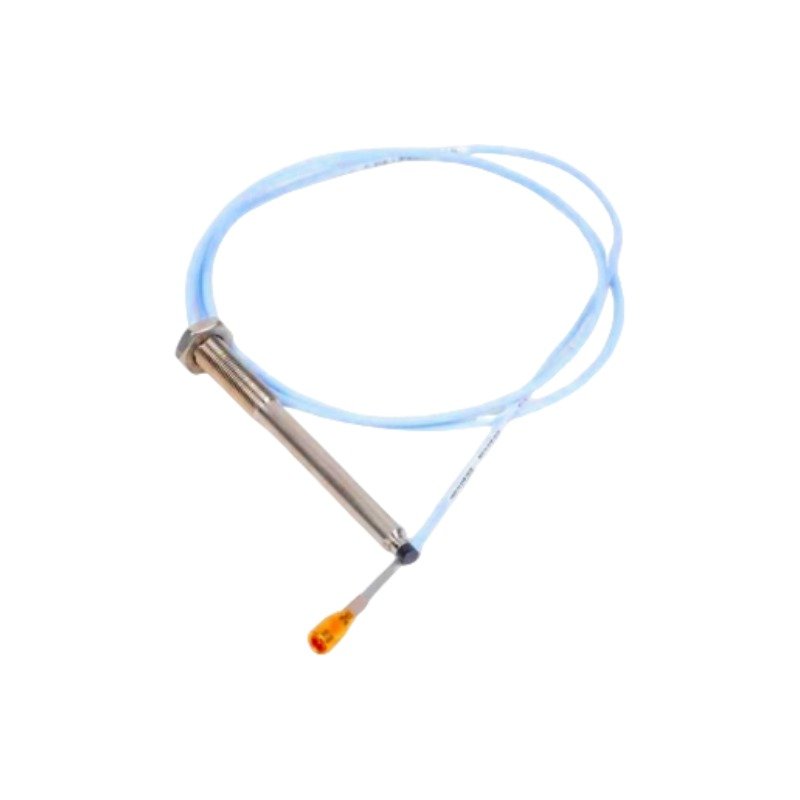

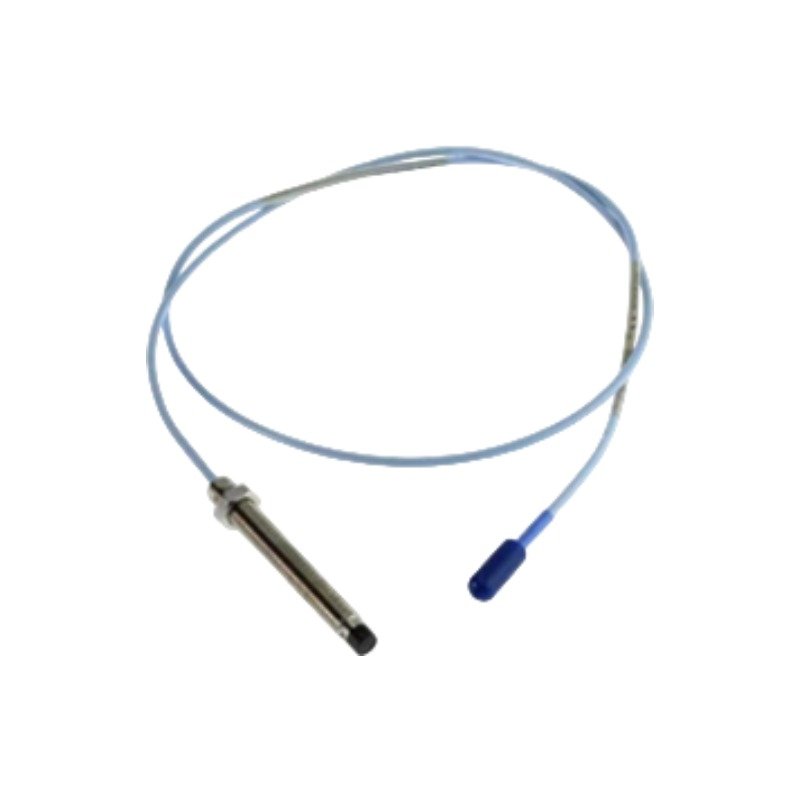

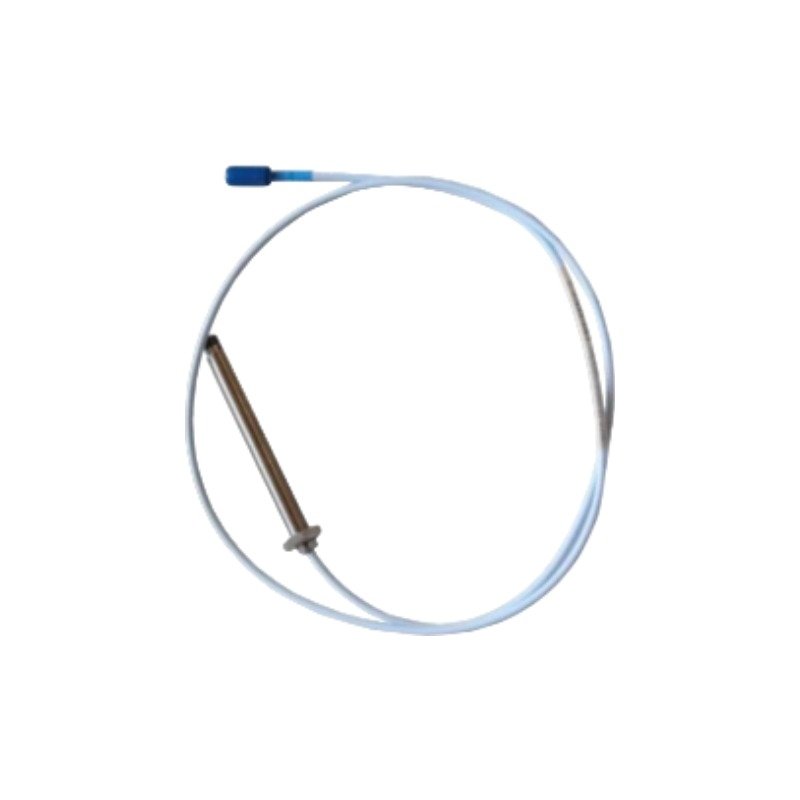

The Bently Nevada 330903-00-06-10-02-05 functions as a high-precision hardware component for eddy-current displacement sensing within 3300 XL NSv (Narrow Side-View) Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks, specifically targeting tight physical spaces where standard 5 mm or 8 mm probes introduce severe sideview constraints. Specifically, the compact narrow-view (NSv) sensor core maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route adjacent signals through cramped machine counterbores or small-diameter shafts. Furthermore, the internal 75 ohm matching provides continuous gap voltage validation. Consequently, the assembly maintains stable targeting around calibrated -10 VDC operational centers and prevents signal attenuation that typically degrades the standard 7.87 V/mm (200 mV/mil) scale factor required to evaluate rotor dynamics on centrifugal air compressors and small-shaft turbomachinery.

Frequently Asked Questions

Q: What specific mounting dimensions do the -00 and -06 option codes establish for this probe?

A: The -00 designator dictates 0 mm of unthreaded case length, while the -06 code defines a 60 mm overall threaded case length with an M8x1 metric thread configuration without external armor.

Q: How does the -05 approval option affect field deployment in hazardous areas?

A: The -05 designation certifies the assembly under multiple international safety frameworks, including ATEX, IECEx, and CSA. Consequently, field teams can safely install this hardware in potentially explosive atmospheres or Class I, Zone 0/1 locations when using appropriate intrinsic safety barriers.

Field Installation Guidelines

• Thread Engagement: Technicians must manually thread the M8x1 metric probe body into the machine housing tap. Tighten strictly to standard engineering torque limits using a calibrated open-ended wrench to preserve the structural integrity of the internal TipLoc molded tip.
• Routing Radii: Always route the integrated 1.0 meter FEP-insulated coaxial cable path with a minimum bend radius of 25.4 mm (1.0 in). Otherwise, over-bending damages the internal 75 ohm shields and introduces signal distortions.
• Terminal Isolation: Verify that standard connector protectors or silicone boots fully isolate the miniature ClickLoc junction point. This isolation prevents metal-to-metal physical contacts with the machine frame and effectively eliminates electrical ground loops.
