Description

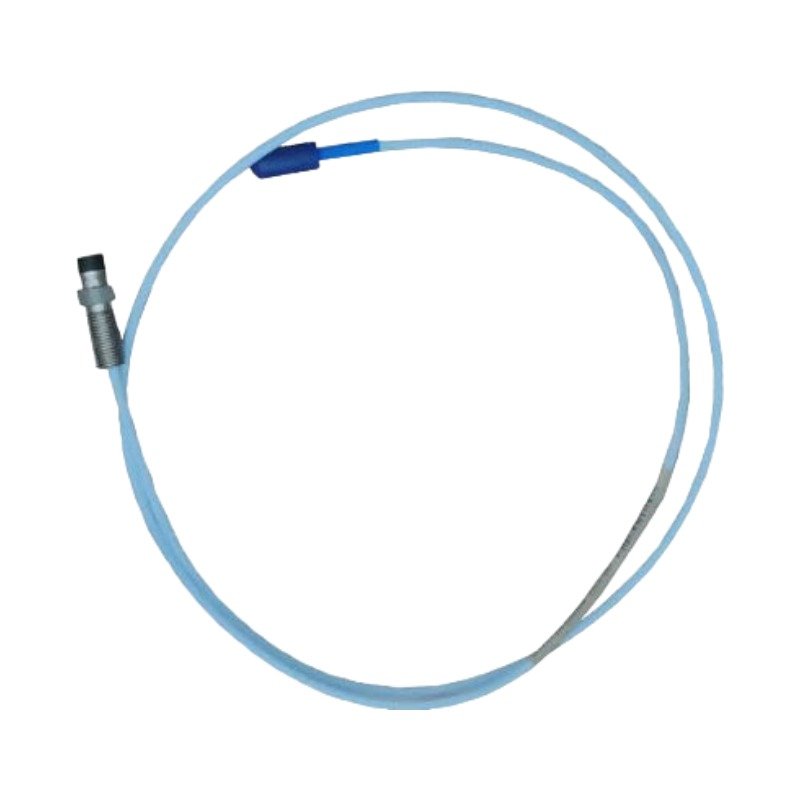

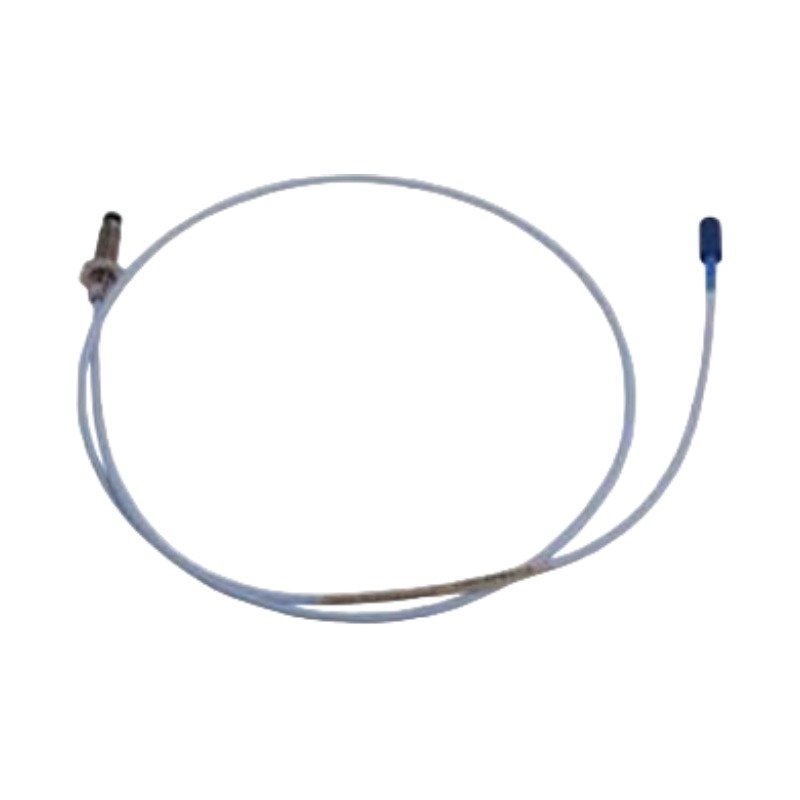

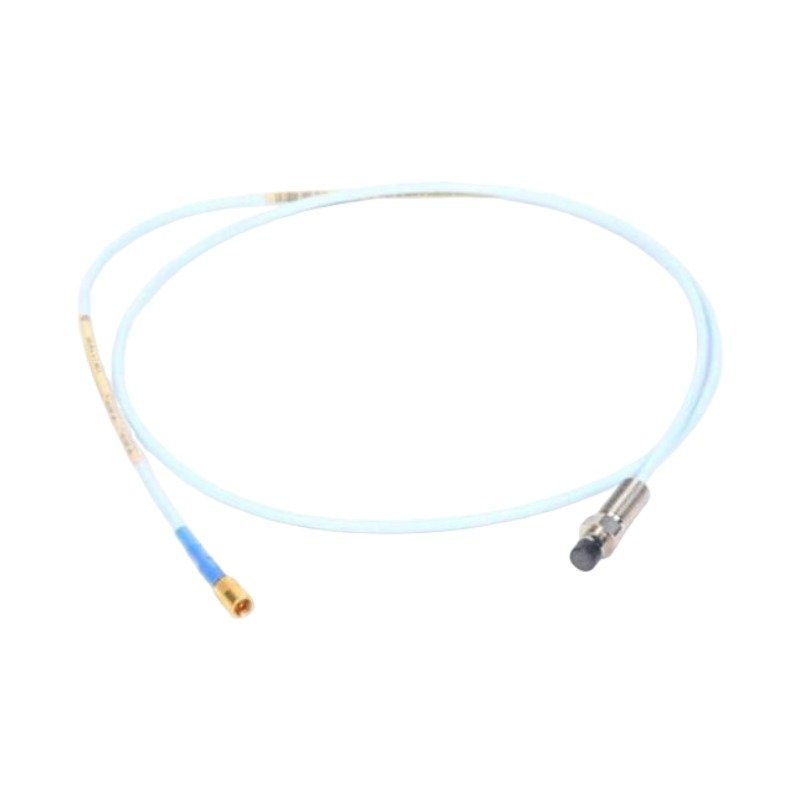

Configured for non-contact shaft vibration and position monitoring in Bently Nevada 3300 and 3500 Machinery Protection Systems, the Bently Nevada 330171-00-94-10-02-00 (330171 Proximity Probe) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This specialized 5 mm sensor executes precise eddy-current probe scaling to convert dynamic physical displacement into an analog voltage output. Consequently, the hardware captures high-frequency rotor dynamics across restricted machinery locations with limited side-view clear spaces. During field configuration, technicians track continuous gap voltage validation to confirm mechanical center calibration, targeting a nominal -10 VDC setpoint to center the loop within its linear boundaries. Furthermore, maintaining proper lateral separation between multiple probes enforces cross-talk suppression and isolates the inductive signal from phase-shifted channel interference.

Frequently Asked Questions

Q: How does the compact 5 mm tip configuration impact field mounting alignment?

A: The 5 mm tip diameter permits installation on smaller target zones like tight bearing housings or shafts under 51 mm. Therefore, technicians achieve standard 200 mV/mil scale factor accuracy while operating with reduced physical clearance constraints.

Q: What actions prevent high-frequency loop distortion across the ClickLoc connection?

A: Field crews must keep the gold-plated miniature coaxial contacts completely dry and clean. Consequently, using a digital voltmeter to check the gap voltage validation baseline ensures no moisture causes resistance spikes.

Field Installation Guidelines

• Maintain a minimum lateral space equal to two probe tip diameters between adjacent sensors to enforce complete cross-talk suppression.
• Engage a minimum of 5 full threads of the 1/4-28 UNF body into the mounting bore to guarantee structural stability against engine vibration.
• Route the triaxial FEP insulation cable inside grounded metallic conduit to isolate the low-voltage loop from high-voltage motor distributions.
• Torque the miniature coaxial ClickLoc connection to finger-tight specifications and wrap the interface with self-fusing silicone tape to stop fluid entry.
