Description

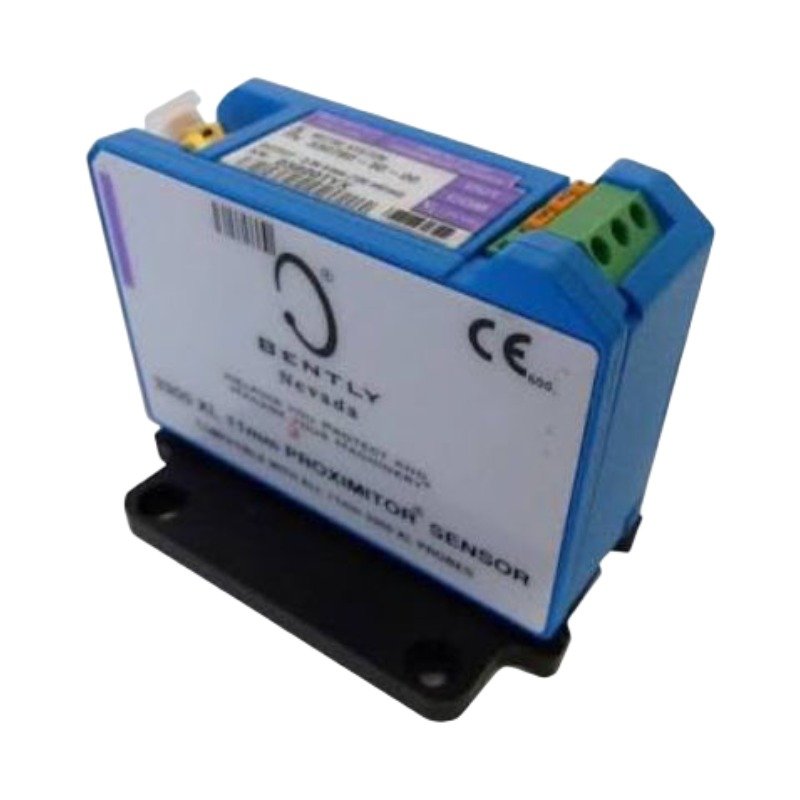

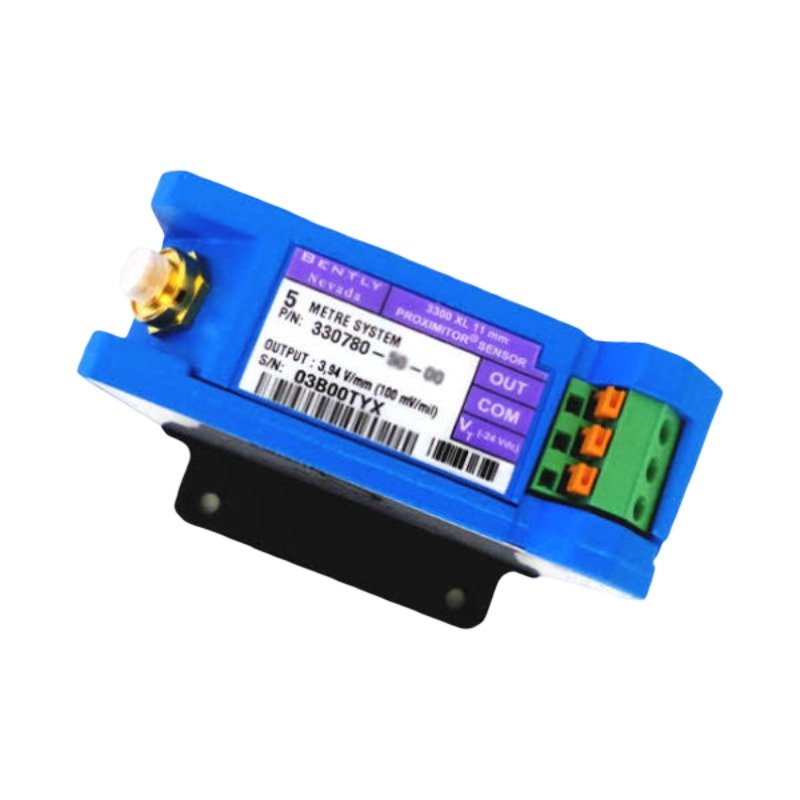

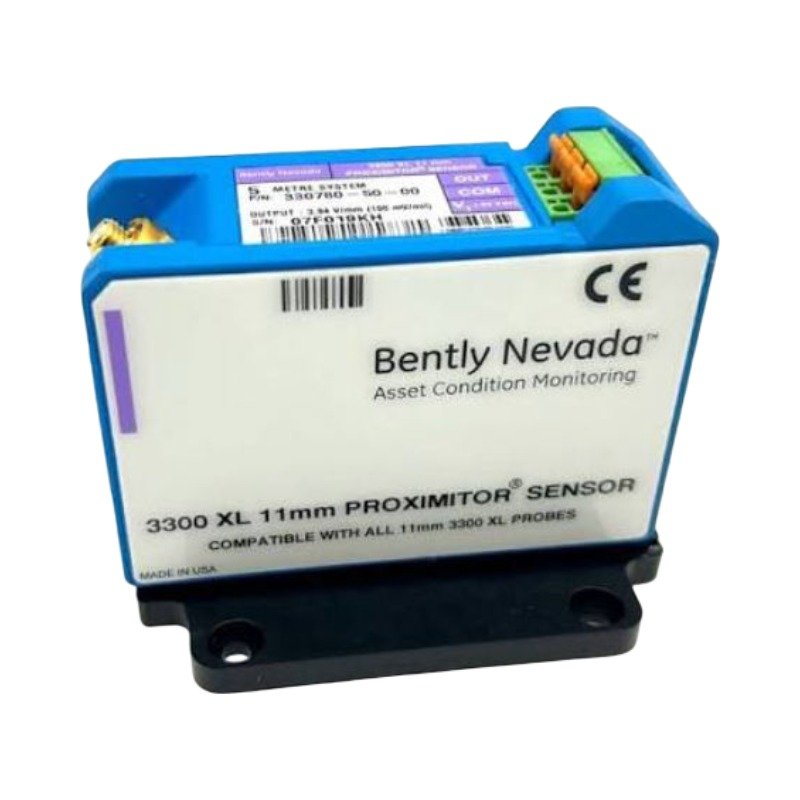

The Bently Nevada 330780-50-00, also cataloged as the 330780 Proximitor Sensor, operates as a dedicated hardware component for non-contact shaft vibration and axial position monitoring within Bently Nevada 3300 and 3500 Machinery Protection Systems.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This preamplifier executes eddy-current probe scaling to convert high-frequency physical displacement directly into an analog voltage signal. Consequently, the hardware tracks large-displacement rotor dynamics and fluid-film bearing parameters without structural contact. During field calibration routines, technicians perform gap voltage validation to establish the proper physical proximity baseline, targeting a nominal -10 VDC setpoint to balance the sensor within its expanded 4.0 mm linear tracking bounds. Furthermore, the integrated circuitry provides high radio frequency interference isolation, which enforces cross-talk suppression when installing multiple proximity networks inside high-density industrial panels.

Frequently Asked Questions

Q: How does the 11mm system scale factor differ from the standard 8mm transducer systems?

A: The 330780-50-00 utilizes an 11mm calibration curve that yields an average scale factor of 3.94 V/mm (100 mV/mil). Therefore, the system cuts the output sensitivity in half compared to the 8mm version to achieve double the linear measurement range.

Q: Can installation teams mix this 11mm Proximitor sensor with older 7200 series transducer components?

A: No. The internal electrical tuning parameters require complete matching component families. Consequently, field personnel must install the 330780-50-00 exclusively with 3300 XL 11mm proximity probes and matching 11mm extension cables to prevent scale factor distortion.

Field Installation Guidelines

• Mount the aluminum chassis securely onto a rigid, grounded backplane layout to eliminate mechanical vibration errors.
• Verify that the combined physical length of the 11mm probe and extension cable equals exactly 5.0 meters to maintain calibrated measurement accuracy.
• Position the probe tip relative to a flat target that measures at least 30.5 mm (1.2 inches) in diameter to ensure full eddy-current loop capture.
• Check the output voltage terminals using a calibrated digital voltmeter to verify that the final physical gap generates the targeted -10 VDC baseline prior to final locknut tightening.
