Description

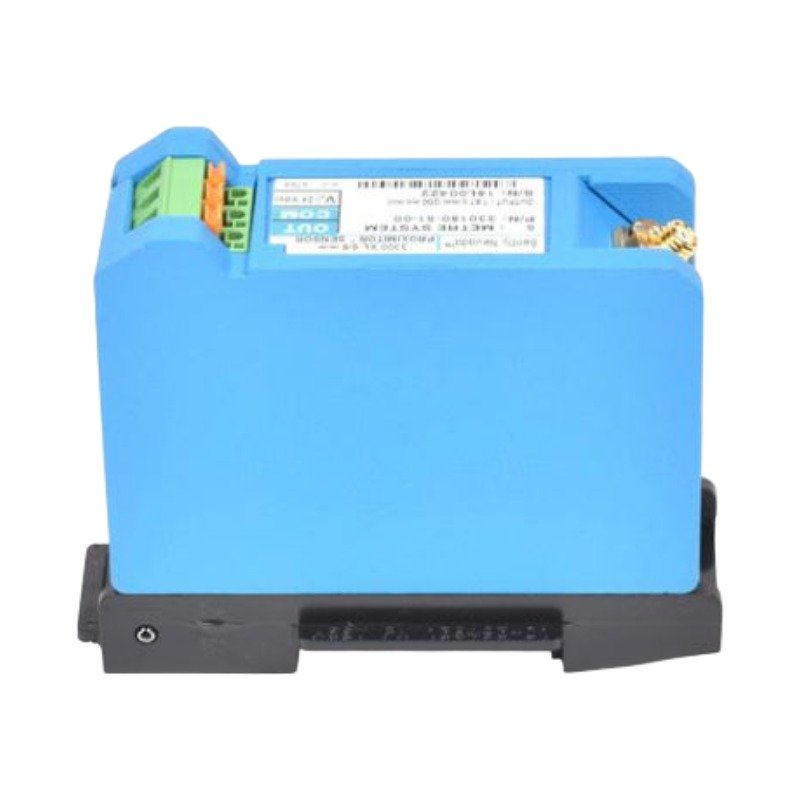

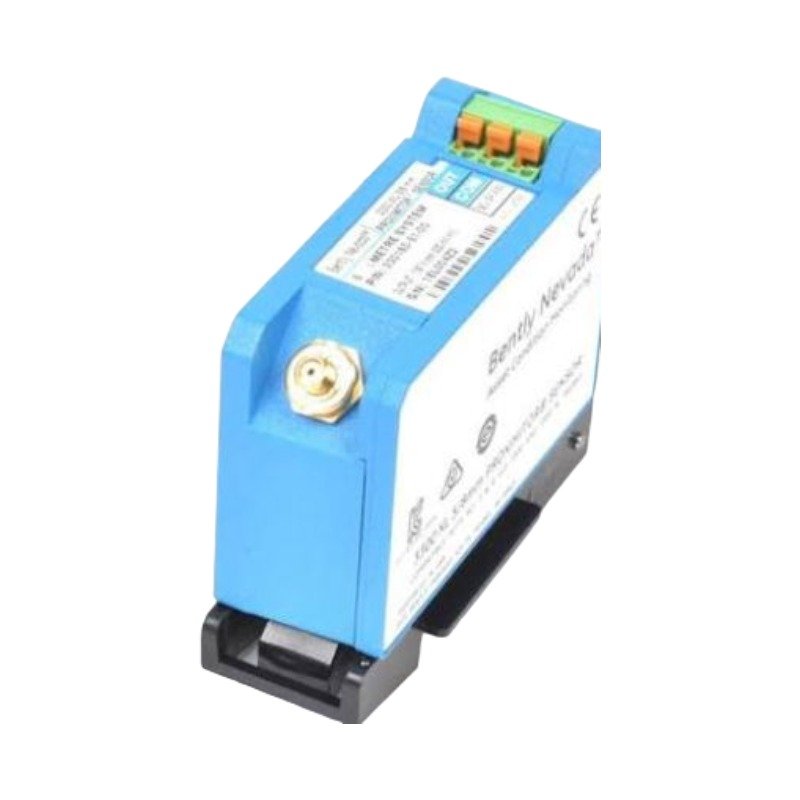

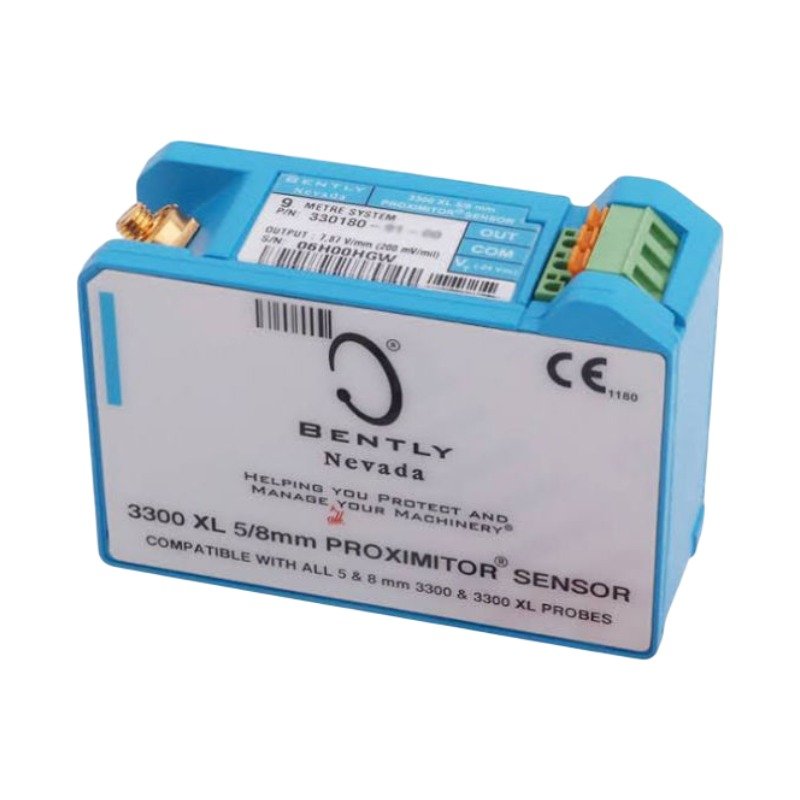

The Bently Nevada 330180-51-00, also cataloged as the 330180 Proximitor Sensor, operates as a dedicated hardware component for non-contact shaft vibration, axial position, and speed monitoring within Bently Nevada 3300 and 3500 Machinery Protection Systems.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This preamplifier executes eddy-current probe scaling to convert high-frequency physical displacement directly into a clean analog voltage signal. Consequently, the hardware tracks dynamic rotor dynamics and fluid-film bearing parameters without structural contact. During field setup, technicians monitor the gap voltage validation to verify the physical proximity baseline, targeting a nominal -10 VDC setpoint to balance the sensor within its linear monitoring bounds. Furthermore, the integrated circuitry provides high radio frequency interference isolation, which enforces cross-talk suppression when installing multiple proximity networks in high-density areas.

Frequently Asked Questions

Q: How does the total hardware system length option impact cross-component calibration?

A: The 330180-51-00 model matches a strict 5.0-meter total system length. Therefore, the combination of the physical probe length and the extension cable length must equal 5.0 meters to maintain calibrated scale factor accuracy.

Q: Does the integrated mounting base require separate insulating hardware during panel installation?

A: No. The physical engineering of this Proximitor housing provides complete electrical isolation directly at the base. Consequently, technicians mount the hardware onto standard 35 mm DIN rails without adding separate isolator plates.

Field Installation Guidelines

• Mount the sensor onto a clean 35 mm DIN rail inside a protective enclosure to maintain stable grounding and isolate the device from external physical debris.
• Verify that the combined physical length of the probe and extension cable equals exactly 5.0 meters to prevent scale factor degradation.
• Measure the gap voltage baseline across the terminal outputs using a calibrated multimeter to guarantee the initial signal registers between -9 VDC and -10 VDC.
• Tighten the field terminal screws according to the specified torque matrix to eliminate intermittent voltage drops across the monitoring loop.
