Description

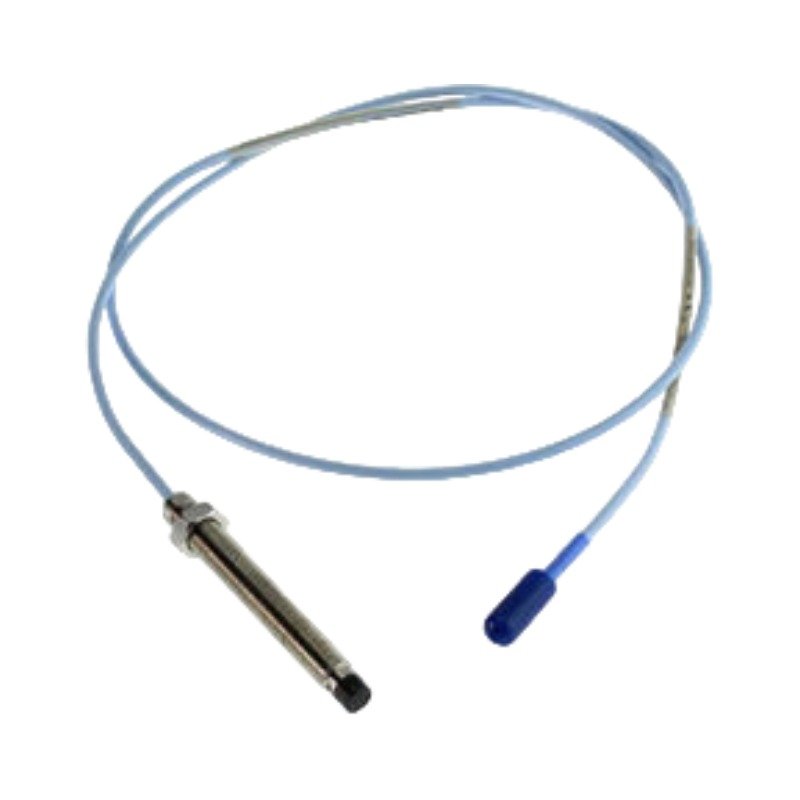

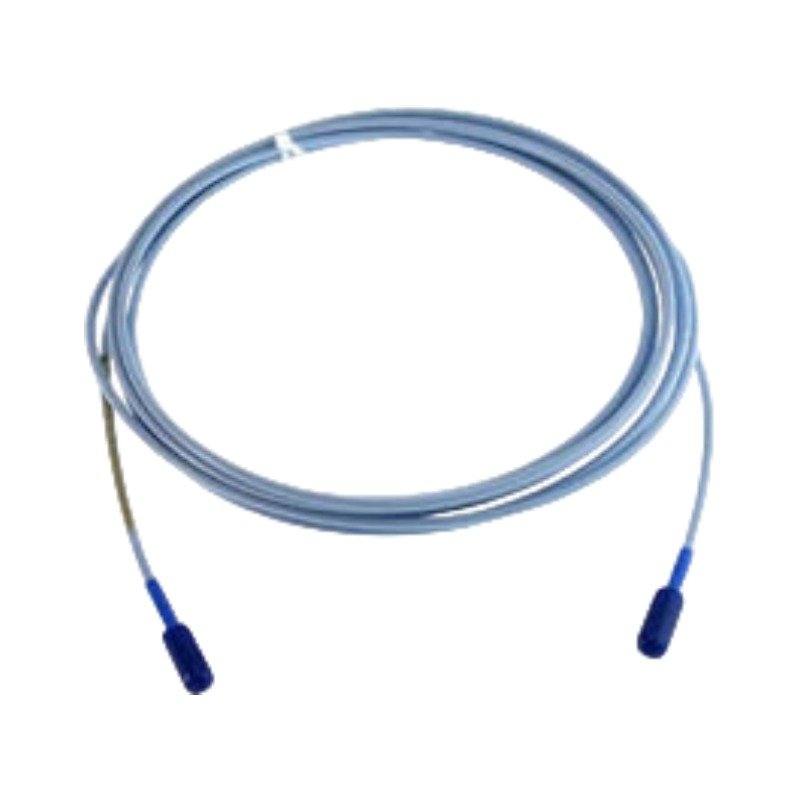

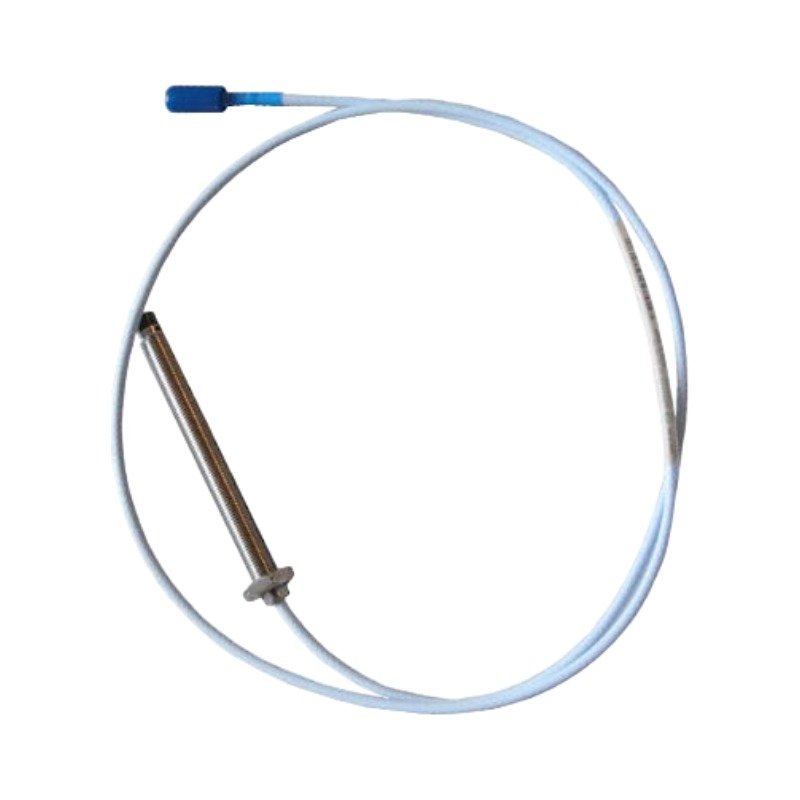

The Bently Nevada 330103-03-09-10-02-00, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for non-contact shaft vibration and position monitoring within Bently Nevada 3300 and 3500 Machinery Protection Systems.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This probe executes eddy-current probe scaling to convert physical displacement directly into a clean electrical voltage signal. Consequently, the hardware tracks high-frequency rotor dynamics without physical component contact. During setup, engineers perform gap voltage validation to verify calibration alignment, tracking a nominal -10 VDC target to center the sensor precisely within its linear execution limits. Furthermore, maintaining proper physical spacing between adjacent sensors ensures robust cross-talk suppression and eliminates high-frequency electromagnetic interference.

Frequently Asked Questions

Q: How does the technician verify the correct physical installation depth?

A: The technician adjusts the physical depth until a digital multimeter verifies a gap voltage validation target of -10 VDC. This exact baseline confirms that the sensor operates precisely within its stable linear execution limits.

Q: Can maintenance crews disconnect the probe cable while the main machinery protection rack remains powered?

A: Yes. Technicians can safely disconnect the passive probe from the extension cable or Proximitor sensor while the rack is live. However, this disruption triggers a Not OK fault condition on the corresponding monitor channel immediately.

Field Installation Guidelines

• Maintain a minimum physical distance equal to two probe tip diameters between adjacent sensors to enforce complete cross-talk suppression.
• Ensure a minimum of 5 full threads of engagement when screwing the probe body into the mounting bracket or machine housing.
• Route all extension cables through dedicated, grounded metal conduit to isolate the low-voltage signals from high-voltage distribution lines.
• Tighten the miniature coaxial ClickLoc connector to finger-tight specifications and wrap the junction tightly using self-fusing silicone tape to prevent fluid entry.
