Description

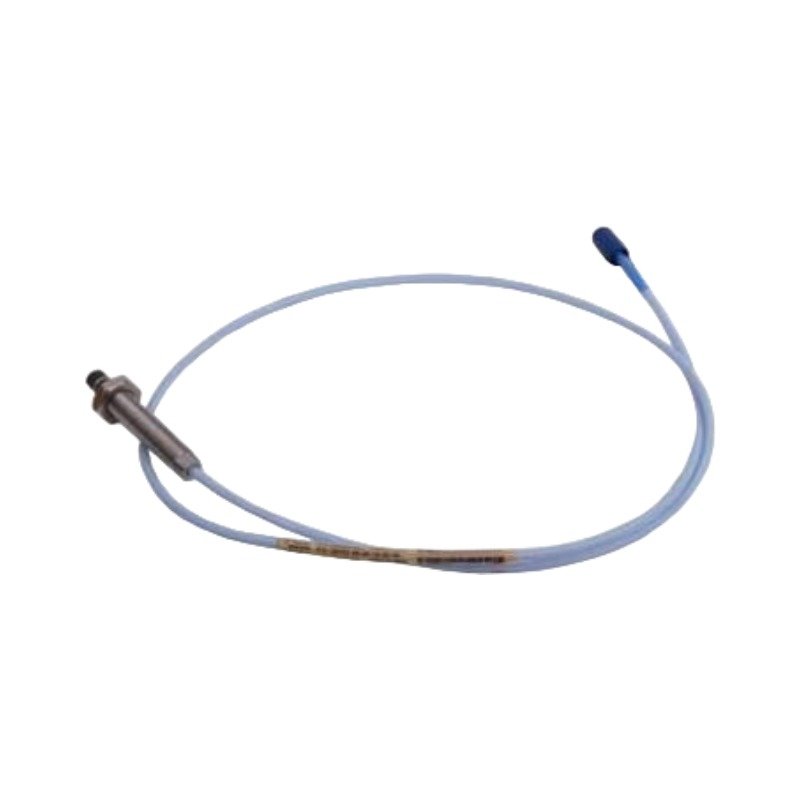

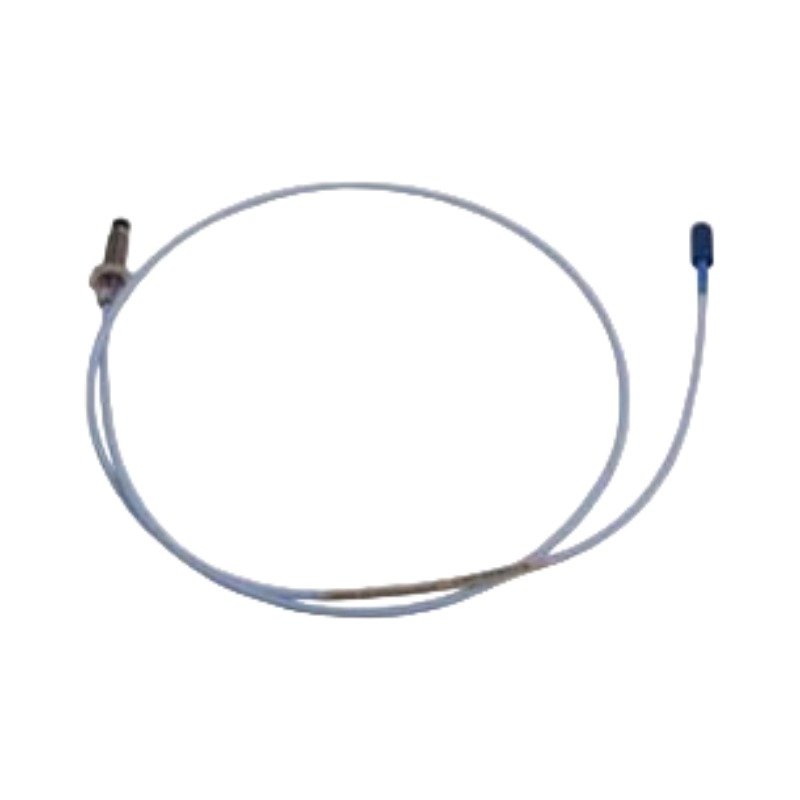

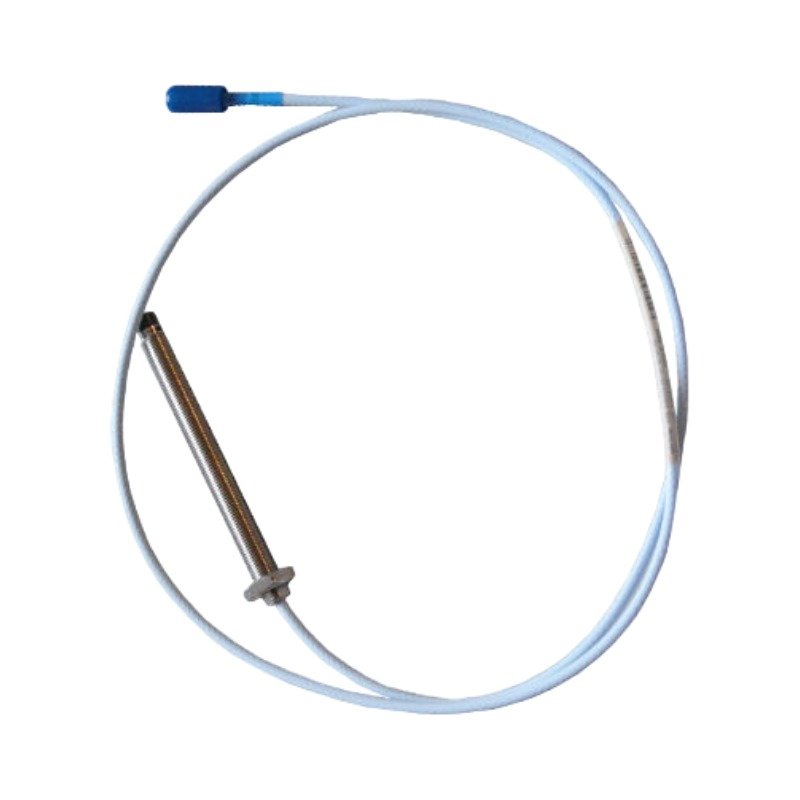

The Bently Nevada 330103-00-04-05-02-00, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for non-contact shaft vibration and position monitoring within Bently Nevada 3300 and 3500 Machinery Protection Systems.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This short-cable transducer executes precise eddy-current probe scaling to convert physical gap displacement directly into a clean analog voltage signal. Consequently, the hardware tracks high-frequency rotor dynamics and fluid-film bearing changes without mechanical component contact. During installation, technicians perform immediate gap voltage validation to confirm calibration alignment, tracking a nominal -10 VDC target to center the sensor within its linear monitoring limits. Furthermore, maintaining proper physical separation boundaries between multiple sensors ensures robust cross-talk suppression and eliminates phase-shifted electrical interference.

Frequently Asked Questions

Q: How does the short 0.5-meter physical cable length option impact total system loop matching?

A: The 330103-00-04-05-02-00 probe contains a built-in 0.5-meter cable. Therefore, the field crew must pair this component with a 4.5-meter extension cable to satisfy the 5.0-meter total system length requirement of the standard Proximitor sensor.

Q: What actions should technicians take if the gap voltage registers outside the -10 VDC baseline?

A: The technician must loosen the physical mounting locknuts and rotate the probe body within the threaded bore. Consequently, this adjustment shifts the physical distance until a digital multimeter verifies that the gap voltage validation matches the -10 VDC target.

Field Installation Guidelines

• Maintain a minimum lateral clearance space equal to two probe tip diameters between adjacent sensors to enforce complete cross-talk suppression.
• Ensure a minimum of 5 full threads of engagement when screwing the 3/8-24 UNF probe body into the bracket or machine housing.
• Route the low-voltage coaxial lead inside a grounded metal conduit to isolate the electrical signal from high-voltage motor or distribution lines.
• Align and snap the miniature coaxial ClickLoc connector securely to finger-tight limits, then wrap the joint with self-fusing silicone tape to prevent fluid intrusion.
