Description

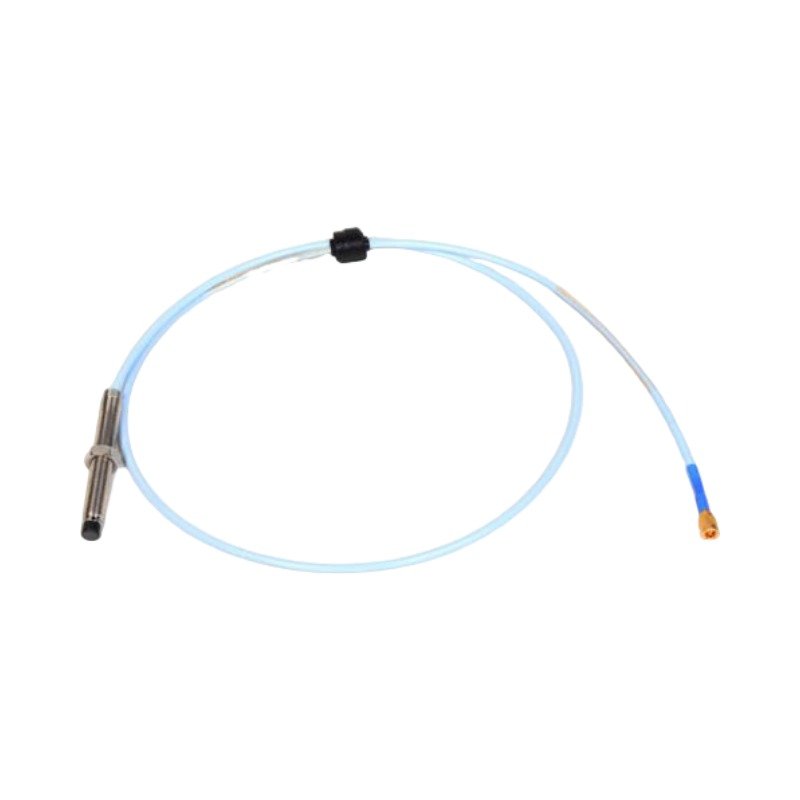

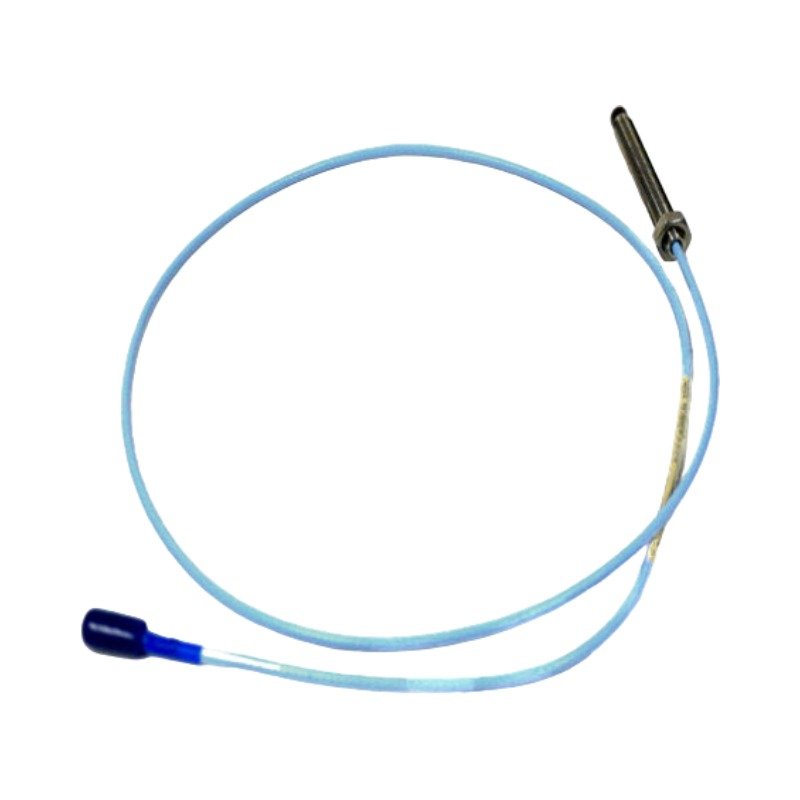

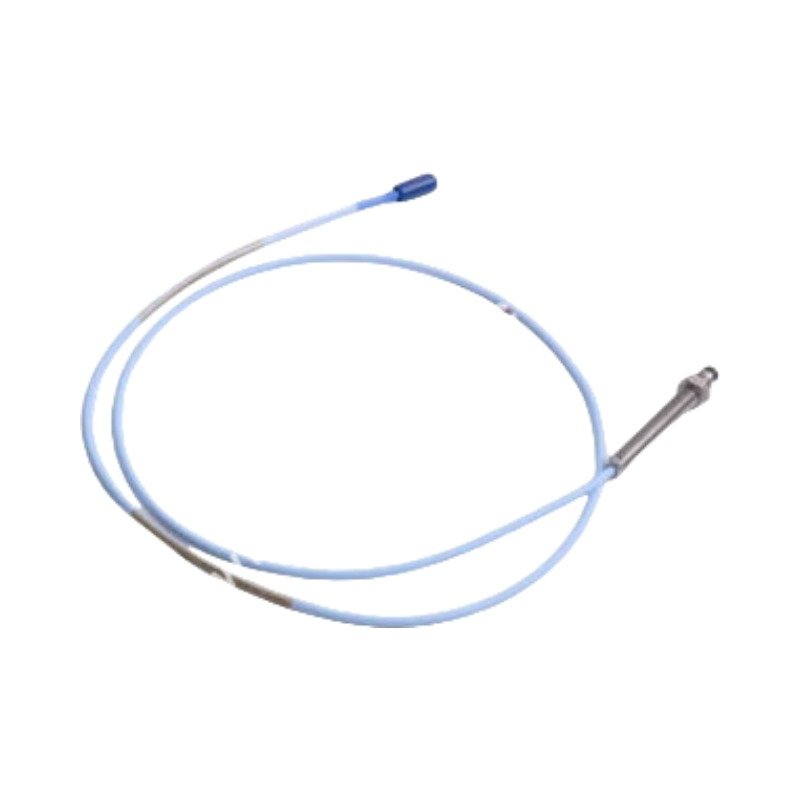

The Bently Nevada 330101-00-55-10-02-05, also cataloged as the 330101 Proximity Probe, operates as a dedicated hardware component for non-contacting shaft displacement and vibration measurements within the 3300 XL 8mm Proximity Transducer System.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 330101-00-55-10-02-05 proximity probe utilizes eddy-current technology to generate a high-frequency electromagnetic field around the probe tip. When a conductive surface approaches the polyphenylene sulfide (PPS) tip, eddy currents are induced, altering the amplitude of the RF signal supplied by the external Proximitor. The system evaluates static and dynamic rotor dynamics by transforming this impedance change into an output voltage directly proportional to the physical gap. Accurate operations rely on precise gap voltage validation, targeting -10 VDC during physical mechanical positioning to position the transducer at the midpoint of its 2.0 mm (80 mil) linear calibration range. Cross-talk suppression is maintained through strict physical spacing guidelines between adjacent probe tips, preventing adjacent magnetic field overlap from distorting low-level data.

Frequently Asked Questions

Q: Can the 330101-00-55-10-02-05 probe be directly connected to a 3500 series monitor module?

A: No. The passive proximity probe must first connect to a matching 3300 XL Proximitor Sensor via a 3300 XL extension cable. The Proximitor then conditions the signal into a linear voltage output suitable for processing by a 3500 series monitor module or alternative TSI racks.

Q: What is the maximum physical torque limit for installing the probe thread into a machine casing?

A: The maximum rated installation torque for the 3/8-24 UNF probe case is 11.2 N-m (100 in-lb). Exceeding this mechanical specification risks shearing the stainless steel thread housing or damaging the internal coil assembly.

Q: Does the ClickLoc coaxial connector require specific tools to secure its connection?

A: No. The gold-plated miniature coaxial ClickLoc connectors are engineered for finger-tight engagement. Joining the probe cable to the extension cable requires mating the components and turning until an audible “click” confirms the locking mechanism has engaged. Do not use pliers or specialized wrenches.

Field Installation Guidelines

• Thread Mounting Alignment: Thread the probe into the tapped bracket by hand to avoid cross-threading. Adjust the physical position while monitoring the DC gap voltage via the Proximitor Sensor output until the electrical potential reads exactly -10 VDC, corresponding to the mechanical linear centerpoint.
• Locknut Security: Once the correct gap voltage is achieved, tighten the supplied locknut against the mounting housing. Use a backup wrench on the probe flat to prevent the probe body from rotating out of alignment during the locknut tightening phase.
• Cable Bend Radius Controls: Route the 75 Ohm triaxial FEP-insulated probe lead away from hot surfaces and sharp mechanical edges. Maintain a strict minimum physical cable bend radius of 25.4 mm (1.0 in) along the entire path to prevent internal conductor damage.
• Conduit and Shield Isolation: Pull the probe cable through dedicated, oil-resistant flexible conduit when routing through machine internals. Ensure the coaxial shield terminates completely at the Proximitor Sensor housing, maintaining a isolated floating chassis ground layout at the sensor tip to suppress ambient electromagnetic interference.
